Hoop Single Fixed Square Recessed Downlight - White

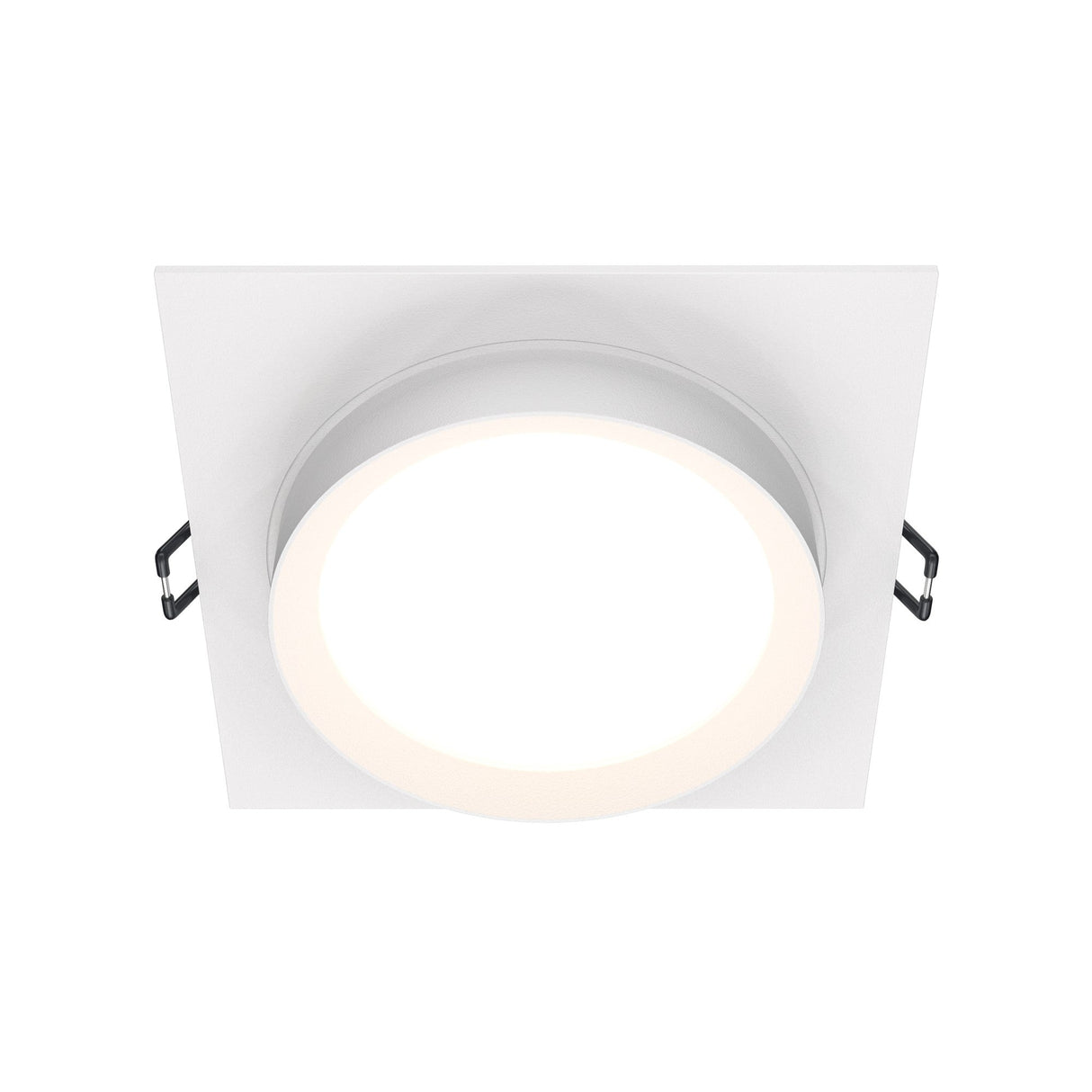

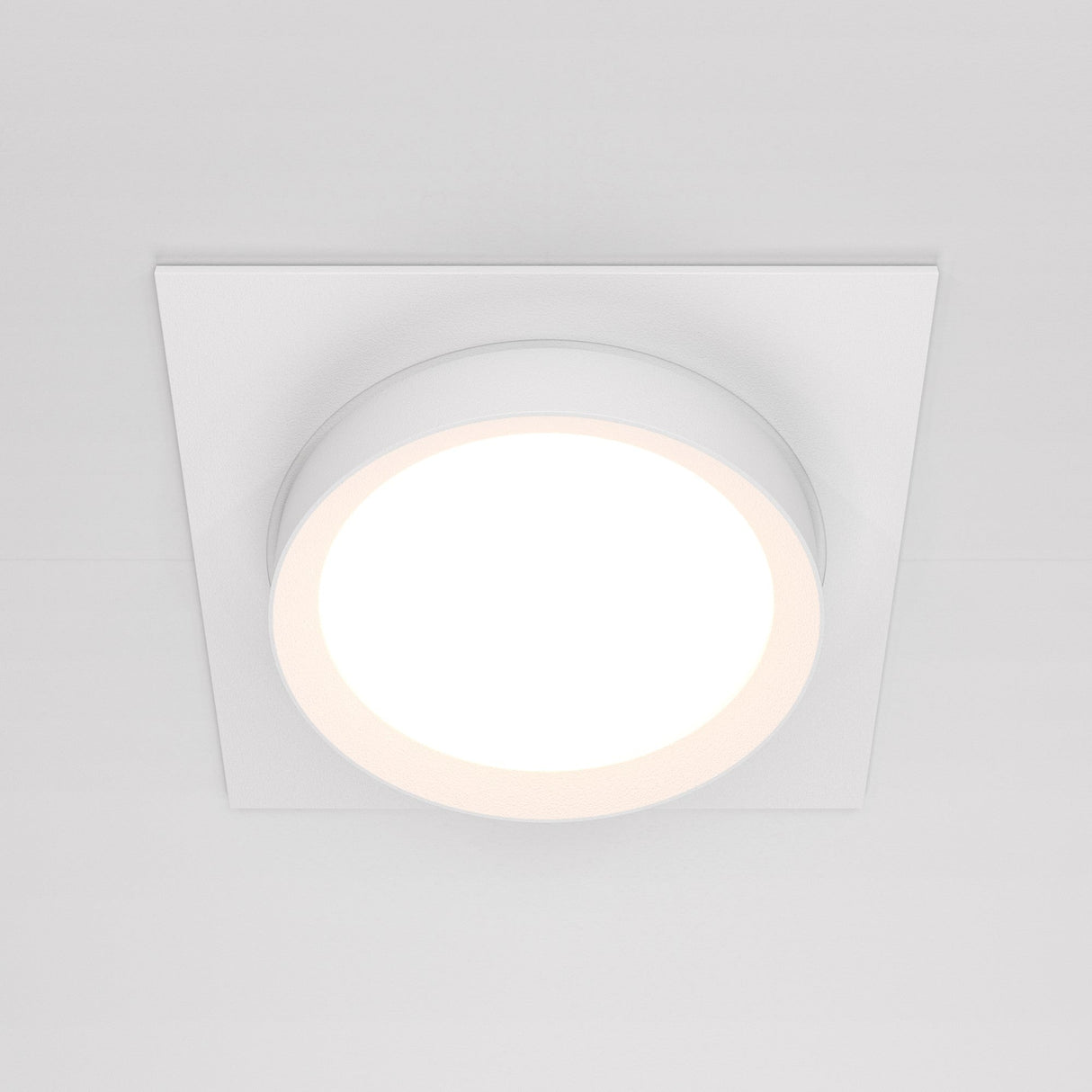

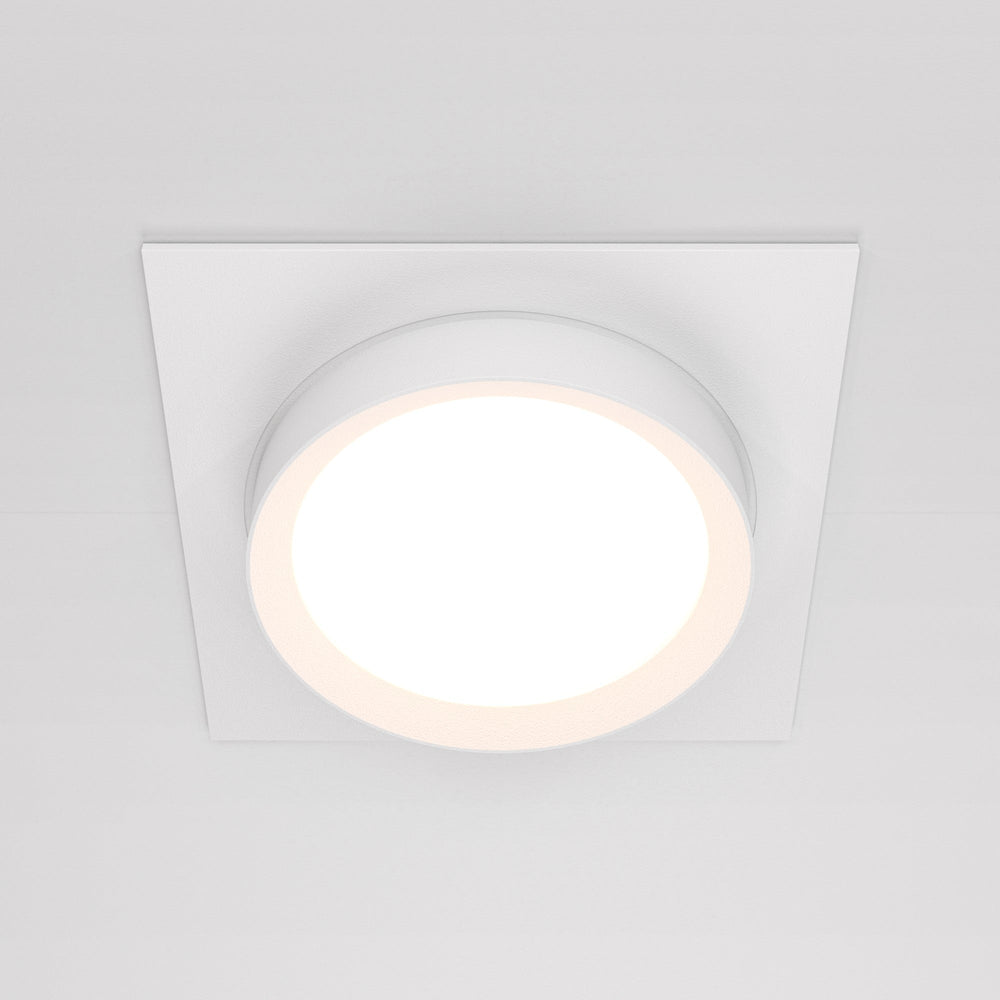

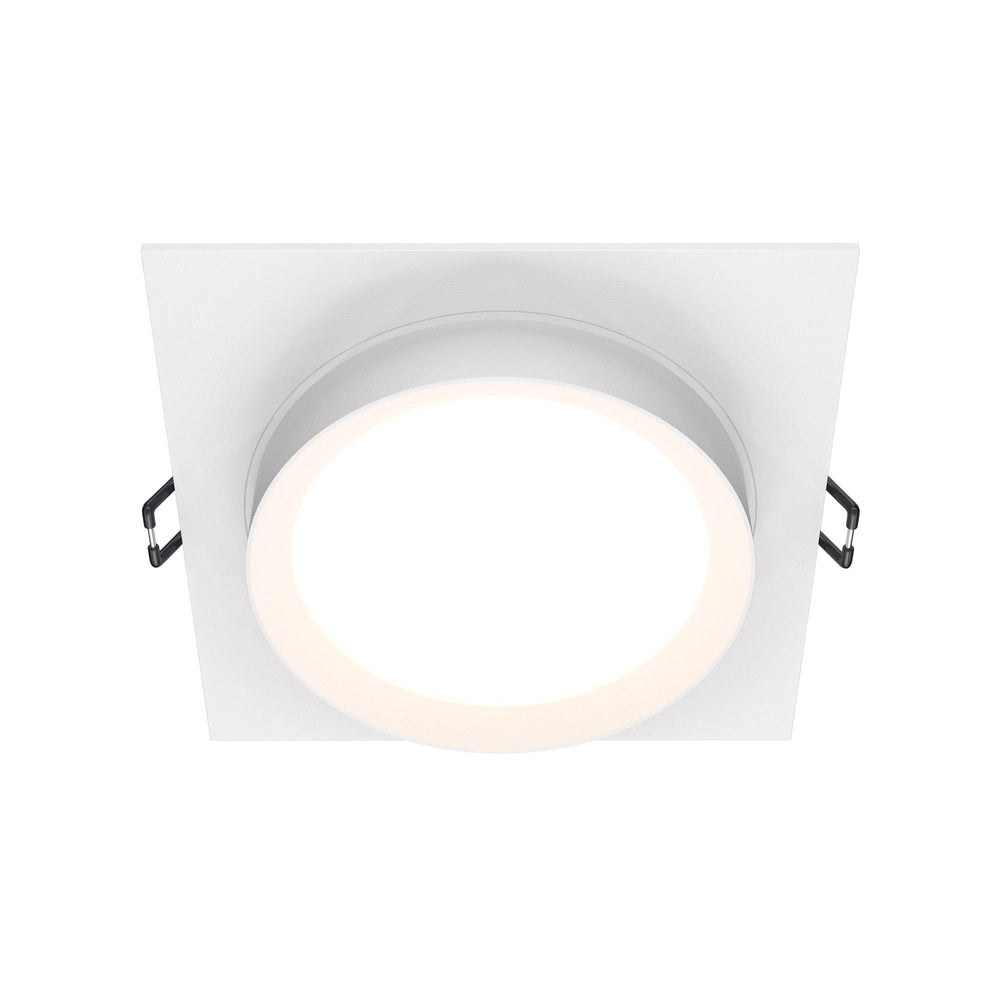

The Hoop is a 110mm square recessed downlight with a fixed GX53 bulb fitting, finished in white aluminium with a plastic diffuser ring. The downlight sits flush with the ceiling once installed, creating a 52mm recess depth to house the lamp holder and any required driver or transformer. The square faceplate measures 110 x 110mm, giving a slightly larger footprint than a standard circular downlight and adding geometric definition to ceiling layouts.

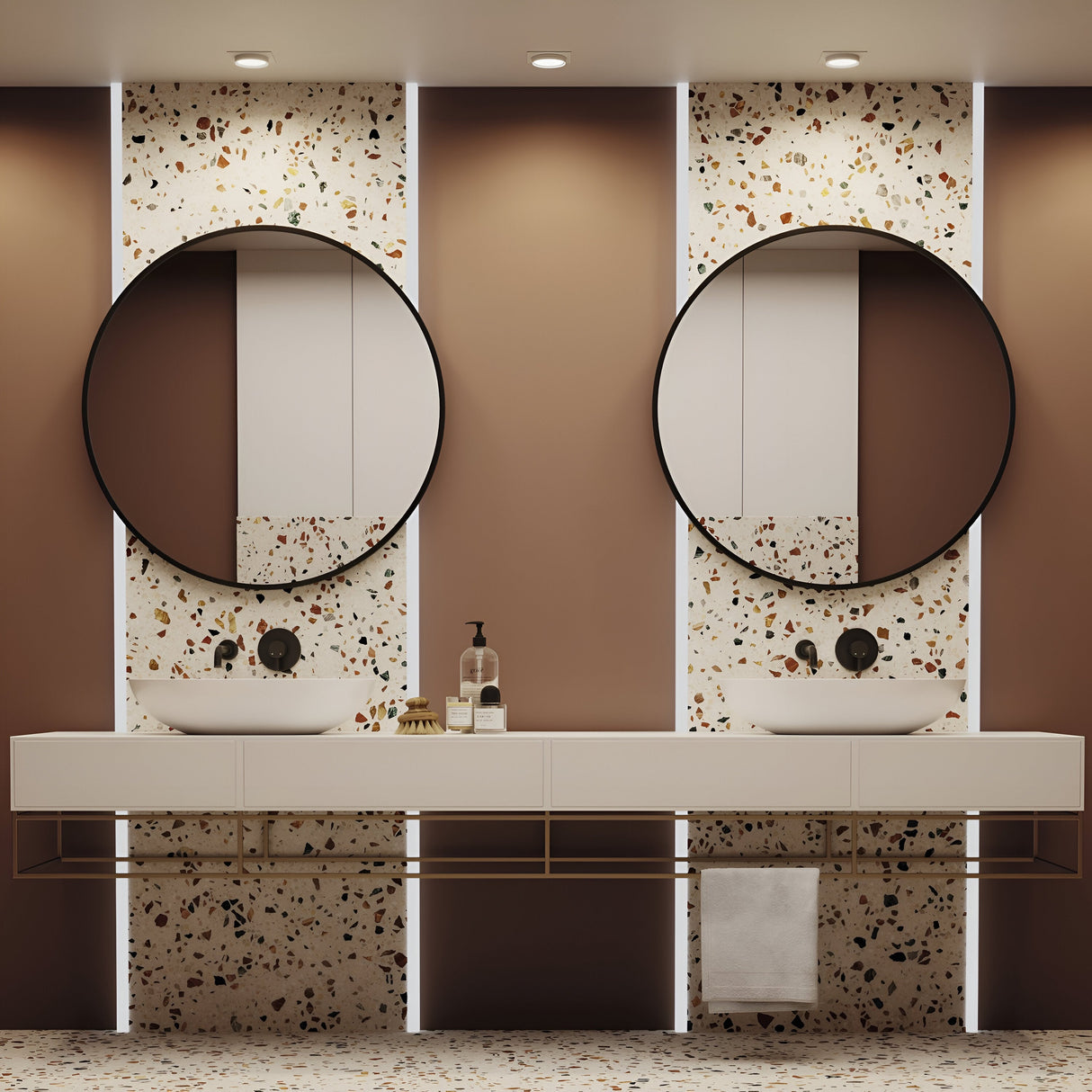

Designed for general room lighting in residential, retail and office environments, the Hoop provides focused downward illumination suitable for hallways, kitchens, bathrooms (dry zones only — the IP20 rating excludes wet zones 0-2), and commercial spaces requiring recessed ceiling fixtures. The fixed position means the light direction cannot be adjusted after installation, so placement should account for where the downward beam will land. The GX53 base accepts widely available LED bulbs (sold separately), typically 7-11W equivalents delivering 500-800 lumens depending on the chosen lamp.

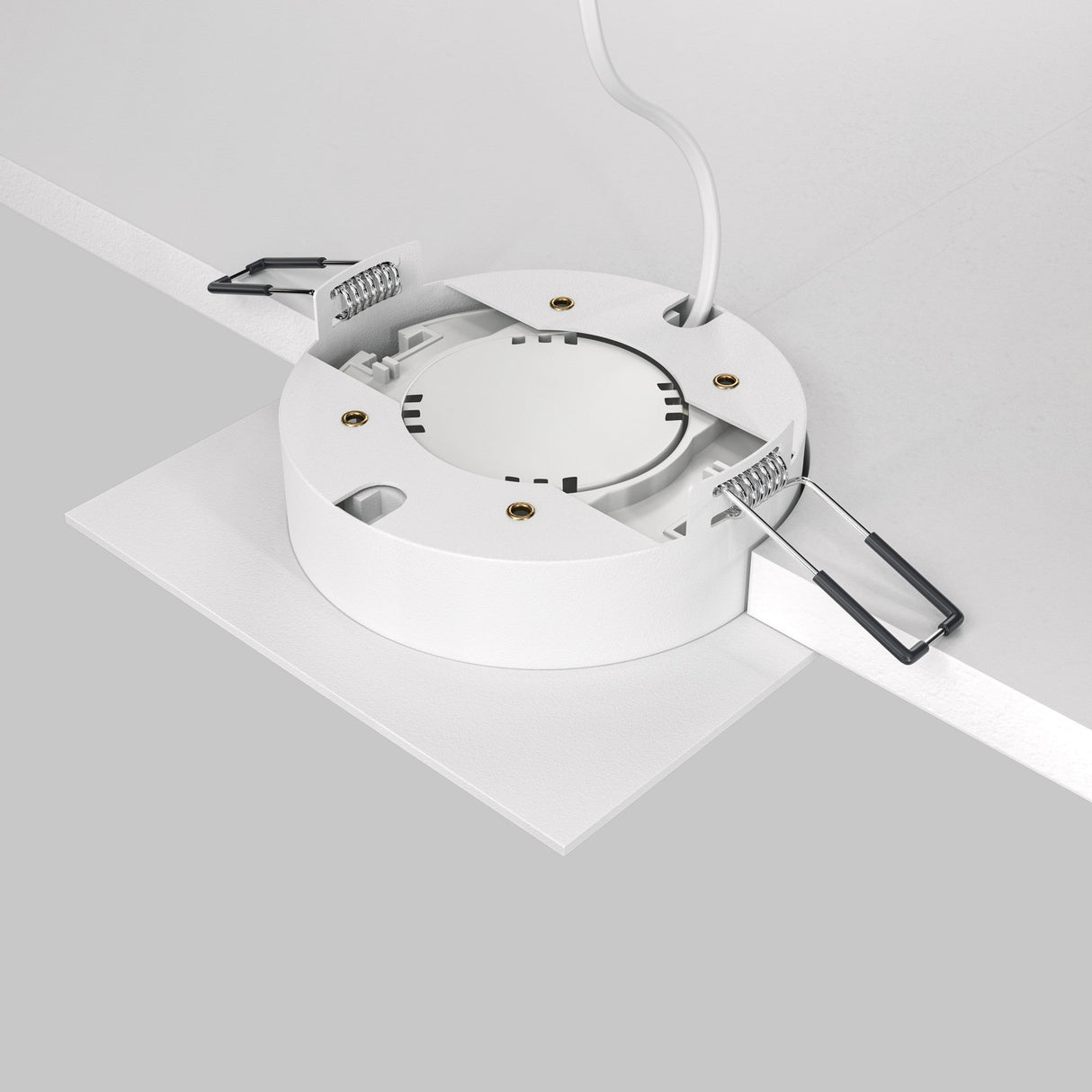

The white aluminium faceplate and plastic diffuser ring suit light-coloured ceilings and minimalist interiors where the downlight needs to recede visually rather than act as a decorative element. The aluminium construction provides structural rigidity and heat dissipation for the GX53 socket, while the plastic diffuser ring softens the edge between the faceplate and the ceiling aperture. Installation requires a ceiling void depth of at least 60mm to accommodate the 52mm fitting height plus clearance for the bulb and any wiring.

Product Manual

What bulb does the Hoop take?

The downlight uses a GX53 bulb base, which is a flat disc-style bulb common in recessed downlights. GX53 LED bulbs are sold separately and typically range from 7W to 11W. The maximum wattage is 15W as stated in the specification.

What ceiling void depth is needed?

The fitting itself is 52mm tall. You need a minimum ceiling void depth of 60-70mm to accommodate the downlight, the bulb, and clearance for wiring and heat dissipation above the fitting.

Can this be used in bathrooms?

The IP20 rating means it's suitable for dry interior zones only. In bathrooms, IP20 fittings can be used outside zones 0, 1 and 2 (typically 600mm away from a shower or bath). For zones closer to water, a higher IP rating (IP44 or IP65) is required by building regulations.

Is the light direction adjustable?

No. The Hoop is a fixed downlight, meaning the lamp holder points directly downward and cannot be tilted or rotated. If you need adjustable beam direction, look for a tiltable or gimbal-style recessed downlight.
