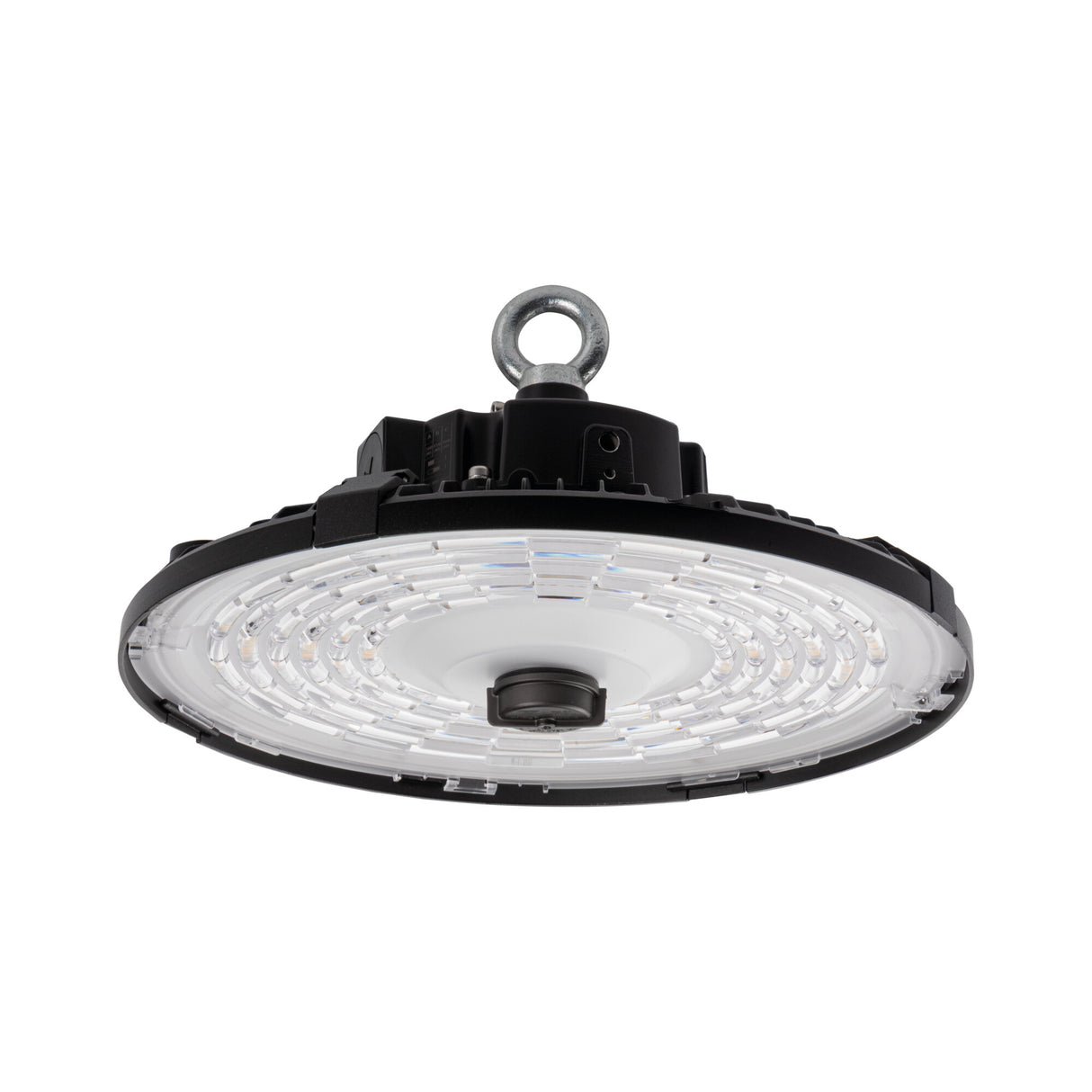

HB PRO AIO 200W Colour Selectable IP65 Round High Bay Ø310 - Black

The HB PRO AIO is a round high bay luminaire built for tall, demanding spaces. It draws between 100W and 200W and delivers a selectable 16000, 24000 or 32000 lumens, with a colour temperature switchable across 4000K, 5000K and 6500K so the white tone matches the task below. A 60 or 90 degree beam choice lets the light be focused into a tight column or spread wider, and 0-10V dimming trims the output to suit shift patterns. Across the Atlantic this format is what trades and contractors call a round LED high bay, the workhorse fixture hung over factory and storage floors.

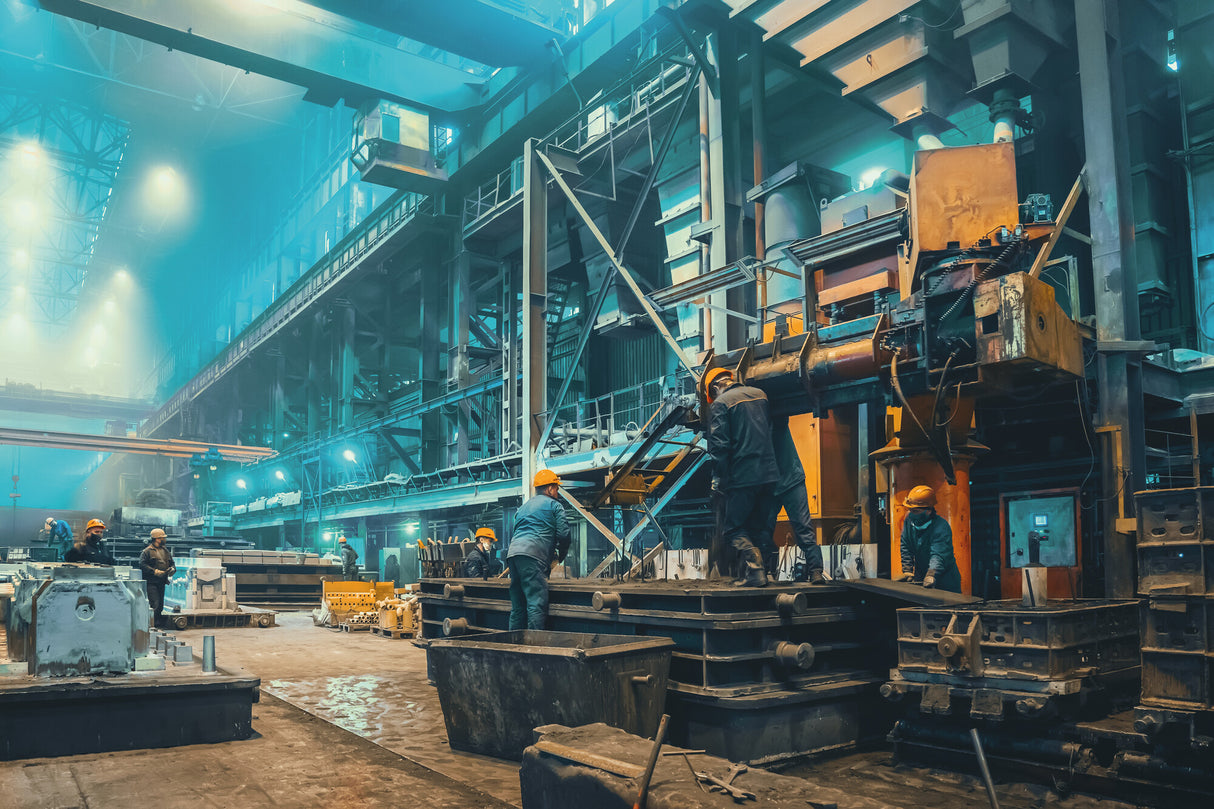

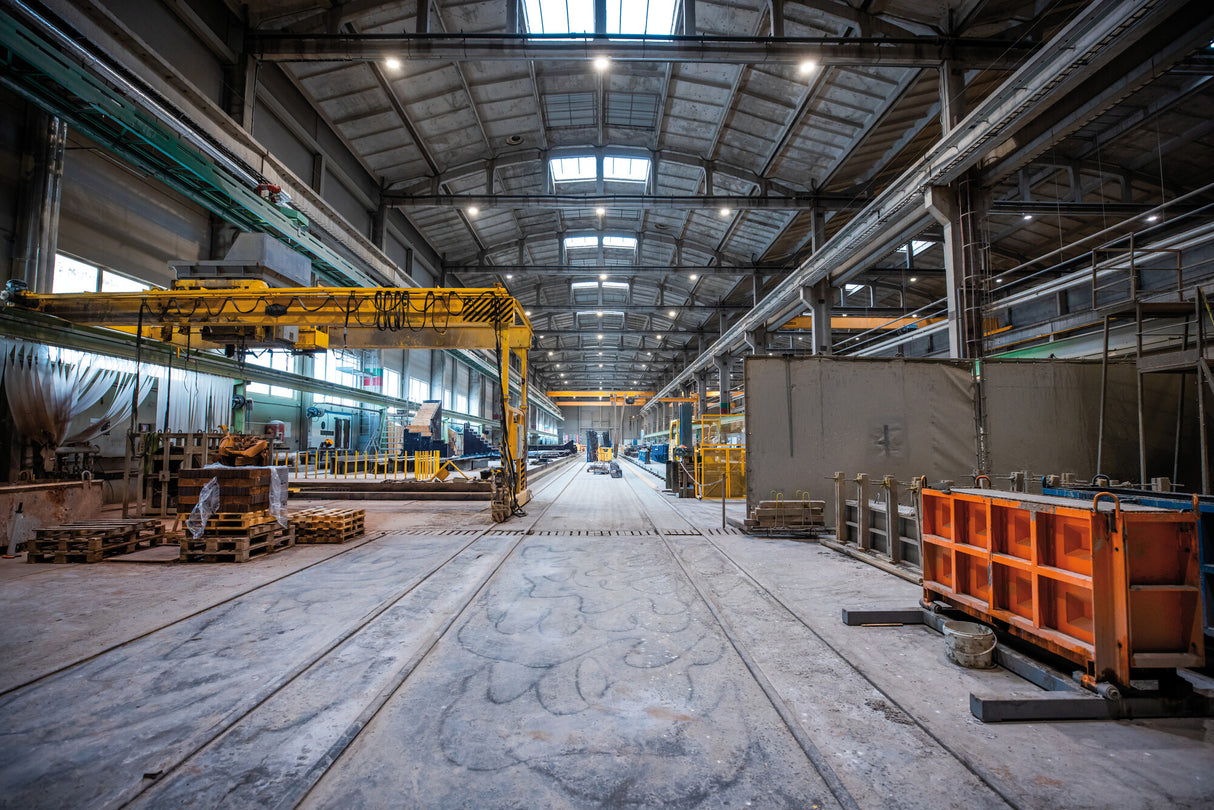

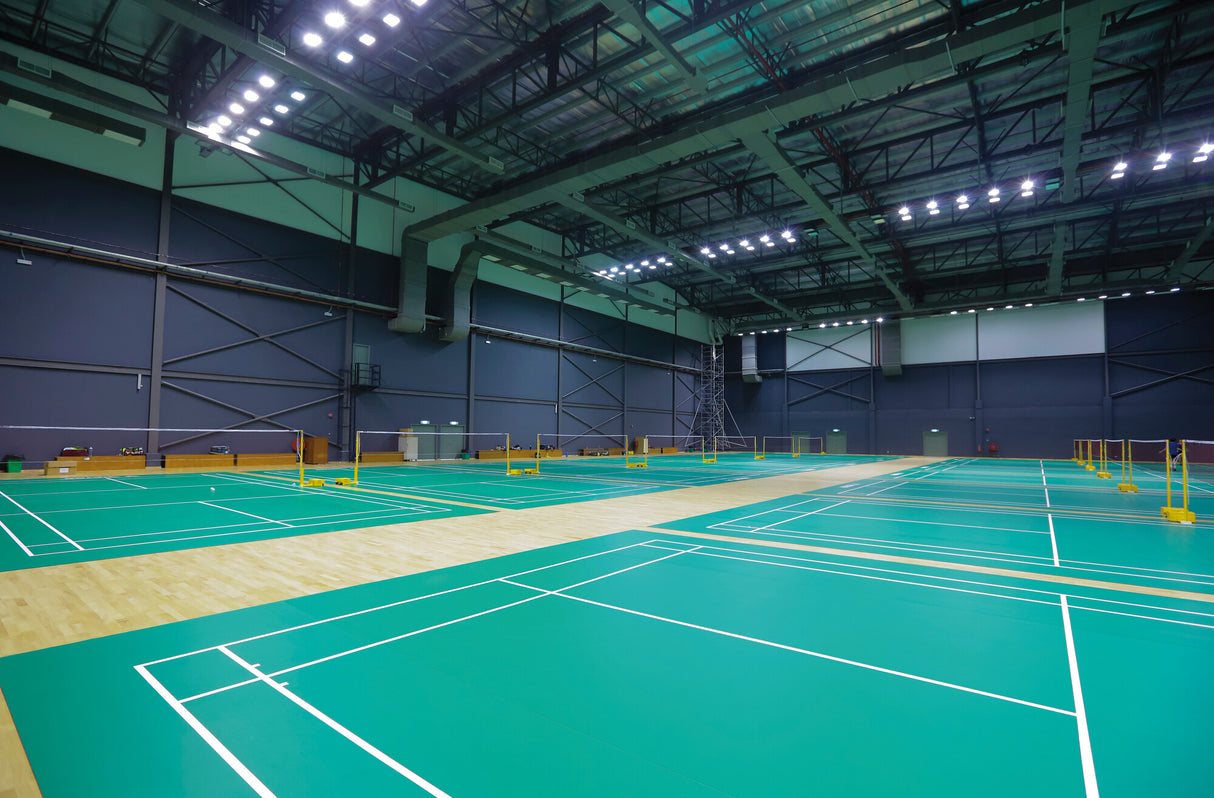

Suspended from a high ceiling, this fitting is aimed at warehouses, distribution sheds, workshops, gymnasiums and large retail or assembly areas where general lighting reaches across a big footprint. At the top output it covers around 53 to 107 m² at general lighting levels, so the number needed for a given floor depends on mounting height and the spread chosen. The wider 90 degree beam suits lower roofs and even coverage, while the 60 degree option throws further down into deep aisles and double-height bays. Plan the suspension points so neighbouring units overlap slightly and avoid dark gaps between racking runs.

The body is aluminium alloy in a black finish, rated IP65 against dust and water jets and IK08 for impact resistance, which makes it suitable for exposed, damp and knock-prone industrial settings. It measures 310mm in diameter and 160mm deep and weighs 2.46 kg, mounting by suspension on the ceiling. Dimming runs on a 0-10V control signal, the rated life is 50,000 hours and colour rendering is Ra 80. This high bay sits within our wider Kanlux commercial range alongside matching linear and floodlight options for full-site coverage.

How bright is it and what area does it cover?

Output is selectable at 16000, 24000 or 32000 lumens depending on the 100W, 150W or 200W setting. At the top figure it covers roughly 53 to 107 m² at general lighting levels, though the real spread depends on mounting height and whether the 60 or 90 degree beam is chosen. For most warehouse and workshop roofs a grid of units is planned with slight overlap to avoid shadowed aisles.

Is it dimmable?

Yes, it dims via a 0-10V control signal, which lets the output be trimmed to suit different shift patterns or daylight levels. A compatible 0-10V dimmer or controller is required to use this function. Without one it simply runs at full output for the chosen wattage setting.

Can it be used outdoors or in damp areas?

Yes. It carries an IP65 rating, so it is protected against dust and direct water jets and is suitable for exposed outdoor, wet and damp industrial locations. The IK08 impact rating also helps it stand up to knocks in busy working environments.

How do I change the colour temperature?

The colour temperature is switchable across 4000K, 5000K and 6500K, set via the selector on the fixture during installation. This lets you match a neutral white for general work or a cooler, brighter tone for inspection and high-detail tasks. The setting is chosen once at install rather than adjusted from a switch on the wall.
