Description

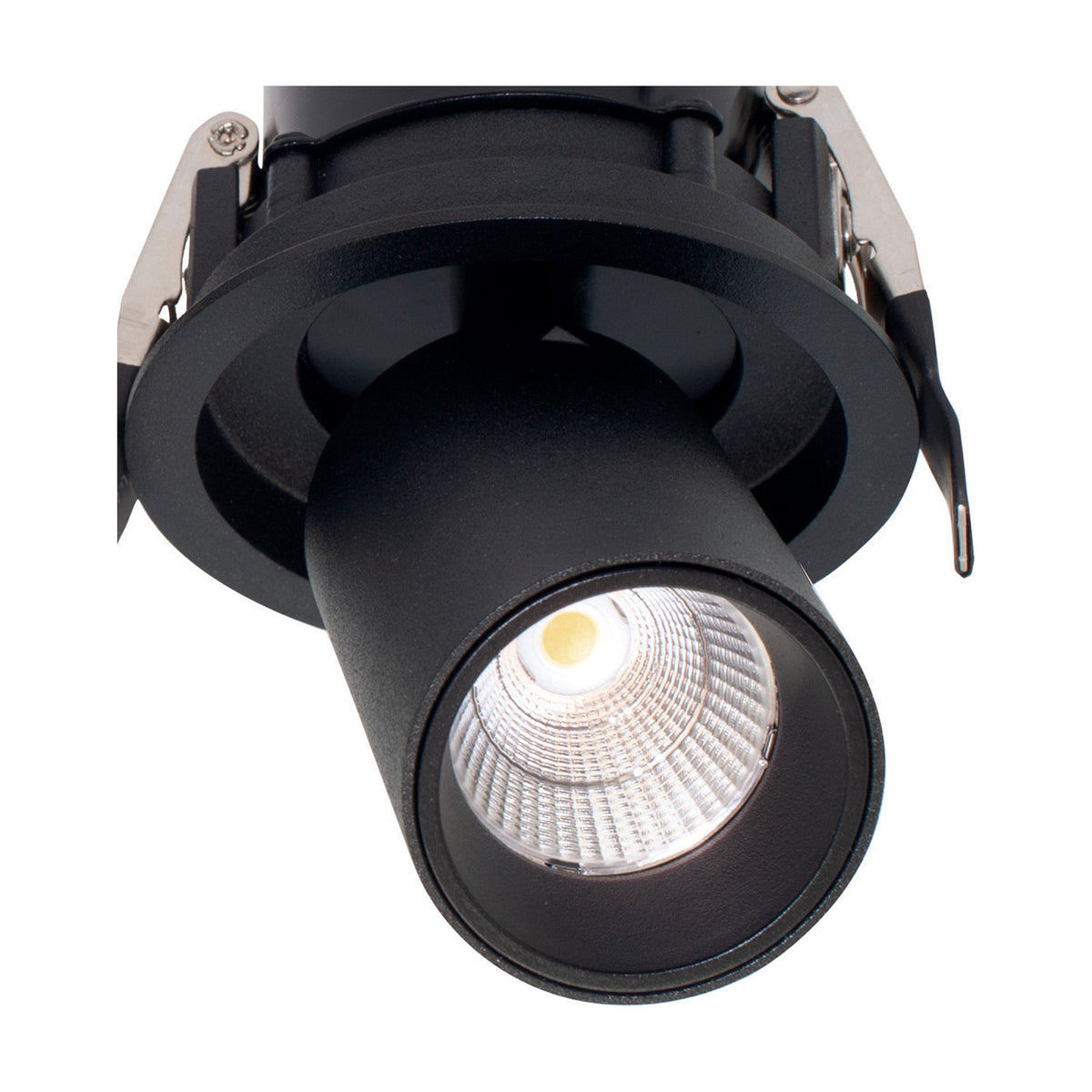

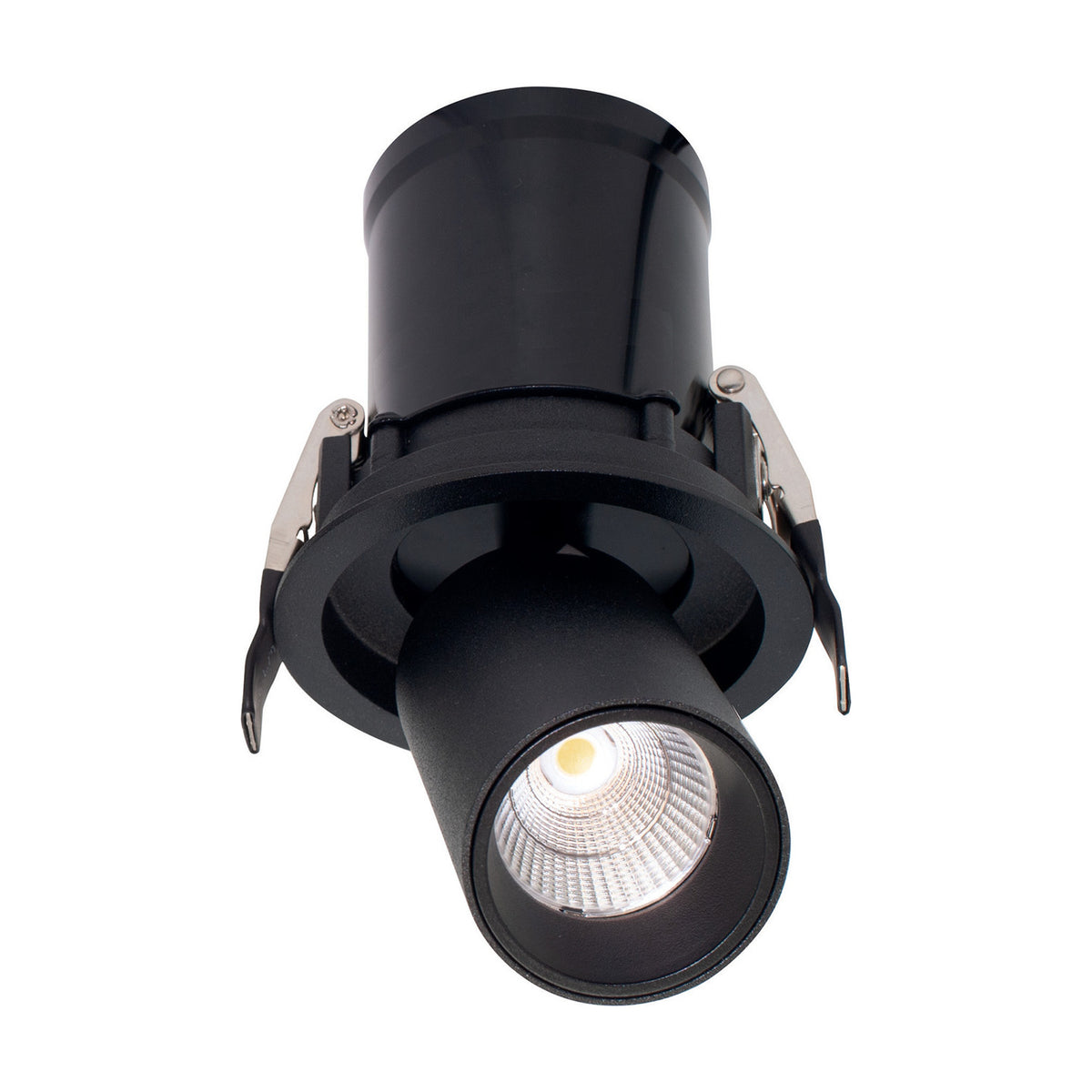

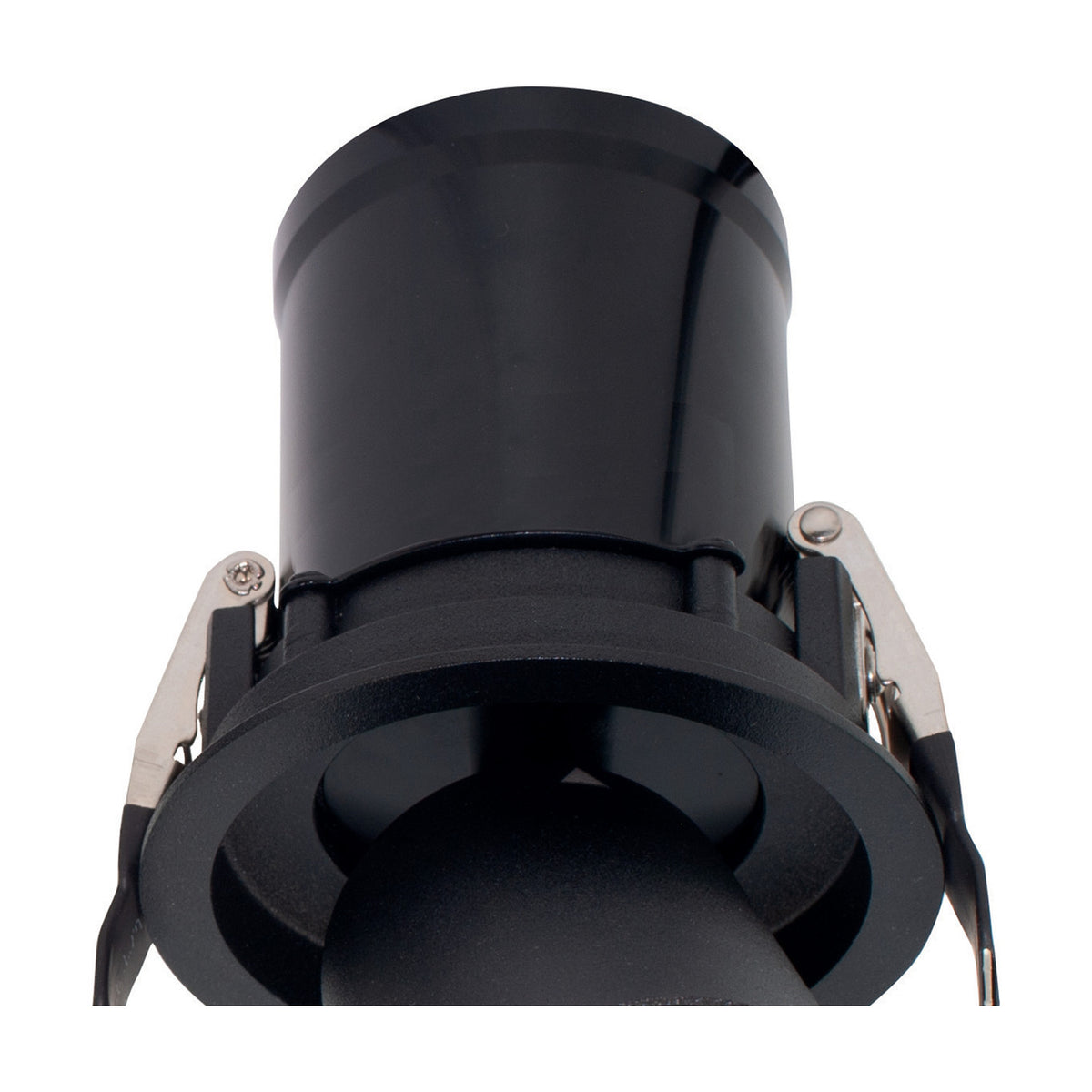

A small recessed spotlight whose head retracts into the housing and swivels within it, so the beam can be pointed where it is wanted and sits neatly back when aimed straight down. The LED is integrated and the driver is supplied with it. The light is warm white at 3000K, drawn from 7W, and the 610 lumens arrive as a focused beam rather than a broad wash. There is no dimming, so a plain switch suits it best.
We use these where a fixed downlight would light the wrong thing. Angled along a run of worktop, they put light on the chopping board instead of the floor; turned towards a wall, they graze plaster, stone or a framed print. A row down a hallway can be tipped to follow the line of the wall, and over a headboard a pair can be swung apart for reading. The warm tone suits living rooms and bedrooms far better than a cooler white would.
The housing and visible trim are finished in black, which reads quietly against a dark ceiling and picks itself out deliberately against a pale one. Wiring is protected by double insulation, and the fitting belongs in dry rooms indoors; a shower area or a covered porch calls for something better sealed. To keep it looking right, switch the circuit off, let the head cool, then wipe the trim with a dry cloth and keep solvents away from the black. It carries a three year warranty. We also stock the same spotlight with a matt white body and black head, in both warmer and cooler colour temperatures, and in a brighter version with a larger cut-out where one point has more work to do.
Specification
| Colour |
Black |
| Weight |
0.37KG |
| Diameter |
84mm |
| Height |
85mm |
| Cut Out |
75mm |
| Materials Used |
Aluminium, ABS |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| SMD Chipset |
COB/7W |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
610lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Constant Current Output |
650mA |
| Min/Max. Voltage Output |
220-240V~50/60Hz |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
Yes |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size opening does it need?
The cut-out is 75mm. The outer trim measures 84mm across and the body stands 85mm deep.
Can the light be aimed after fitting?
Yes. The head retracts into the housing and swivels, so you can tilt and turn the beam towards a wall, a worktop or a picture and set it back level when you want light straight down.
Is it dimmable?
No. It is a non-dimmable fitting, so pair it with an ordinary on/off switch rather than a trailing edge dimmer.
Do I need a separate driver?
No, the driver is included with the downlight and the LED is integrated, so there is no lamp to buy or replace.
How narrow is the beam?
It is a 35 degree beam, tight enough to pick out a surface or an object without spilling across the whole room.
How long should the LED last?
It is rated at 30,000 hours average life, with a colour rendering index of 80 or above for everyday rooms.
