Description

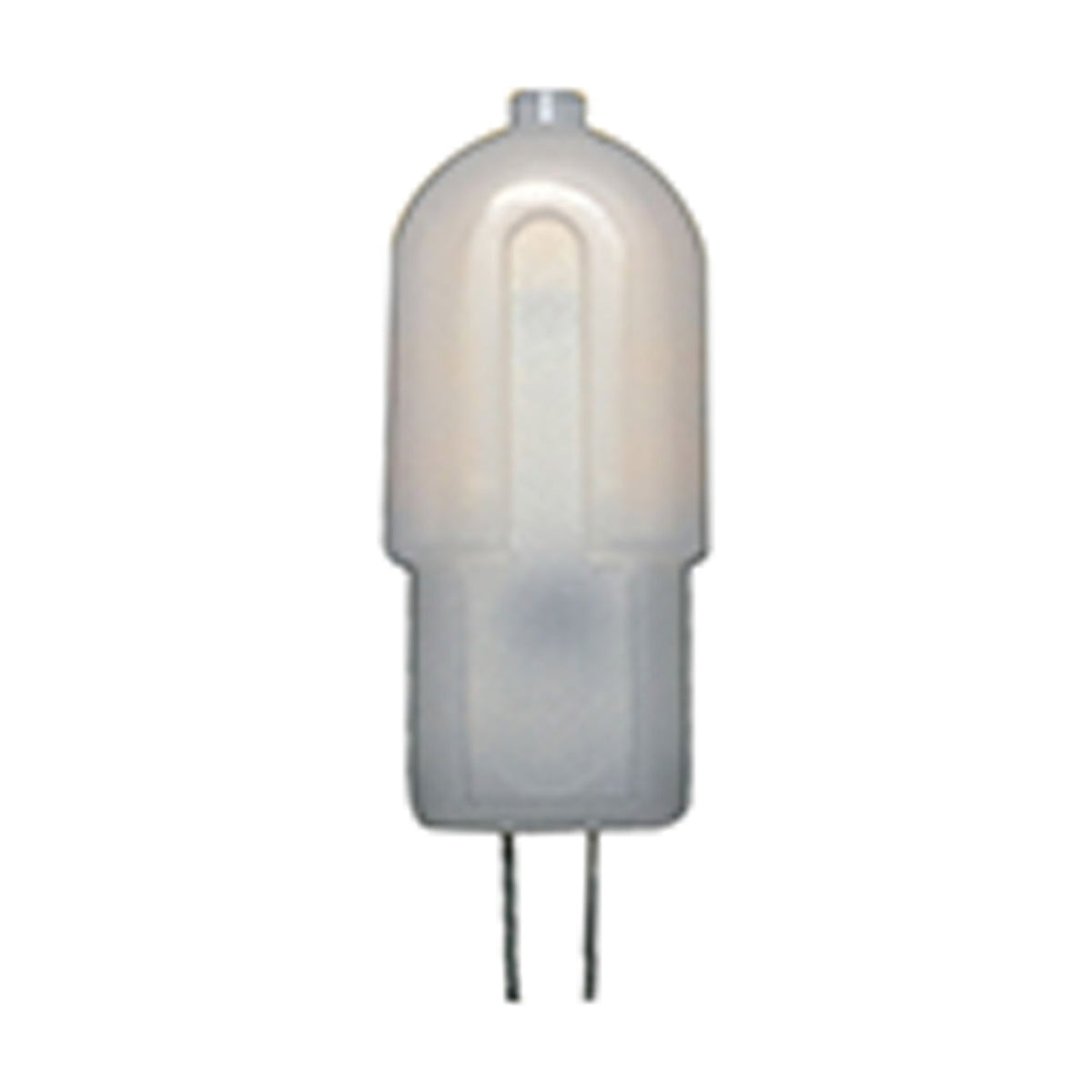

A capsule LED with the familiar G4 pins, small enough to sit in the tightest fittings, giving a clean, cool white at 5000K. Output is 190 lumens from 2W, so it drops into the sort of compact low voltage fitting that once ran a halogen capsule and asks far less of the circuit. The body is white and the light spreads widely rather than throwing a narrow beam, which keeps it even behind a small shade. It is not dimmable, so it wants a plain switched circuit.
We use these inside compact fittings where a larger lamp will not fit: small wall lights, plinth and under-cupboard lighting, glazed display cabinets, cooker hood lights and slim reading lamps. It is one we reach for where the space for a lamp is measured in millimetres. The cooler end of the white scale suits working areas, so kitchens, home offices and hobby benches where you want colour and fine detail to read clearly. Because it draws so little, a fitting carrying several of them stays modest on the meter. Keep it to dry indoor rooms, away from splashes and weather.

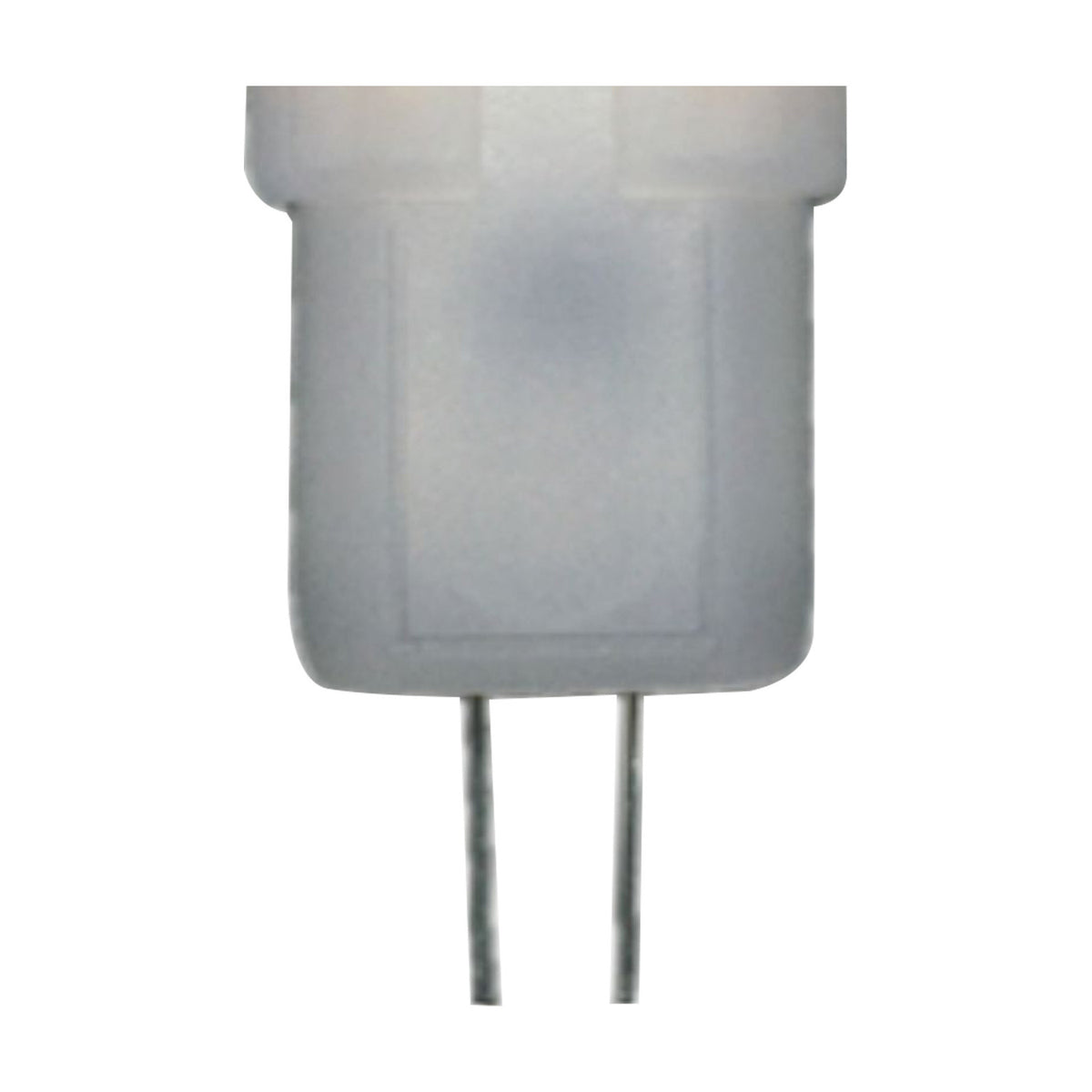

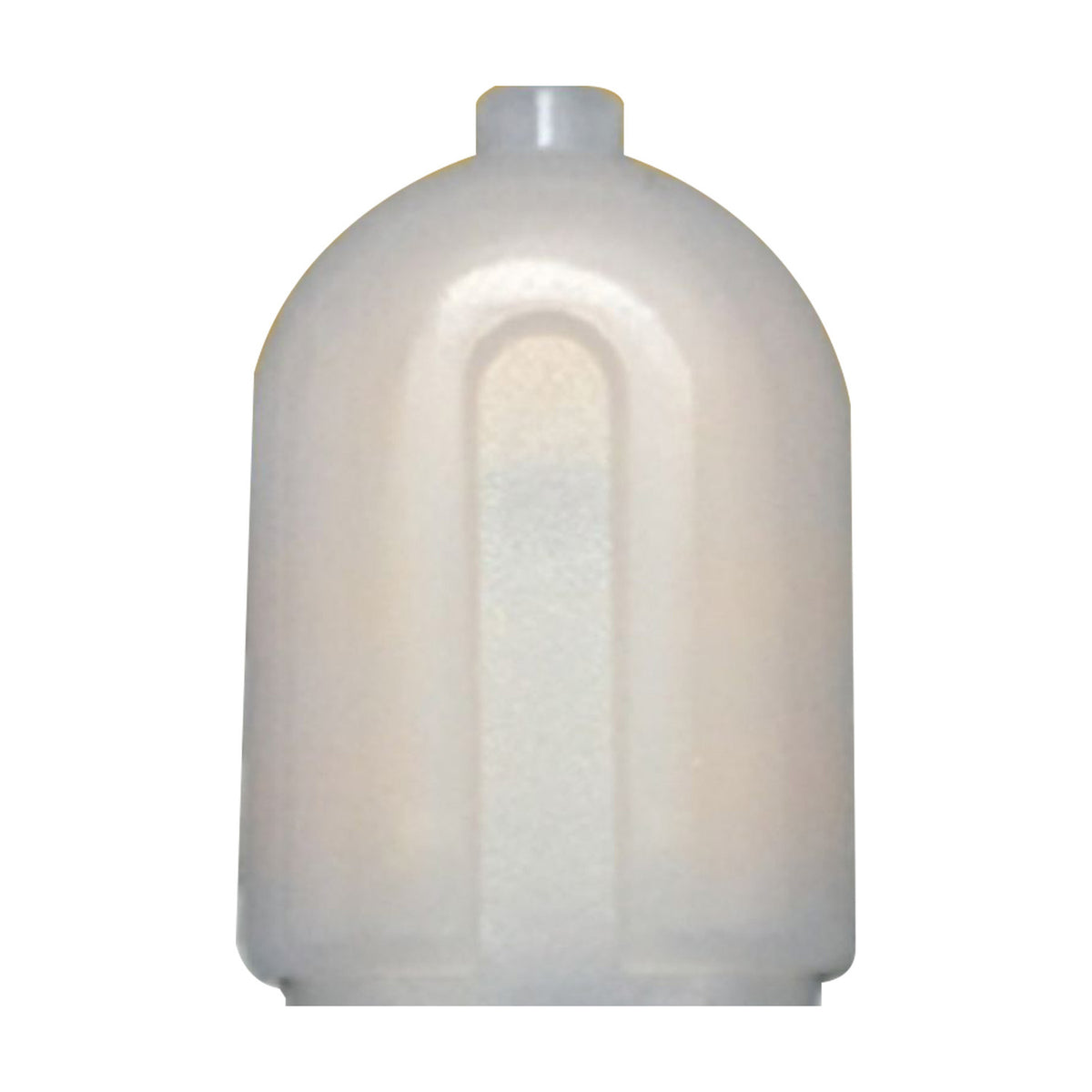

Construction is the usual sealed capsule, white across the body with the pins set into the base, and there is nothing to adjust. Keep dust off with a dry cloth, switching off and letting it cool for a moment first, and avoid putting it on a dimmer or a trailing edge switch, which it will not follow. It carries a two year warranty. Alongside this one the range runs to a warm white capsule of the same size and output, plus brighter G4 versions in warm and cool white if the fitting needs more light.
Specification
| Colour |
White |
| Weight |
0.10KG |
| Diameter |
13mm |
| Height |
36mm |
| Materials Used |
Aluminium & Polycarbonate |
| Energy Class |
A+ |
| Max Energy Class |
A+ |
| Min Energy Class |
A+ |
| Lamp Cap |
G4 |
| Maximum Wattage |
2W |
| Colour Temperature |
5000K Natural White (±5%) |
| Number of Switching Cycles |
100000 |
| Shape of Lamp |
Capsule |
| LED Power |
2W (±5%) |
| Beam Angle |
240° |
| System Flux |
190lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Ambient |
| Total Power Consumption |
2W (±5%) |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
20000hrs |
| Warranty |
2yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Plug-in Item |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is the capsule?
It measures 13mm in diameter and 36mm tall, so it suits fittings sized for a small halogen capsule.
How bright is it, and how does the light look?
It gives 190 lumens at 5000K, a clean cool white that keeps colours and printed detail crisp rather than warming a room.
Can I use it with a dimmer?
No. It is non-dimmable and should be run on a plain switched circuit; a dimmer may cause flicker or shorten its life.
What does it use compared with a halogen capsule?
It draws 2W, a fraction of the load of the halogen capsules these fittings were originally lamped with, and it is rated for 20,000 hours.
How do I keep it clean?
Turn the fitting off, let the capsule cool, then lift dust away with a dry cloth. Nothing wet, and no solvents near the pins.
Is it suitable for a bathroom or outdoors?
No. It is rated IP20, so keep it to dry indoor rooms and out of any zone where water or damp is a factor.
