Description

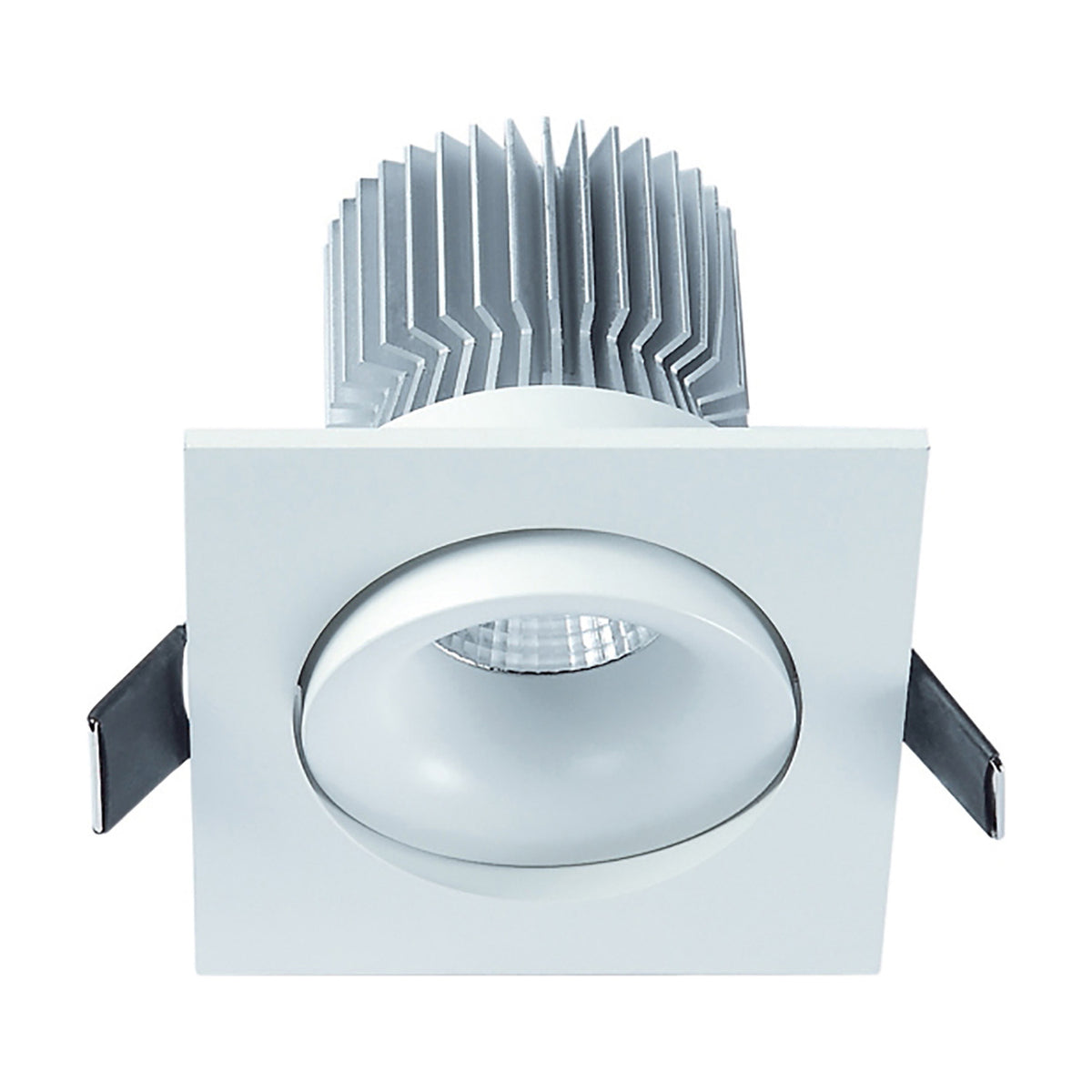

A neat square trim in matt white, this recessed fitting keeps its light source tucked inside a shallow aperture and lets you angle it. The COB LED gives 550 lumens of warm white at 3000K, a soft and slightly golden light rather than a crisp one, and the driver is supplied with it. It asks for a 70mm cut-out. It is not dimmable, so plan it onto a plain switch or a switched circuit.
We reach for downlights like this where a ceiling needs light without anything hanging below it: kitchens, hallways, landings, a bedroom with limited headroom. Because the LED tilts, you can push the light off the vertical and onto a run of shelving, a splashback or a picture, which makes it as useful for accenting as for general lighting. The beam is on the narrow side, so a row of them reads as pools of light rather than one even wash. Dry indoor rooms are where it belongs, so keep it away from shower zones and open porches.
The body and trim are finished in matt white, which sits quietly against a painted ceiling and shows fingermarks far less than anything polished. Cleaning is a matter of running a dry cloth around the visible trim now and again with the power off, since dust on the lens will dull the output before anything else does. A square trim draws a sharper, more architectural line than a round one, and we stock the round version at the same size in this range, plus a cooler white option if you want a brighter, whiter light over a worktop. It carries a three year warranty. The LED is built in, so there is no lamp to buy or replace later.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.29KG |
| Length |
80mm |
| Width |
80mm |
| Height |
77mm |
| Cut Out |
70mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per LED |
70-75lm |
| Lumens per Watt (lm/W) |
79lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
550lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
700mA |
| Min/Max. Voltage Output |
5-10V |
| Load Range |
7W |
| Ta |
60°C |
| Tc |
90°C |
| Casing Material |
PC |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size aperture does it need?
The trim measures 80mm square and the aperture is 70mm, with an overall depth of 77mm behind the ceiling line.
How much light does it give?
550 lumens from a 7W COB LED, at 3000K warm white.
Can it be dimmed?
No. This version is non-dimmable, so pair it with a standard switch rather than a dimmer.
Does it come with a driver?
Yes, the driver is included, and the fitting is Class 2 double insulated.
Can the light be aimed?
Yes. The LED module swivels within the square trim, so you can tilt the beam towards a wall, a shelf or a picture.
Is it suitable for a bathroom?
It is rated for dry indoor use only, so we would choose a bathroom-rated downlight for zones near a bath or shower.
