Description

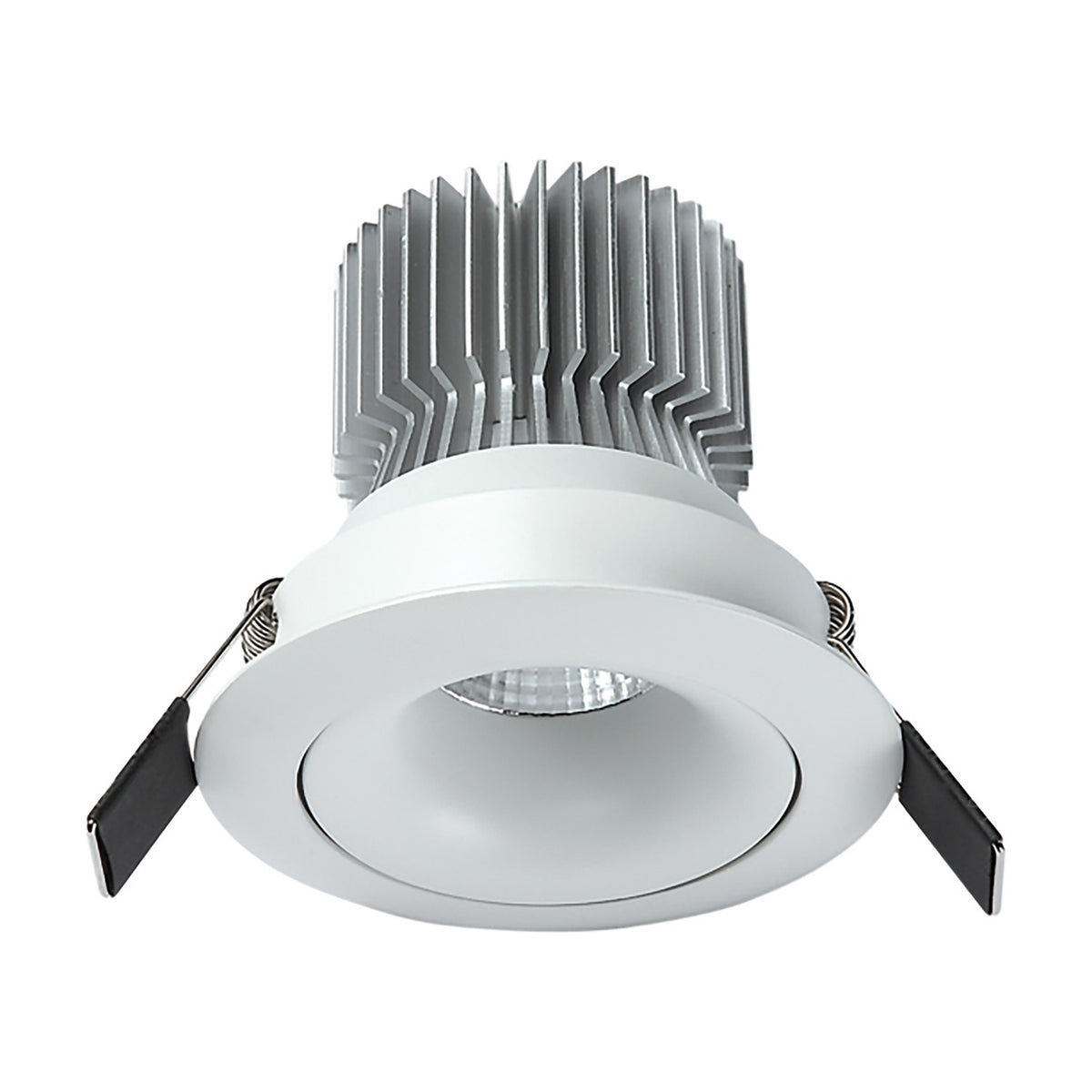

This is a compact recessed light with a tilting head, so the beam can be angled where you want it rather than dropping straight down. The COB LED runs at a crisp 4000K, and 580 lumens in a fairly tight beam picks out a worktop, a picture or a run of shelving instead of washing a whole room. The trim is matt white, low in sheen and quiet against a painted ceiling, and the driver comes with it.
We use these where light needs a direction: over a kitchen run, along a hallway ceiling to graze a wall of pictures, or in an alcove above shelving. The 70mm cut-out keeps the aperture modest, so a row of them reads as a line of small circles rather than a series of holes. It is not dimmable, so it wants a plain switch rather than a dimmer circuit, which makes it a sensible choice for corridors, utility rooms and cupboards where full output is all you need. Keep it to dry, sheltered interiors; anywhere damp or outdoors calls for a sealed fitting instead.
The body is finished in matt white throughout, bezel included, and the paint holds its flatness under the light rather than picking up a shine. It carries a three year warranty. For cleaning, switch off at the wall, let the fitting come down to room temperature, then lift dust off the face with a dry cloth; skip sprays and solvents, which can burnish matt paint. Within the range we also stock a square swivel head in the same size, a warm white version if you prefer a softer light, and larger formats for bigger rooms.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.27KG |
| Diameter |
80mm |
| Height |
77mm |
| Cut Out |
70mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per LED |
70-75lm |
| Lumens per Watt (lm/W) |
83lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
580lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
700mA |
| Min/Max. Voltage Output |
5-10V |
| Load Range |
7W |
| Ta |
60°C |
| Tc |
90°C |
| Casing Material |
PC |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How far does the head tilt?
The inner head swivels within the outer trim, letting you aim the 35° beam off vertical towards a wall, a picture or the front edge of a worktop while the visible bezel stays square to the ceiling.
What size aperture does it need?
The cut-out is 70mm. The trim measures 80mm across overall, with a body depth of 77mm behind the face.
Can I put it on a dimmer?
No. This one is non-dimmable and should be run from a standard on/off switch. Fitting it to a dimmer circuit can cause flicker or buzz and may shorten the life of the driver.
What colour of light does it give?
A cool white at 4000K, with a system output of 580 lumens from the 7W COB LED and a colour rendering figure above 80, which keeps whites clean and greys neutral.
Do I ever need to replace the LED?
No lamp changes are involved, as the LED is integral and rated at 30,000 hours. A separate driver is supplied with the fitting.
Is it suitable for a bathroom?
Not in a splash zone. It is rated IP20, so keep it to dry rooms and choose a sealed, higher rated downlight for shower and bath areas.
