Description

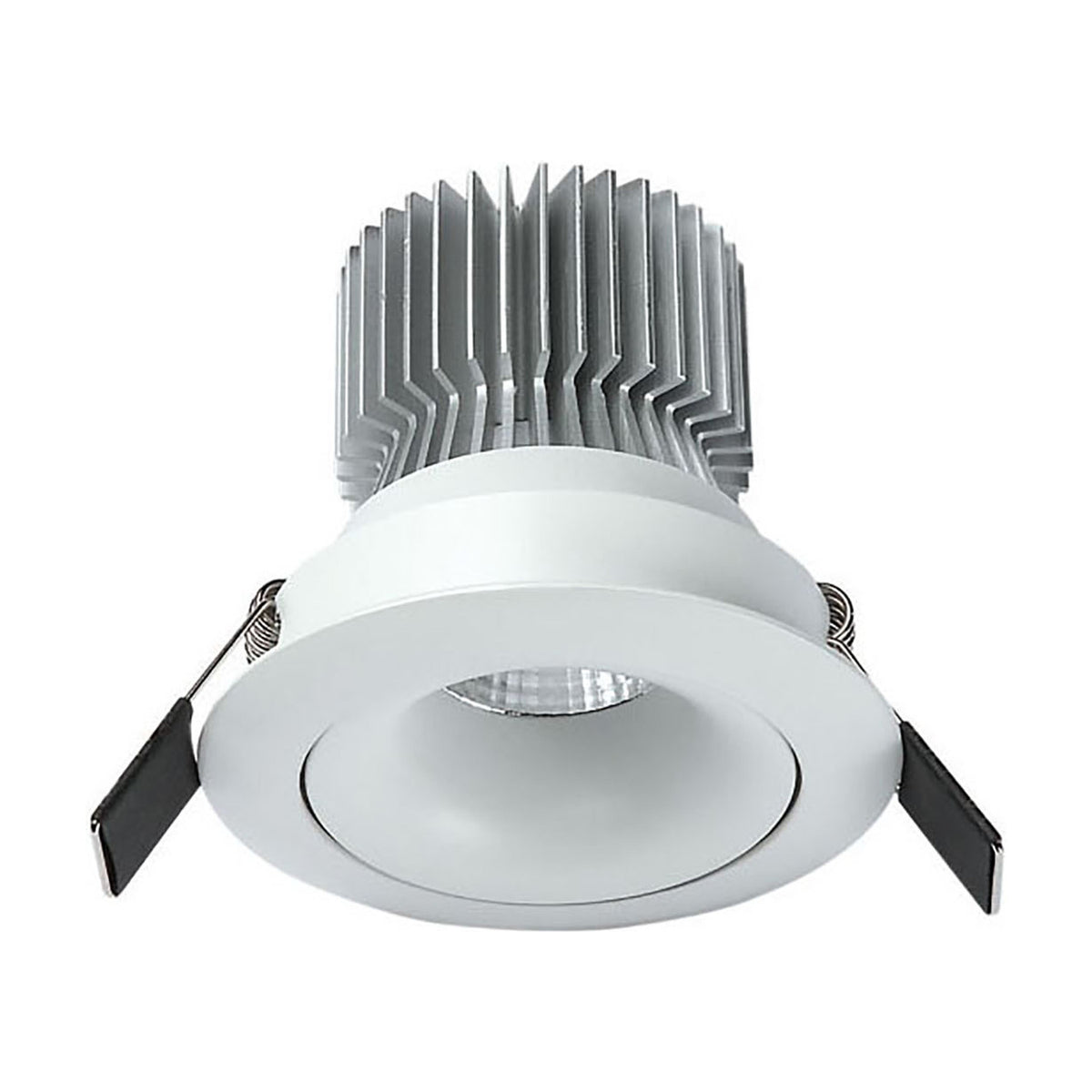

This is one of the smaller recessed spots we keep, dropping into a 70mm cut-out with a slim matt white bezel showing at the ceiling. Inside sits an integral COB LED putting out 550 lumens of warm white light, and the inner ring swivels, so the beam can be tipped away from vertical and aimed at a picture, a splashback or the front of a worktop. The driver is supplied with it. There is no dimming: it works from a standard on-off switch.
Warm white at this output is easy company in a room you spend time in rather than pass through, and the narrow body suits ceilings where depth is tight. We would use it across a hallway and landing, in a small kitchen, over a run of shelving or inside a dressing area, and it is one we pick when a larger downlight would look heavy in a compact room. At 7W apiece, a set of them across a whole floor stays modest on running costs. Keep it to dry indoor rooms; it is not made for a shower zone or anywhere it will meet steam or splashing.
The bezel is finished in a flat matt white that takes daylight without a shine, so it reads as part of a painted ceiling rather than a fitting sitting on one. It is double insulated. For upkeep, turn the power off and run a dry cloth around the visible rim to lift dust; there is no lamp to replace, as the LED is part of the unit. It carries a three year warranty. The same fitting is also made with a square bezel and in a cooler white, and there is a wider version if you want more light from fewer points.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.27KG |
| Diameter |
80mm |
| Height |
77mm |
| Cut Out |
70mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 7W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| LED Power |
7W (±5%) |
| Type of LED |
COB |
| Lumens per LED |
70-75lm |
| Lumens per Watt (lm/W) |
79lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
550lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
700mA |
| Min/Max. Voltage Output |
5-10V |
| Load Range |
7W |
| Ta |
60°C |
| Tc |
90°C |
| Casing Material |
PC |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
7W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need, and how much room does the body take?
The cut-out is 70mm. The visible bezel measures 80mm across and the body stands 77mm tall behind it.
Can I dim it?
No. It is a non-dimmable fitting and should be run from a plain switch rather than a dimmer.
How warm is the light?
It is 3000K warm white, a soft yellow-leaning light that sits comfortably with painted walls and timber.
Does the LED come out when it fails?
No, the LED is integrated, so there is no separate lamp to buy or change. Average rated life is 30,000 hours.
Is it suitable for a bathroom?
Only in a dry area well away from the bath or shower. It is rated IP20, so it has no protection against water.
Do I need to buy a driver?
No. The 7W driver is included with the downlight.
