Description

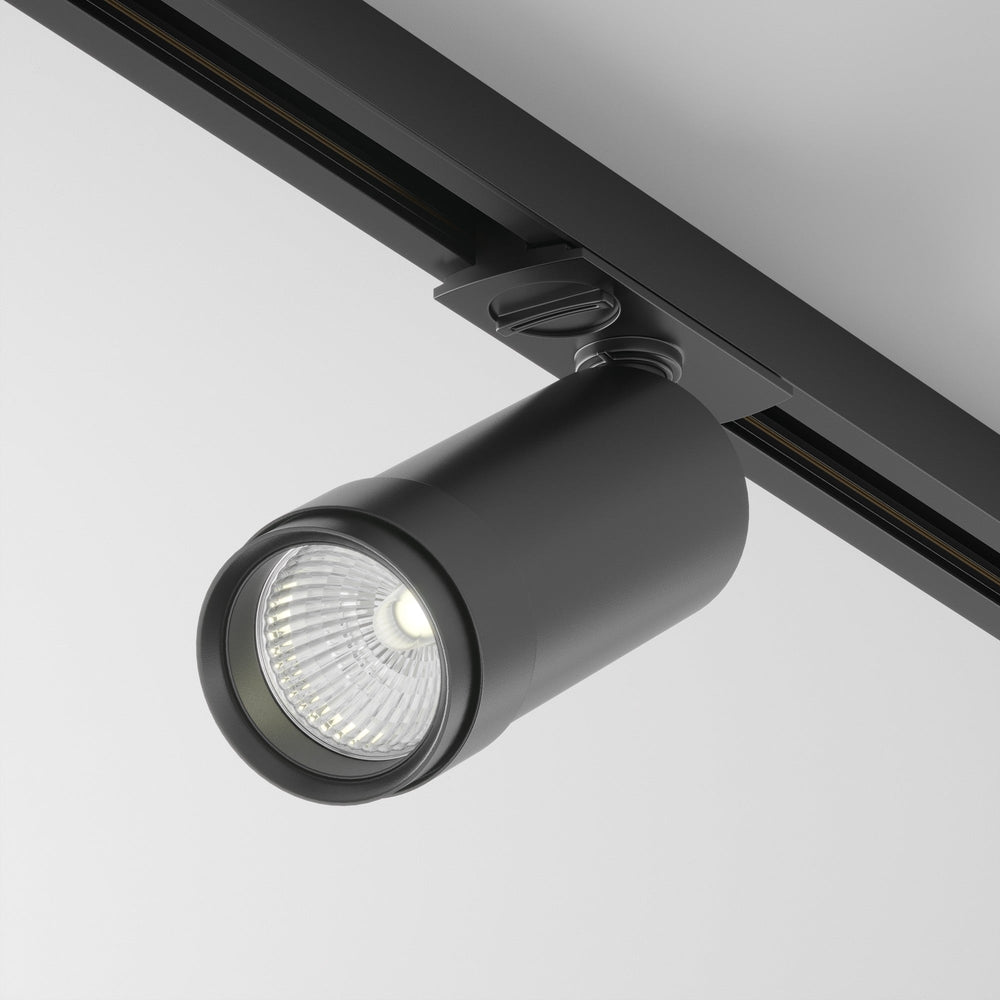

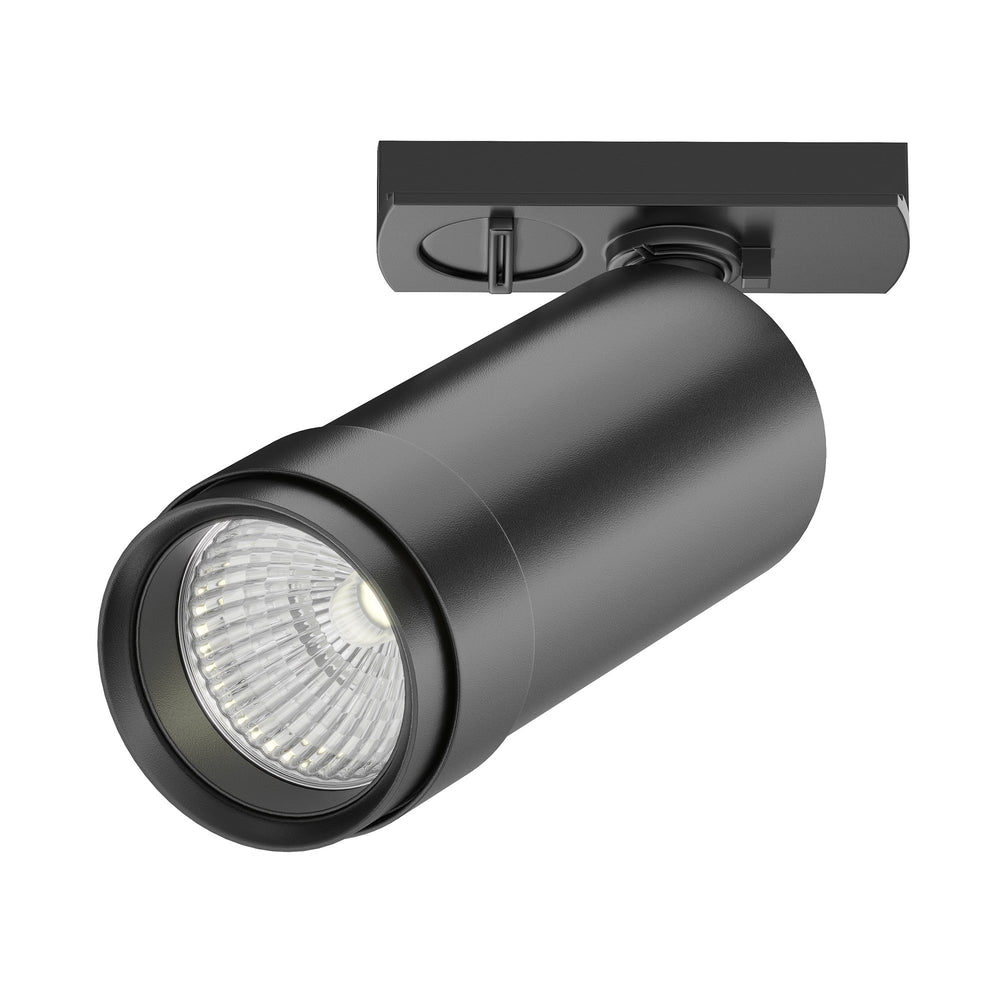

The Focus Zoom is a 12W LED track spotlight with an adjustable beam angle from 15° to 50°, housed in a black aluminium cylindrical body measuring 12.5cm long by 5.5cm diameter. The integrated LED produces 4000K neutral white light and mounts onto single-phase track systems via a rotating adaptor plate.
Designed for retail display lighting, gallery picture lighting, kitchen worktop task light and commercial accent lighting, the adjustable beam allows the spotlight to be set narrow for highlighting specific objects or widened to wash a larger surface. The spotlight head tilts and rotates on the track adaptor, giving directional control after installation. The 12W LED output suits ceiling heights of 2.4-3.5m where focused light is needed rather than ambient room lighting.
The black aluminium construction gives the spotlight a matt-finished industrial aesthetic that sits cleanly in modern commercial and residential interiors. The cylindrical profile is 15.8cm tall when mounted vertically on track, with the beam aperture recessed behind a protective glass lens. The 4000K colour temperature produces a neutral white light that renders colours accurately, making it suitable for retail where product colour needs to be shown true to daylight or for kitchen prep areas where task visibility matters.
The Focus Zoom requires a single-phase track system (sold separately). The adaptor plate clips into the track channel and locks with a quarter-turn, allowing the spotlight to be repositioned along the track length without re-wiring. The IP20 rating limits the fitting to dry indoor locations only.
Specification
| Height |
15.8cm |
| Length |
12.5cm |
| Diameter |
5.5cm |
| Finish |
Black |
| Construction |
Aluminium |
| IP Rating |
IP20 |
| Voltage |
AC 165-265 |
| Wattage |
12 |
| Colour Temperature |
4000K |
| Warranty |
5 Year Guarantee |
Downloads
Product Manual
Frequently Asked
What track system does it fit?
The Focus Zoom fits single-phase track systems. The adaptor plate clips into the track channel and locks with a quarter-turn. Check that your existing track is single-phase before ordering — this spotlight is not compatible with three-phase or two-circuit track systems.
How do I adjust the beam angle?
The beam angle adjusts from 15° (narrow spot) to 50° (wide flood) via a rotating collar on the front of the spotlight head. This allows you to set the beam width to suit the size of the object or surface being lit.
Is the LED dimmable?
Dimming capability depends on the track system and power supply. If the track is fed by a dimmable LED driver, the spotlight will dim. Check the specification of your track system or contact us for compatibility advice.
Can it be used in bathrooms or outdoors?
No. The IP20 rating means the spotlight is suitable for dry indoor locations only. It cannot be used in bathrooms, kitchens with high moisture, or any outdoor application.
