Description

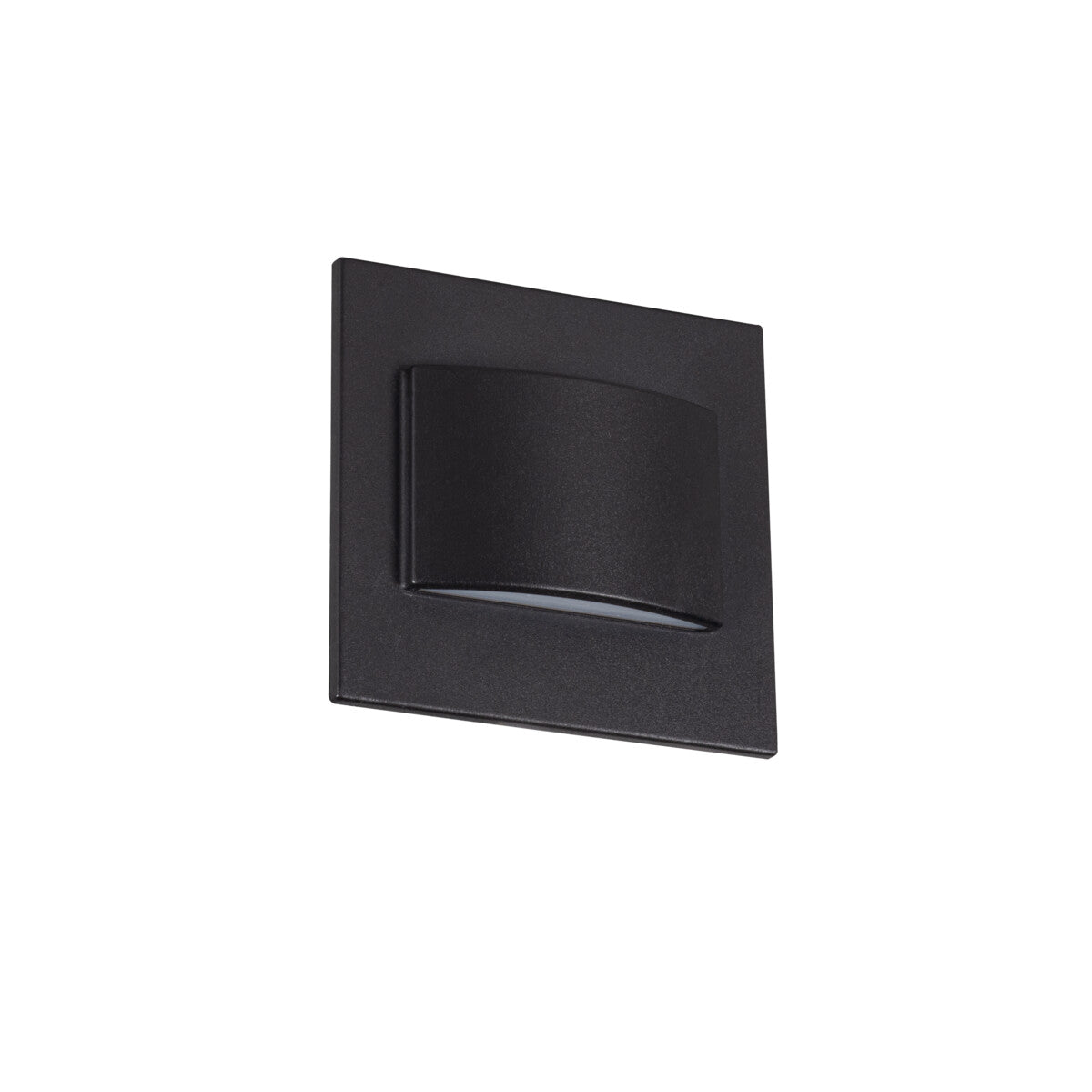

The Erinus is a compact recessed LED step light that marks indoor stairs, hallway skirtings and low wall lines with a soft, low-level glow. It runs at 1.5W on 12V DC and delivers 30 lumens at a 4000K cool white tone, giving crisp definition along the edge of a tread without dazzle. The square 75 x 75mm face sits flush once recessed, and the light washes downward across the step rather than lighting a whole room. In the US this type is known as a step light, the same small recessed marker used to pick out staircases after dark.

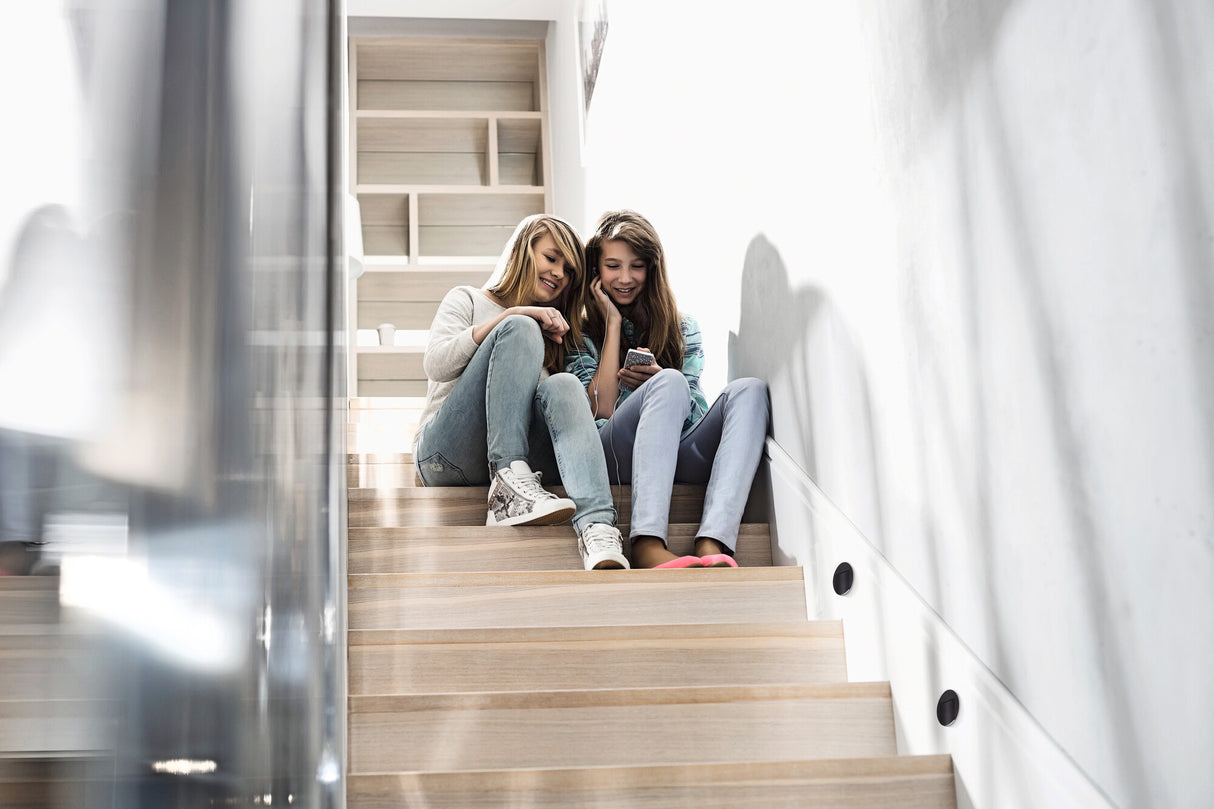

The Erinus suits the side wall of an internal staircase, a hallway with a change in level, or a landing where a full ceiling light would be too much at night. Its output is deliberately modest, so think of it as guidance marking rather than ambient lighting: it traces the edge and throw of a single step rather than covering floor area. For a flight of stairs, fit one unit per two or three treads so the cool white pools overlap and the run reads clearly underfoot. The 4000K tone keeps edges sharp and is well matched to staircases and circulation routes.
Built with a plastic body in a black finish, the Erinus is rated IP20 and is intended for dry indoor use only, so keep it clear of bathrooms, porches and any damp or outdoor position. It recesses into the wall, dropping into a prepared opening to sit level with the surface, and runs from a 12V DC supply rather than mains, so a suitable transformer is needed. The fitting is non-dimmable and rated for 30,000 hours, and at just 26g it adds negligible weight to the wall. The Erinus range includes further step lights in matching finishes for a consistent run.
Specification
| Power |
1.5W |
| Voltage |
12 DC |
| Luminous flux |
30 lm |
| Efficiency |
20 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Recessed Mount In The Wall |
| Lifespan |
30,000 hours |
| Shape |
Square |
| Dimensions |
75 × 16 × 75 mm |
| Weight |
26 g |
| Material |
Plastic |
| Finish |
Black |
Downloads
Frequently Asked
Does it need a 12V transformer or driver?
Yes. The Erinus runs on 12V DC, so it needs a suitable low-voltage transformer or driver between it and the mains supply. One transformer can usually power several units across a staircase, provided its rated output covers the combined load.
Can it be used outdoors or in a bathroom?
No. The Erinus is rated IP20, which means dry indoor use only. Keep it clear of bathrooms, porches and any damp or outdoor location, as it is not protected against moisture or splashing.
How is it installed?
It is a recessed wall fitting, so it drops into a prepared opening and sits flush with the surface for a clean, low-profile finish. The square face measures 75 x 75mm, with a 16mm depth into the wall.
How do I clean it?
Wipe the face gently with a soft, dry or slightly damp cloth to remove dust and marks. Avoid solvents and abrasive cleaners, which can scratch the plastic body and black finish.
