Emergency Light Kit for LED Modules - IP20

£16599
The RRP is the manufacturer's recommended retail price of the item.
26 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

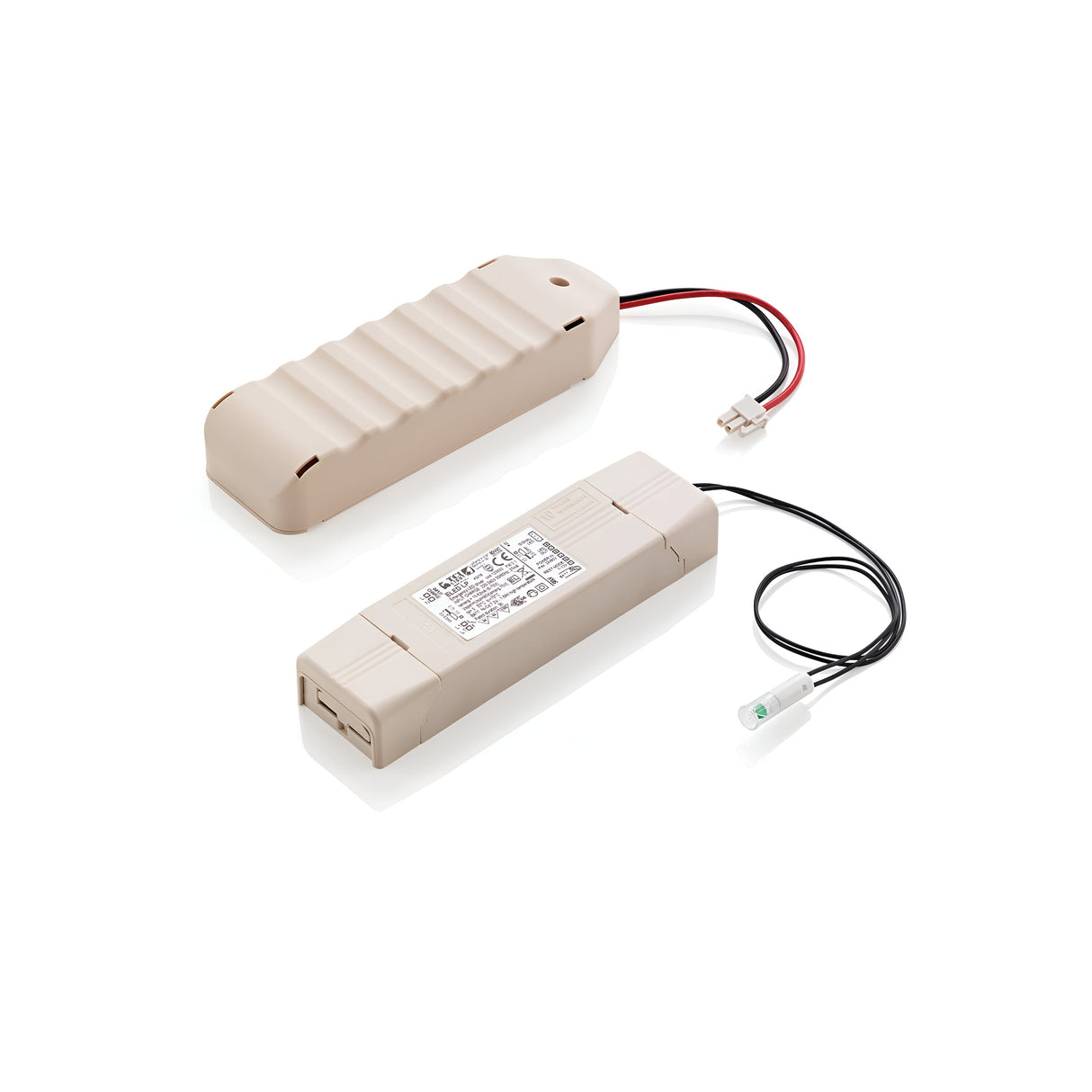

This emergency light kit from Ideal Lux provides battery backup for LED modules, maintaining illumination during mains power failure. The kit consists of two components: a battery pack measuring 185mm long and a separate LED driver measuring 166mm long, both housed in cream plastic casings. The battery pack connects to the driver via a push-fit plug, and the driver then connects to the LED module via a proprietary connector with a green indicator light.

Designed for commercial, hospitality and public buildings where emergency lighting is a regulatory requirement, the kit converts a standard LED module into an emergency lighting source without needing a separate dedicated emergency fitting. The battery pack provides sufficient reserve power to keep the LED module lit for the duration required by emergency lighting standards, allowing safe evacuation or continued operation during short power interruptions. The 59mm and 46mm projection depths of the two components mean they can be installed in ceiling voids or behind panels where space is limited.

The IP20 rating suits indoor applications only — the kit is not protected against moisture and should not be installed in bathrooms, wet rooms or outdoor locations. The non-dimmable design is standard for emergency lighting, where consistent output is required regardless of ambient conditions. The cream plastic casings match typical ceiling finishes and remain unobtrusive when installed above suspended ceilings or in recessed voids. Ideal Lux backs this kit with a 5-year warranty covering both the battery pack and the driver unit.

Specification
Length (mm) 185/166
Projection (mm) 59/46
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What LED modules is this compatible with?

The kit is designed to work with Ideal Lux LED modules that use the matching connector system. The driver has a green indicator light and a proprietary push-fit connector. Check the LED module's specification or contact us to confirm compatibility before ordering.

How long does the battery backup last?

Battery duration depends on the wattage of the connected LED module. For typical emergency lighting compliance, the battery is sized to provide 1-3 hours of illumination during power failure. Exact runtime should be confirmed against the specific LED module being used.

Can it be installed in bathrooms or outdoor areas?

No. The IP20 rating provides protection against solid objects only, not moisture. The kit is suitable for dry indoor locations such as offices, corridors, retail spaces and public buildings, but not bathrooms, wet rooms or any outdoor application.

Does it require an electrician to install?

Yes. The kit connects to mains power and must be installed by a qualified electrician in accordance with BS 5266 (emergency lighting) and BS 7671 (electrical wiring regulations). Incorrect installation can compromise both safety and compliance with building regulations.
