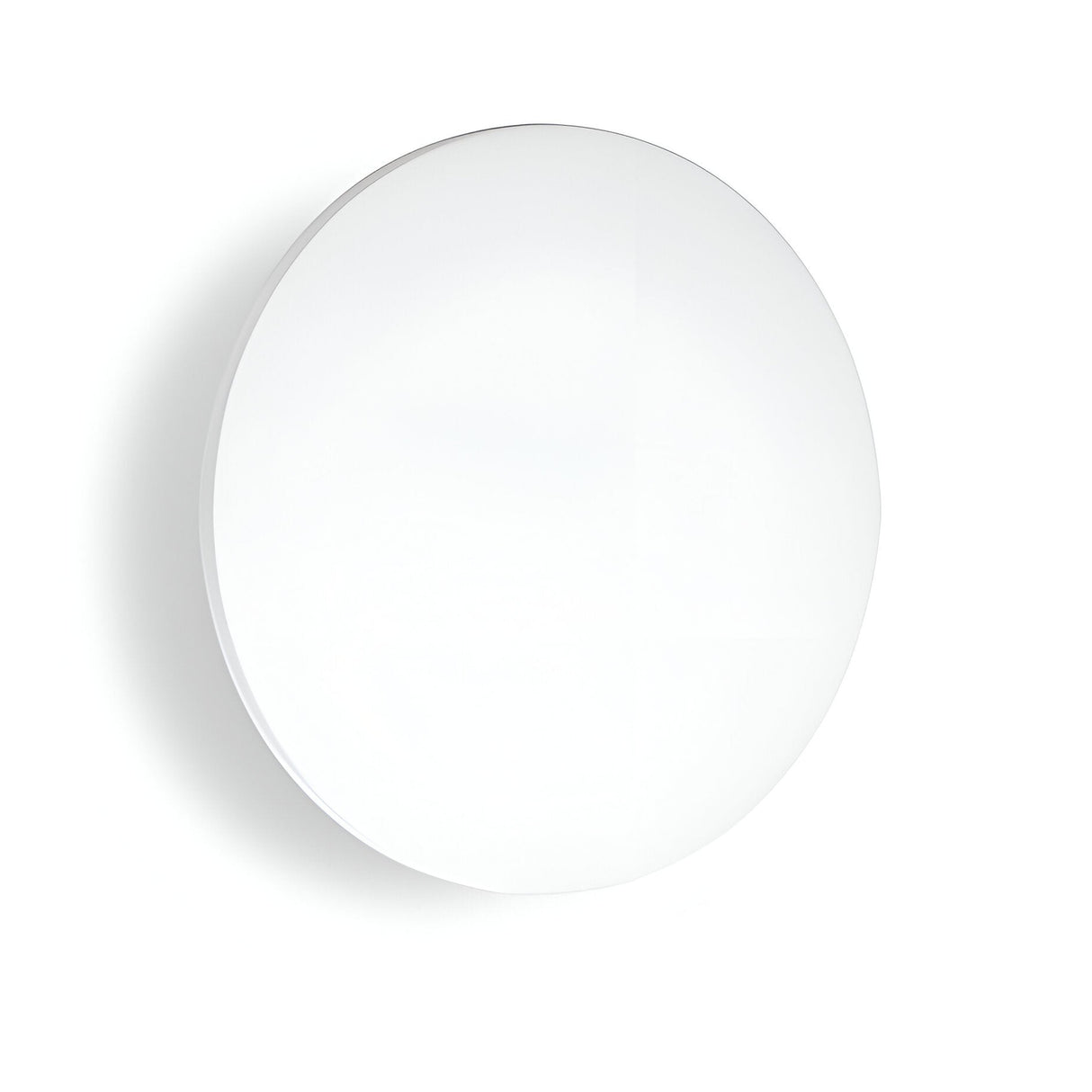

Eclipseax Outdoor LED Wall Light 12W 3000K - White, 24cm

The Eclipseax is a 240mm circular outdoor LED wall light with a white metal body housing an integrated 12W LED rated at 3000K. The circular faceplate sits close to the wall on a shallow base, projecting soft ambient light outward and downward across adjacent wall surfaces and ground. The IP54 rating provides protection against dust ingress and splashing water from any direction.

Designed for porch entrances, patio walls, garage exteriors and garden pathway illumination, the Eclipseax pairs a clean circular form with functional outdoor durability. The white powder-coated metal finish resists weathering in UK coastal and urban environments, while the sealed LED module eliminates bulb replacement concerns for the rated LED lifespan. The 12W output provides sufficient illumination for a 2-3m radius around a doorway or along a garden wall without overwhelming adjacent rooms with backwash light.

The circular design measures 240mm in diameter with a profile depth of approximately 60mm from the wall surface once fitted. The metal construction distributes the fitting's weight across the mounting bracket, allowing secure installation on masonry, rendered walls and exterior-grade timber cladding. The 3000K colour temperature produces a warm white light that reduces the harsh blue cast common to cooler LEDs, making the Eclipseax more sympathetic to residential garden settings after dark.

The non-dimmable LED runs on standard 230V mains and requires connection to a suitable outdoor-rated junction box or direct wiring into a switched circuit. Ideal Lux provides a 5-year warranty covering the LED module and metal housing against manufacturing defects.

What does the IP54 rating mean for outdoor use?

IP54 provides protection against dust ingress and splashing water from any direction. This makes the Eclipseax suitable for covered porches, patio walls under eaves, and garden walls where the fitting is not directly exposed to driving rain for extended periods. It is not submersible and should not be installed in positions where standing water can collect around the base.

Is the LED replaceable?

The LED module is integrated into the fitting and is not user-replaceable. The LED is rated for tens of thousands of hours of operation, typically outlasting the useful life of the fitting itself. The 5-year warranty covers LED failure due to manufacturing defects.

Can it be used in a bathroom?

IP54 meets the minimum rating for bathroom zone 2 (areas outside the shower enclosure and 60cm from a bath edge). However, this fitting is designed as an outdoor wall light and its circular form and 240mm diameter may not suit typical bathroom wall dimensions. Check local electrical codes before installation in wet rooms.

How is it mounted?

The Eclipseax mounts via a metal bracket fixed to the wall with screws and wall plugs (supplied). The circular body then clips or screws onto the bracket after the wiring is connected through the bracket's cable entry point. Installation requires connection to a mains electrical supply and should be carried out by a qualified electrician.
