Description

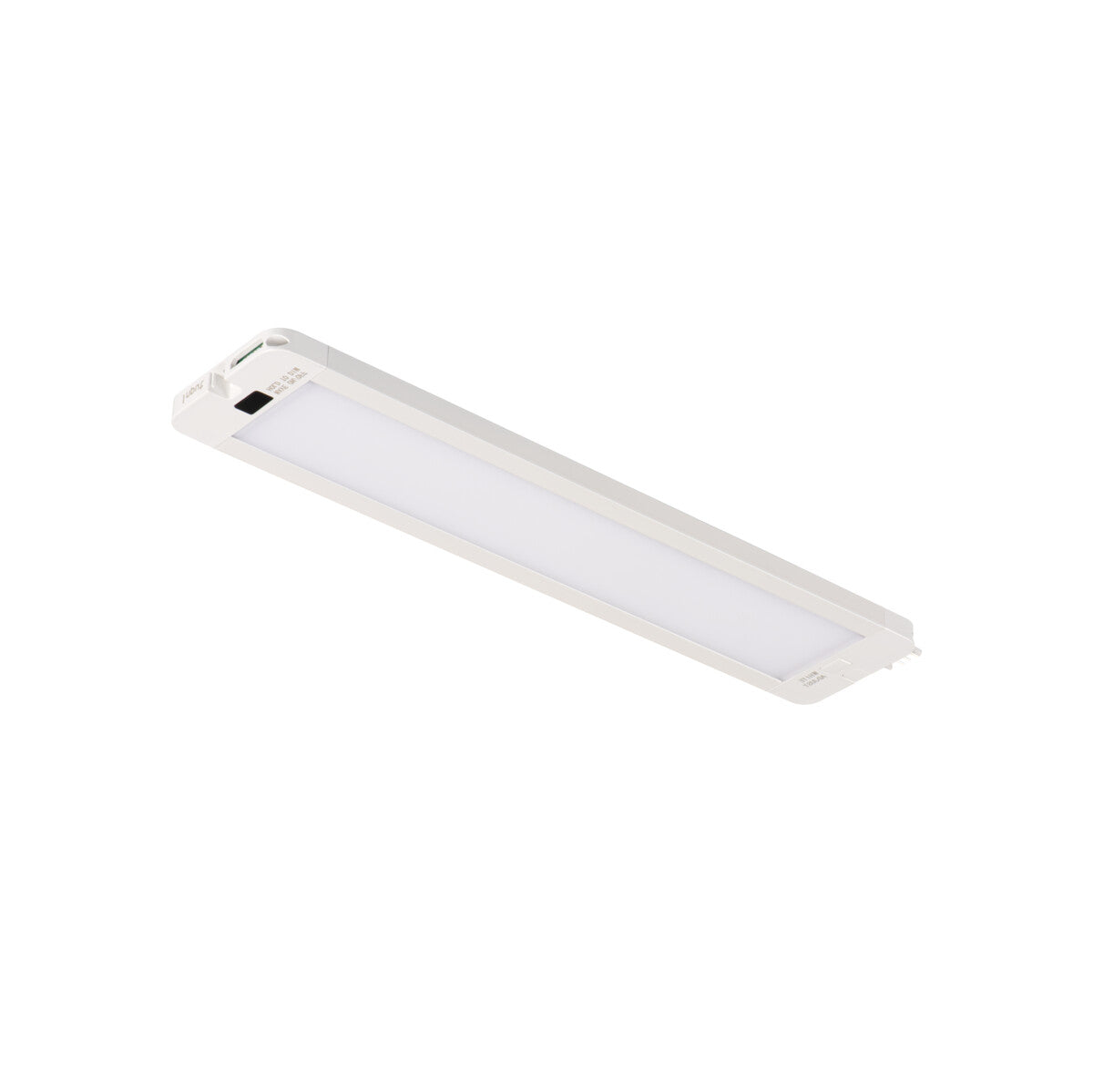

The DAXA-M-IR is a slim rectangular LED ceiling light measuring 280 x 60 x 9.2 mm, drawing 5W on a 24V DC supply and producing up to 640 lumens. In US terms it sits among compact flush mount LED ceiling lights, where its low profile keeps it close to the surface. The integrated LED is colour selectable across 3000K, 4000K and 5500K, so the same fitting can run warm white, neutral white or a cooler daylight tone depending on the setting. A built-in infrared sensor brings the light up on movement, which makes it a practical choice for spaces you pass through rather than linger in.

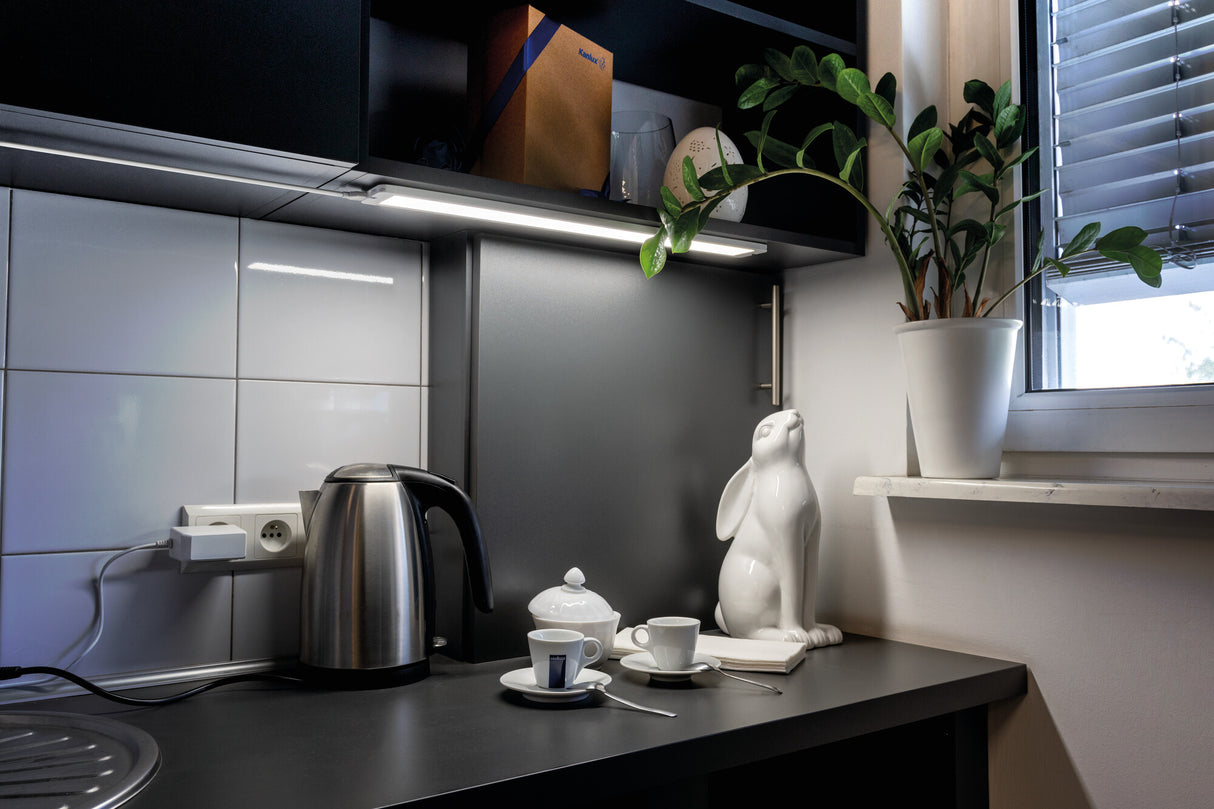

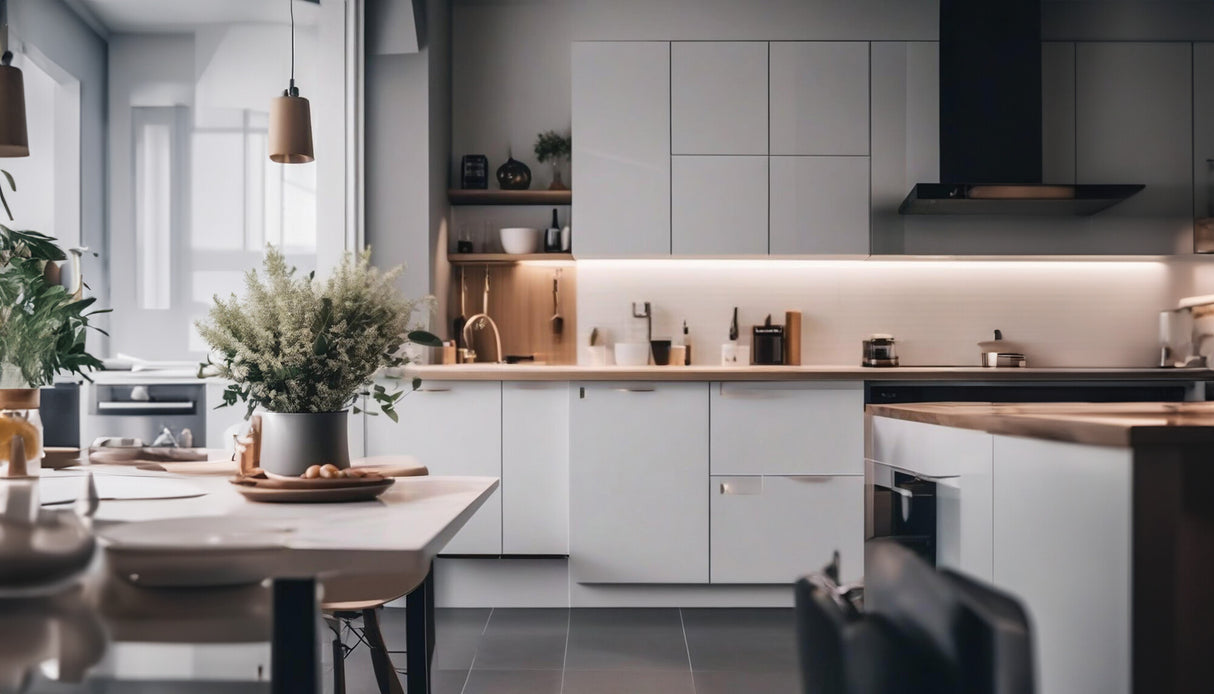

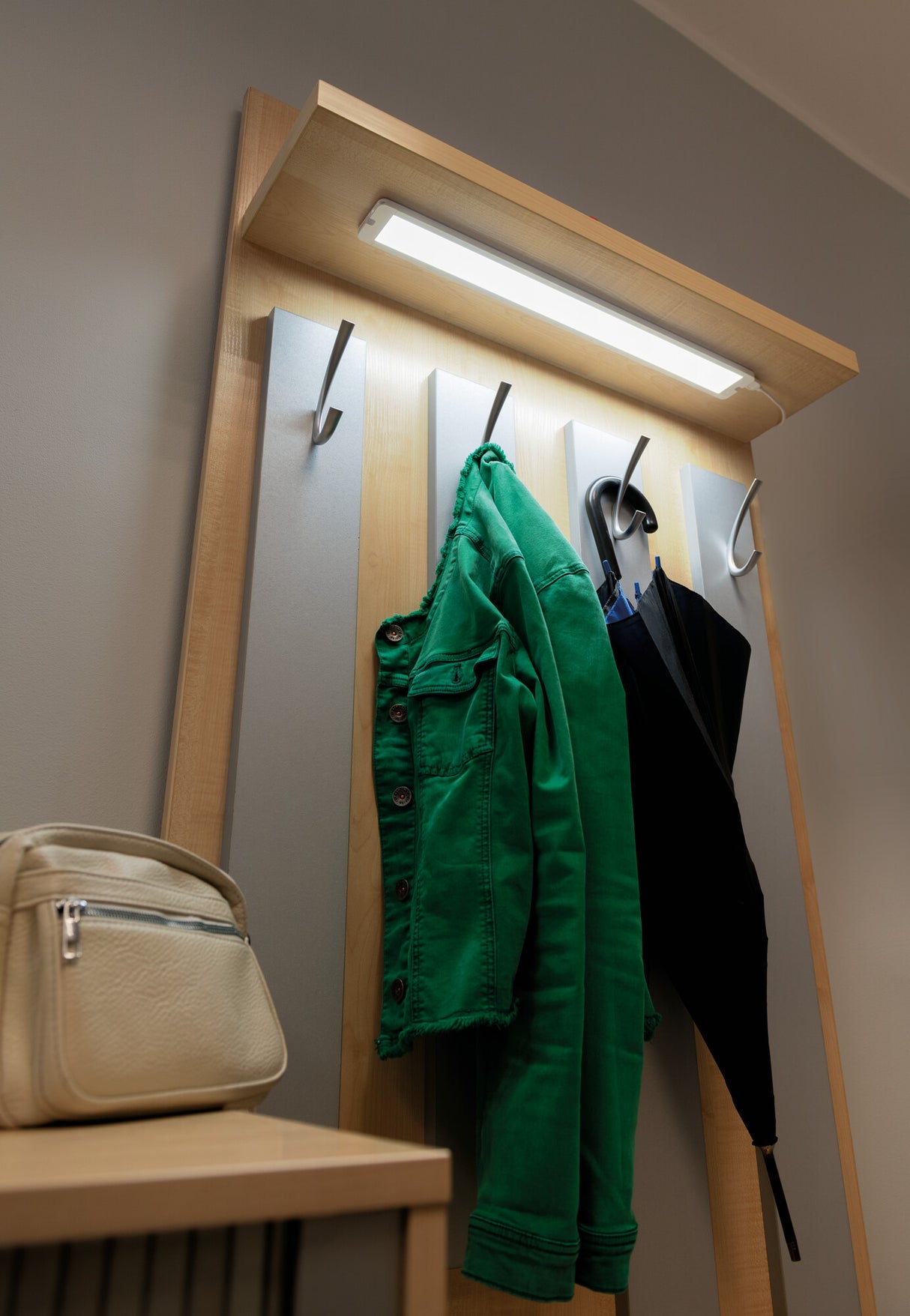

Output of this level covers around 2 m² at general lighting levels, so the DAXA-M-IR suits tight indoor spots such as a cupboard interior, a small hallway recess, a stair head or beneath a kitchen unit. It is rated IP20 for dry indoor use only, so keep it clear of bathrooms, porches and any damp or outdoor location. The compact footprint and shallow 9.2 mm depth let it tuck into low ceilings and confined corners where a larger round fitting would not sit neatly, and the sensor saves leaving it on in areas used only briefly.
The body is aluminium alloy in a white finish, with an integrated LED that needs no replaceable bulb. It can be wall or ceiling mounted as a surface fitting, running directly from its 24V DC supply. This is a non-dimmable fixture, controlled by its motion sensor rather than a wall dimmer, with a colour rendering of Ra 80 and a rated lifespan of 35,000 hours. At 190 g it is light enough for straightforward fixing.
Specification
| Power |
5W |
| Voltage |
24 DC |
| Luminous flux |
max 640 lm |
| Efficiency |
max 128 lm/W |
| Colour temperature |
3000/4000/5500K |
| Colour rendering (CRI) |
Ra 80 |
| IP rating |
IP20 |
| Dimmable |
No |
| Mounting |
Wall Mounted, Ceiling Mounted |
| Lifespan |
35,000 hours |
| Shape |
Rectangular |
| Dimensions |
280 × 60 × 9.2 mm |
| Weight |
190 g |
| Material |
Aluminium Alloy |
| Finish |
White |
Downloads
Frequently Asked
What room size does it light?
With up to 640 lumens, the DAXA-M-IR covers around 2 m² at general lighting levels. That makes it best for compact spots such as a cupboard, a small hallway recess or a stair head rather than a main room.
Can I change the colour temperature?
Yes. It is colour selectable across 3000K warm white, 4000K neutral white and 5500K cooler daylight, so you can match the tone to the space. The setting is chosen on the fitting before installation.
Does it use a replaceable bulb?
No, the LED is integrated into the fitting, so there is no separate bulb to swap. The light source is rated for 35,000 hours of use.
How do I clean it?
Wipe the white aluminium body and the lens with a soft, dry or slightly damp cloth, with the power off. Avoid abrasive cleaners or solvents, which can mark the finish and dull the diffuser.
