Description

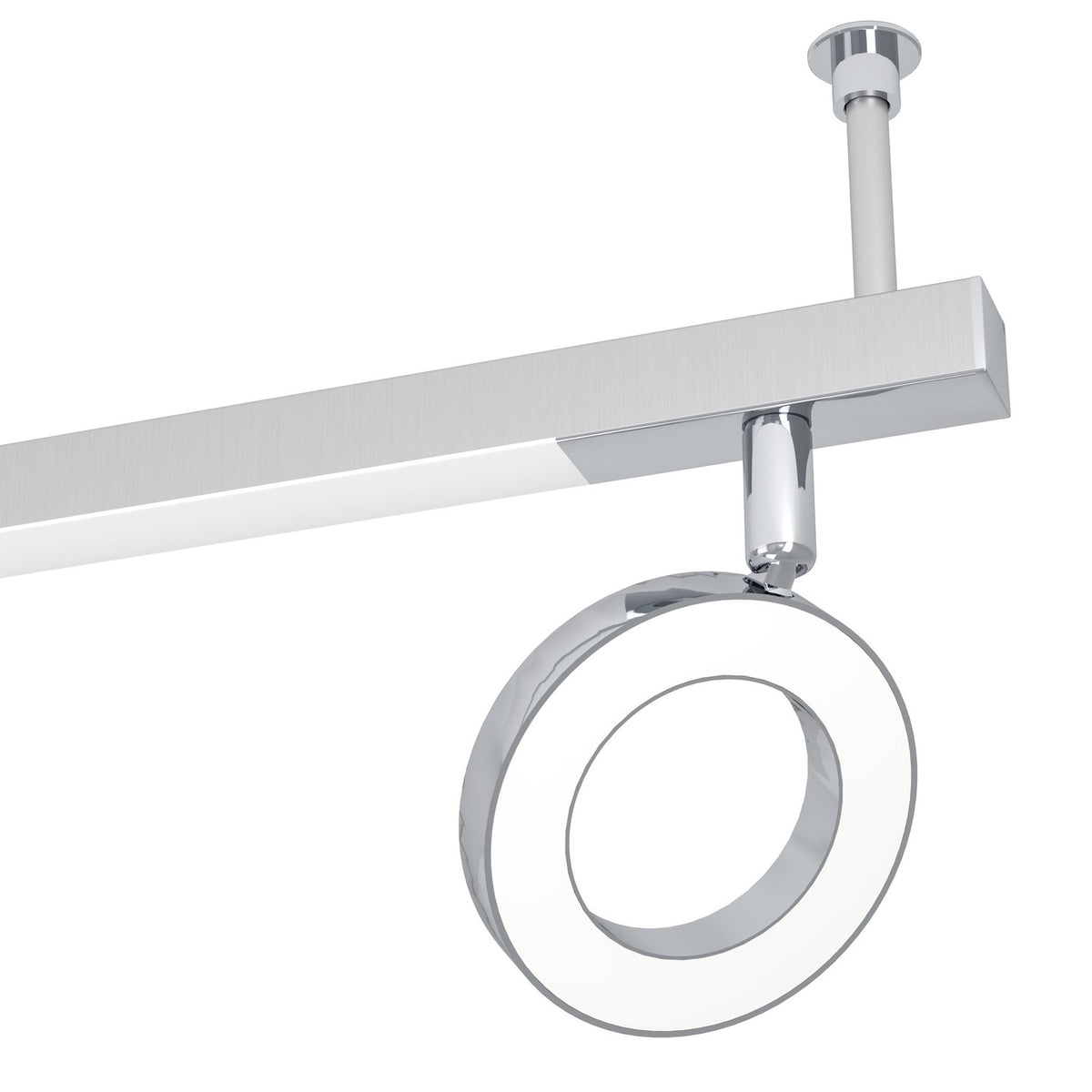

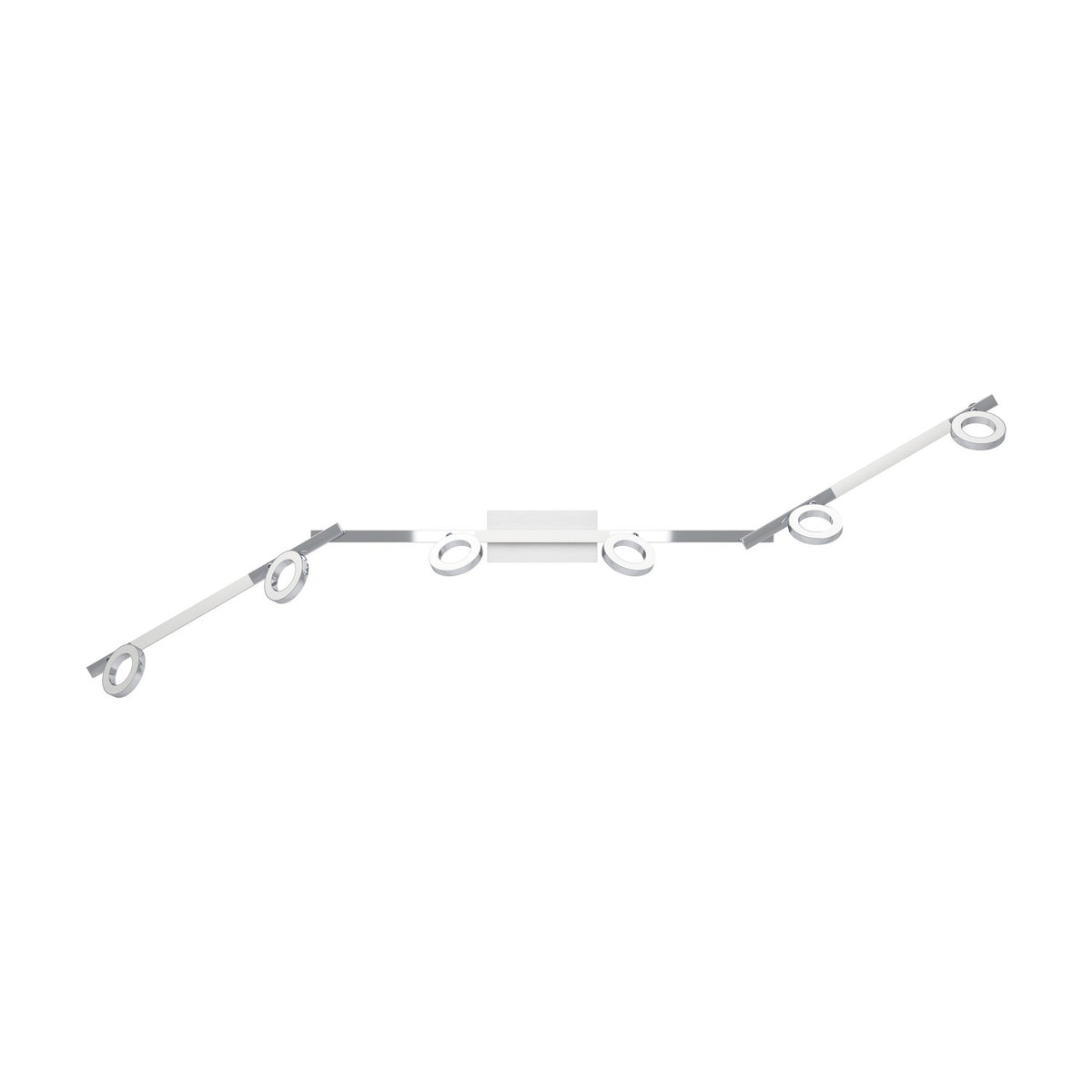

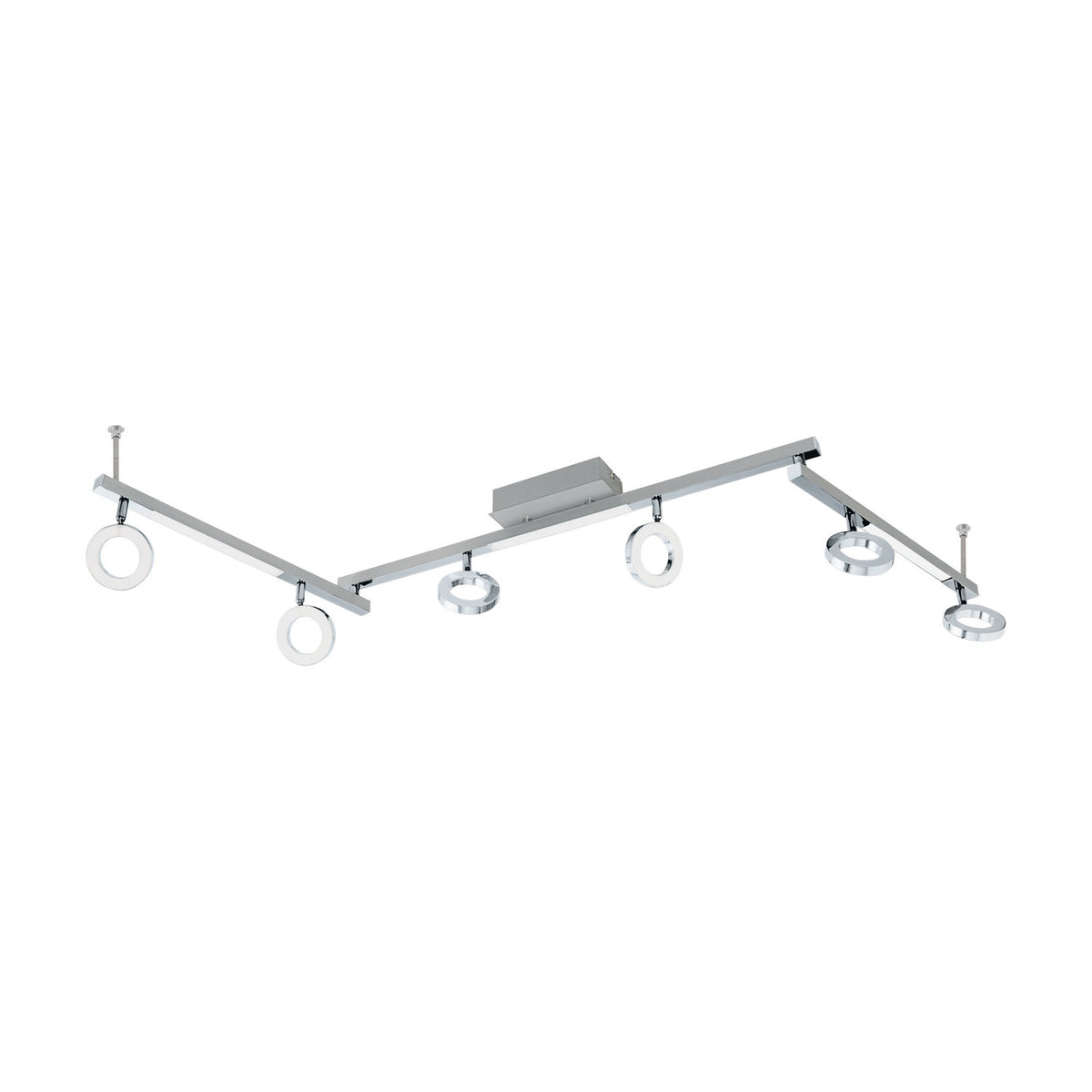

The Cardillio 1 is a six-light LED spotlight bar for the ceiling, built from aluminium and steel in a brushed aluminium and chrome finish. Three straight sections make up the bar: a central run on a slim ceiling plate, with an angled arm at each end held by its own slender rod, so the fitting runs across the ceiling in a gentle zigzag. It is 158.5cm long, 8.5cm wide and 19.5cm high. Each of the six spots is a chrome ring around a satin-finish plastic diffuser, lit by integrated LEDs, so there are no bulbs to buy or replace. Its IP20 rating settles where it belongs: indoors, in a dry room.

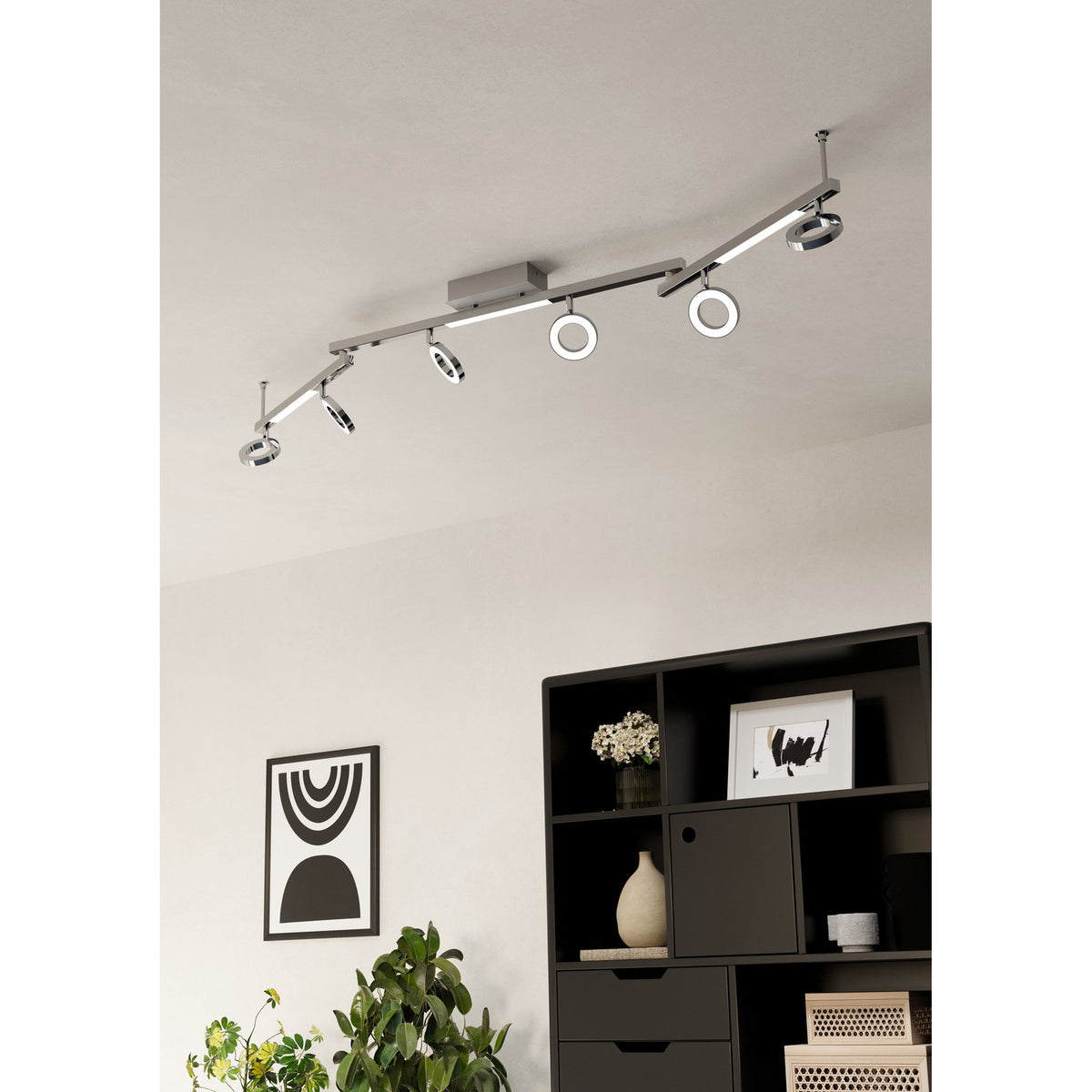

Its length makes it a natural choice for a long living room, a dining room or a wide hallway, where a single central pendant can leave the corners dim. Six points of light spread along the bar share the glow across the space, and at 3000K the light is a warm white, the relaxed tone most of us prefer at home in the evening. Each ring gives 440lm, and the satin diffusers soften it so the spots look calm rather than harsh. The brushed aluminium sits well against pale walls and grey or black furniture, while the polished chrome rings catch the eye.
The body pairs aluminium with steel, and the six spots run at 3.2W each from a 220-240V, 50/60Hz mains supply, with an energy class of E. The light is not dimmable and has no switch of its own; it works from your wall switch, which keeps the bar itself clean and uncluttered. As a wired-in ceiling fitting, it should be installed by a qualified electrician, and the installation instructions come as a download. The packed weight is 2.13KG. Before ordering, measure your ceiling: at 158.5cm long, it needs a clear stretch free of beams and other fittings.
Specification
| Length |
158.5cm |
| Width |
8.5cm |
| Height |
19.5cm |
| Body Material |
Aluminium, steel |
| Body Colour |
Aluminium, chrome |
| Shade Material |
Plastic |
| Shade Colour |
Satin finish |
| Light Source |
LED, integrated |
| Wattage |
6 x 3.2W |
| Lumens |
440lm per light (6 lights) |
| Colour Temperature |
3000K |
| Dimmable |
No |
| Switch |
None (switched at the wall) |
| IP Rating |
IP20 |
| Protection Class |
Class II |
| Voltage |
220-240V, 50/60Hz |
| Energy Class |
E |
| Weight (packed) |
2.13KG |
Downloads
Installation Instructions (PDF)
Frequently Asked
Can I use this spotlight bar in a bathroom?
No. It is rated IP20, which means it belongs indoors in a dry room, away from water; a living room, dining room or hallway suits it well.
How bright is each spot?
Each of the six ring spots gives 440lm from a 3.2W integrated LED, with a warm white colour temperature of 3000K.
Is the Cardillio 1 dimmable?
No, it is not dimmable. It has no switch of its own and is turned on and off from your wall switch.
Do I need to buy bulbs?
No bulbs are needed. The light comes from integrated LEDs built into each ring, so there is nothing extra to buy.
How long is the spotlight bar?
It is 158.5cm long, 8.5cm wide and 19.5cm high, so it needs a good clear run of ceiling.
Which finish does it have?
The bar is brushed aluminium with polished chrome ring spots, and the diffusers inside the rings are satin-finish plastic.
