Brillia Electric 3-Phase Track Connector - White

£699
RRP £960
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

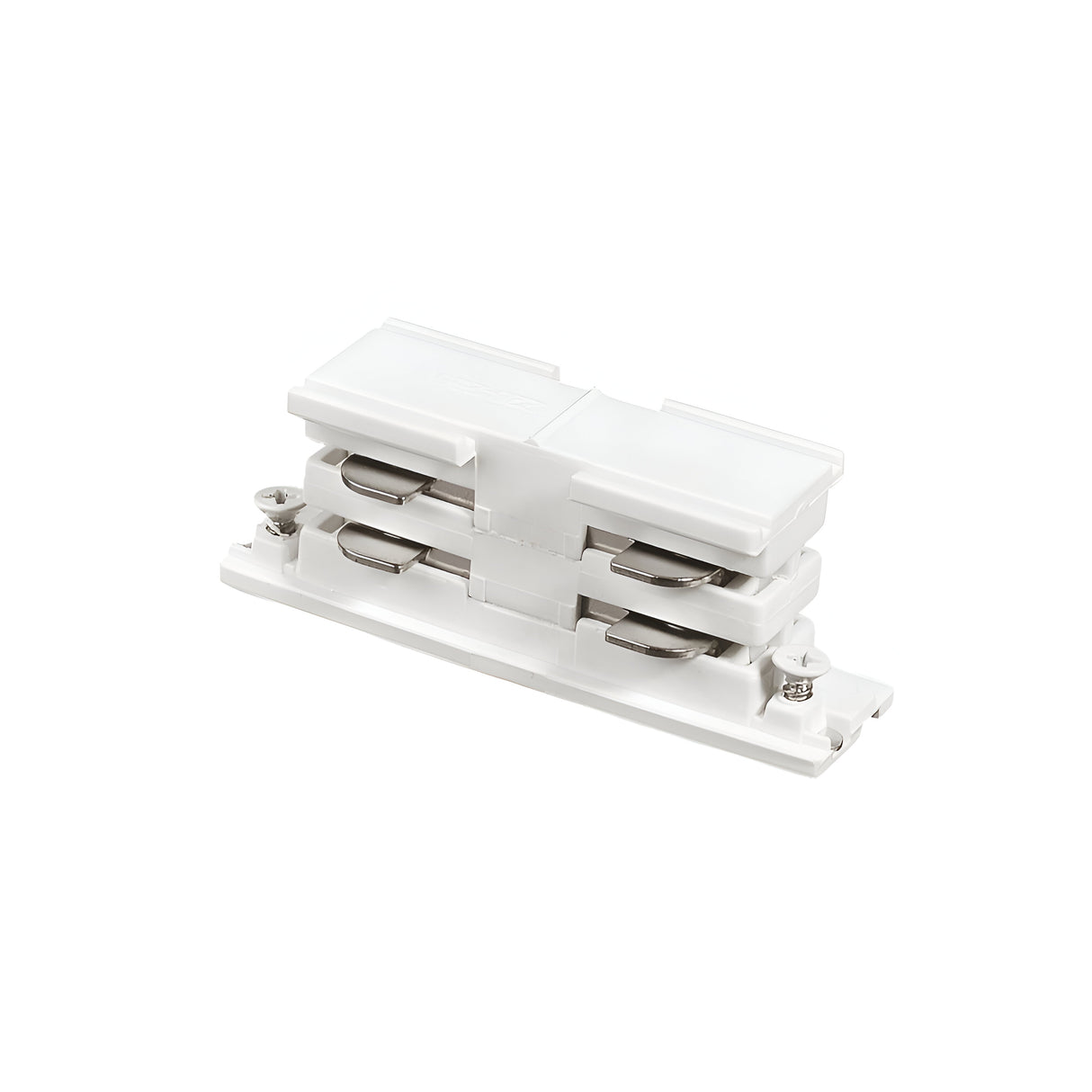

The Brillia Electric is a 3-phase track connector in white plastic, measuring 68mm long by 29mm high with a 21mm projection from the track base. It links sections of 3-phase track lighting rail together, maintaining electrical continuity across all three phases plus neutral and earth. An 860mm cable extends from the connector body to provide flexibility in positioning where sections join.

Designed for indoor track lighting installations in homes, retail displays and offices, the connector allows track runs to be extended across longer ceiling spans or turned at angles where required. The 3-phase system supports independent control of different light circuits on the same track — a common setup in galleries, showrooms and retail where different zones need separate switching or dimming. The IP20 rating restricts use to dry indoor locations only.

The white plastic body blends into white or light-coloured ceiling tracks without drawing visual attention to the join point. The connector housing is injection-moulded rather than metal, keeping weight low and simplifying installation on plasterboard ceilings where multiple track sections would otherwise add significant load. Ideal Lux backs the connector with a 5-year warranty covering material and manufacturing defects.

Specification
Length (mm) 68
Projection (mm) 21
Height (mm) 29
Cable Length (mm) 860
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is a 3-phase track connector used for?

A 3-phase connector joins two sections of 3-phase track lighting rail together, maintaining electrical continuity across all three independent circuits plus neutral and earth. This allows a single track run to support multiple independently-controlled lighting circuits, so different zones can be switched or dimmed separately.

Can this be used with single-phase track systems?

No. The Brillia Electric is designed specifically for 3-phase track rail systems. Using it with single-phase track would result in incomplete connections and non-functional circuits. Always match the connector type to the track system phase configuration.

Where can this connector be installed?

The IP20 rating restricts installation to dry indoor locations only. Suitable for living rooms, kitchens, offices, retail spaces and galleries. Not rated for bathrooms, outdoor use, or any location where moisture or direct water contact is possible.

What does the 860mm cable length allow?

The cable provides flexibility when joining track sections that are not perfectly aligned or where the join occurs at a corner or angle. The extra length allows the connector to bridge small gaps or offsets between track ends without straining the electrical connections.
