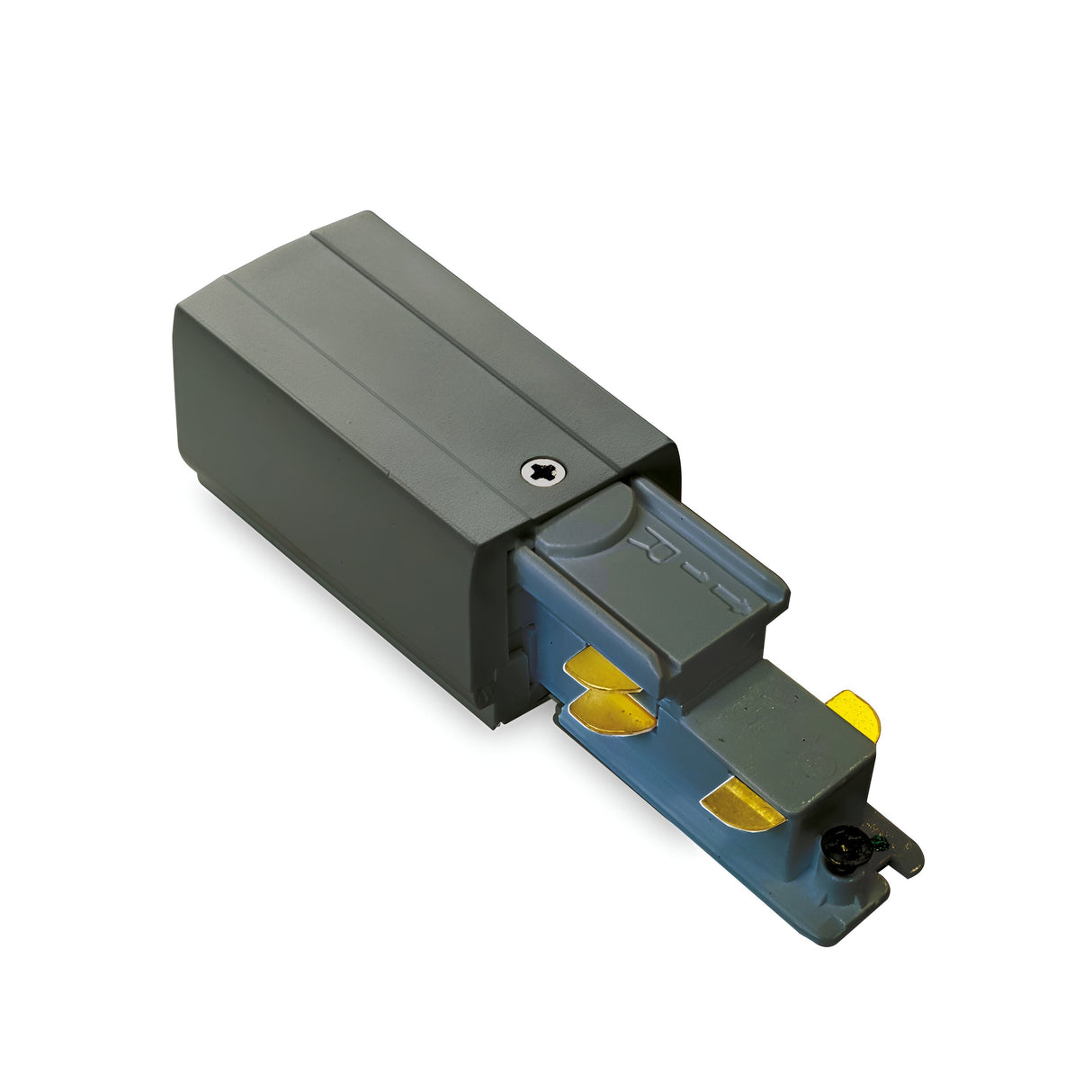

Brillia 3-Phase Trimless Track End Right Power Input - 1-10V Dimmable Black

The Brillia 3-phase trimless track end is a right-side power input connector for Ideal Lux 3-phase track lighting systems, finished in black with 1-10V dimming compatibility. The connector sits at the end of a track run and provides the mains power connection point, with the electrical feed entering from the right-hand side when viewed from below. The trimless design means the connector housing sits flush with the track profile, avoiding the protruding bulk of traditional end caps.

Designed for retail, gallery, hospitality and residential track lighting installations where the track terminates at a wall or corner rather than continuing to another run, the right-side power input allows the mains cable to be routed from the right, which suits installations where the power source is positioned to the right of the track end. The 1-10V dimming protocol requires a compatible driver and control system, allowing smooth dimming of connected track spots and pendants from 100% down to 10% or lower depending on the driver specification.

The black polycarbonate housing measures 140mm in length, 35mm in projection from the ceiling surface, and 34mm in height, matching the profile of Ideal Lux 3-phase trimless track. The IP20 rating restricts use to dry indoor environments — offices, living spaces, boutiques, showrooms and galleries where moisture and dust ingress are not a concern. The connector clips mechanically into the track channel and the power input wires terminate inside the housing using screw terminals compatible with UK mains cable.

What does 'right-side power input' mean?

When standing beneath the track looking up at the end connector, the mains cable enters from the right-hand side. This matters during installation planning — choose left or right power input depending on where your ceiling power source is positioned relative to the track end.

Is this compatible with all 3-phase track systems?

This connector is designed specifically for Ideal Lux 3-phase trimless track. It will not fit other brands' track systems due to differences in channel width, contact configuration and mounting mechanism. Confirm your existing track is Ideal Lux Brillia trimless before ordering.

What does 1-10V dimmable mean?

1-10V is a dimming control protocol that requires a separate low-voltage control cable running alongside the mains power. The dimmer sends a 1-10V signal to compatible drivers in your track spots or pendants, allowing smooth brightness adjustment. This is a professional dimming standard common in commercial lighting.

Can it be used outdoors or in bathrooms?

No. The IP20 rating means the connector is not sealed against moisture or dust ingress. Use only in dry indoor spaces such as living rooms, offices, retail areas and galleries.
