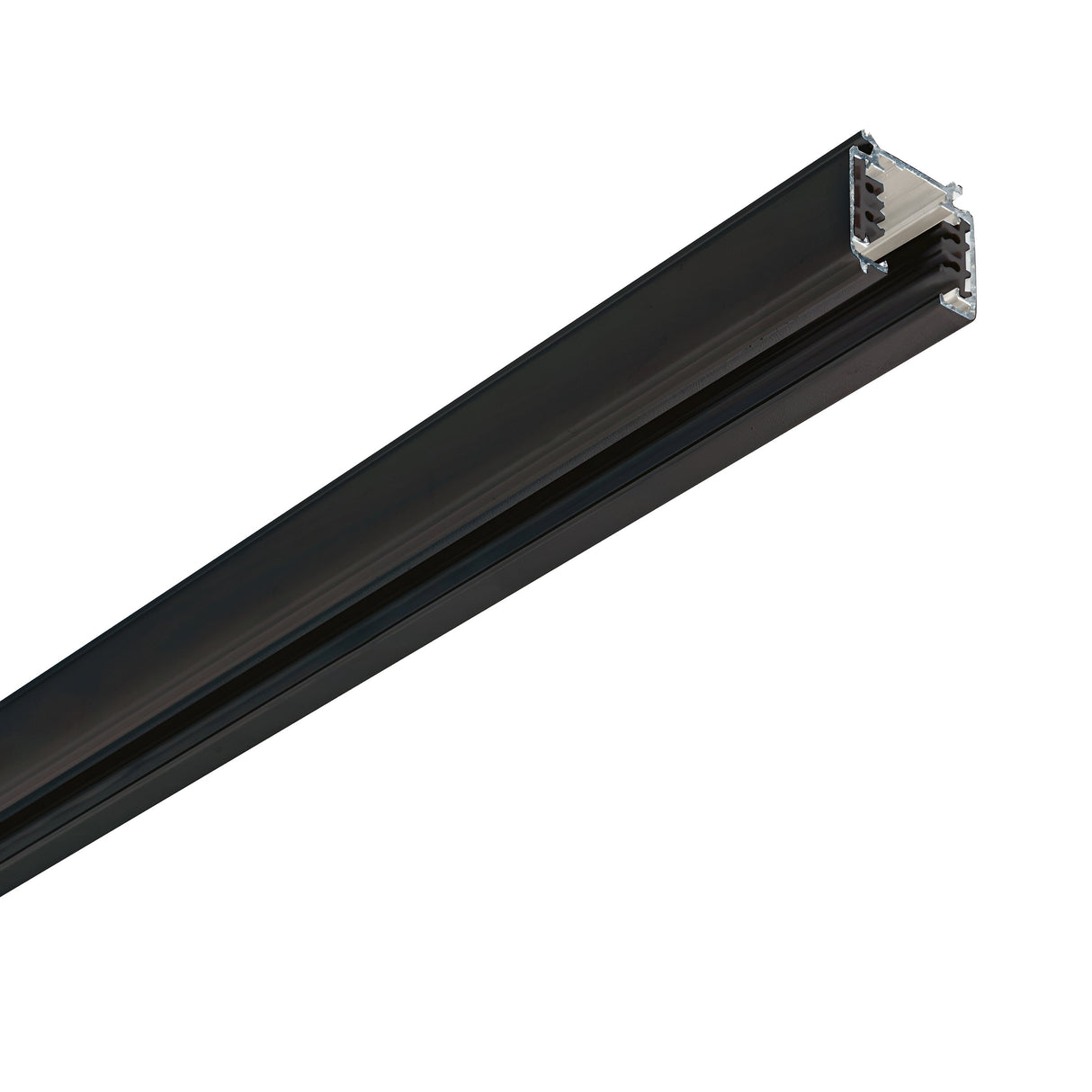

Brillia 3-Phase Trimless Track 3m 1-10V Dimmable - Black

The Brillia is a 3-metre trimless track lighting rail in matt black, designed for surface mounting to ceilings or beams. The track uses three-phase circuitry, allowing up to three separate lighting circuits to run along a single rail, each independently controlled and dimmable via 1-10V protocol. The 35mm projection keeps the track visually low-profile while still accommodating standard track spotlight heads.

Designed for retail, gallery, hospitality and residential installations where flexible accent lighting is needed, the Brillia accepts three-circuit track heads (sold separately) that can be positioned and repositioned anywhere along the 3m length. The 1-10V dimming allows smooth control from 0-100% brightness when paired with compatible dimmer systems, making it suitable for spaces where lighting levels need to change throughout the day or for different tasks.

The trimless profile means the track sits flush against the ceiling surface with no visible mounting flanges or trim edges, creating a cleaner architectural line than traditional flanged track systems. The matt black finish minimises visual prominence when the track is installed against dark ceilings or exposed services, and provides a neutral backdrop when spotlights are mounted. The IP20 rating suits dry indoor environments including living spaces, offices, showrooms and commercial interiors.

The track is supplied as a single 3m length and can be cut to custom lengths on site if a shorter run is needed, or joined end-to-end with connector accessories (sold separately) to create longer continuous runs. Power feed connectors are available to energise the track at one or both ends depending on the layout.

What does three-phase mean for track lighting?

Three-phase track has three separate electrical circuits running along the same rail. This allows you to connect different spotlight heads to different circuits, so you can control three groups of lights independently on separate dimmer channels. It is unrelated to industrial three-phase power — the track still runs on standard 230V mains.

What spotlights does the Brillia track accept?

The track accepts three-circuit track spotlight heads from Ideal Lux and other manufacturers using the same profile standard. Spotlights are sold separately and clip into the track at any point along its length.

Can the track be cut to length?

Yes. The 3m rail can be cut to shorter lengths on site using a metal saw. Power feed and end caps are available separately to finish the cut ends.

What dimmer type is required?

The track uses 1-10V dimming protocol. You will need a 1-10V-compatible dimmer controller and LED driver system. Standard trailing-edge or leading-edge dimmers will not work with this track.
