Brillia 3-Phase Trimless L-Connector Track Right - Dimmable 1-10V White

£4099
The RRP is the manufacturer's recommended retail price of the item.
186 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

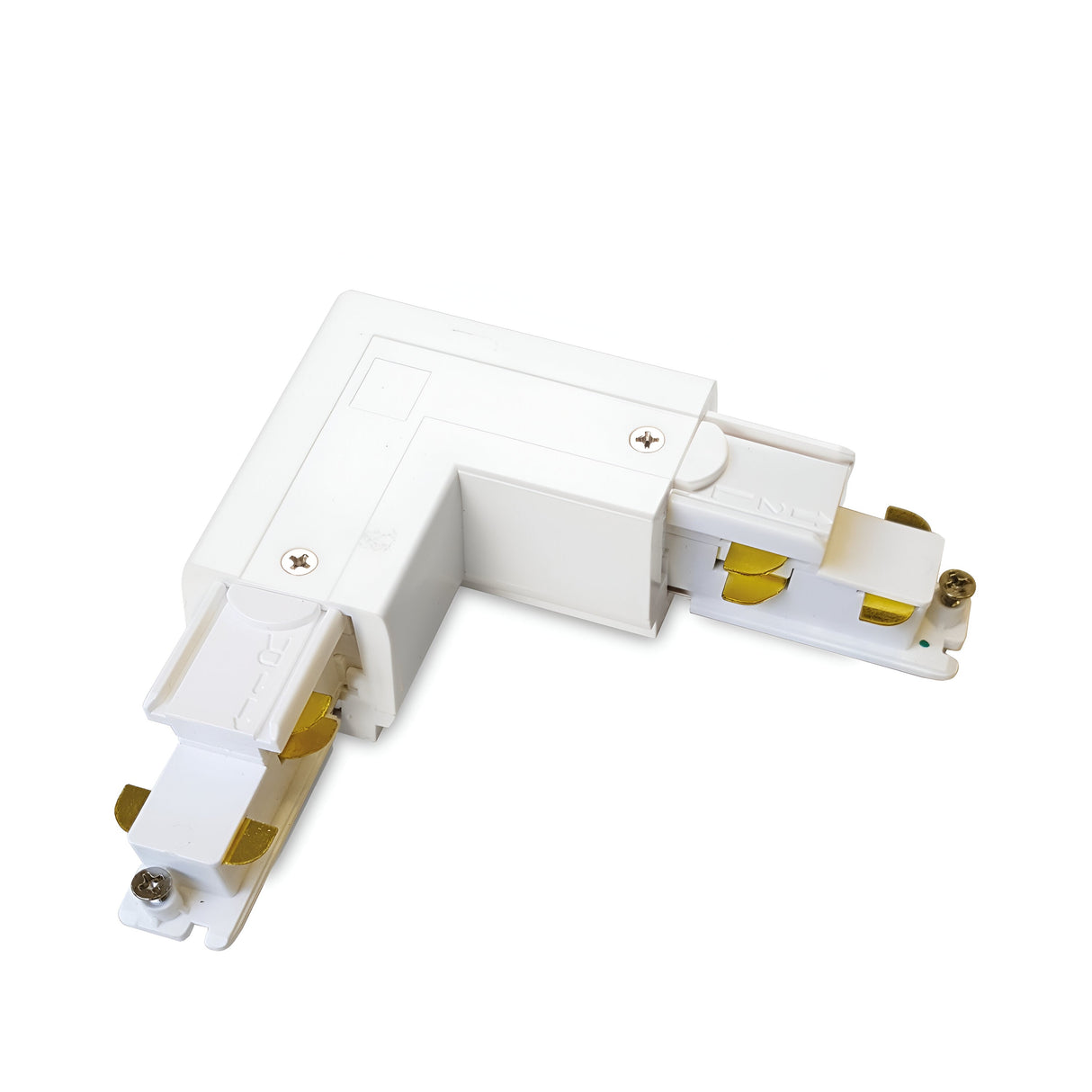

The Brillia 3-phase trimless L-connector track right is a 120mm x 120mm right-angled junction piece that connects two sections of three-phase track lighting rail at a 90-degree angle, with the electrical connection configured for right-hand turns. Moulded from white thermoplastic, the connector houses three separate circuit conductors to maintain independent control of three lighting circuits through a single track run.

Designed for commercial retail, gallery and hospitality installations where track lighting needs to turn corners while maintaining circuit separation, the connector supports 1-10V dimming control across all three phases. The trimless profile sits flush with the track rail on both connection points, giving a continuous unbroken line where the track changes direction. The connector fits standard three-phase track systems and maintains electrical continuity without requiring external wiring at the junction.

The 35mm height matches typical three-phase track profiles, and the 120mm square footprint provides sufficient internal space for the three-circuit contact assembly without increasing the external dimensions of the track run. The IP20 rating confirms suitability for dry indoor environments, and the white thermoplastic finish matches white track rails to maintain visual continuity across ceiling-mounted installations. Installation requires snapping the connector onto the ends of two track sections in a right-hand configuration, with the connector's internal contacts making circuit connections automatically on insertion.

Specification
Length (mm) 120
Projection (mm) 120
Height (mm) 35
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What's the difference between right and left L-connectors?

The right-hand connector is configured for track runs that turn 90 degrees to the right when viewed from the power feed point. If your track needs to turn left, you need the left-hand version. The internal circuit configuration differs between the two to maintain correct phase order through the turn.

Is this compatible with single-phase track systems?

No. This connector is designed specifically for three-phase track lighting systems where three independent circuits run through a single track. For single-phase systems, use a standard single-circuit L-connector.

Does the trimless design mean it's recessed into the ceiling?

No. Trimless in this context means the connector sits flush with the track rail profile without protruding or adding visible bulk at the junction point. The track itself is surface-mounted on the ceiling, and the connector maintains the same visual line as the straight track sections.

What does 1-10V dimmable mean?

1-10V is a commercial dimming protocol where a separate low-voltage control wire (carrying 1-10 volts) adjusts the light output of compatible LED drivers. All three phases in this connector support 1-10V dimming, allowing independent dimming control of the three circuits if paired with compatible track spotlights and a 1-10V controller.
