Brillia 3-Phase Trimless L-Connector Track Left - On-Off Black

£3399
The RRP is the manufacturer's recommended retail price of the item.
398 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

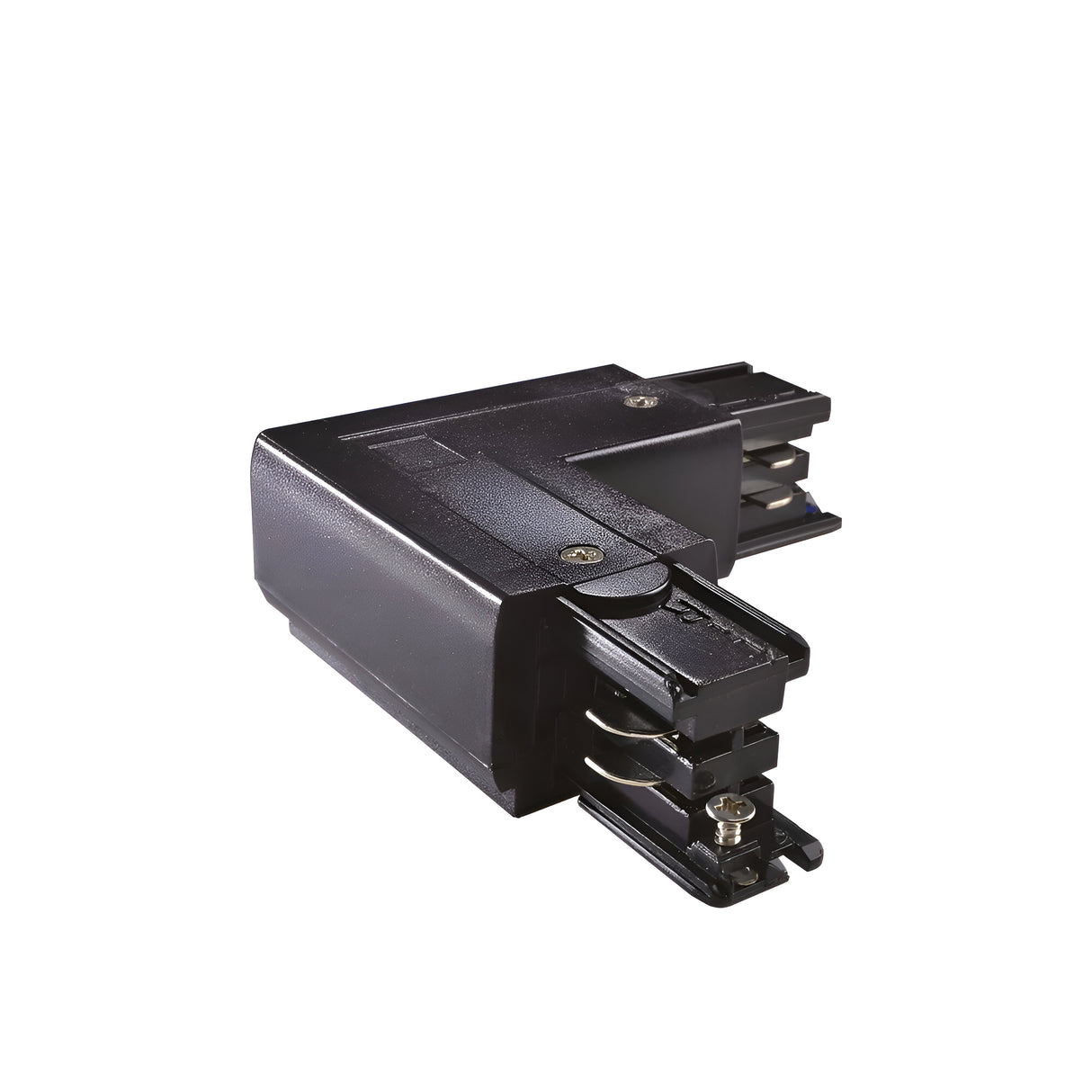

The Brillia 3-phase trimless L-connector creates a left-angle join in 3-phase track lighting systems, allowing the track to turn 90 degrees while maintaining live power through all three circuits. The black plastic housing contains internal copper conductors that align with the track rails, and an integrated on-off switch isolates power to the downstream section without affecting the rest of the track run.

Designed for retail, hospitality and residential installations where track lighting needs to follow a corner or wall junction, the connector suits both recessed trimless track systems and surface-mounted variants. The 101mm length on each arm gives clearance for the internal conductors to sit flush with the track rails, and the 32mm height matches standard 3-phase track profiles from Ideal Lux and compatible systems.

The black finish blends into dark ceilings and matches black track sections for a cohesive run. The IP20 rating limits use to dry indoor environments away from moisture, and the plastic construction keeps the connector lightweight at approximately 80g. The 5-year warranty from Ideal Lux covers manufacturing defects in the housing and internal conductor assembly.

Specification
Length (mm) 101
Projection (mm) 101
Height (mm) 32
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does the on-off switch control?

The integrated switch isolates power to the downstream track section (the track continuing after the connector). It does not affect the upstream section or any other branches in the track system. This allows individual sections to be powered down for maintenance or zone control without isolating the entire track run.

Is this compatible with other track systems?

The connector is designed for Ideal Lux 3-phase track systems and compatible rails with the same conductor spacing and 32mm profile height. It will not fit single-circuit track or 2-phase systems, and may not align correctly with track from other manufacturers unless confirmed compatible by the supplier.

What is the difference between left and right L-connectors?

The left and right designation refers to the orientation of the on-off switch and conductor alignment when viewed from above. A left L-connector turns the track 90 degrees to the left; a right L-connector turns it to the right. The internal wiring is mirrored between the two variants to maintain correct phase alignment through the turn.

Can it be used outdoors or in bathrooms?

No. The IP20 rating means the connector offers no protection against moisture or dust ingress beyond basic contact protection for the live conductors. It is suitable only for dry indoor environments such as living rooms, offices, retail spaces and hallways.
