Description

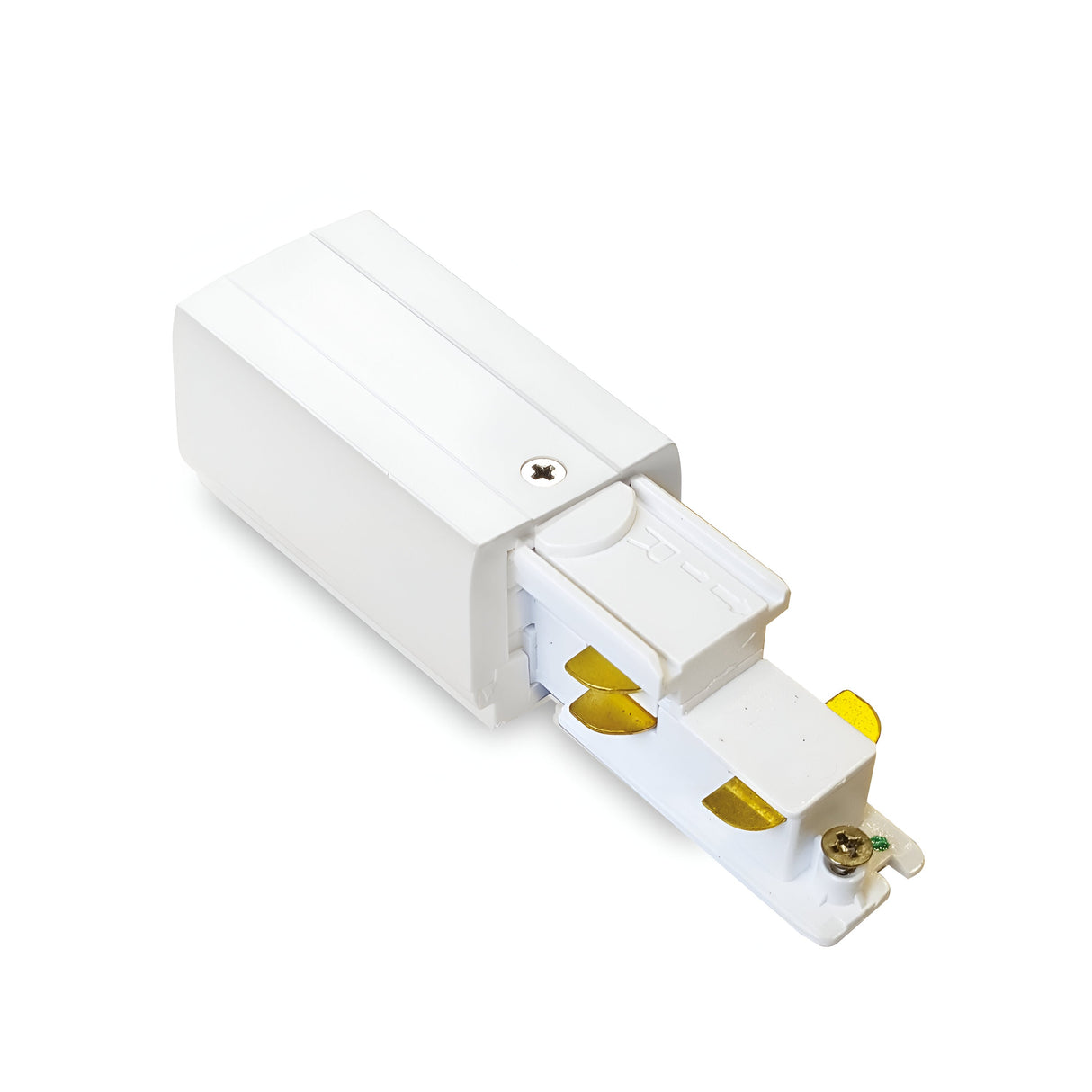

The Brillia 3-phase track end-left power input is a mains-to-track connector that feeds power into a 3-circuit track lighting system from the left end of the track run. It includes 1-10V dimming control, allowing the entire track circuit (or individual circuits if wired separately) to be dimmed from a compatible controller. The white plastic housing measures 140mm × 35mm × 34mm and carries an IP20 rating for indoor use.

Designed for retail, office, gallery and hospitality installations where track lighting needs to be controlled from a wall dimmer or lighting management system, the end-left configuration positions the power entry point at the start of the track when viewed from the left. This suits track runs along walls where the power supply drops from a ceiling rose on the left side, or where the track terminates at a left-hand wall and runs right. The 1-10V protocol is a common dimming standard in commercial lighting, compatible with most track spotlights and track pendants that support external dimming.

The white finish blends with white track and white ceilings, reducing visual presence when the track is surface-mounted. The plastic body is lighter than metal equivalents, making installation easier on plasterboard ceilings where weight is a consideration. The IP20 rating protects internal connections from dust and solid objects larger than 12mm, suitable for dry indoor environments but not bathrooms or outdoor canopies.

Specification
Length (mm) 140
Projection (mm) 35
Height (mm) 34
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does end-left mean?

End-left positions the power input at the left end of the track when viewed from that side. This suits installations where mains power drops from a ceiling rose on the left side of the track run, or where the track terminates at a left-hand wall.

What is 1-10V dimming?

1-10V is a commercial dimming protocol that uses a separate low-voltage control wire to adjust brightness. A 1-10V compatible dimmer sends a signal between 1V (minimum brightness) and 10V (maximum brightness) to control track fittings that support this protocol.

Does this work with single-circuit track?

No. The Brillia power input is designed for 3-phase (3-circuit) track systems. Each circuit can be controlled independently if wired to separate 1-10V dimmers, or all three circuits can be dimmed together from a single controller.

Can it be used outdoors or in bathrooms?

No. The IP20 rating is for dry indoor spaces only. For bathrooms, covered outdoor areas or any damp location, an IP44 or IP65 rated power input is required.
