Brillia 3-Phase Track End-Left Power Input - Dimmable 1-10V - Black

£2399
The RRP is the manufacturer's recommended retail price of the item.
402 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

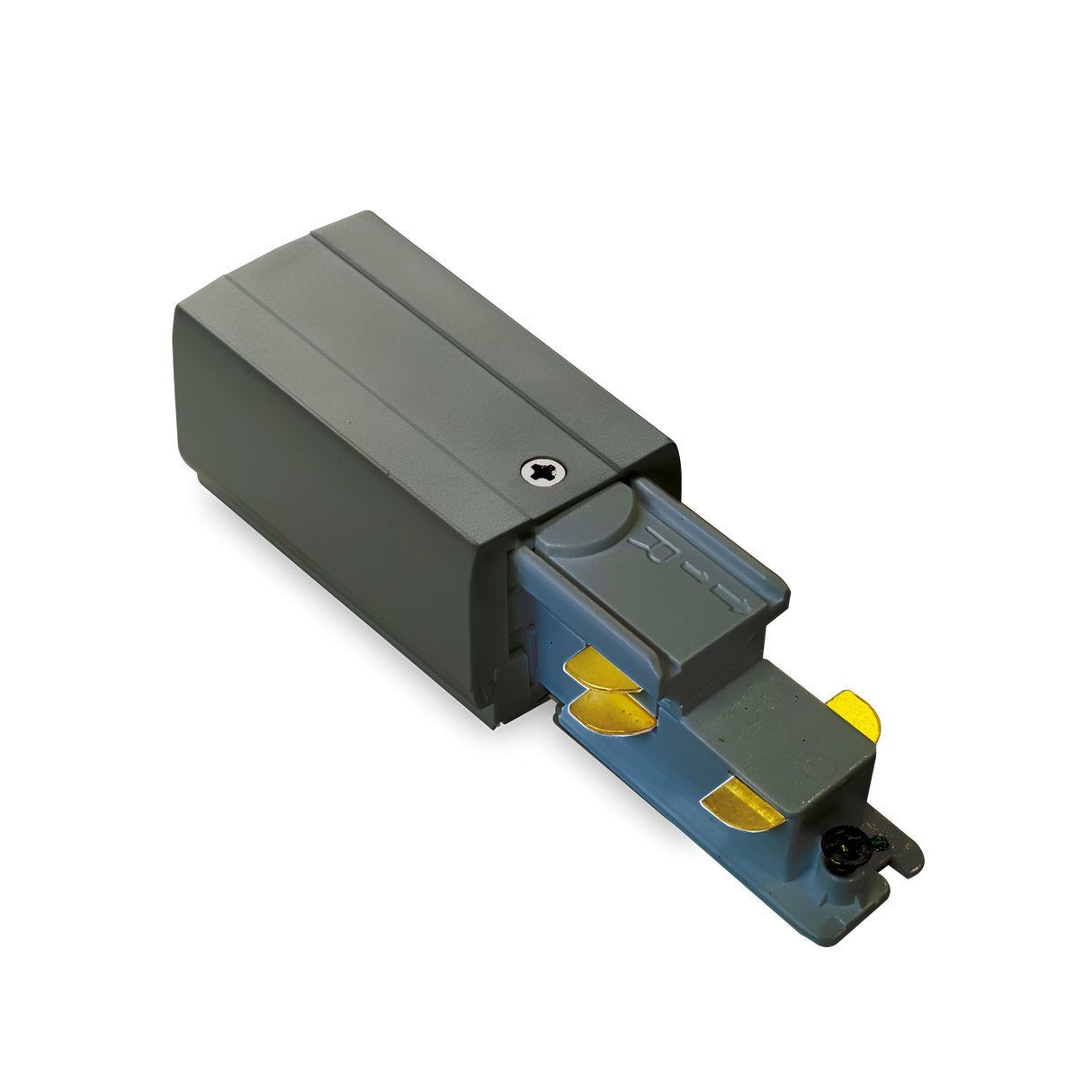

The Brillia is a 3-phase track end-left power input that connects mains electrical supply to a compatible track lighting system, with integrated 1-10V dimming control built into the 140mm black plastic housing. The unit clips onto the left end of a 3-phase track rail and provides the electrical feed point for all fixtures mounted downstream on that track run.

Designed for ceiling-mounted track lighting installations in retail, hospitality, gallery and residential settings, the power input allows a single dimming signal to control all connected track fixtures that support 1-10V protocol. The IP20 rating confines use to dry indoor environments where the unit is protected from moisture and direct water contact. The 35mm projection from ceiling and 34mm height keep the feed point compact against the track profile.

The black plastic housing matches the finish of most black track rails and keeps the electrical connection point visually consistent with the rest of the track system. The left-end orientation means the mains supply cable enters from the left-hand side when looking up at the ceiling, which suits installations where the electrical supply point is positioned to the left of the track run. Compatible with 3-phase track systems only — not interchangeable with single-phase track.

Specification
Length (mm) 140
Projection (mm) 35
Height (mm) 34
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is 3-phase track and how does it differ from single-phase?

3-phase track contains three separate electrical circuits within one rail, allowing fixtures to be assigned to different circuits and controlled independently. Single-phase track has one circuit only. This power input is compatible with 3-phase track systems and cannot be used with single-phase track.

What does 1-10V dimming control mean?

1-10V is an analogue dimming protocol where a low-voltage control signal (1-10 volts) adjusts the brightness of connected fixtures. All track fixtures downstream must support 1-10V dimming to respond to the control signal from this power input.

Can this be installed on the right end of a track instead?

No. This is an end-left model, meaning the mains supply cable enters from the left-hand side. A separate end-right version is required if the electrical supply point is positioned to the right of the track run.

What IP rating is needed for bathroom or outdoor use?

This unit carries IP20, which is suitable for dry indoor locations only. Bathrooms require IP44 or higher depending on zone, and outdoor installations require IP65 or higher. This power input is not rated for either application.
