Brillia 3-Phase L-Connector Track Left - Dimmable 1-10V White

£4099
The RRP is the manufacturer's recommended retail price of the item.
25 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

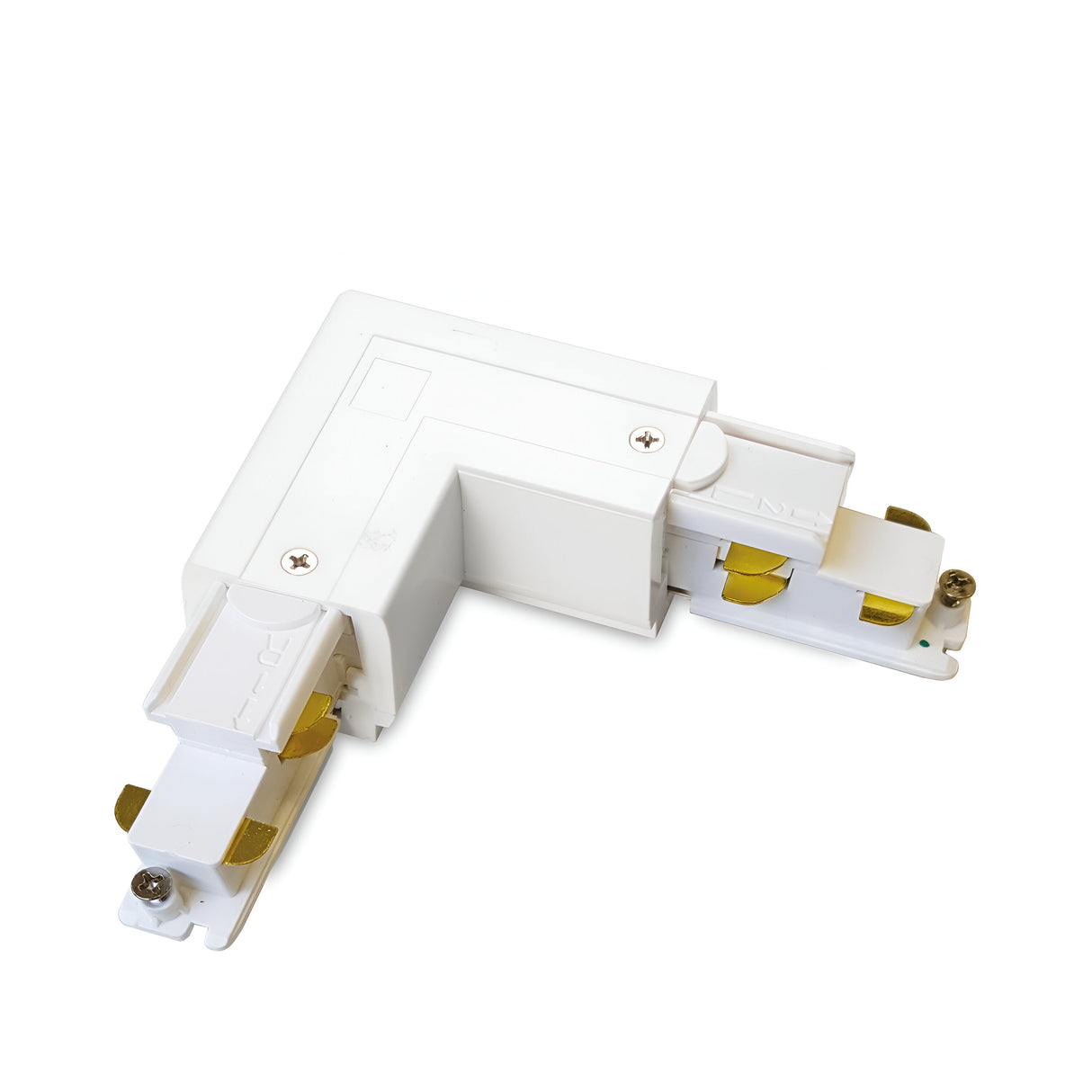

The Brillia 3-phase L-connector joins two sections of track lighting at a 90-degree left-hand corner, maintaining electrical continuity across all three phases through the turn. The connector housing is moulded from white ABS plastic with brass contact plates visible in the image, designed to fit Ideal Lux 3-phase track systems and compatible third-party tracks using the same rail profile.

Used in retail, gallery and residential track installations where the lighting run needs to turn a corner rather than terminate and restart, the L-connector eliminates the need for separate power feeds to each track section. The 1-10V dimming compatibility allows the connected track system to be controlled by commercial dimming systems common in shopfitting and hospitality projects. The 120mm x 120mm footprint means the connector sits flush with standard track widths and projects 35mm below ceiling level when surface-mounted.

The white finish matches Ideal Lux white track and blends into white or light-toned ceilings, making the connector less visually dominant than black or metallic alternatives. The IP20 rating restricts use to dry indoor locations — this is not suitable for bathrooms, kitchens near hob areas, or outdoor canopies. Installation requires the track sections to slot into opposing sides of the connector housing, with the brass contacts engaging the track rails to complete the circuit.

Specification
Length (mm) 120
Projection (mm) 120
Height (mm) 35
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'left-hand' mean for this connector?

Left-hand orientation describes the direction of the 90-degree turn when you are standing at the incoming track section looking along its length. The outgoing track exits to your left. For right-hand corners, a separate right-hand L-connector is required.

Is this compatible with all 3-phase track systems?

The Brillia connector is designed for Ideal Lux 3-phase track. It may fit other brands using the same rail profile and contact spacing, but compatibility is not guaranteed. If you are mixing brands, verify the track cross-section dimensions before ordering.

Can this be used in kitchens or bathrooms?

No. It is rated IP20, so it is for dry rooms only. The IP20 rating means the connector is not protected against moisture ingress.

Does the connector need separate wiring?

No. The connector maintains electrical continuity between the two track sections through its internal brass contact plates. No additional wiring is needed once the track sections are slotted into the connector housing.
