Brick 30cm Outdoor LED Wall Light - Graphite (20W 3000K IP54)

The Brick is a 30cm outdoor LED wall light with a graphite-finished aluminium and plastic housing and an integrated 20W 3000K LED light source. The rectangular body is rated IP54, providing protection against dust ingress and water splashes from any direction, making it suitable for external walls exposed to rain, garden positions, and covered entrance areas. The light projects from one long face of the rectangular housing, casting illumination downwards and outwards depending on how the fitting is oriented on the wall.

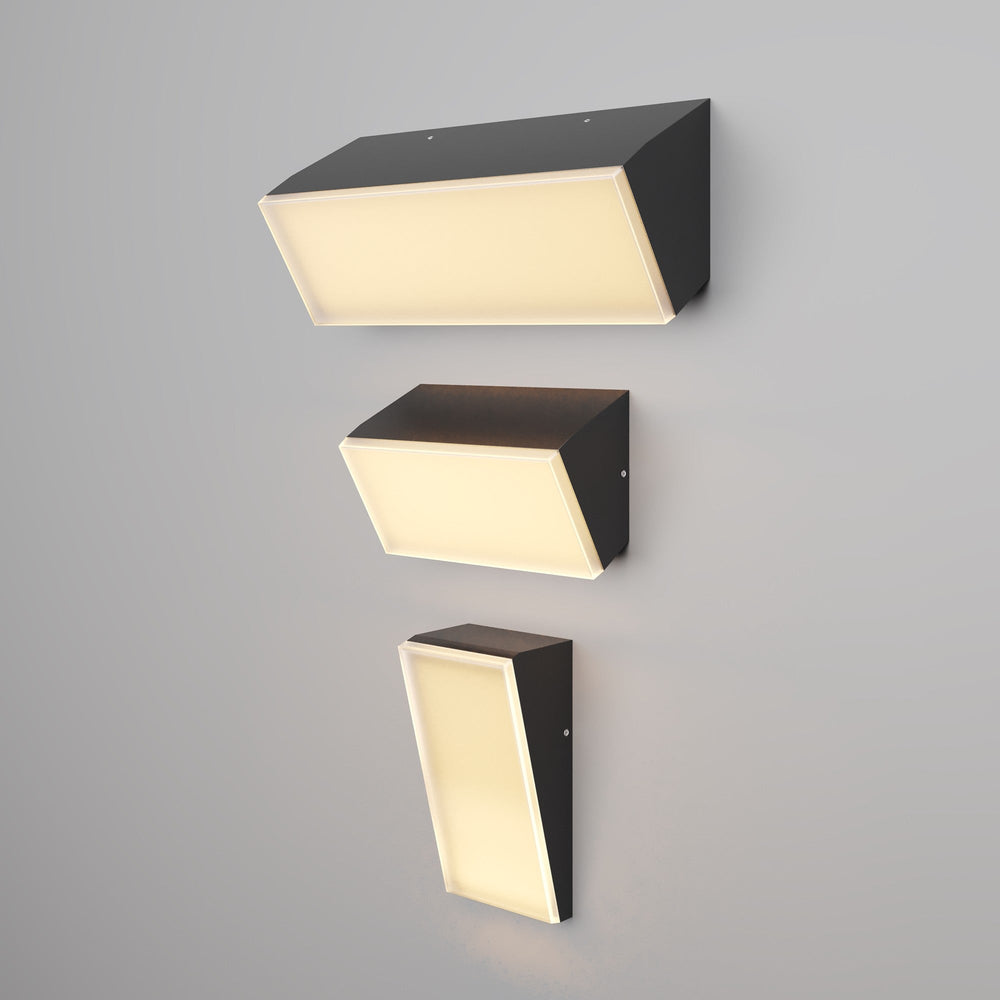

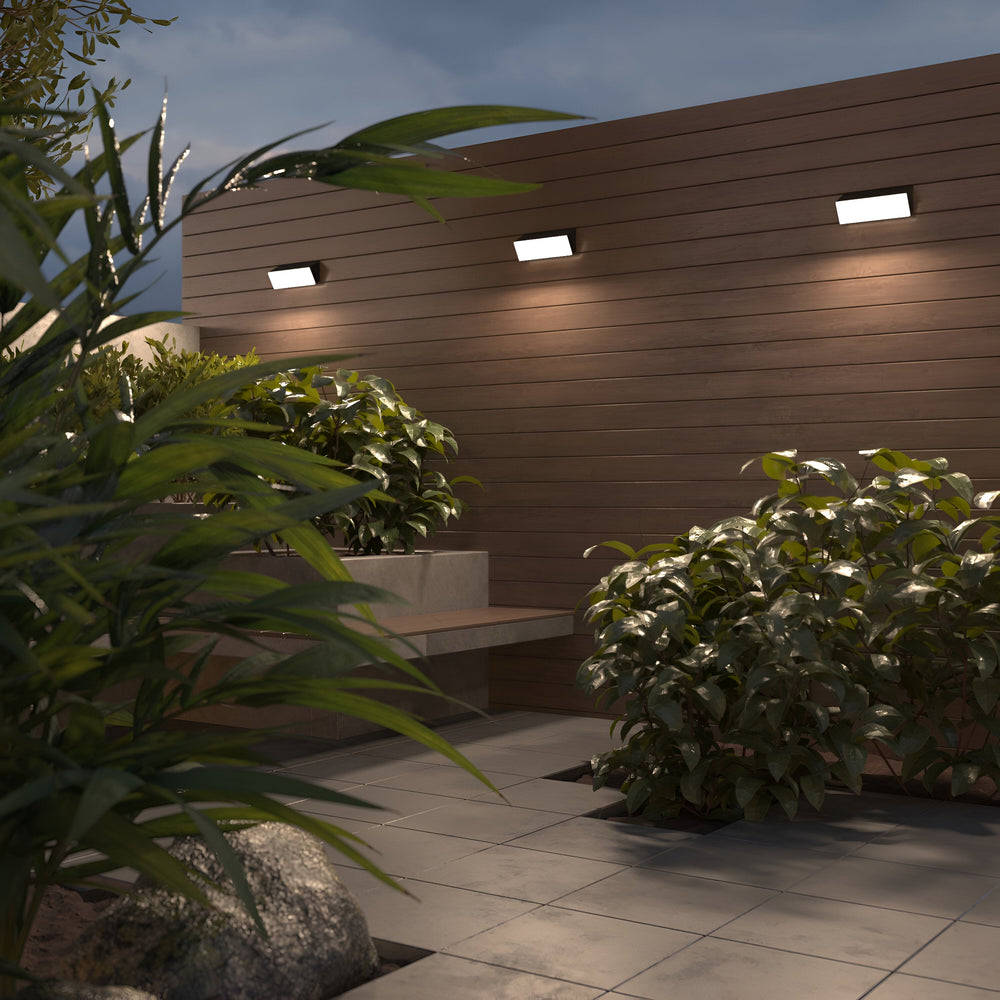

Designed for pathways, building entrances, garden walls, and commercial exterior zones, the Brick mounts horizontally or vertically depending on the desired light spread. Horizontal mounting creates a wide wash of light across a wall surface or pathway, while vertical mounting concentrates the beam into a narrower downward cast. The fitting draws 20W on AC 100-240V mains, eliminating the need for a transformer and allowing direct connection to standard exterior wiring circuits protected by RCD.

The graphite finish is a dark grey powder coat applied to the aluminium body, providing corrosion resistance in outdoor exposure and a neutral tone that pairs with render, brick, timber cladding and stone facades. The plastic diffuser sits flush with the front face of the housing, protecting the LED array inside from direct contact with rain and directing the 3000K warm-white output into a controlled beam. At 30cm length, 11.3cm width and 10cm projection, the fitting provides a noticeable light output without dominating smaller wall surfaces.

Product Manual

Is this suitable for fully exposed outdoor positions?

Yes. The IP54 rating provides protection against dust and water splashes from any direction, making the fitting suitable for external walls, garden positions and covered entrance areas exposed to rain. It should not be submerged or installed where water can pool around the housing.

Can it be mounted horizontally and vertically?

Yes. The fitting can be mounted either way depending on the desired light spread. Horizontal mounting creates a wide wash across a wall or pathway, while vertical mounting concentrates the beam into a narrower downward cast.

Does it require a transformer?

No. The fitting operates on AC 100-240V mains voltage and connects directly to standard exterior wiring circuits protected by an RCD. No separate transformer or driver is needed.

What colour temperature is the LED?

The integrated LED is rated at 3000K, producing a warm-white light output similar to a halogen bulb. This colour temperature suits residential and hospitality exterior lighting where a welcoming tone is preferred over cooler daylight whites.
