Beacon Type B Disabled Refuge Outstation - Green BS5839-9 Compliant

£18999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

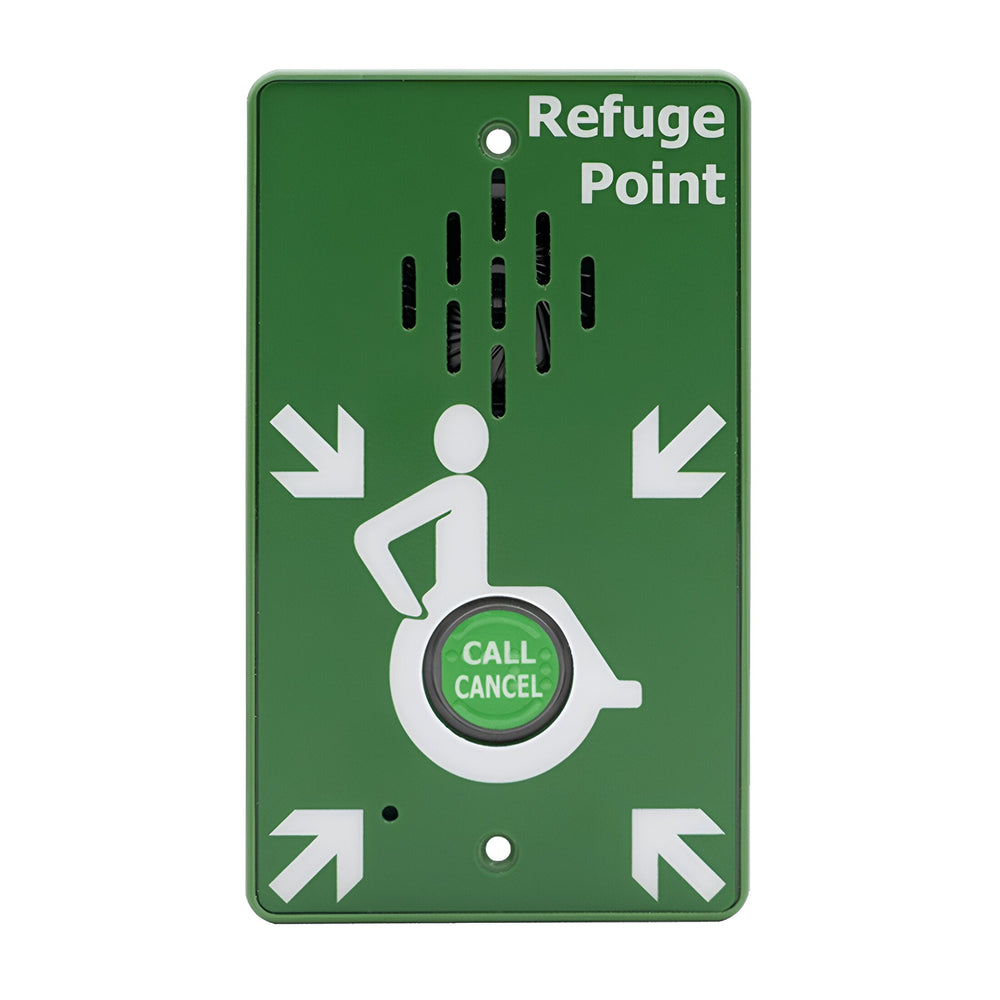

The Beacon Type B is a disabled refuge outstation built to BS5839-9:2021 specification for emergency voice communication systems in UK buildings. The unit provides two-way duplex audio communication between a refuge point and a central control station, with a large green 'Call Cancel' button, directional arrow graphics, integrated speaker grille, and LED call status indicator on a green polycarbonate faceplate.

Designed for stairwell refuge areas, protected lobbies and evacuation lifts in multi-storey residential, commercial and healthcare buildings, the outstation allows mobility-impaired occupants to request assistance during an evacuation and maintain voice contact with building control or fire wardens. The hands-free operation means no handset to lift or hold — pressing the call button initiates the voice link, and the high-volume ringer alerts the user when control responds.

The 180mm x 110mm faceplate fits either flush or surface mount on a standard 2-gang UK back box (sold separately). The green polycarbonate construction resists impact and wear in high-traffic areas, and the contrasting white graphics provide clear visual cueing under emergency lighting conditions. The LED call status indicator gives immediate feedback when a call is active, answered, or cancelled.

Specification
Product Net Weight (KG) 0.18
Product Gross Weight (KG) 0.22
Outer Gross Weight (KG) 0.22
Product Length (mm) 180
Product Width (mm) 110
Product Height (mm) 30
Outer Length (mm) 180
Outer Width (mm) 110
Outer Height (mm) 30
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What is a Type B disabled refuge outstation?

A Type B outstation provides two-way duplex audio communication between a refuge point and a central control or master station. It allows the person at the refuge to speak and listen simultaneously, like a normal phone conversation, rather than pressing a talk button to alternate between speaking and listening.

What back box is required?

The outstation fits a standard UK 2-gang back box for either flush or surface mounting. The back box is sold separately. Flush mounting requires a 35mm minimum back box depth set into the wall; surface mounting uses a surface-fixed 2-gang pattress box.

Is this compliant with current UK building regulations?

Yes. The Beacon Type B is fully compliant with BS5839-9:2021, the current British Standard for design, installation, commissioning and maintenance of emergency voice communication systems in buildings.

Can the outstation be tested without triggering a full alarm?

Testing procedures depend on the system design and the central control unit the outstation is connected to. Refer to the system commissioning documentation and the product manual for test mode operation.

Shipping & Returns

Free worldwide delivery

Free worldwide delivery on all orders over £99. International orders for third-party brand products may be subject to an additional courier surcharge based on volumetric weight, particularly on larger lighting fixtures — if a surcharge applies, our team will email you with the amount before dispatch and you can proceed or cancel for a full refund. See full delivery terms.

Returns

30-day returns window from delivery. As all our products are electrical or lighting goods, returned items must be inspected and recertified by a qualified electrician before resale — the cost of this inspection (25–40% of the item value) is deducted from your refund. Customers pay return shipping. Made-to-order, special-order and clearance items cannot be returned. See full returns policy.
