Basis Angle LED 90° Linear Track Light for Magnetic Exility 24W 4000K - White

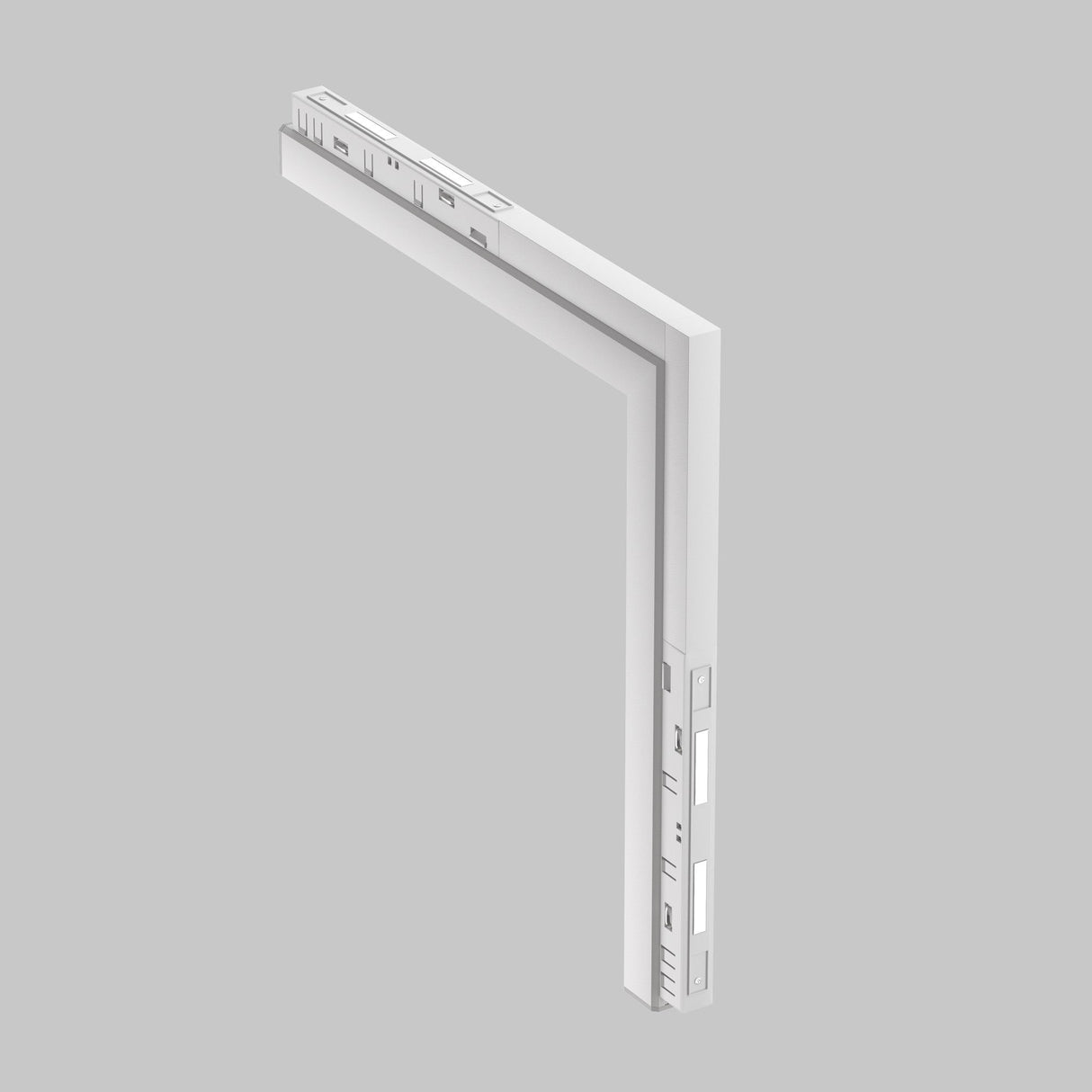

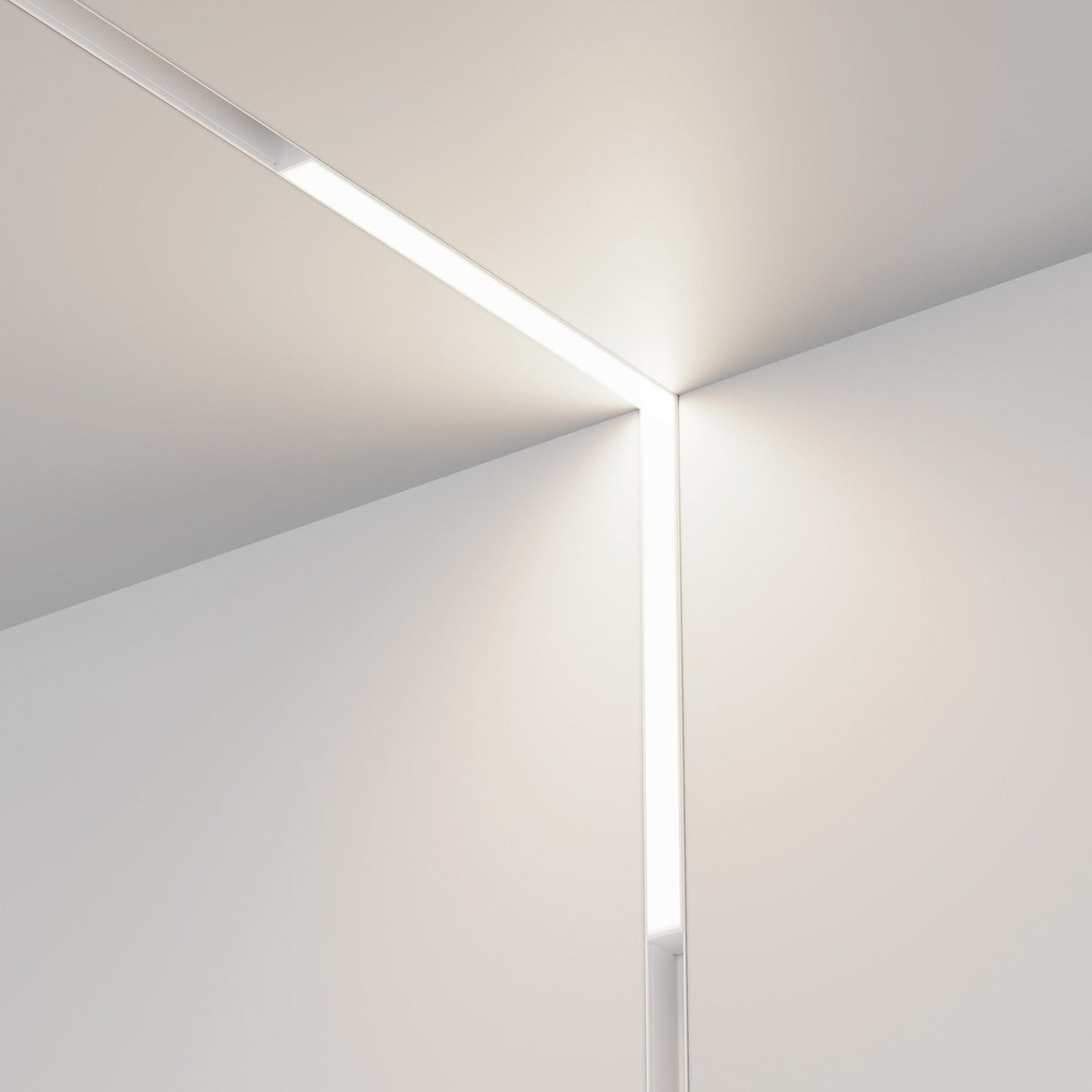

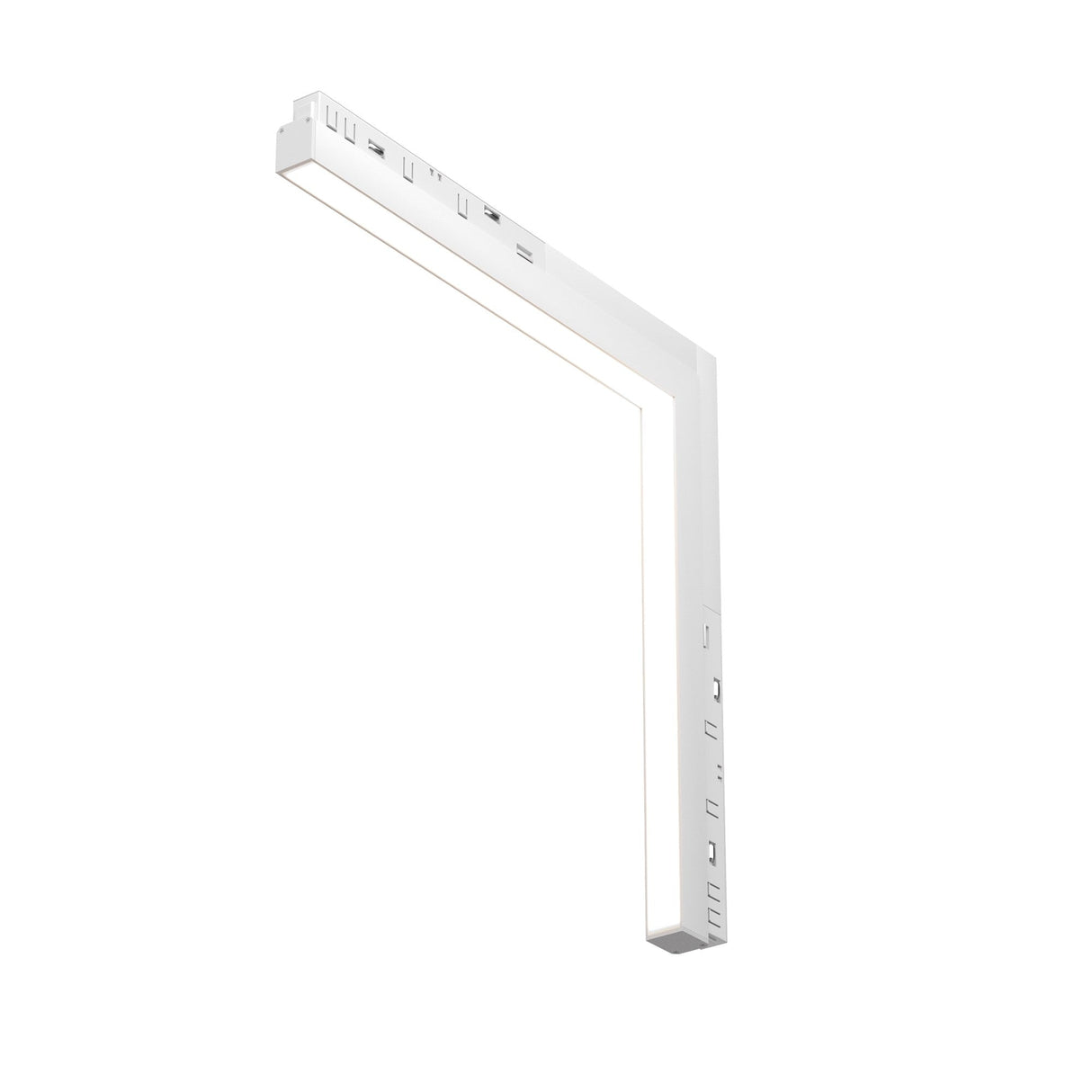

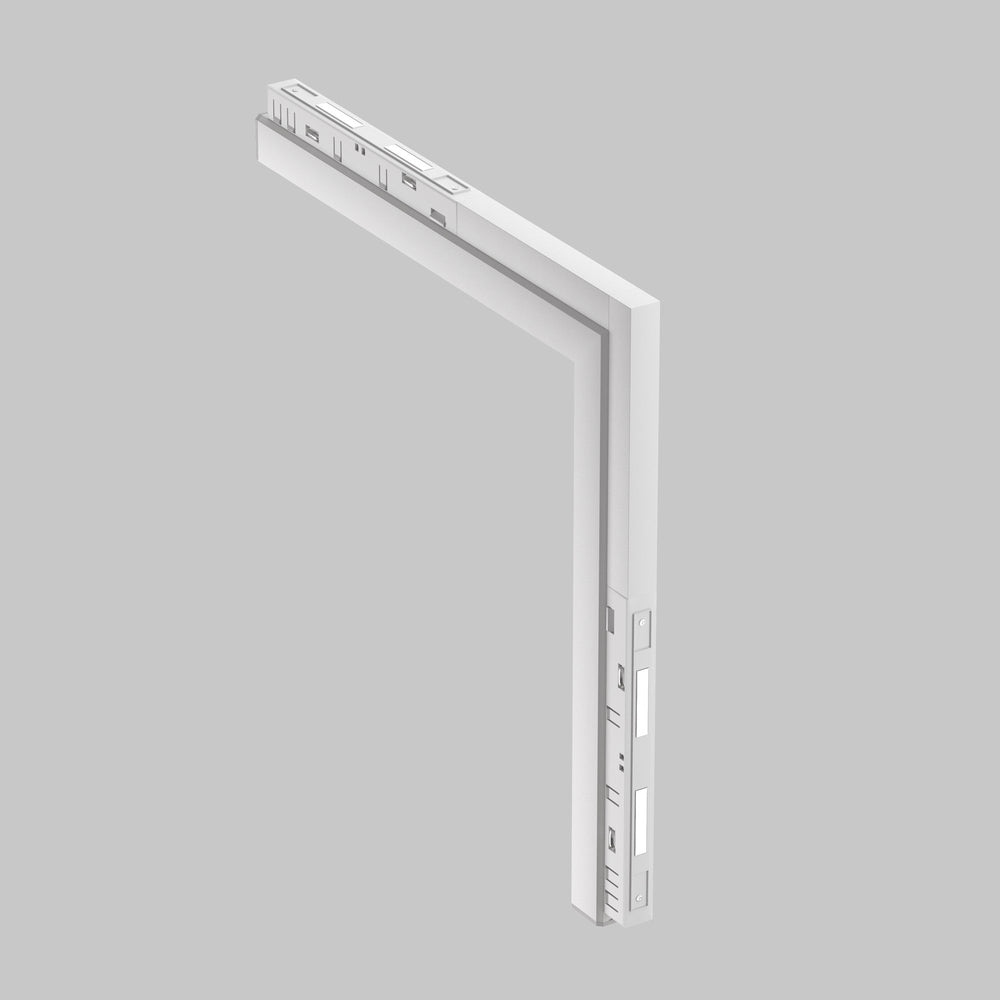

The Basis Angle is a 90° corner piece for Maytoni's Magnetic Exility track lighting system, housing an integrated 24W LED that casts 4000K neutral white light along both arms of the right-angle frame. Built from white-finished aluminium, the fitting measures 321mm along each arm with a 44mm profile depth, creating a crisp L-shaped light source that can be positioned at room corners, ceiling perimeters, or as an architectural accent where two wall planes meet.

Designed for magnetic track rail systems running on DC 48V, the Basis Angle snaps magnetically onto compatible Exility rails without tools, allowing repositioning and reconfiguration as room layouts change. The 4000K colour temperature suits task-focused commercial spaces, retail interiors, galleries, and modern residential kitchens or home offices where neutral white light is preferred over warmer tones. The IP20 rating limits the fitting to dry indoor environments only.

The aluminium construction keeps the weight low while the magnetic attachment distributes load across the rail contact points rather than relying on screw fixings. The white powder-coat finish pairs with white or light-grey ceilings to minimise visual interruption, while the 90° geometry allows continuous light runs to turn corners without dark gaps at junctions. Each arm of the angle casts directional light outward from the corner, providing even coverage across adjacent wall sections or ceiling zones.

Maytoni provides a five-year manufacturer's warranty covering defects in materials and workmanship. The fitting is one component within the broader Exility modular track system, which includes straight sections, T-junctions, and additional corner pieces to build custom lighting layouts across ceilings and walls.

Product Manual

Is this compatible with standard mains track lighting?

No. The Basis Angle requires a DC 48V magnetic track rail system, specifically Maytoni's Magnetic Exility range. It will not fit or function on standard 230V AC mains track rails or three-circuit track systems.

Can the fitting be used outdoors or in bathrooms?

No. The IP20 rating means the fitting is suitable for dry indoor environments only. It is not protected against moisture ingress and should not be installed in bathrooms, wet rooms, covered outdoor areas, or any location where condensation or water contact is possible.

How is the 90° angle mounted to the track?

The fitting attaches magnetically to compatible Exility track rails. No screws or tools are needed for installation — the magnetic connection snaps into place and can be repositioned along the rail as required.

What colour temperature is 4000K?

4000K is classified as neutral white or cool white, sitting midway between warm white (2700-3000K) and daylight white (5000-6500K). It provides clear, task-focused light commonly used in commercial, retail and modern residential settings.
