Description
The Aspas is a 132cm ceiling fan with an integrated 20W LED light module, white-painted wooden blades, and a DC motor running at six speeds controlled by a handheld remote. The LED light source is adjustable across three colour temperatures (3000K, 4000K, 5000K) via CCT control, and is dimmable from full output to low ambient light. An opal glass diffuser underneath the motor housing distributes the light evenly across the room without harsh glare.
Designed for bedrooms, living rooms and open-plan spaces up to approximately 18-20m², the fan combines air circulation with overhead lighting in a single ceiling fixture. The DC motor operates quietly through all six speed settings, with reverse mode available to push warm air down from the ceiling during winter months. Functions include a timer, memory settings that restore the last-used configuration on restart, and an anti-sway mount for stability on standard plasterboard or concrete ceilings.
The five wooden blades are finished in white with a matt coating that matches the motor housing and ceiling mount. The overall height from ceiling to bottom of the diffuser is 45cm when flush-mounted, making the fan suitable for ceiling heights of 2.6m or above to maintain safe clearance in occupied rooms. The 5.7kg weight requires a secure ceiling fixing into joists or a ceiling rose rated for the load.

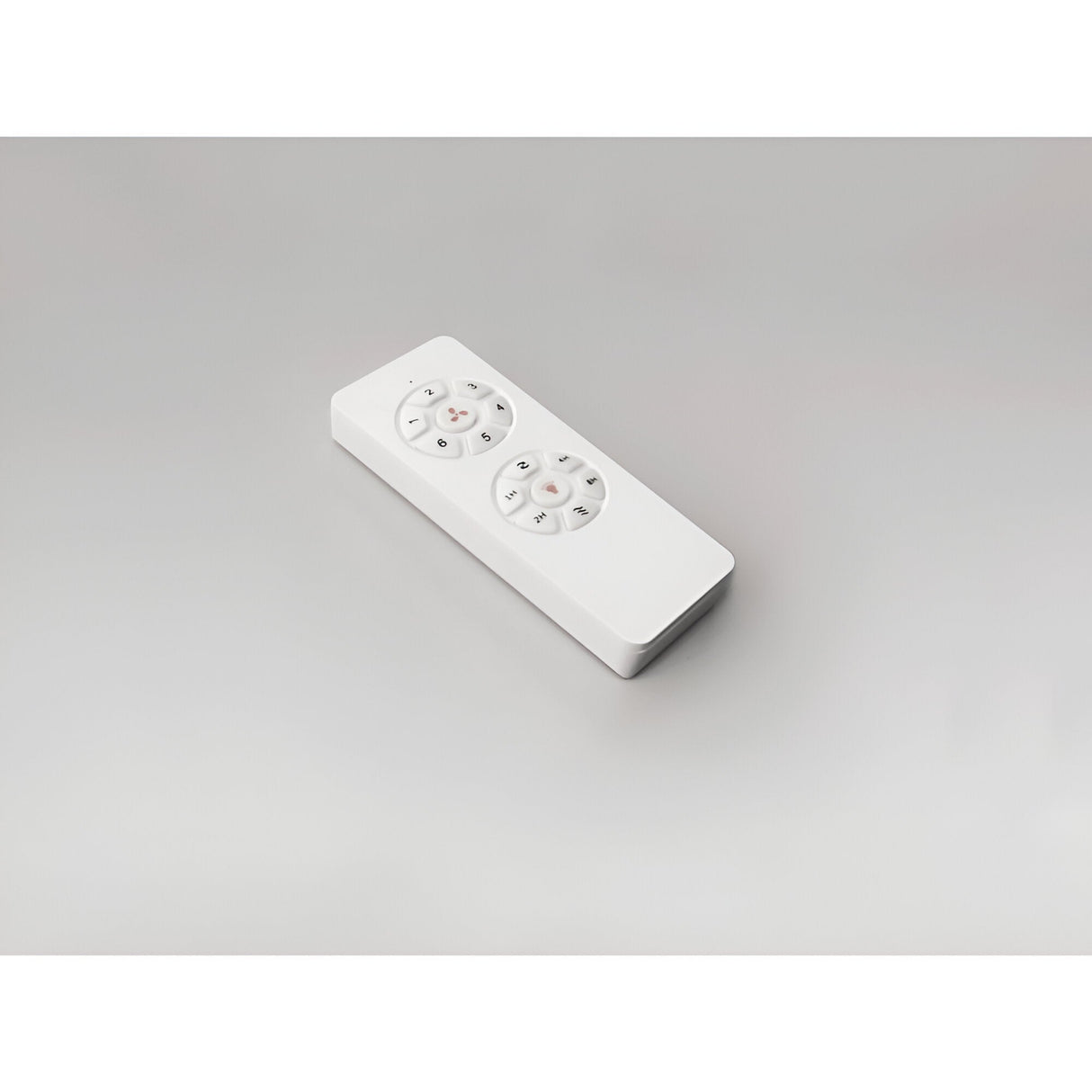

The remote control manages fan speed, direction, light on/off, dimming and CCT shifting without requiring a wall switch. The fan connects to standard 220-240V mains via a ceiling rose and requires an electrician for installation unless replacing an existing ceiling fan on the same mounting plate.
Specification
| Height |
45cm |
| Dimension |
132cm |
| Weight |
5.7kg |
| Energy Class |
F |
| Electric Class |
Class 1 |
| Power |
20W |
| Voltage |
220/240V |
| Frequency |
50Hz |
| Lumen |
1.7lm |
| Colour Temperature |
3000-5000K |
| CRI |
>80 |
| Finish |
White, White, Opal |
Downloads
Product Specification Sheet
Assembly Instruction
Frequently Asked
What does CCT control mean?
CCT (Correlated Colour Temperature) control allows you to adjust the light output between warm white (3000K), neutral white (4000K) and cool white (5000K) using the remote control. This lets you shift the light tone to suit different activities or times of day.
What room size does the 132cm fan suit?
A 132cm blade span typically provides effective air circulation for rooms up to 18-20m² (approximately 4m x 5m). Larger rooms may benefit from two fans or a larger diameter model.
What ceiling height is needed?
The fan body extends 45cm down from the ceiling when flush-mounted. For safe clearance in occupied rooms, ceiling heights of 2.6m or above are recommended. Lower ceilings may cause the blades to feel uncomfortably close to head height.
Can the fan direction be reversed?
Yes. The reverse mode pushes warm air down from the ceiling during winter months, improving heat distribution in the room without creating a cooling breeze.
