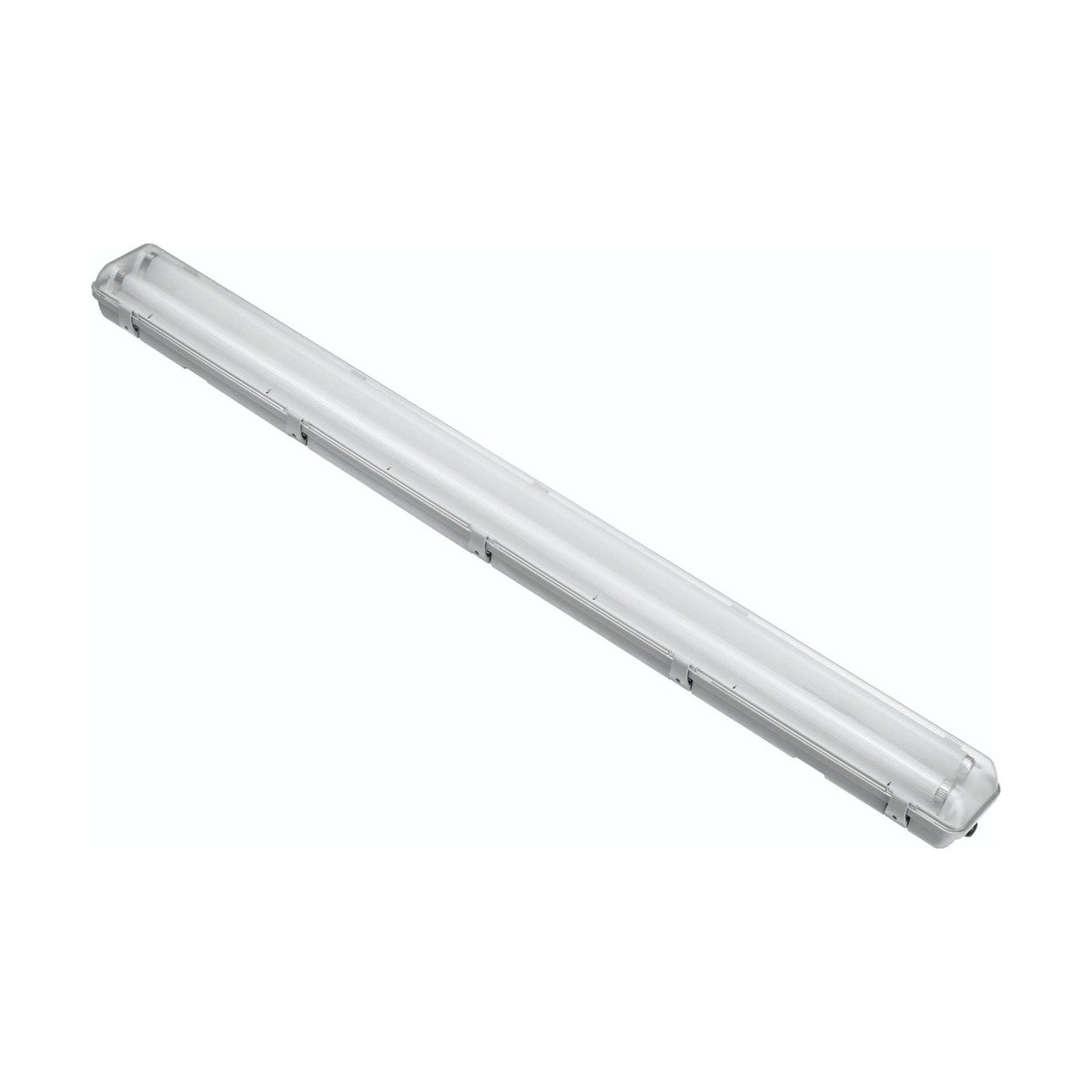

36W IP65 4ft T8 Twin Batten Fitting

This is a 4ft twin batten fitting, 1200mm long, built to hold two T8 linear tubes behind a single sealed diffuser. The specification gives it as 36W and as non-dimmable, and the body carries an IP65 rating, which is the number that matters once a fitting has to live somewhere damp or dusty rather than in a clean dry ceiling void. The housing is grey, and the translucent diffuser clips down the full length so the whole chamber closes up when the clips are shut.

Fittings sealed to this standard earn their keep in garages, workshops, utility rooms, plant rooms, stores and covered commercial spaces: anywhere the air carries dust, sawdust or moisture that would work its way into an open fitting. It is rated for indoor use, and for bathroom zones 3, 2 and 1, though not zone 0, so it can also go over a bath or outside a shower enclosure where the wiring allows. Two tubes running across 1200mm spread light along a bench or a parking bay instead of pooling it in one place, which is why a batten beats a single pendant over a work surface.

It does not dim, so wire it to an ordinary switch rather than a dimmer circuit. Because it takes separate tubes, the light is your choice: a cool white tube keeps a workshop crisp and shadow free, while a warmer tube suits a utility room you also walk through at night. The manufacturer does not state a lumen output or a colour temperature for the fitting itself, because both follow the tubes you put in it. You receive one fitting, with a minimum order of one, and it sits alongside our wider range of battens in 4ft, 5ft and 6ft lengths, single and twin, in both IP20 and IP65.

What tubes does this batten take?

It is built for two 4ft T8 linear tubes, one in each channel. A T8 tube carries a two pin G13 cap at each end, so check the cap on any tube you already own before buying replacements.

Are the tubes included?

The manufacturer does not state whether tubes are supplied with the fitting, so plan on sourcing a pair separately unless you can confirm otherwise at the point of order.

Can I fit this in a bathroom?

Yes. The IP65 rating makes it suitable for zones 3, 2 and 1, but not zone 0, which is the inside of the bath or shower basin itself. Any bathroom wiring work should follow the current regulations.

Can I put it on a dimmer?

No. The specification lists it as non-dimmable, so it needs a plain on and off switch. Wiring a non-dimmable fitting to a dimmer circuit can cause flicker, buzzing or early failure.

What colour light does it give?

That depends entirely on the tubes you fit. No colour temperature is stated for the fitting itself. Cool white reads crisp and neutral for workshops and garages, while warmer tubes feel calmer in a utility room.

What does IP65 actually protect against?

The first digit, 6, means the enclosure is dust tight. The second, 5, means it is protected against low pressure water jets from any direction, which covers splashes, hose down cleaning and damp air.
