14W IP54 LED Bulkhead With Emergency - White

£3299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

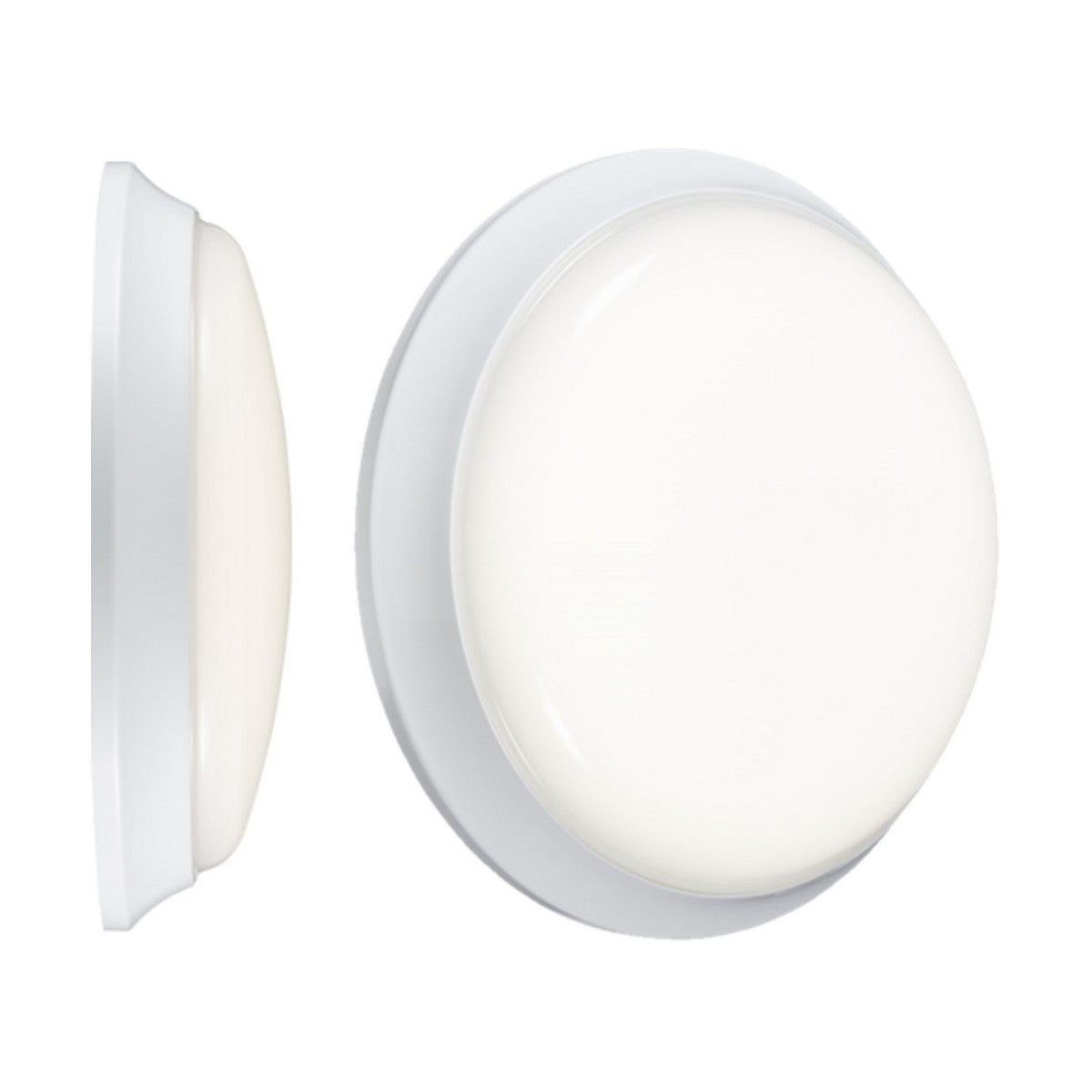

The Knightsbridge BL12ALEDEM is a 14W IP54-rated LED bulkhead with integrated emergency backup, delivering 1300 lumens of 4000K cool white light through a 305mm diameter white polycarbonate diffuser. The emergency function operates in maintained, non-maintained or switched modes, providing 260 lumens of backup illumination for up to three hours during mains power failure.

Designed for commercial corridors, stairwells, car parks, covered outdoor walkways and residential hallways where emergency lighting is required by Building Regulations or site management, the IP54 rating protects against dust ingress and water splashes from any direction. The surface-mount design fixes directly to wall or ceiling surfaces using the integral back plate, with cable entry through a rear knockout.

The polycarbonate body and diffuser provide impact resistance and UV stability for long-term outdoor use under canopies and covered areas. The 110-degree beam angle gives wide-area coverage from a single fitting, reducing the number of units needed for corridor or walkway runs. The SMD LED module has an L70B50 lifespan of 30,000 hours at 111.95lm/W efficacy, and the fitting carries a three-year warranty excluding the emergency battery.

Specification
Diameter 305mm
Projection 84mm
Construction Polycarbonate
Finish White
IP Rating IP54
Class II
Primary Voltage 230V 50Hz
Emergency Maintained / Non-maintained / Switched
Lamp Technology SMD LED
Lamp Included Yes
Dimmable No
L70B50 30000
Energy Rating (Class) post 2021 SLR E
Beam Angle 110
CCT 4000K
Light Colour Cool White
Lumens 1300lm
Lumens (Light source only) 1620lm
Lumens (Em. mode) 260lm
Wattage 14W
Efficacy (Light source) 111.95lm/W
CRI >80
Warranty 3 Year Guarantee
Warranty Information (excluding battery)
Downloads

Product Specification Sheet

Frequently Asked

What emergency modes does the bulkhead support?

The fitting can be configured as maintained (always on, brighter on mains power), non-maintained (emergency mode only activates on power failure), or switched (controlled by external switch in normal operation). Configuration is set during installation via internal wiring connections.

How long does the emergency backup last?

The integrated battery provides 260 lumens for up to three hours during mains power failure. The battery recharges automatically when mains power is restored. Battery lifespan is typically 3-4 years depending on usage and ambient temperature.

Can it be used outdoors?

The IP54 rating protects against dust and water splashes, making it suitable for covered outdoor areas such as canopies, porches, covered walkways and car park ceilings. It should not be used in fully exposed locations subject to direct rain or heavy weather.

What mounting surface is required?

The bulkhead surface-mounts to any solid wall or ceiling. Cable entry is through a rear knockout in the back plate. The 84mm projection from the mounting surface should be considered when installing in low-headroom areas.
