10AX 4 Gang 2-Way Switch - Polished Brass Screwless

£1599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

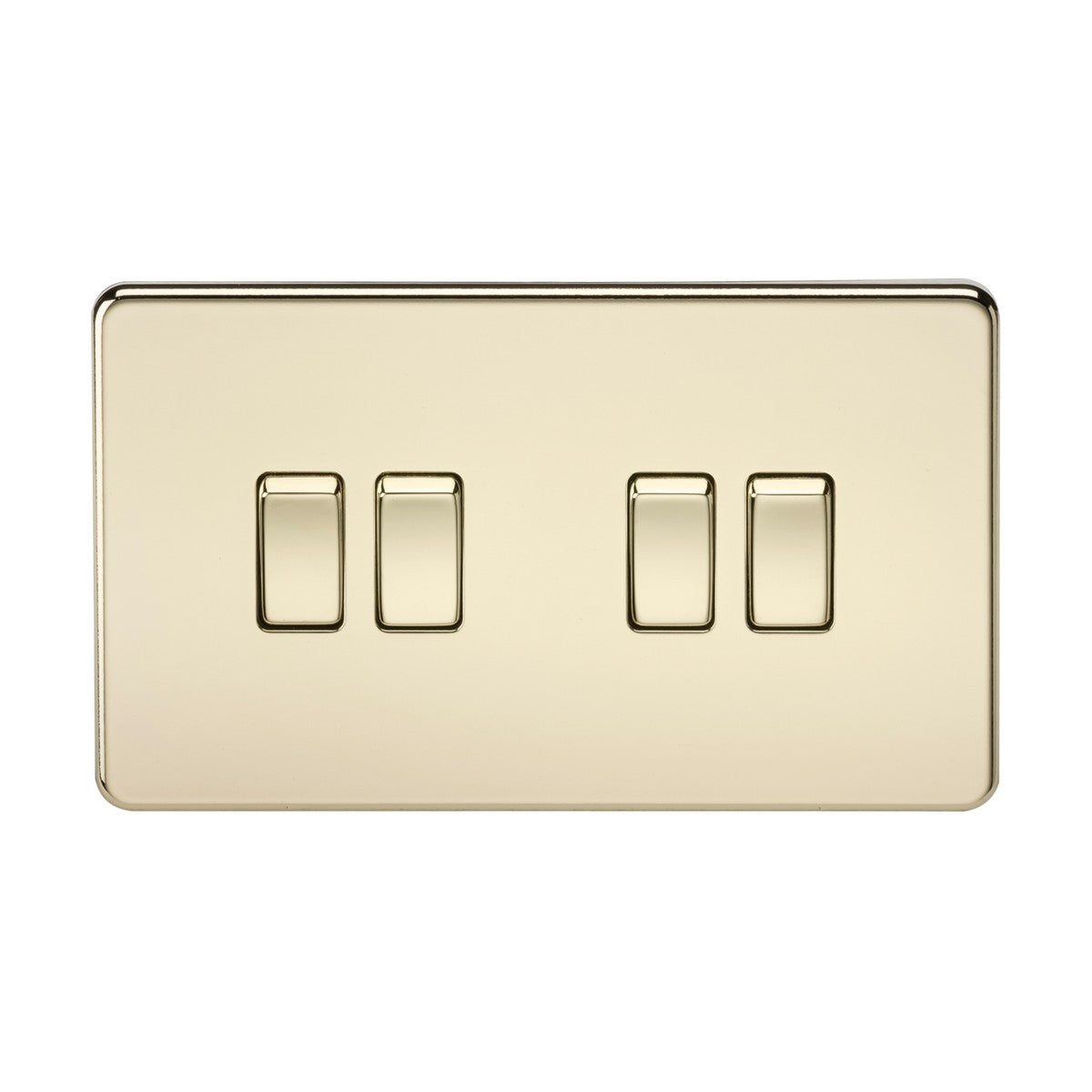

The Knightsbridge 10AX 4-gang 2-way switch features four independent rocker switches behind a polished brass screwless faceplate, each rated to 10A and capable of controlling a lighting circuit from two separate switch positions. The metal rockers match the polished brass finish of the plate, giving a consistent appearance across all four switch positions.

Designed for rooms with multiple lighting circuits requiring dual-location control, the 4-gang configuration handles up to four independent 2-way circuits — typical installations include large living rooms, kitchens with multiple lighting zones, or hallways where different circuits need separate control. The 2-way wiring allows each circuit to be switched from this location and one other switch position elsewhere in the room. The 10AX rating handles lighting loads up to 2,300W per gang on 230V mains.

The screwless cover plate clips onto a separate metal sub-frame fixed to the back box, removing visible screws from the wall surface once installed. The polished brass finish provides a warm metallic accent that pairs well with traditional and classical interiors, and the low 4.3mm projection from the wall keeps the switch profile minimal. The premium-grade steel construction includes an integrated gasket behind the faceplate to improve long-term durability in dusty or high-traffic environments.

Specification
Height 87.5 mm
Width 147.5 mm
Projection 4.3 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Polished Brass
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does 2-way mean?

2-way switching allows a single lighting circuit to be controlled from two separate switch positions. Each of the four gangs on this switch can be wired as part of a 2-way circuit, typically paired with another 2-way switch elsewhere in the room — one at each end of a hallway, for example.

What back box depth is required?

A minimum 16mm back box depth is needed. The 4.3mm projection is measured from the wall surface once the screwless cover plate is clipped onto the sub-frame.

Is the screwless plate removable for redecorating?

Yes. The polished brass cover plate clips onto a separate metal sub-frame that is fixed to the back box. The cover can be removed for painting around the switch and re-clipped without disturbing the wiring.

What other finishes are available in this range?

Knightsbridge produces this 4-gang 2-way switch in a range of finishes including polished chrome, brushed chrome, antique brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.
