10AX 4 Gang 2-Way Switch - Polished Brass Flat Plate

£1899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

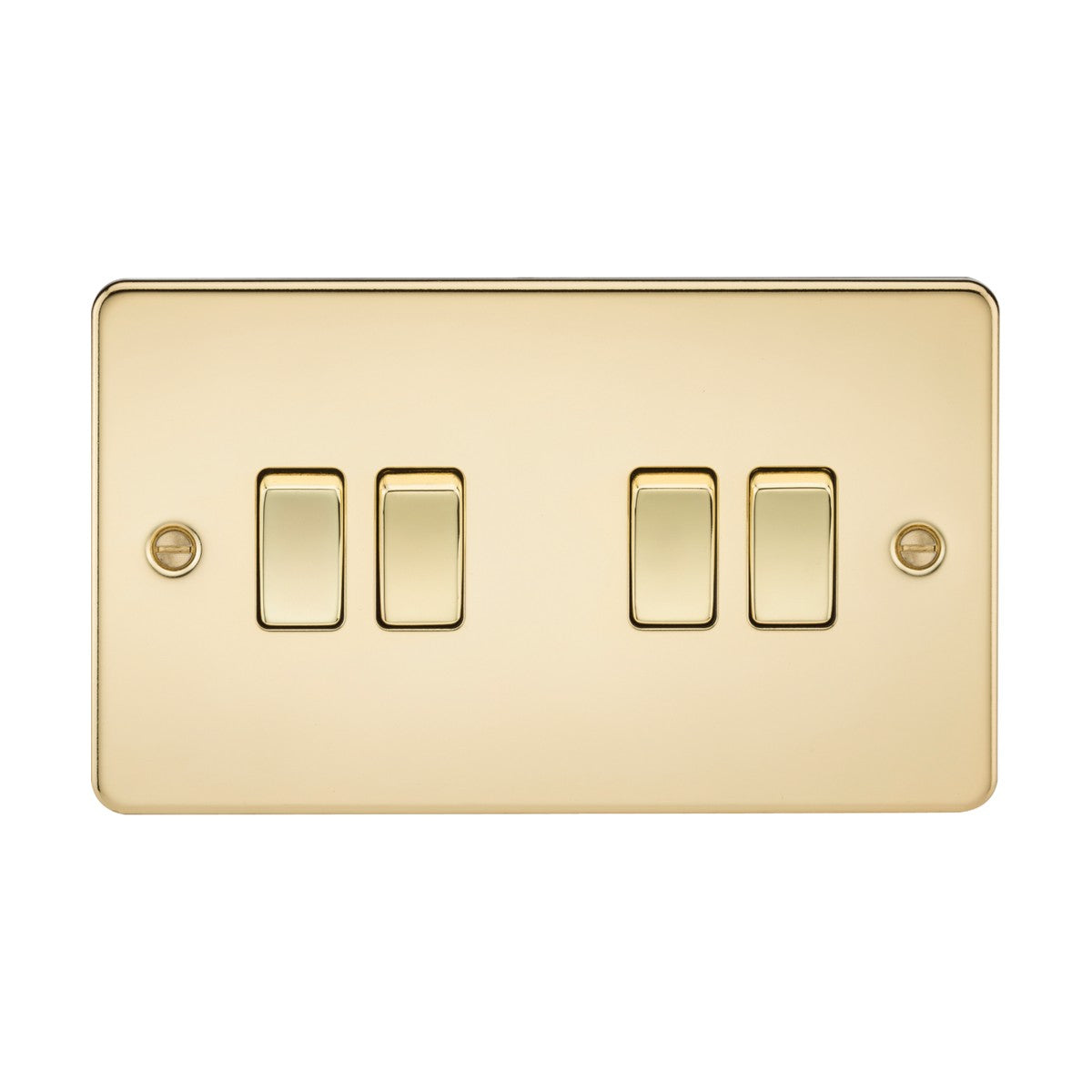

The Knightsbridge 10AX 4-gang 2-way switch controls four independent lighting circuits from a single polished brass flat plate. Each gang is rated at 10 amps (10AX) on 230V mains, handling loads up to 2,300W per circuit. The 2-way switching configuration allows each circuit to be controlled from two separate locations — useful in rooms with multiple doorways or at the top and bottom of stairs.

Designed for residential and commercial installation, the flat plate measures 147.5mm wide by 87.5mm high with an ultra-low 2.5mm projection from the wall once mounted. The polished brass finish is applied to premium-grade steel, giving a warm metallic surface that suits traditional, classical and warm-toned contemporary interiors. The matching brass rockers sit flush with the plate, creating a unified finish with no contrasting plastics visible.

The switch requires a minimum 16mm back box depth, making it compatible with shallow back boxes in stud walls and plasterboard partitions where deeper boxes cannot fit. A built-in gasket behind the plate protects the terminal block from dust ingress, and the IP20 rating confirms suitability for dry indoor locations. The switch carries EN 60669-1 certification and is backed by Knightsbridge's 25-year warranty.

Specification
Height 87.5 mm
Width 147.5 mm
Projection 2.5 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Polished Brass
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What does 2-way switching mean?

2-way switching allows each of the four lighting circuits to be controlled from two separate switch locations. For example, you can turn a hallway light on from a switch at one end and off from a switch at the other end. This requires two 2-way switches wired together per circuit.

What load can each gang handle?

Each gang is rated at 10AX, which means 10 amps on 230V mains. This supports loads up to 2,300W per circuit — enough for multiple LED downlights, a chandelier, or a bank of halogen spots on a single gang.

What back box depth is required?

A minimum 16mm back box depth is needed. This shallow depth makes the switch suitable for stud walls, plasterboard partitions and other installations where deeper boxes cannot fit. The 2.5mm projection of the plate itself adds minimal wall presence.

What other finishes are available in this range?

Knightsbridge produces this ultra-flat 4-gang 2-way switch in a range of finishes including polished chrome, brushed chrome, brushed brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.
