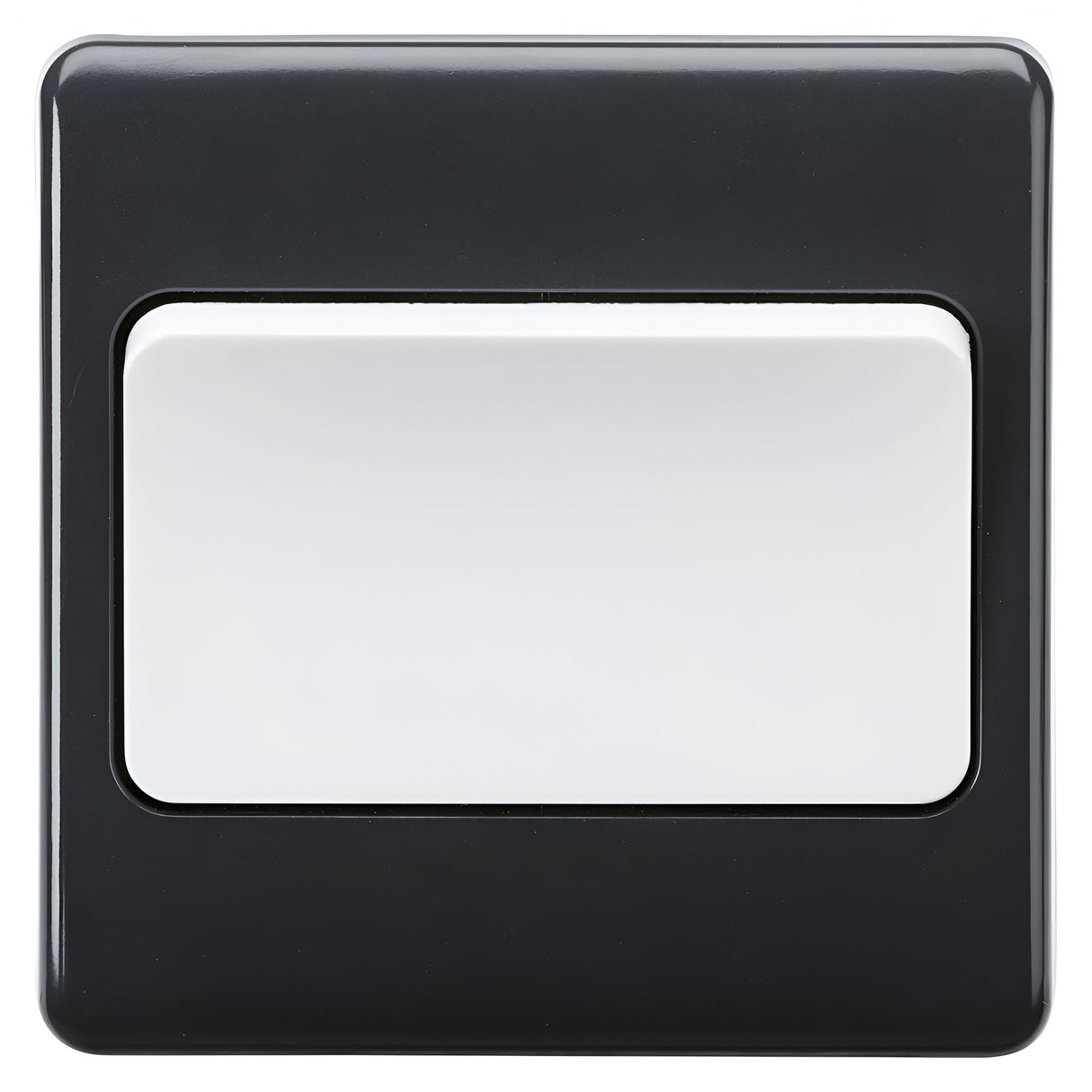

10AX 1 Gang Intermediate Wide Rocker Switch - White

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Knightsbridge 10AX 1-gang intermediate wide rocker switch provides the middle switching point in a three-way lighting circuit, typically on staircases or landings where a single light is controlled from three separate locations. The switch carries a 10AX rating on 230V mains, handling resistive loads up to 2,300W and suitable for standard domestic and commercial lighting circuits including LED, halogen and fluorescent fittings.

Designed to meet Building Regulations Part M for accessible dwellings, the wide rocker offers a larger target area for those with reduced dexterity or visual impairment. The white thermoset resin finish carries a Light Reflectance Value (LRV) of approximately 8.9, providing sufficient visual contrast against most wall colours. The screwless curved edge design hides fixings behind a clip-on cover plate, giving a cleaner finish than traditional screw-fixed switches.

The switch body is constructed from thermoset resin with third-party-tested anti-microbial properties certified to ISO 22196:2011, reducing bacterial growth on the switch surface in high-touch environments. The captive terminals retain terminal screws during wiring, preventing loss during installation. The 16mm minimum back box depth fits standard UK single gang back boxes, and the 14.6mm wall projection keeps the switch profile low.

Specification
Height 86mm
Width 86mm
Depth 28.9mm
Projection 14.6mm
Recessed Depth 14.5mm
Min. Mounting Box Depth 16mmmm
Plate Depth 9.5mm
Construction Thermoset resin
Finish Anthracite
IP Rating IP20
Primary Voltage 230V 50Hz
Terminal Captive
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011
Warranty 25 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What is an intermediate switch and where is it used?

An intermediate switch is the middle switch in a three-way lighting circuit, allowing a single light to be controlled from three separate locations. It sits between two two-way switches and is commonly installed on staircases with upper, middle and lower switching points, or in long corridors where multiple control positions are needed.

What does Part M compliant mean?

Part M of the UK Building Regulations sets standards for accessible and adaptable dwellings. The wide rocker design provides a larger switching surface for people with reduced dexterity or visual impairment, and the white finish with an LRV of 8.9 offers sufficient visual contrast against typical wall colours.

Is the screwless cover removable for redecorating?

Yes. The cover plate clips onto the switch mechanism and can be removed for painting around the switch, then re-clipped without re-wiring.

What back box depth is required?

A 16mm minimum back box depth is required for safe installation. Standard UK single gang back boxes are typically 25mm or 35mm deep, both of which accommodate this switch.
