Description

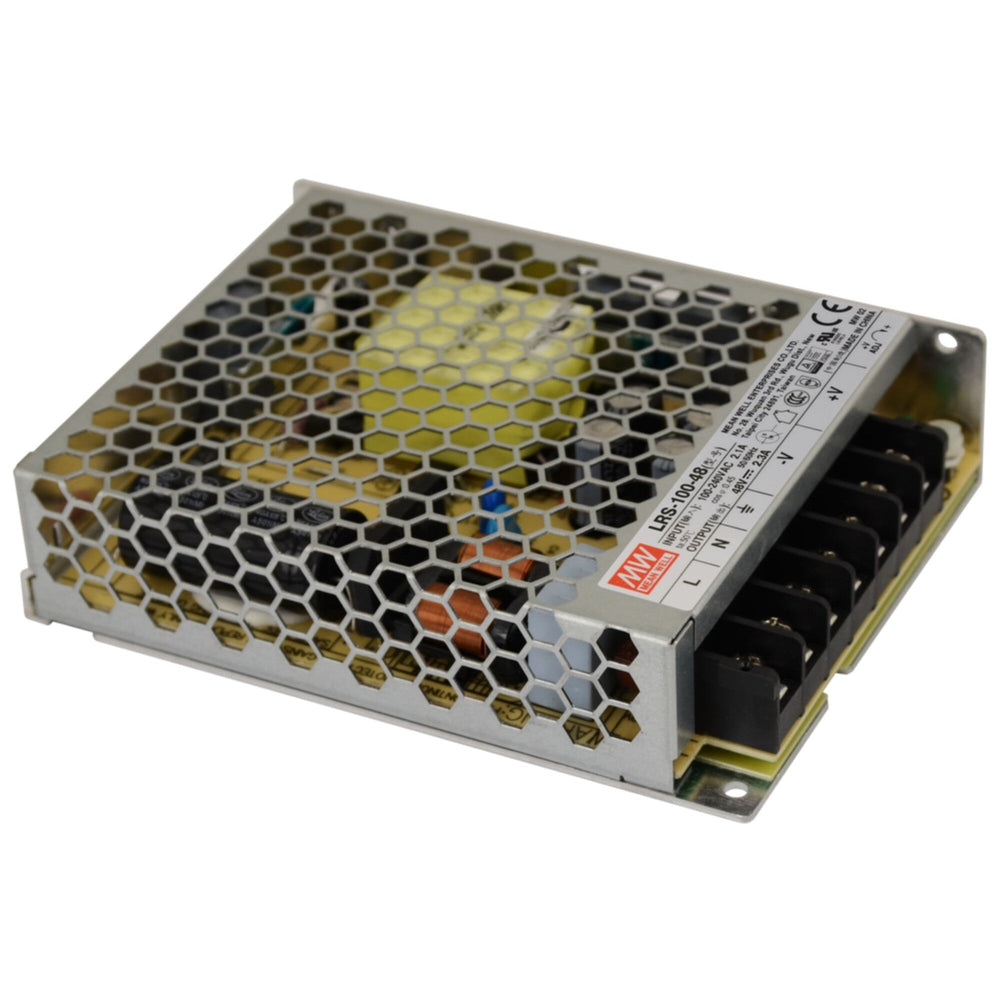

This 100W LED driver converts AC 100-240V mains power to a stable 48V DC output for magnetic track lighting systems. The unit measures 129mm long, 97mm wide and 30mm high, allowing it to be mounted inside ceiling voids, behind panels or within cabinetry where the track system is installed. The honeycomb ventilation grille across the top surface dissipates heat during continuous operation.

Designed for residential and commercial magnetic track installations, the driver powers LED track heads, spotlights and pendant adapters rated for 48V DC operation. The screw terminal block on the right-hand edge accepts standard electrical cable gauges for both input and output connections. The driver includes short-circuit, overload and over-temperature protection, automatically shutting down if the load exceeds 100W or if internal temperature limits are reached.

The IP20 rating limits use to dry indoor environments only — this driver is not suitable for bathrooms, outdoor installations or locations where moisture or dust ingress is likely. The unit accepts worldwide voltage ranges from 100V to 240V AC, making it compatible with UK, European and international electrical systems without modification. The metal casing and mounting flanges at each end allow the driver to be fixed to joists, mounting plates or directly onto the back of track profiles where space permits.

Specification
Height 3cm
Length 12.9cm
Width 9.7cm
Max Height 3cm
Min Height 3cm
IP Rating IP20
Voltage AC 100-240
Warranty 2 Year Guarantee
Downloads

Product Manual

Frequently Asked

What magnetic track systems is this driver compatible with?

This driver works with any magnetic track lighting system that operates on 48V DC and draws up to 100W total load. Confirm the voltage and wattage requirements of your track heads and total system load before installation.

Can this driver be dimmed?

Dimming capability depends on whether the driver has a compatible dimming circuit — the specification table does not list dimming protocols. Contact us before purchasing if dimming is required for your installation.

Where should the driver be mounted?

The driver is designed for concealed mounting inside ceiling voids, behind access panels or within cabinetry. The IP20 rating means it must be kept in a dry indoor location with adequate ventilation around the honeycomb grille to prevent overheating during continuous use.

What happens if the load exceeds 100W?

The driver includes overload protection and will automatically shut down if the connected load exceeds 100W. To restore operation, reduce the number of track heads or lower the wattage of individual fittings, then power-cycle the driver.
