Description

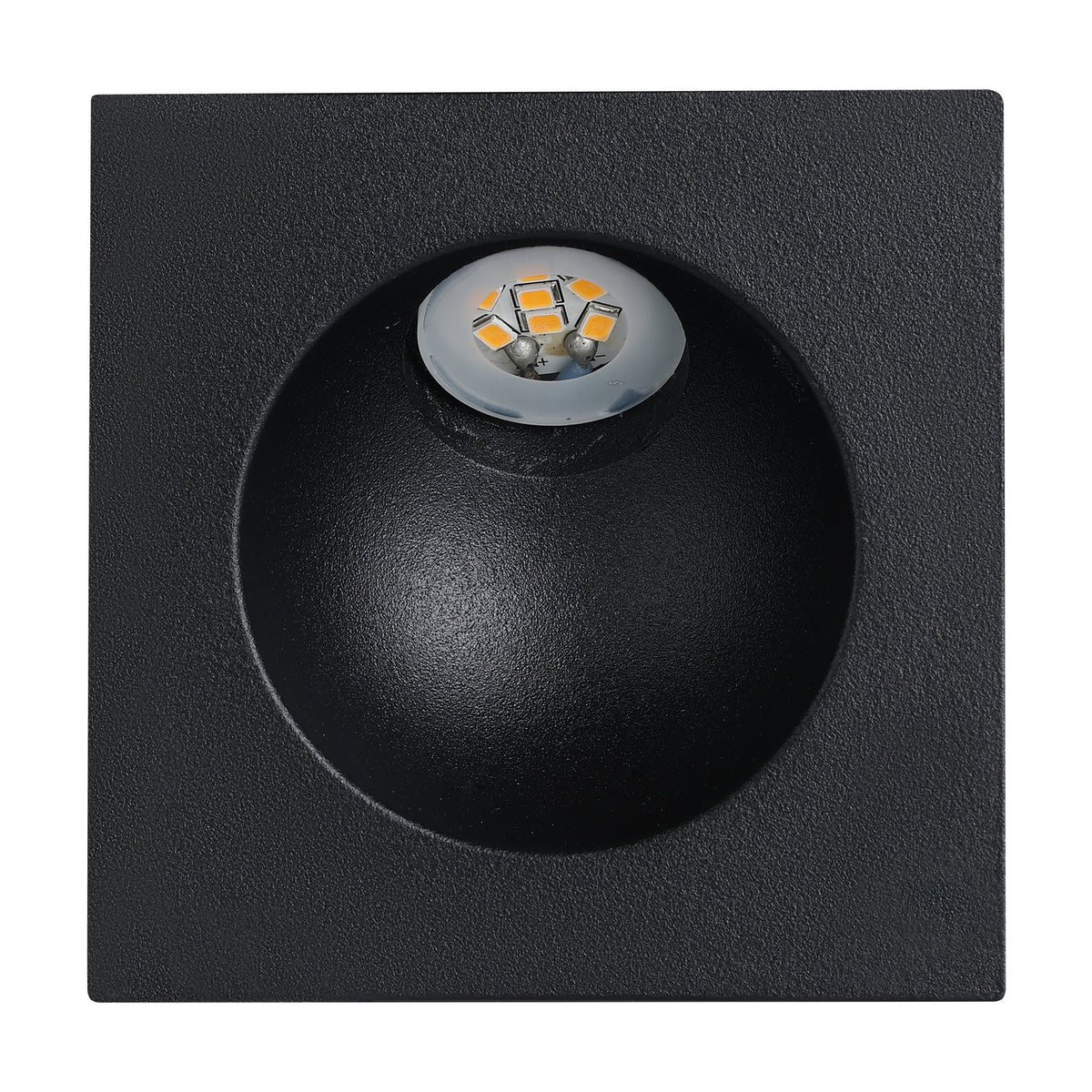

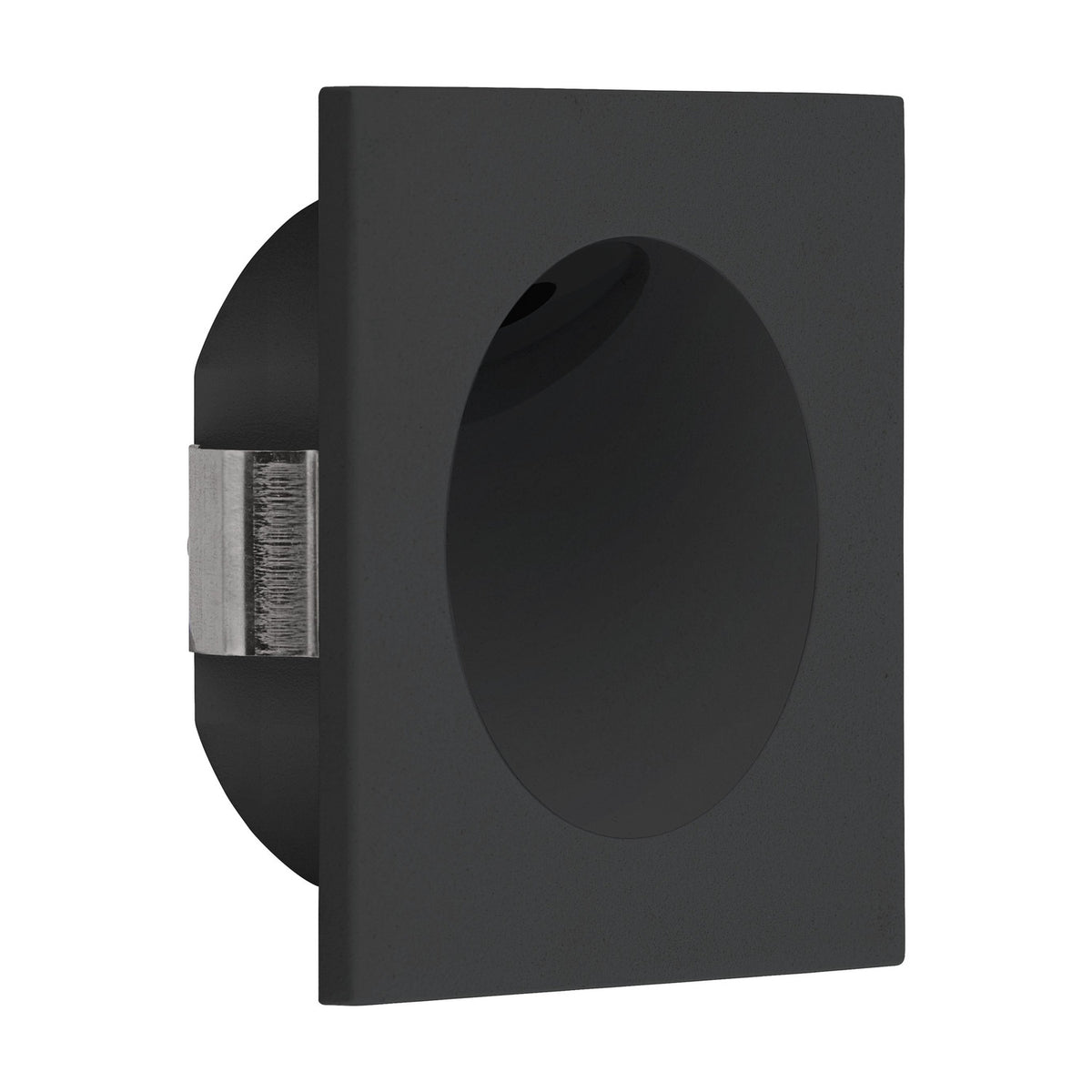

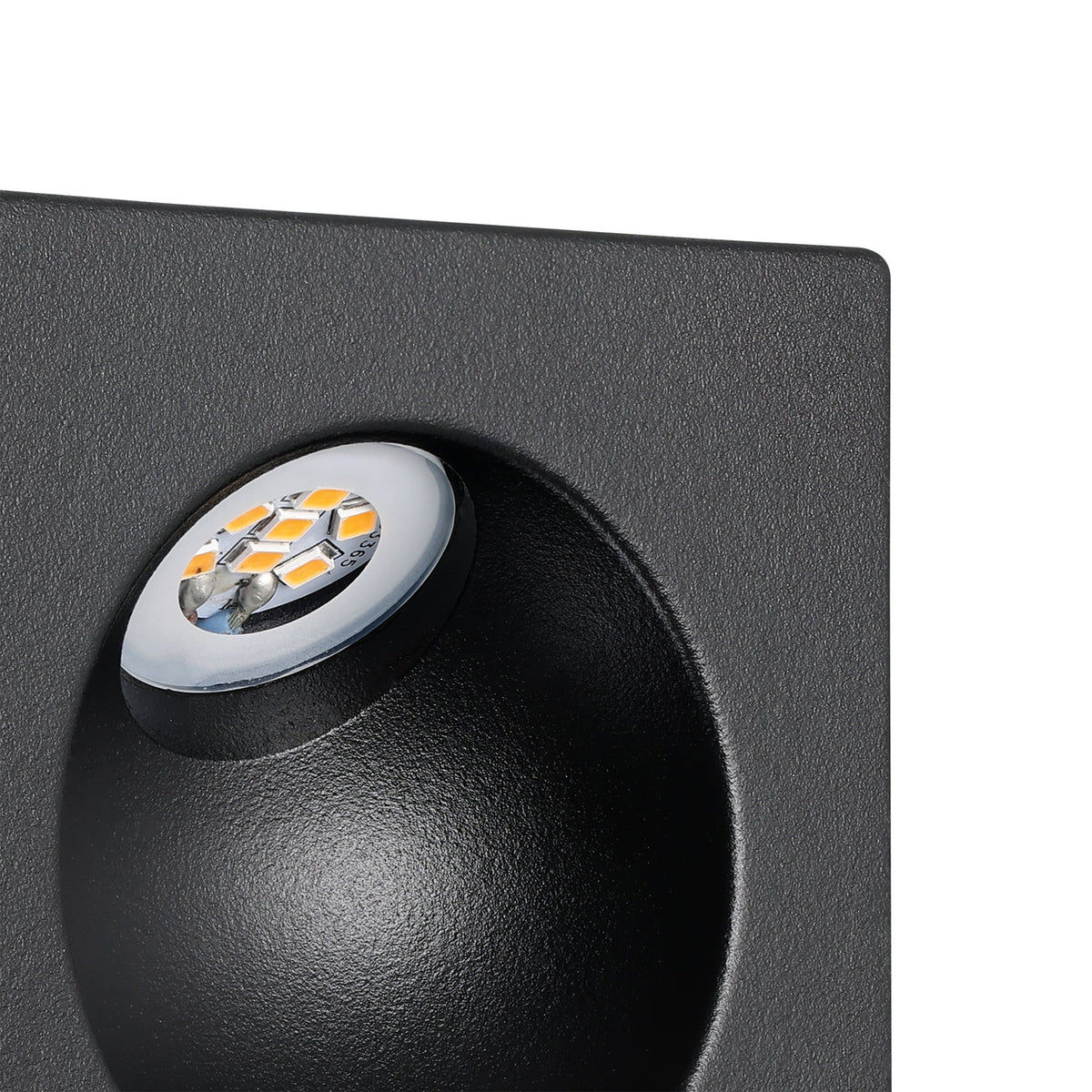

The Zarate is a compact recessed LED downlight with a square face in matt black cast aluminium, 8cm long and 8cm wide. The integrated LED is tucked into the top edge of an offset round hollow, behind a small white plastic shade, and gives 90lm of warm white light at 3000K. That is a gentle, low output, so think of it as a marker or accent light rather than the main light in a room. It is rated IP20, which settles where it belongs: indoors, in dry rooms, away from bathrooms and the garden.

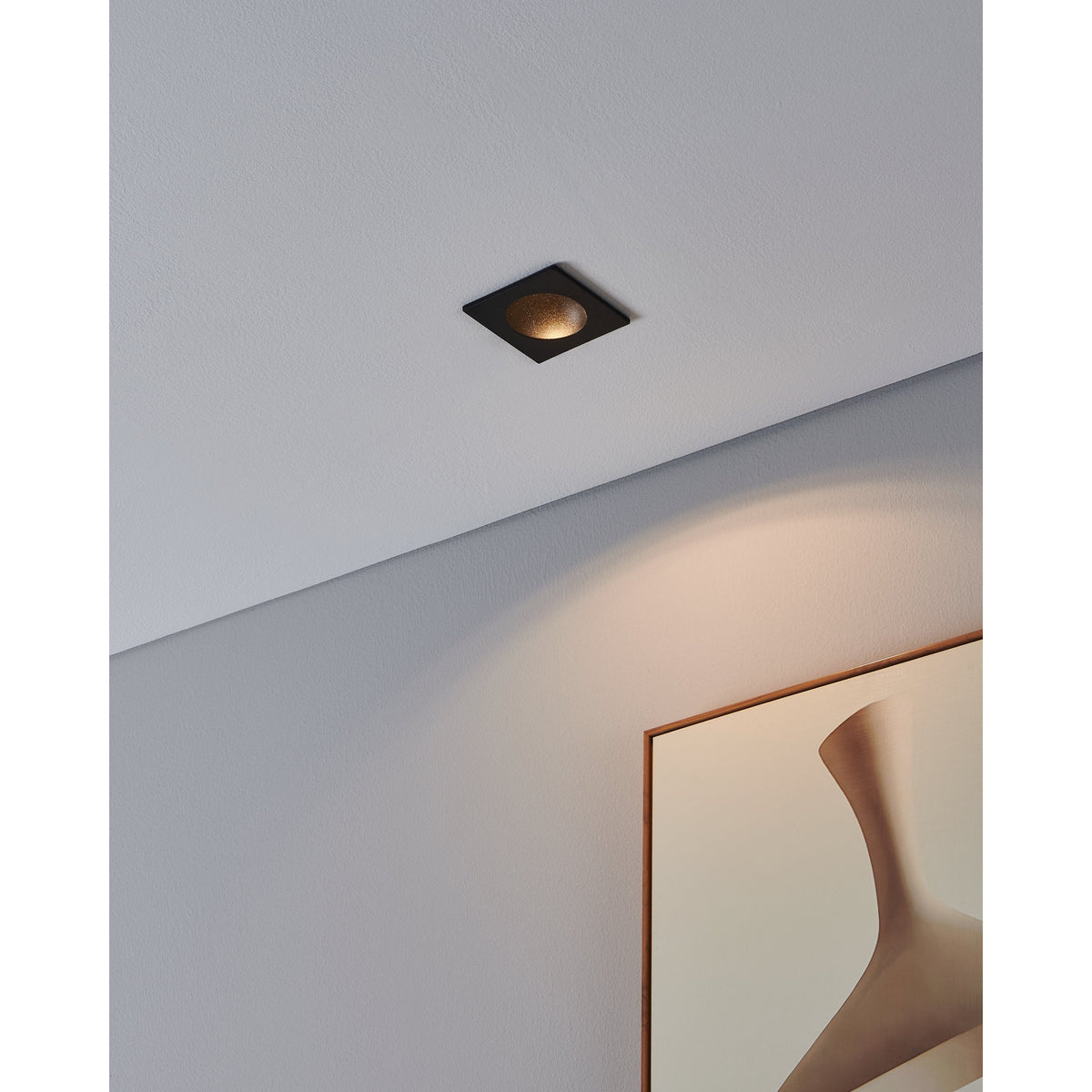

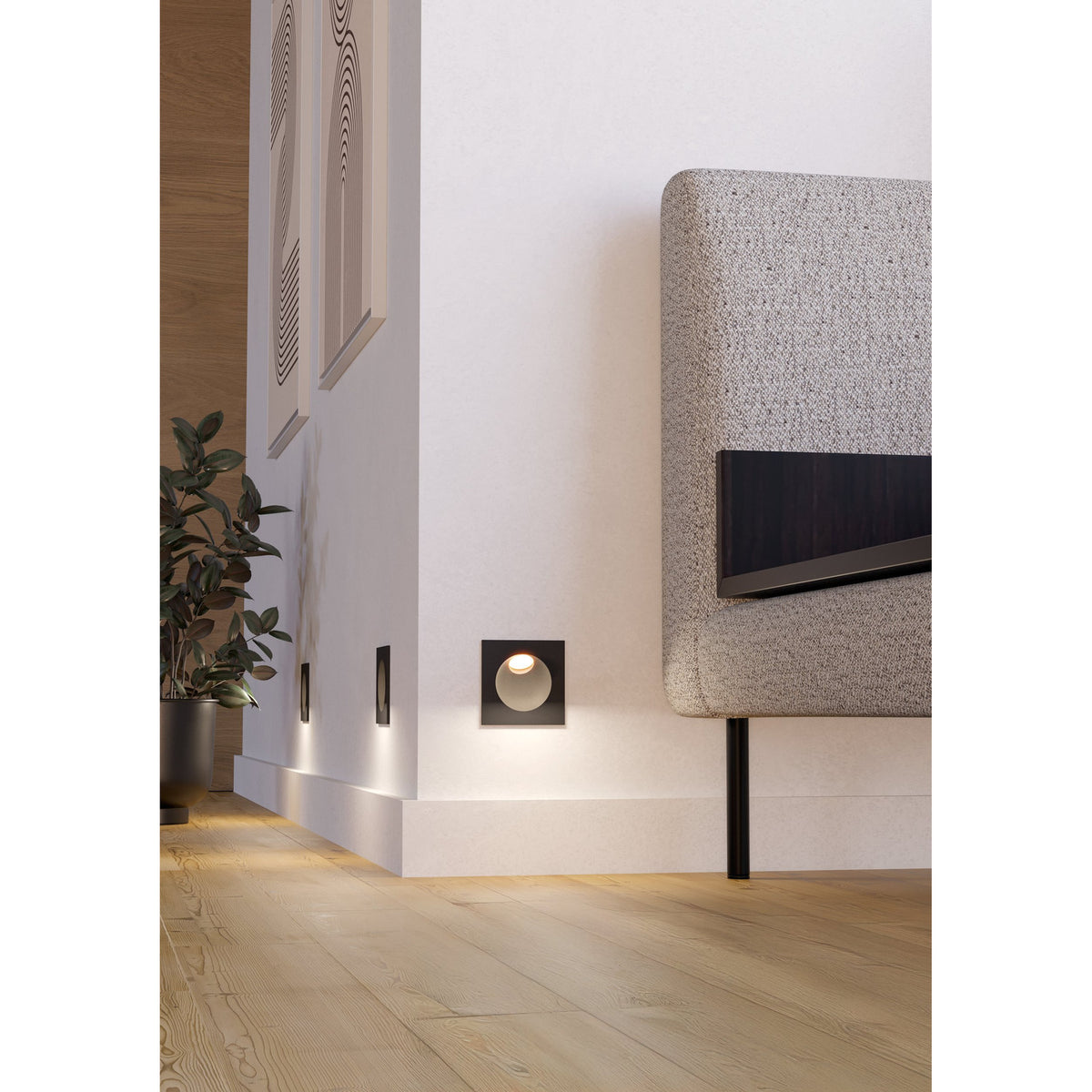

Recessed into a ceiling, it throws a soft pool of light down a wall, a good way to pick out a picture or bring warmth to a plain corridor. Set low in a wall just above the skirting, it lights the floor along a hallway or beside a bed, so nobody needs the main light at night. The square face sits almost flush with the plaster, and the black finish gives a crisp outline against pale walls while staying discreet whenever it is unlit. A row of them makes a neat guiding line from room to room.
The body is cast aluminium and weighs 0.15KG. It runs on mains power at 220-240V, 50/60Hz, and has no switch of its own, so it is controlled from your wall switch. The LED and driver are built in and not replaceable: there is no bulb to buy or change, and when the LED reaches the end of its working life the whole fitting is replaced. Its energy class is G. To plan the fitting, allow a cut-out of 6.3cm and a recess depth of 4cm behind the surface. As a wired-in mains light, it is installed by a qualified electrician, and the installation instructions come as a download.
Specification
| Lumens |
90lm |
| Colour Temperature |
3000K |
| Body Material |
Cast aluminium |
| Body Colour |
Black |
| Shade Material |
Plastic |
| Shade Colour |
White |
| IP Rating |
IP20 |
| Light Source |
LED, integrated |
| Energy Class |
G |
| Length |
8cm |
| Width |
8cm |
| Recess Depth |
4cm |
| Cut-Out |
6.3cm |
| Weight |
0.15KG |
| Replaceable Parts |
LED and driver not replaceable |
| Protection Class |
Class I |
| Voltage |
220-240V, 50/60Hz |
| Operating Voltage |
220-240V, 50/60Hz |
| Switch |
None (switched at the wall) |
Downloads
Installation Instructions (PDF)
Frequently Asked
Can the Zarate go in a bathroom?
No. It is rated IP20, which means indoors and dry only, so we suggest hallways, bedrooms and living spaces rather than a bathroom or any outdoor spot.
How bright is the light?
It gives 90lm of warm white light at 3000K, a soft glow suited to marking a route or washing a wall rather than lighting a whole room.
What size of hole does it need?
It needs a cut-out of 6.3cm and a recess depth of 4cm, while the square face is 8cm long and 8cm wide.
Can the LED be replaced?
No, the LED and driver are integrated and not replaceable, so there is never a bulb to buy, and the fitting is replaced as a whole.
Does it have its own switch?
It has no switch of its own and is switched at the wall, so you control it from a wall switch, just as you would a ceiling light.
What finish is the face?
The cast aluminium body is matt black, with a small white plastic shade over the LED, giving a crisp dark outline on a pale wall or ceiling.
