Description

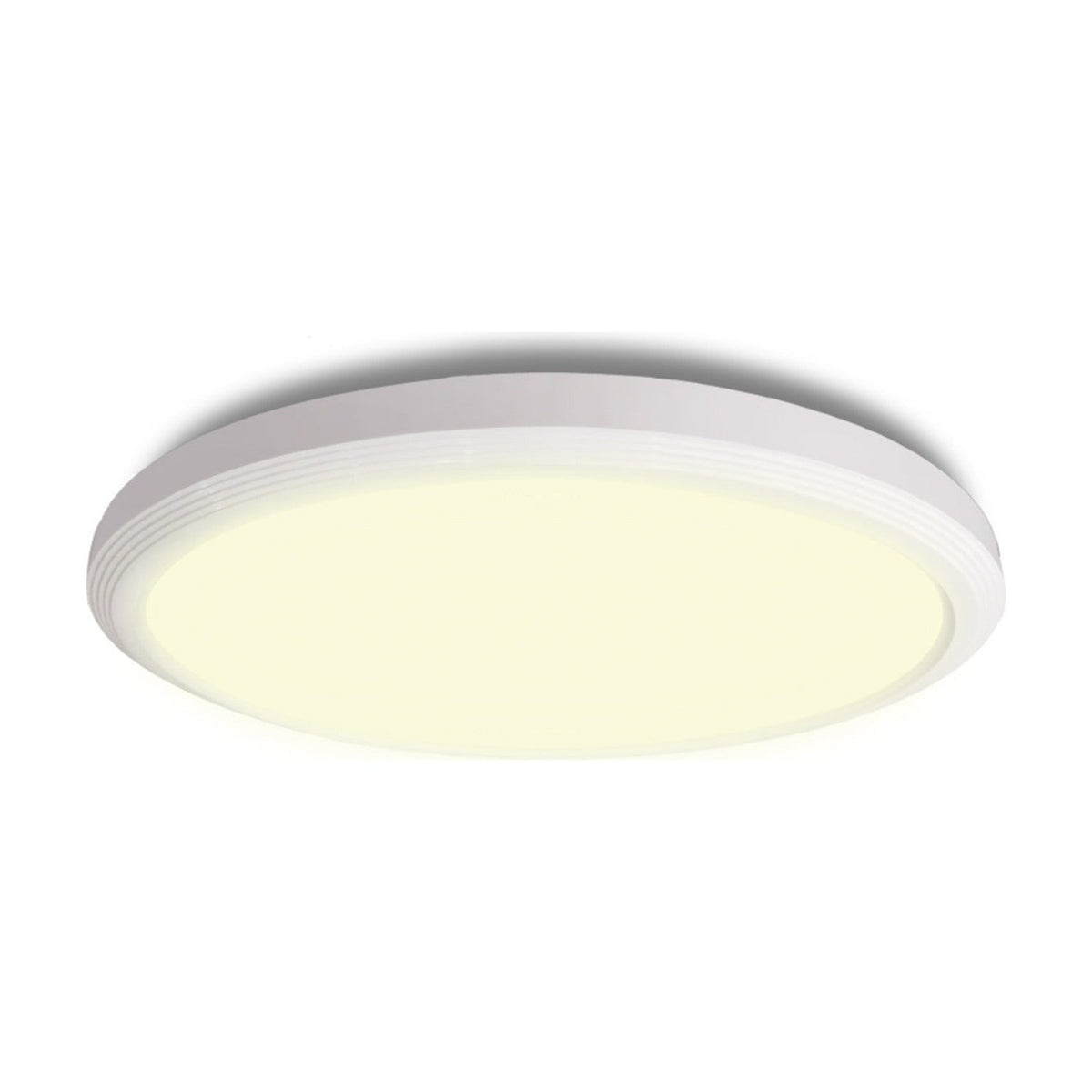

Ultra is a ceiling light in white. A shallow round fitting with a flat white diffuser set inside a stepped white rim, the rim built up in several fine concentric rings so its edge reads as a series of lines rather than one band. The diffuser is flat rather than domed and glows as an even disc with no lamp showing behind it. The rim stands slightly proud of the face and is matt white like the rest. The body is low and sits tight against the ceiling. There is nothing else on the face at all. It measures 30cm across.
Rated IP54, it is made for a bathroom, a shower room or a utility room, where steam and splashing rule out an ordinary flush fitting. That covers Zone 1 and Zone 2 under the UK wiring regulations, which is to say above a bath or a shower and within 60cm of it. Zone 0, inside the tray itself, needs a different fitting altogether. Mounted flush it clears a low ceiling and a doorway, and it lights the whole room evenly rather than pooling on one surface, which is what a room you get ready in wants.
The LED is built in at 18W, so there is no bulb to buy and none to fit. It has 3 brightness settings, changed by switching off at the wall and straight back on, so no dimmer is needed. It carries an F energy label.
Specification
| Diameter |
30cm |
| Finish |
White |
| Light Source |
Integrated LED |
| Power |
18W |
| Brightness Settings |
3 settings |
| Energy Class |
F |
| IP Rating |
IP54 |
| Suitable Location |
Indoor, including bathroom zones 1 and 2, or outdoors under cover |
| Colour Temperature |
3000K |
Downloads
Instruction manual (PDF)
Frequently Asked
Do I need to buy a bulb?
No. The LED is built into the fitting, so there is nothing to buy and nothing to fit.
What happens when the LED fails?
The fitting is replaced rather than relamped. At 18W and normal domestic use that is many years away.
How do I change the brightness?
Switch off at the wall and straight back on. Each flick moves it to the next setting. No dimmer is needed.
Will it work on a dimmer?
It does not need one, and it should not be fitted to one. Brightness is controlled from the wall switch instead.
Can it go in a bathroom?
Yes. It is rated IP54, which covers Zone 1 and Zone 2 under the UK wiring regulations: above a bath or shower and within 60cm of it. It is not for Zone 0, inside the bath or shower tray itself.
