Description

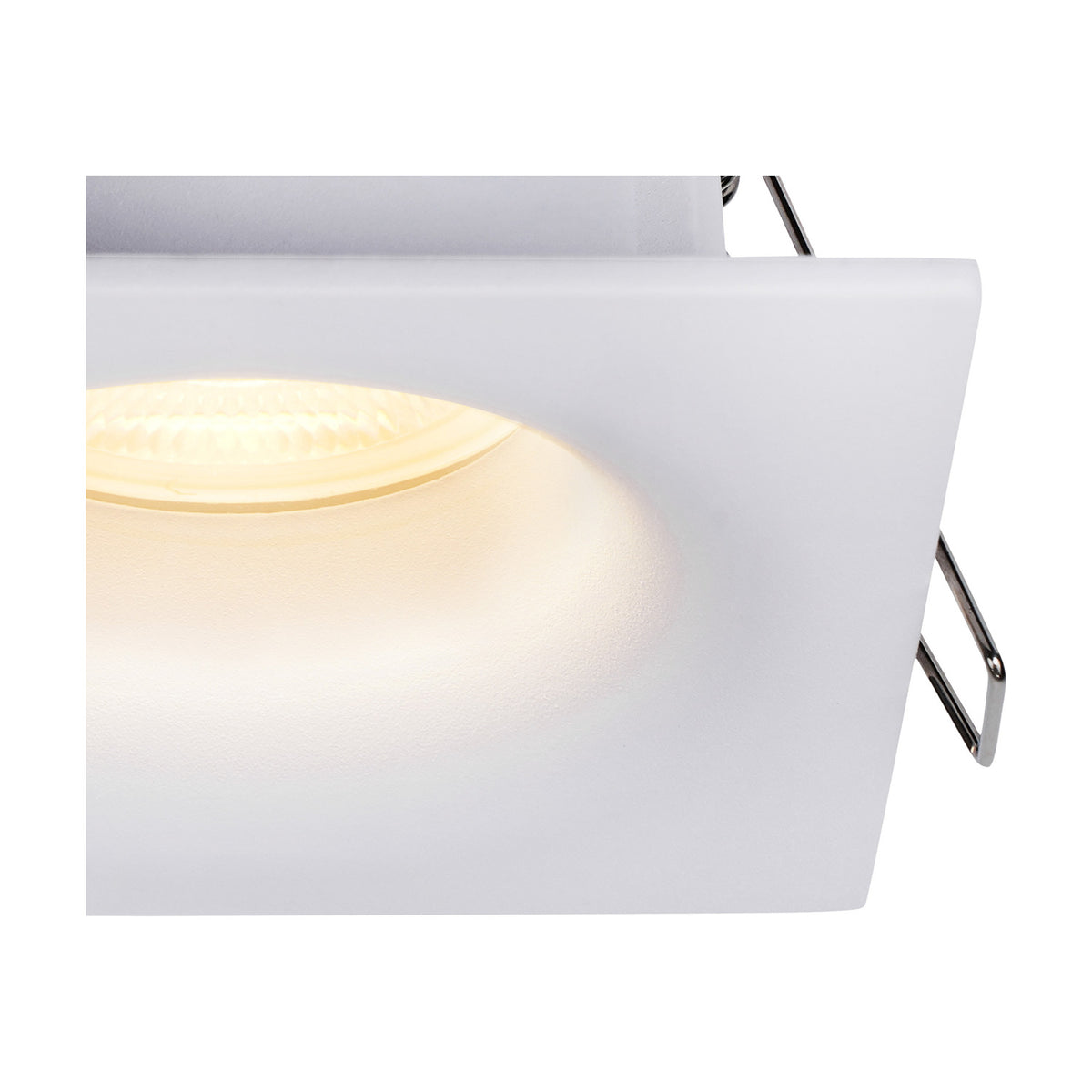

A square white trim with a clean edge, this is a compact recessed spotlight for ceilings where you want light without much hardware on show. The face measures 8.5cm across, so it reads as a small square of white against a painted ceiling rather than a fitting. Behind it sits a GU10 socket, ready for a reflector LED of up to 12W, and the lamp is switched rather than dimmed. We stock it with a square or a round face, and this is the one we choose where a ceiling has other square lines to follow.
Sealed against dust and splashes, it is happy in rooms where steam and cooking spatter come with the territory: kitchen ceilings, utility rooms, shower rooms and en suites. Hallways and landings suit it too, set in a run that gives even light along the whole length. It is a sensible choice for low ceilings and for rooms where a pendant would be in the way, and we reach for it in loft conversions and box rooms for that reason. Being non-dimmable, it wants a plain switch rather than a trailing edge dimmer.
The body is finished white front and back, so the trim sits quietly against most ceiling paints, and it is double insulated. Keeping it clean is a matter of a wipe across the face with a barely damp cloth once the lamp is cold, then a dry cloth so nothing dries on the white. It carries a one year warranty. The range also runs to a round face, and both shapes come in black if you would rather the fitting showed; we would settle on one shape for a whole ceiling rather than mix them. Lamps are not included.
Specification
| Colour |
White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.15KG |
| Length |
85mm |
| Width |
85mm |
| Height |
42mm |
| Cut Out (mm) |
68mm |
| Materials Used |
Aluminium |
| Energy Class |
A++ to E |
| Max Energy Class |
A++ |
| Min Energy Class |
E |
| Lamp |
1 x GU10 12W max (lamps not included) |
| Lamp Cap |
GU10 |
| Recommended Lamp |
LED (50mm Reflector) |
| Light Distribution |
Down |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
Dependent On Lamps Used (±5%) |
| Input Voltage (V) |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP54 |
| Warranty |
1yr |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size aperture does this downlight need?
It works to a 68mm cut-out. The visible face is 85mm square and the body is 42mm deep.
Which lamp should I buy for it?
A GU10 reflector lamp of 50mm diameter, up to 12W. We would choose an LED version, and you can pick the beam and colour temperature to suit the room.
Can it be dimmed?
No, this one is non-dimmable and should be run from an ordinary switch.
Is it suitable for a bathroom or shower room?
Yes, it is IP54 rated, so it copes with dust and splashing water, which covers most bathroom, en suite and utility ceilings.
How heavy is it?
It weighs 0.146kg, so it is a light fitting to handle and to hold in place.
What warranty does it come with?
It carries a one year warranty from the manufacturer.
