Description

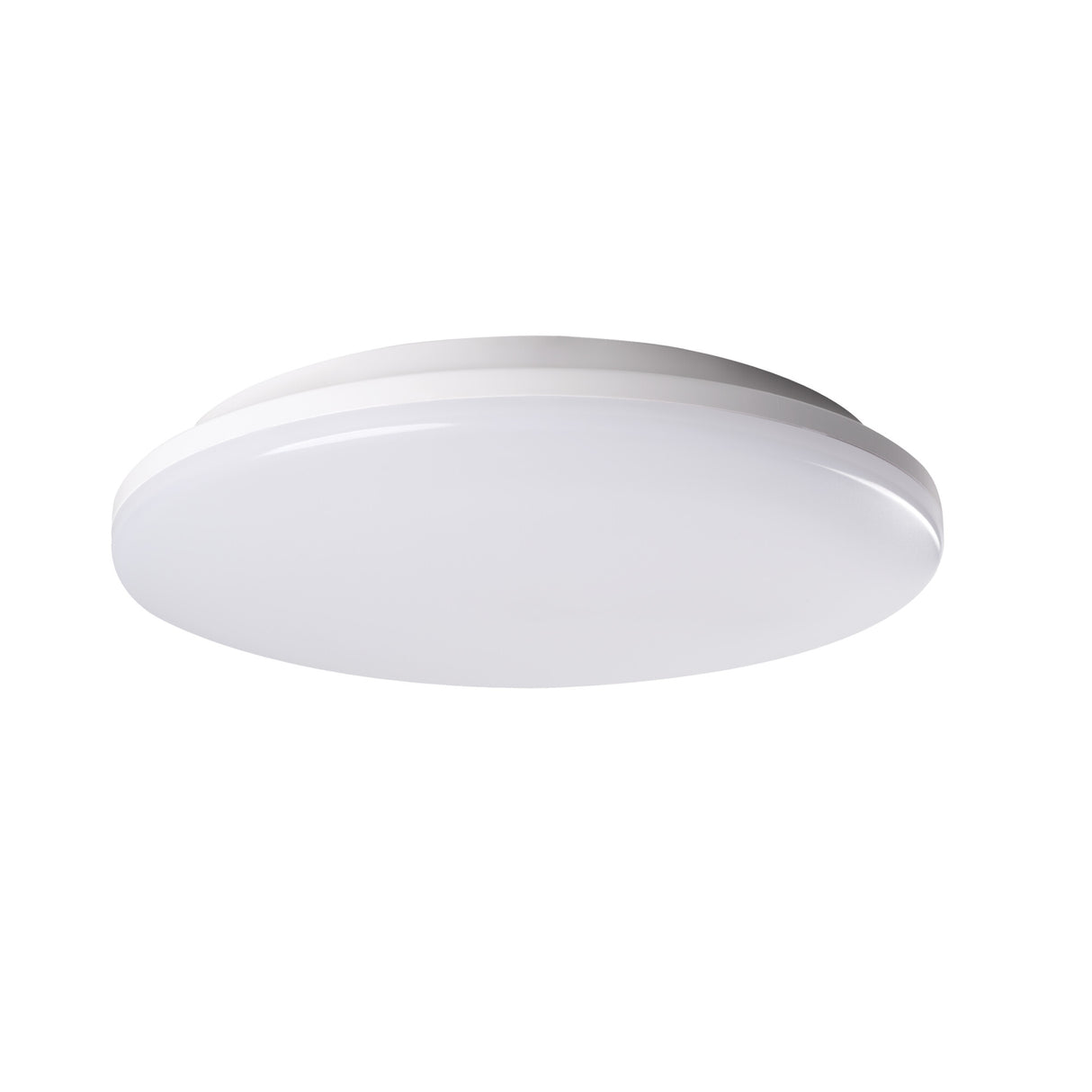

The Stivi is a round LED bulkhead drawing 24W and producing 3120 lumens, with a wide 110 degree spread and a neutral white 4000K output. Built around an integrated LED rather than a replaceable lamp, it pushes a broad, even wash of light across the surface it sits on. For anyone shopping in the US, this is the type often listed as an outdoor wall pack or wall sconce, doing the same job of marking and lighting an entrance or passageway. At 130 lm/W it is an efficient way to keep an exterior or utility area lit through the night.
The fitting suits porches, external walls, stairwells, corridors, garages and covered car parks, anywhere a robust surface light is needed. Its 110 degree beam throws light outward and downward to cover a doorway, a flight of steps or a stretch of path rather than focusing a narrow spot, so it works as a marking and orientation light along a wall run. Because it is rated for exposed and wet positions it can go on a fully open external wall as well as under cover, and the round 280mm body keeps a low, compact profile against the surface.
The housing is polycarbonate finished in white, carrying an IP65 weatherproof rating and IK08 impact rating that together stand up to rain, dust and knocks. It mounts to a wall or ceiling and runs directly from 220 to 240V AC mains, so no separate transformer is required. The Stivi is not dimmable and is supplied as a sealed integrated unit rated for 50,000 hours. Other body sizes and wattages sit within the wider Stivi range for matching a run of fittings.
Specification
| Power |
24W |
| Voltage |
220-240 AC |
| Luminous flux |
3120 lm |
| Efficiency |
130 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
110° |
| IP rating |
IP65 |
| IK rating |
IK08 |
| Dimmable |
No |
| Mounting |
Wall Mounted, Ceiling Mounted |
| Lifespan |
50,000 hours |
| Shape |
Round |
| Dimensions |
Ø280 × 54 mm |
| Weight |
722 g |
| Material |
Polycarbonate |
| Finish |
White |
Downloads
Frequently Asked
Can the Stivi be used outdoors?
Yes. It carries an IP65 rating, which means it is sealed against dust and protected from water jets, so it is suitable for fully exposed outdoor walls as well as sheltered porches and passageways. The IK08 rating also gives it useful resistance to impact in busier locations.
Does it need a separate bulb?
No. The Stivi uses an integrated LED array rather than a replaceable lamp, so there is nothing to fit or change. It is rated for 50,000 hours of use, after which the whole unit would be replaced.
Where is this bulkhead typically used?
It is well suited to entrances, external walls, stairwells, corridors, garages and covered car parks. The 24W output and 3120 lumens give a strong, even spread that works for both security and general access lighting.
How should the fitting be cleaned?
Wipe the polycarbonate diffuser with a soft, damp cloth and mild detergent, then dry it off. Avoid harsh solvents or abrasive pads as these can dull the surface, and always isolate the power before cleaning.
