Screened SAT TV Outlet Module 25 x 50mm - Grey

£399
The RRP is the manufacturer's recommended retail price of the item.
183 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

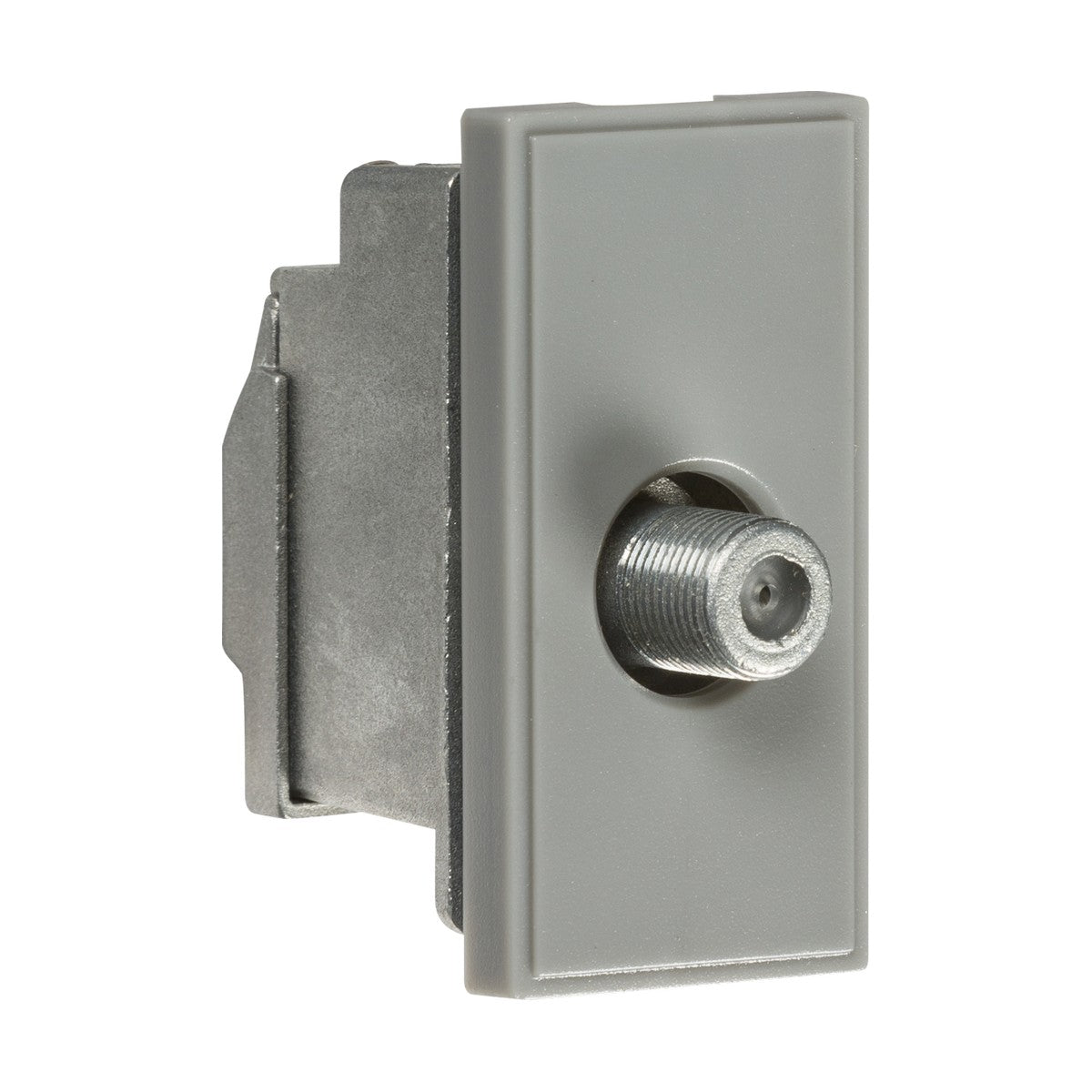

The Knightsbridge screened SAT TV outlet module is a 25 x 50mm grey ABS faceplate module with a single F-type satellite outlet, fully screened to EN 50083-2 standards. The module provides low-loss signal transmission with minimal ingress and negligible crosstalk between adjacent modules, maintaining signal integrity in multi-room satellite distribution systems.

Designed for modular grid systems in residential and commercial installations, the module fits standard Knightsbridge grid frames and requires a minimum mounting box depth of 35mm. The F-type connector accepts satellite cables with 1mm conductors including PF100, H109F and QF100 types, with clamp and screw terminals providing tool-free cable insertion and retention. The 25mm width allows two modules to fit side-by-side in a standard 50mm grid aperture.

The grey ABS construction carries an IP20 rating for dry indoor use and sits flush with the grid frame when installed, with a 30mm recessed depth behind the faceplate. The screening to EN 50083-2 provides matching and isolation performance suitable for Sky, Freesat and other satellite TV systems where maintaining signal quality across multiple outlets is critical to picture quality.

Specification
Height 50 mm
Width 25 mm
Recessed Depth 30 mm
Min. Mounting Box Depth 35mm
Construction ABS
Finish Grey
IP Rating IP20
SAT Connection Type F-Type
Terminal Clamp & Screw Terminal
Warranty 1
Downloads

Product Specification Sheet

Frequently Asked

What grid system does this module fit?

The module is designed for Knightsbridge modular grid systems. It occupies a 25 x 50mm aperture, allowing two modules to sit side-by-side in a standard 50mm-wide grid frame. The module requires a minimum 35mm mounting box depth behind the grid frame.

What satellite cables is it compatible with?

The F-type connector and clamp terminal accept satellite coaxial cables with 1mm centre conductors, including PF100, H109F, QF100 and similar specification cables. The clamp and screw terminal design allows tool-free cable insertion.

What does EN 50083-2 screening provide?

EN 50083-2 is the European standard for signal performance in cable distribution systems. Full screening to this standard minimises signal loss, reduces interference ingress from external sources, and prevents crosstalk between adjacent modules in the same grid frame.

Can this be used with Sky or Freesat?

Yes. The F-type outlet is the standard connector used in UK satellite TV installations including Sky, Freesat and other satellite services. The screening ensures signal quality is maintained from the LNB to the set-top box or TV tuner.
