Quadplexed SAT1/SAT2/TV/FM DAB Outlet Module 50 x 50mm - White

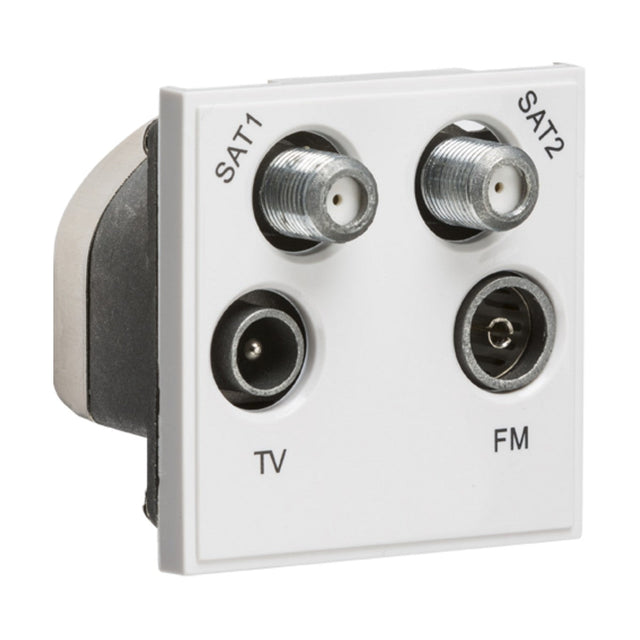

The Knightsbridge quadplexed outlet module combines two satellite inputs (SAT1 and SAT2), one TV aerial input and one FM/DAB radio input behind a single 50 x 50mm white ABS faceplate. The module routes four separate signal types to different connection points on the front plate: two F-type connectors for the satellite feeds, one male coaxial for TV, and one female coaxial for FM/DAB. Fully screened to EN 50083-2, the module minimises signal ingress and cross-talk between the four channels.

Designed for Sky, Sky+, and multi-room satellite installations where a single wall outlet needs to serve satellite, terrestrial TV and radio simultaneously, the module fits standard UK grid systems with a 50 x 50mm aperture. The separate SAT2 outlet allows dual-tuner satellite receivers to connect both feeds at the same wall point without needing two separate satellite outlets. Minimum mounting box depth is 35mm, with the module recessing 31mm behind the faceplate once installed.

The clamp and screw terminals accept cables with a 1mm conductor diameter, including PF100, H109F and QF100 coaxial types. The white ABS construction matches standard white grid plates and accessories across residential and light commercial installations. The module provides low insertion loss across the satellite and TV bands, maintaining signal quality between the distribution amplifier or splitter and the end device.

Product Specification Sheet

What grid system does this fit?

This module fits standard 50 x 50mm grid systems used across most UK modular wiring accessories. It requires a compatible grid plate and back box with a minimum 35mm depth.

What cable types are compatible?

The clamp and screw terminals accept coaxial cables with a 1mm conductor diameter, including PF100, H109F, QF100 and similar satellite-grade coaxial cable. The terminals accommodate both the centre conductor and the outer screen braid.

Why are there two separate satellite outlets?

Dual-tuner satellite receivers such as Sky+ and Sky Q boxes require two independent satellite feeds to record one channel while watching another. The separate SAT1 and SAT2 outlets allow both feeds to terminate at a single wall point rather than requiring two separate satellite modules.

Is the module screened?

Yes. The module is fully screened to EN 50083-2, which minimises interference between the four signal channels and reduces external signal ingress. This maintains signal quality across all four outputs.
