QTX GOBO Beam 100W LED Moving Head Light

£19999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

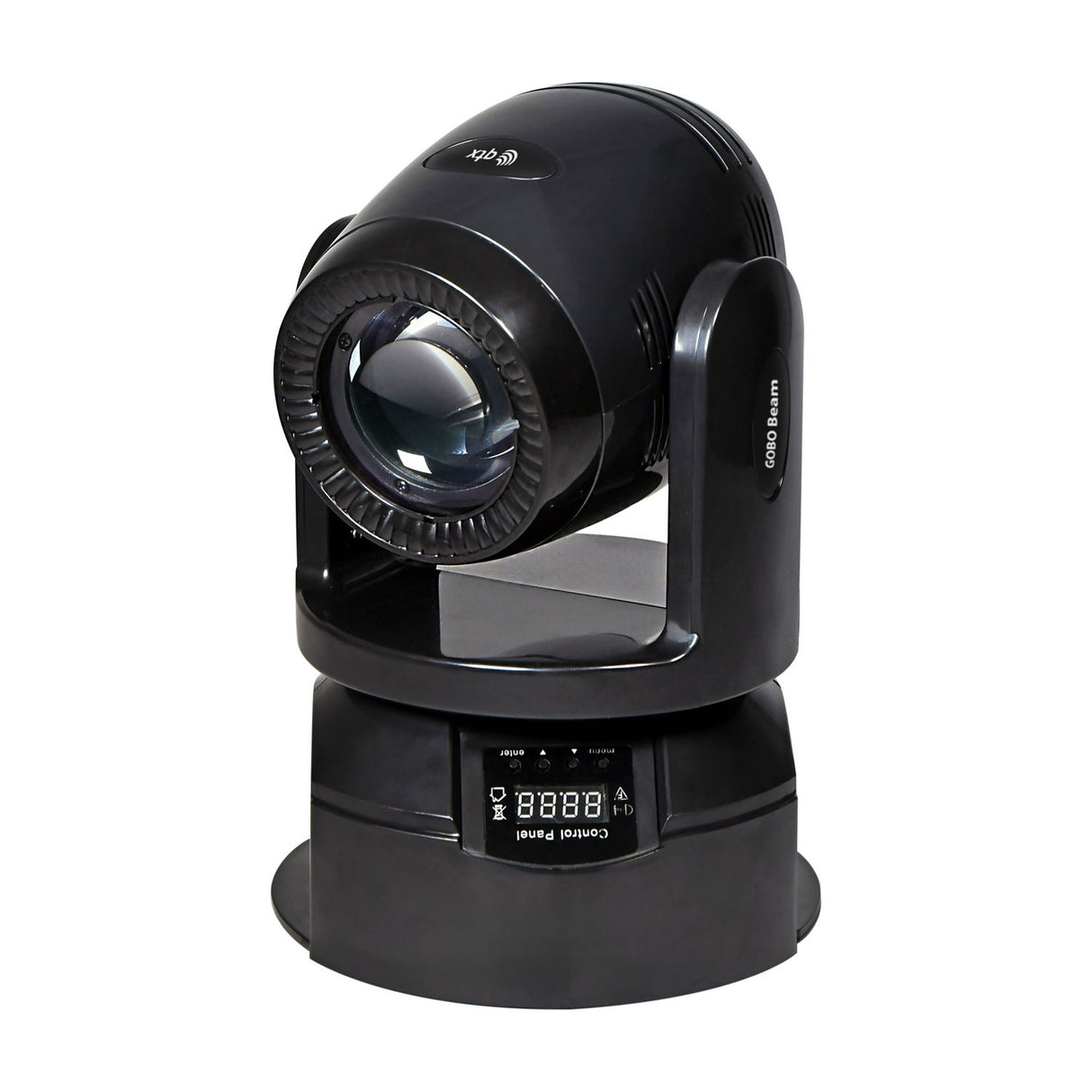

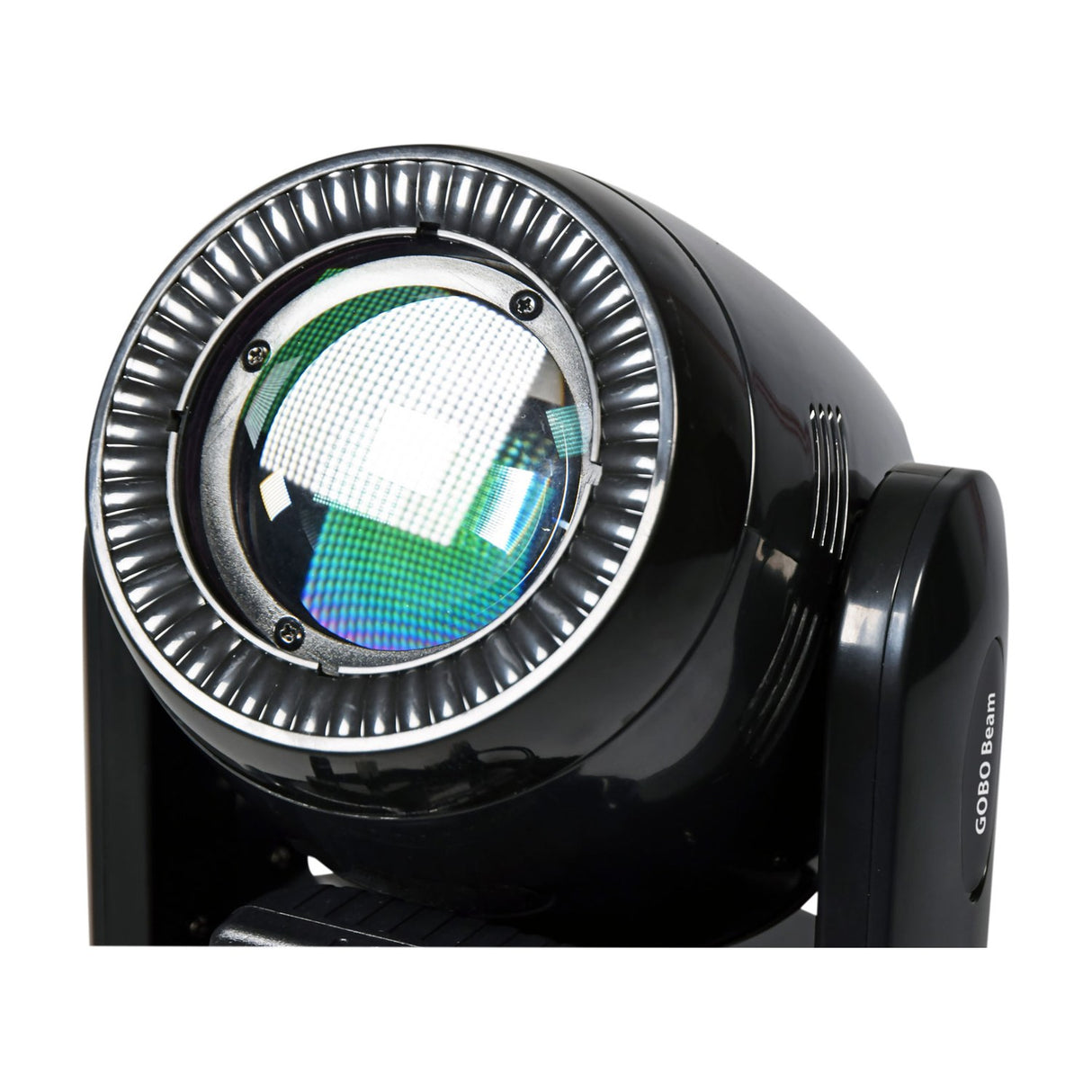

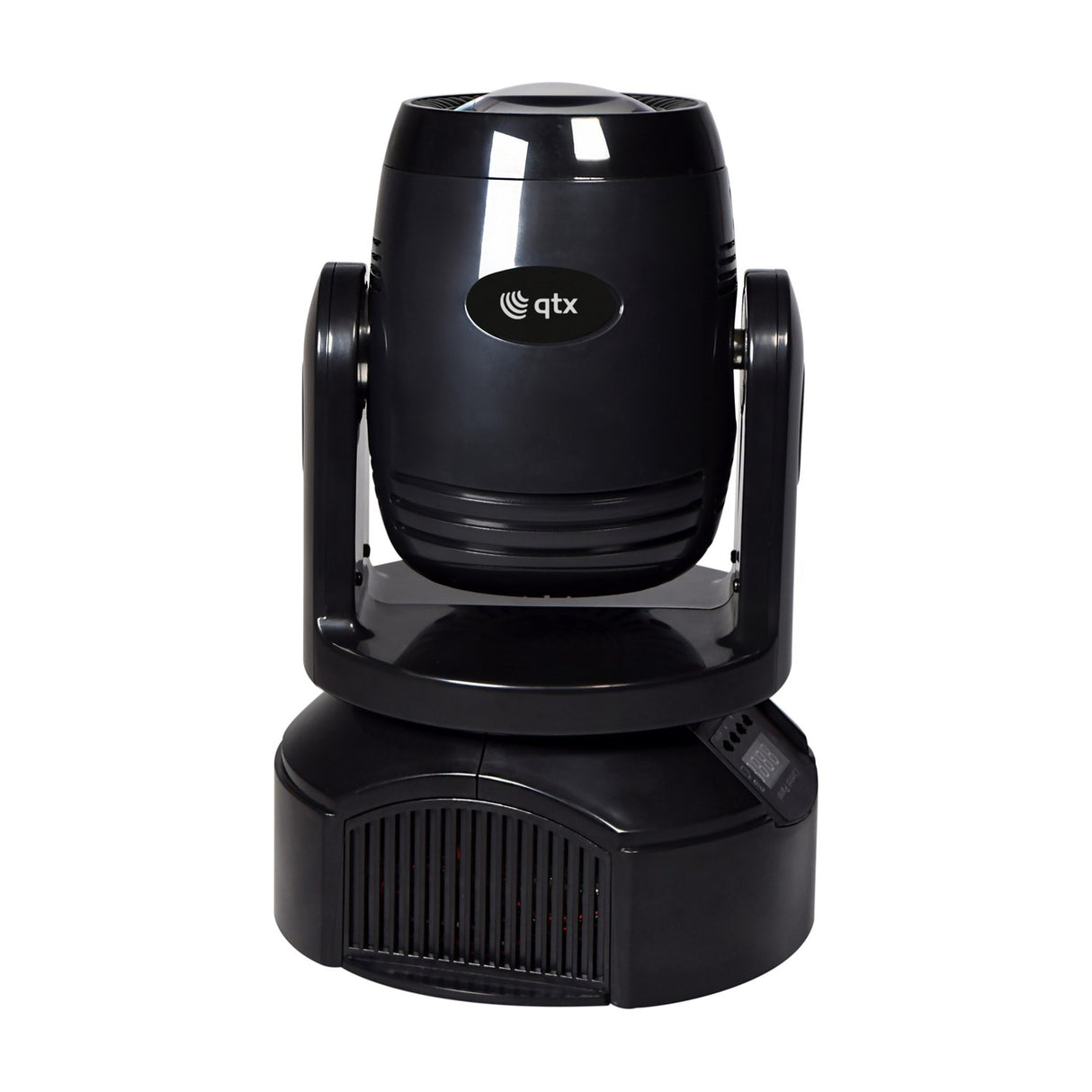

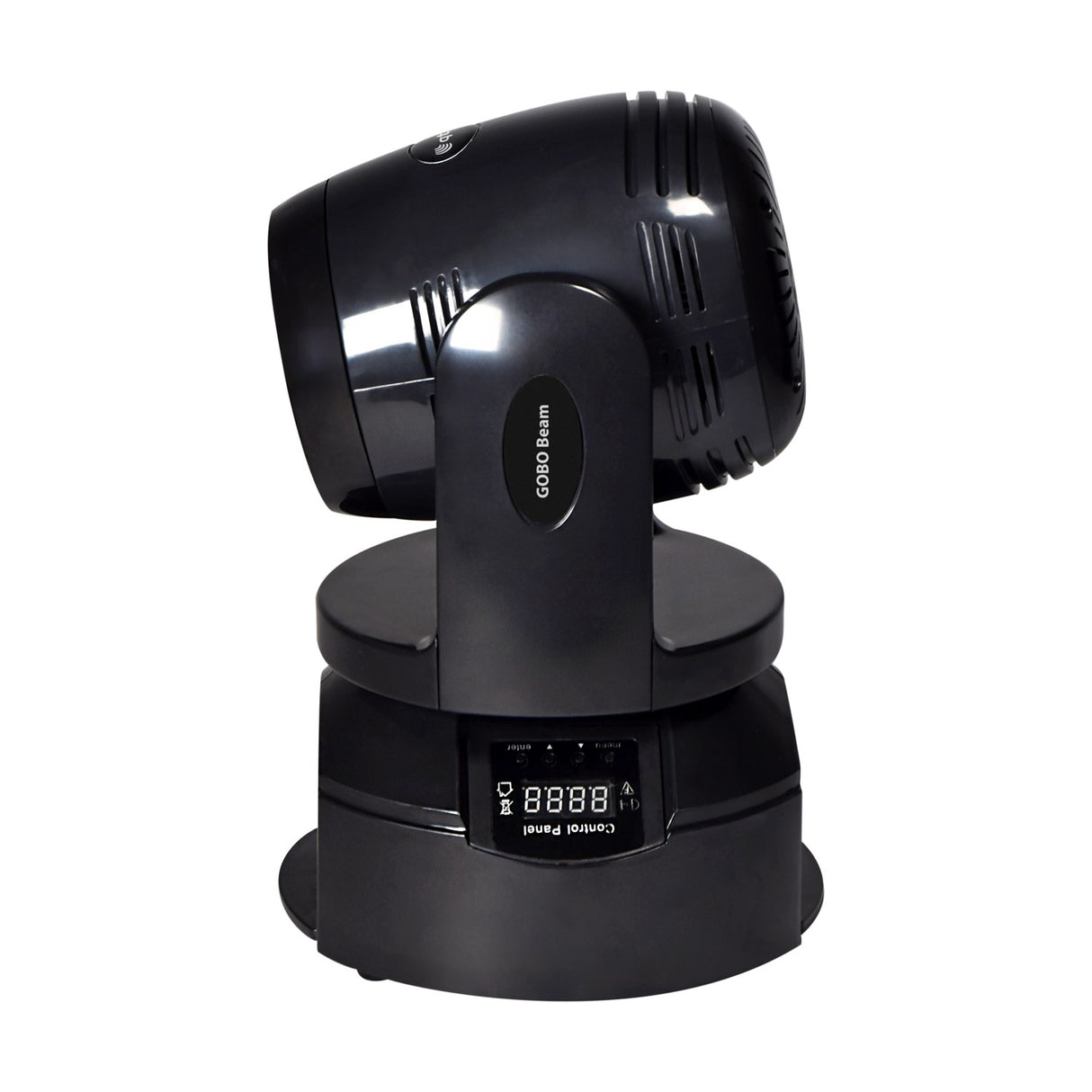

The QTX GOBO Beam is a feature packed moving head that pairs a bright 100W COB LED with 7 GOBOs, 7 colours and a prism for varied effects and colour mixing. It runs in auto, sound-to-light, master/slave or DMX512 modes, so you can set it running on its own or link several units together across a rig. A forward 180 degree setting keeps the light from shining back into the DJ's eyes.

Control is handled over 9 or 13 channel DMX, giving you the choice of simpler operation or finer control depending on your setup. The pan range covers 540 degrees and tilt reaches 200 degrees, with a tight 2 degree beam angle for sharp, focused projection. The unit can stand freely or mount to trussing using the supplied brackets, so it fits both fixed installs and mobile work.

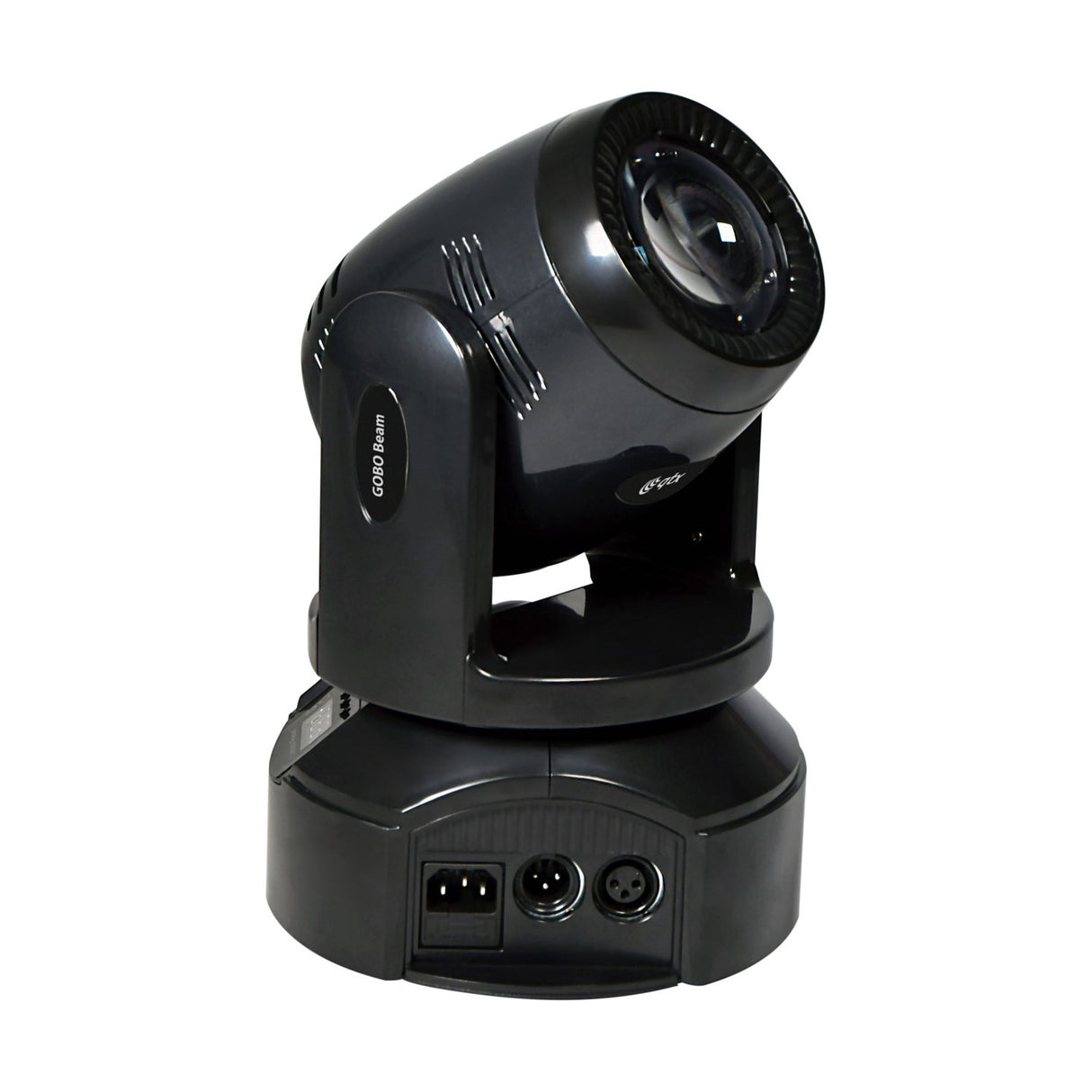

At 200 x 200 x 300mm and 3.6kg, it is easy to carry and position. Power runs on a universal 110-240 Vac supply via IEC, and DMX connects through 3-pin XLR in and out. It suits stages, bars, nightclubs and mobile DJs (in the US, disc jockeys), providing a spread of colourful effects to brighten up any event. Power consumption sits at 100W with an F3A fuse rating.

Specification
Power supply 110-240Vac, 50/60Hz (IEC)
Power consumption 100W
Fuse rating F3A
LED : power 100W COB LED
Modes Auto, sound, master/slave, DMX512
DMX channels 9 or 13CH
Pan range 540°
Tilt range 200°
Beam angle 2°
Dimensions 200mm x 200mm x 300mm
Weight 3.60KG
Connections Power in (IEC), DMX in/out (3pin XLR)
Downloads

Product Manual

Frequently Asked

How many DMX channels does the GOBO Beam use?

It offers a choice of 9 or 13 channel DMX control, so you can pick simpler operation or finer control to suit your rig.

What control modes are available?

You can run it in auto, sound-to-light, master/slave or DMX512 modes. Master/slave lets you link several units so they respond together.

Can it be mounted to trussing?

Yes. It can stand freely or mount to trussing using the supplied brackets, so it works for both fixed and mobile setups.

What GOBO and colour options does it have?

It includes 7 GOBOs, 7 colours and a prism effect, giving you plenty of scope for pattern projection and colour mixing.

What is the forward 180 degree setting for?

It keeps the beam from shining back into the DJ's eyes, which is handy when the fixture is positioned behind or beside the booth.

What connections does it use?

Power connects via IEC, and DMX runs through 3-pin XLR in and out sockets.
