QTX 6.3mm Mono Jack Plug to RCA Socket Right-Angled Adaptor

£299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

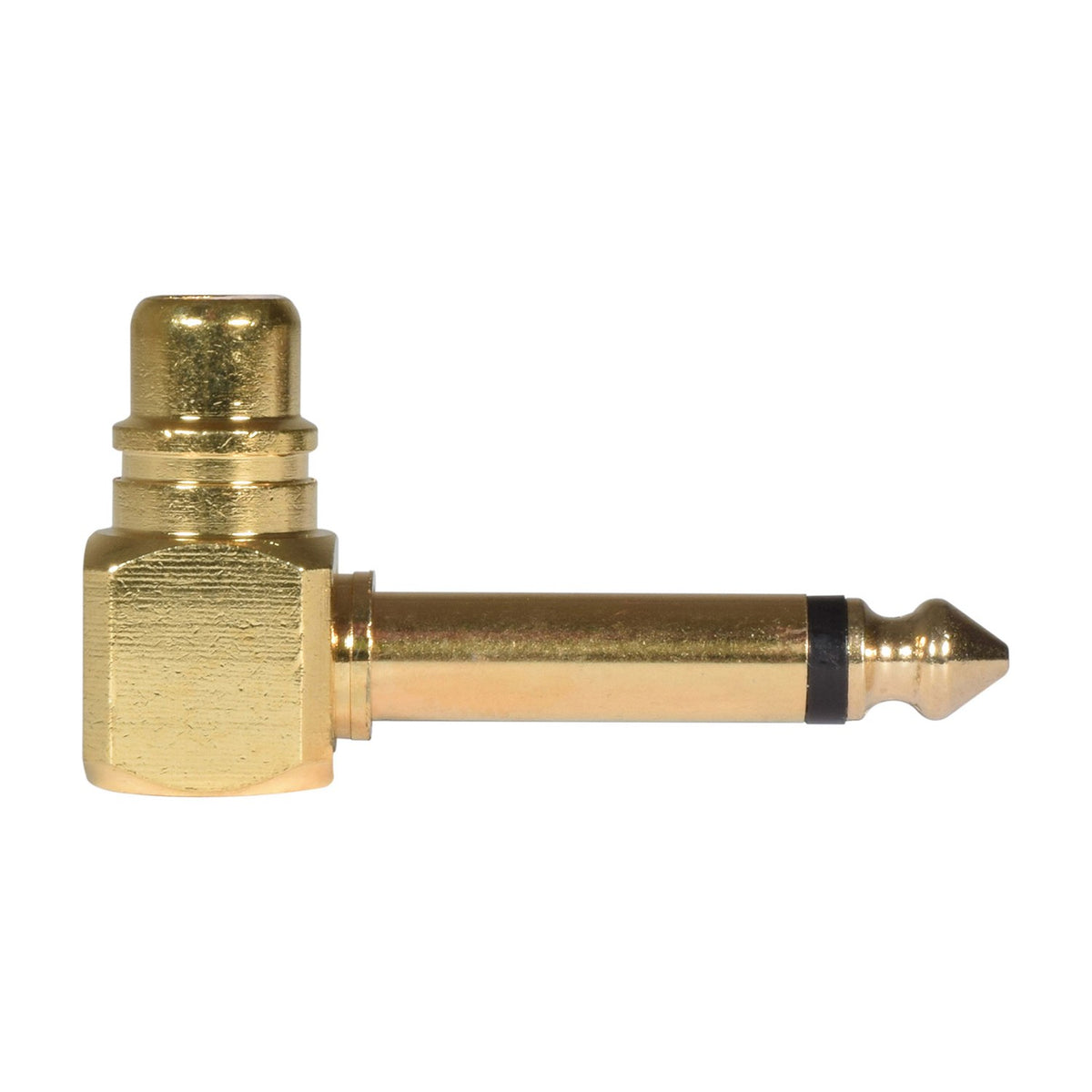

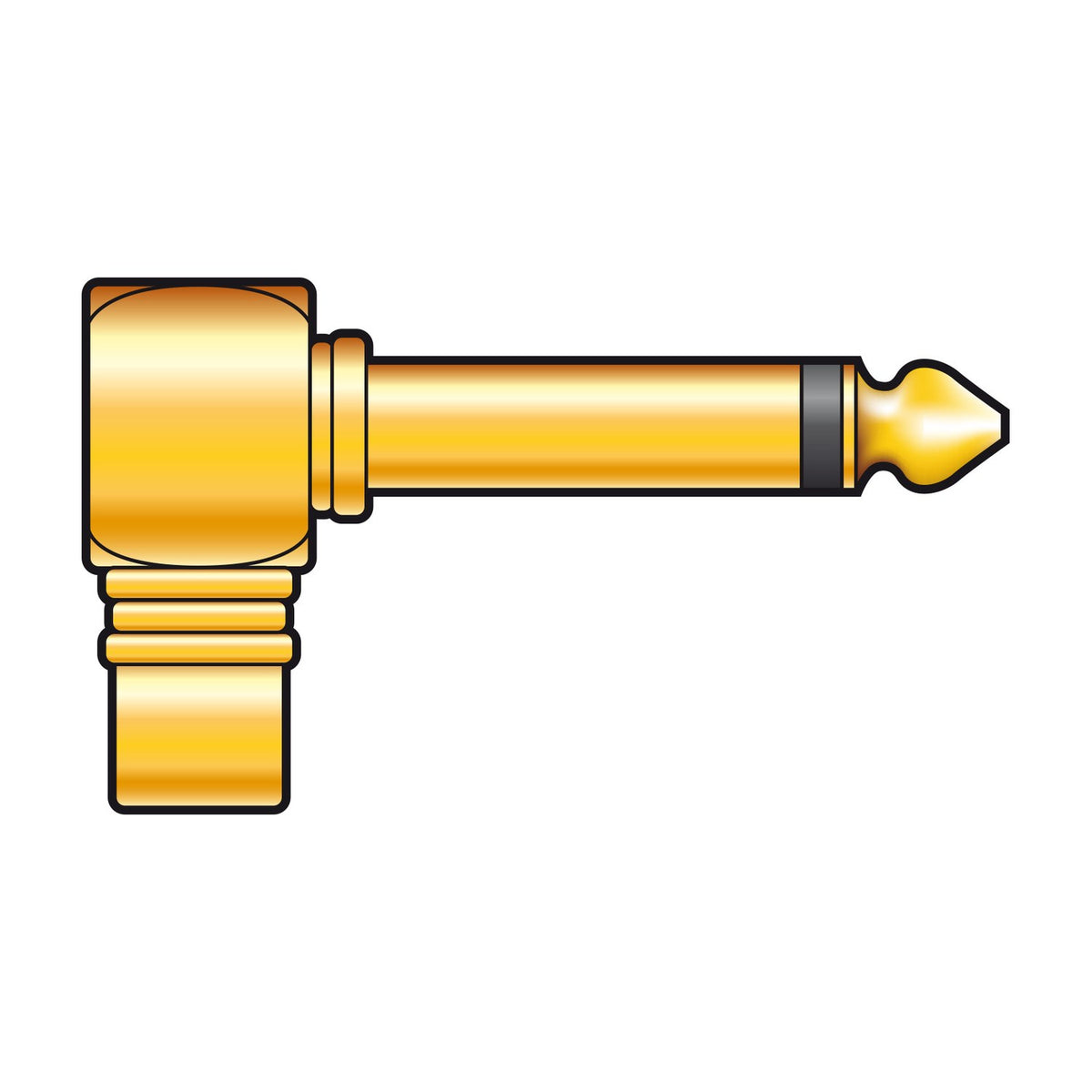

The QTX right-angled adaptor terminates in a 6.3mm (1/4 inch) mono jack plug at one end and an RCA phono socket at the other, configured in a 90-degree profile. The right-angled design routes the connected cable parallel to the device face rather than projecting straight out, reducing the overall footprint when space behind equipment racks or near walls is limited.

Designed for unbalanced mono audio applications, the adaptor allows an RCA-terminated cable to connect to a 6.3mm jack input typically found on guitar amplifiers, mixing desks, DJ controllers and older pro audio equipment. The mono configuration carries a single audio channel, suitable for instrument-level signals and line-level mono sources. The adaptor does not convert stereo to mono or provide any signal processing — it is a passive mechanical connection only.

The jack plug and RCA socket housing are constructed from metal with gold-plated contacts to reduce oxidation and maintain signal integrity over repeated connections. The compact body measures approximately 35mm in length from the base of the jack plug to the end of the RCA socket housing, keeping the overall projection minimal even when cables are connected. The right-angled orientation is fixed and cannot be rotated once manufactured.

Frequently Asked

Does this work with stereo signals?

No. The 6.3mm jack is wired as a mono plug with tip and sleeve only, so it carries a single audio channel. If you connect a stereo RCA source, only one channel will pass through the adaptor.

Which direction does the cable exit?

The right-angled design routes the RCA cable at 90 degrees to the jack plug axis. When the jack is inserted into a front-facing socket, the RCA cable exits parallel to the device face, running to the left or right depending on the orientation of the adaptor body.

Is it suitable for balanced audio?

No. The mono jack configuration is unbalanced (tip = signal, sleeve = ground). Balanced audio requires a TRS (tip-ring-sleeve) jack or XLR connection.

Can it be used with instrument cables?

Yes, provided the instrument cable terminates in an RCA plug. The adaptor passes the unbalanced instrument-level signal from the RCA input to the 6.3mm jack output without amplification or attenuation.
