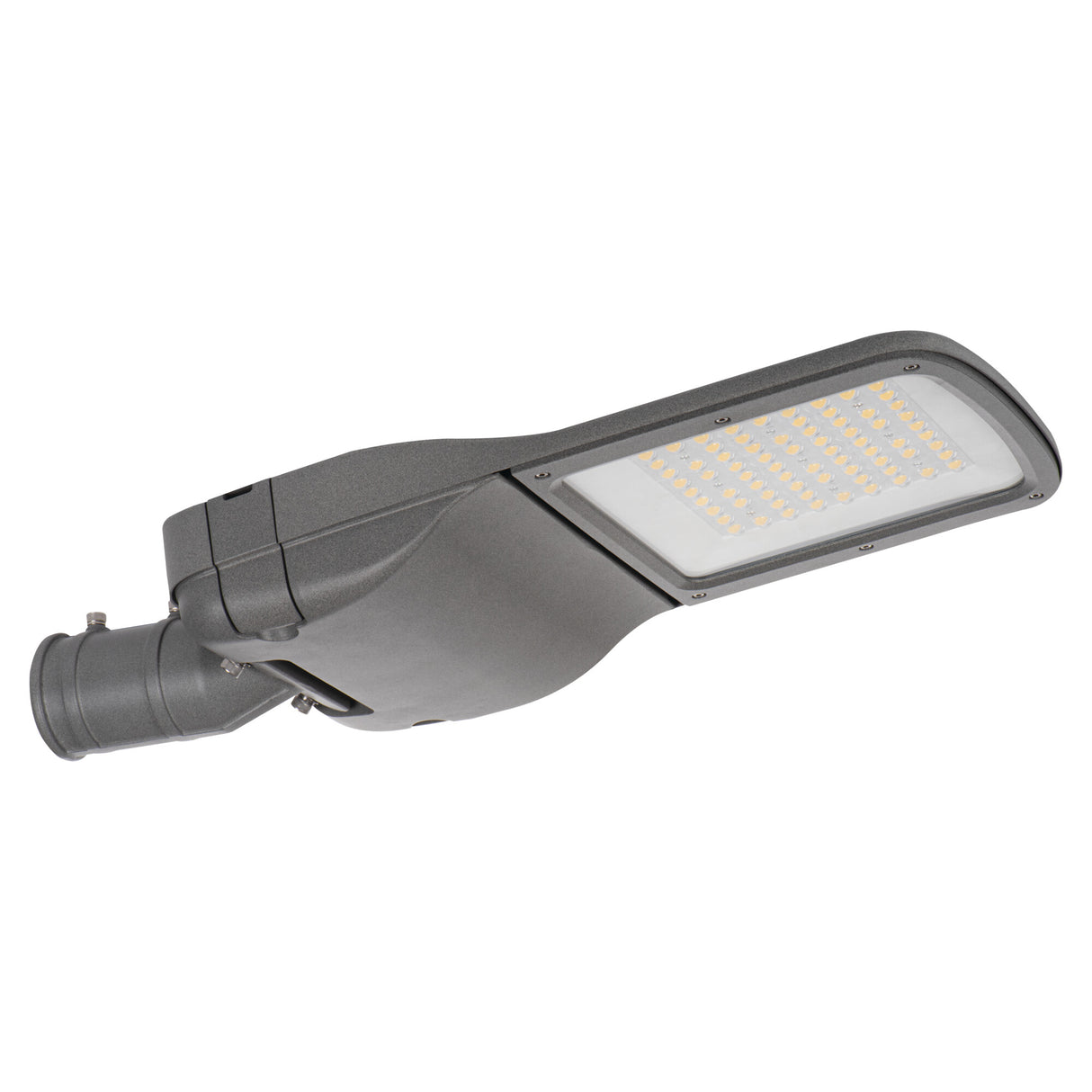

PRO-S 540x210 35W ZH LED Street Light IP66 - Grey

The PRO-S is a pole-mounted LED street light drawing 35W and delivering 5560 lumens at 159 lm/W, giving a high output from a compact head that measures 535 by 210 by 108 mm. It runs on 220 to 240V AC at a neutral 4000K white, with a wide asymmetric beam of 150° by 125° that spreads light along the carriageway rather than in a tight pool. North American specifiers will know this format of pole-top fitting as an area or shoebox light, the kind of luminaire fixed to a column above a road or parking lot.

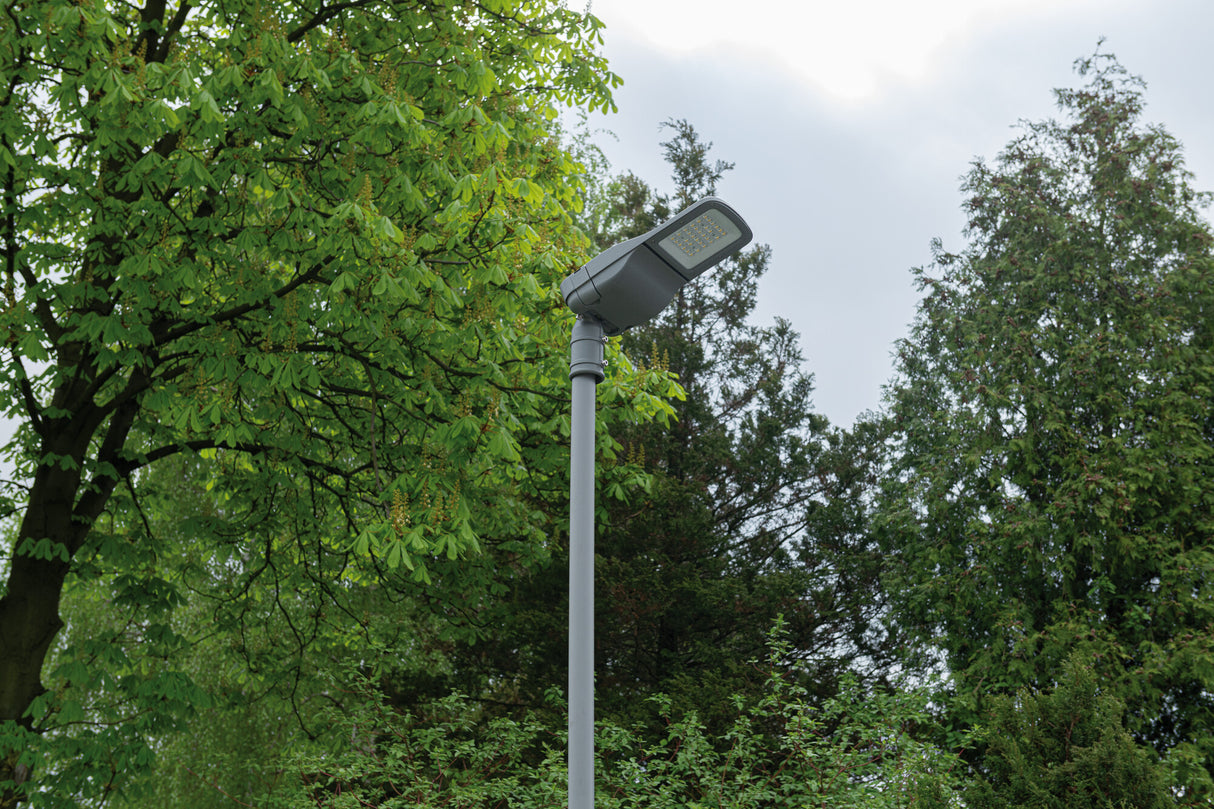

Mounted on a street pole or lighting column, the PRO-S suits roads, access drives, amenity areas and car parks where even, glare-controlled coverage matters more than a single bright spot. The 150° by 125° asymmetric throw lets fittings be spaced out along a run while keeping the surface between poles well lit, so it works for both through-routes and open parking bays. As an outdoor area luminaire it is judged on spacing and uniformity rather than a desk-lux figure, and its broad spread helps cut the dark gaps between columns. The neutral 4000K tone keeps surfaces, signage and vehicle colours clear at night.

Built from aluminium alloy in a grey finish, the PRO-S carries an IP66 rating for full weatherproofing in exposed and wet locations, plus an IK08 impact rating for outdoor durability. The integrated LED is rated for 100,000 hours and the fitting is not dimmable, running at a fixed 35W output. It weighs 2.99 kg and mounts to a standard street pole or column spigot. The PRO-S sits within a wider Pro-S range of street and car park luminaires offered in several wattages for different road and parking layouts.

Product Specification Sheet

Range Datasheet

How does the PRO-S mount onto a pole?

The PRO-S fixes to a street pole or lighting column via its mounting spigot, sitting as a pole-top or column-mounted head over the road or car park surface. It is designed purely for pole and column installation, not for fixing to a building. Check the spigot diameter against your column before ordering.

Is it suitable for exposed outdoor and wet locations?

Yes. With an IP66 rating it is fully weatherproof and rated against heavy rain and water jets, so it copes with open roads, car parks and unsheltered amenity areas. The IK08 rating also gives it solid impact resistance for outdoor use.

How should I space the fittings along a road or car park?

The wide 150° by 125° asymmetric beam spreads light along the run rather than directly below, which lets you space columns further apart while keeping the surface evenly lit. Final spacing depends on pole height, road width and the lux level required, so plan it around your layout. Each fitting delivers 5560 lumens at 4000K neutral white.

What does the PRO-S replace?

At 35W and 5560 lumens it offers an efficient LED alternative to older discharge street lanterns such as low-wattage SON or metal-halide heads, drawing far less power for comparable coverage. Its rated 100,000 hour lifespan also cuts maintenance visits to the column. The neutral 4000K output gives clearer colour than traditional orange SON lighting.
