42W IP20 DALI Dimmable Constant Current LED Driver

£3299
The RRP is the manufacturer's recommended retail price of the item.
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

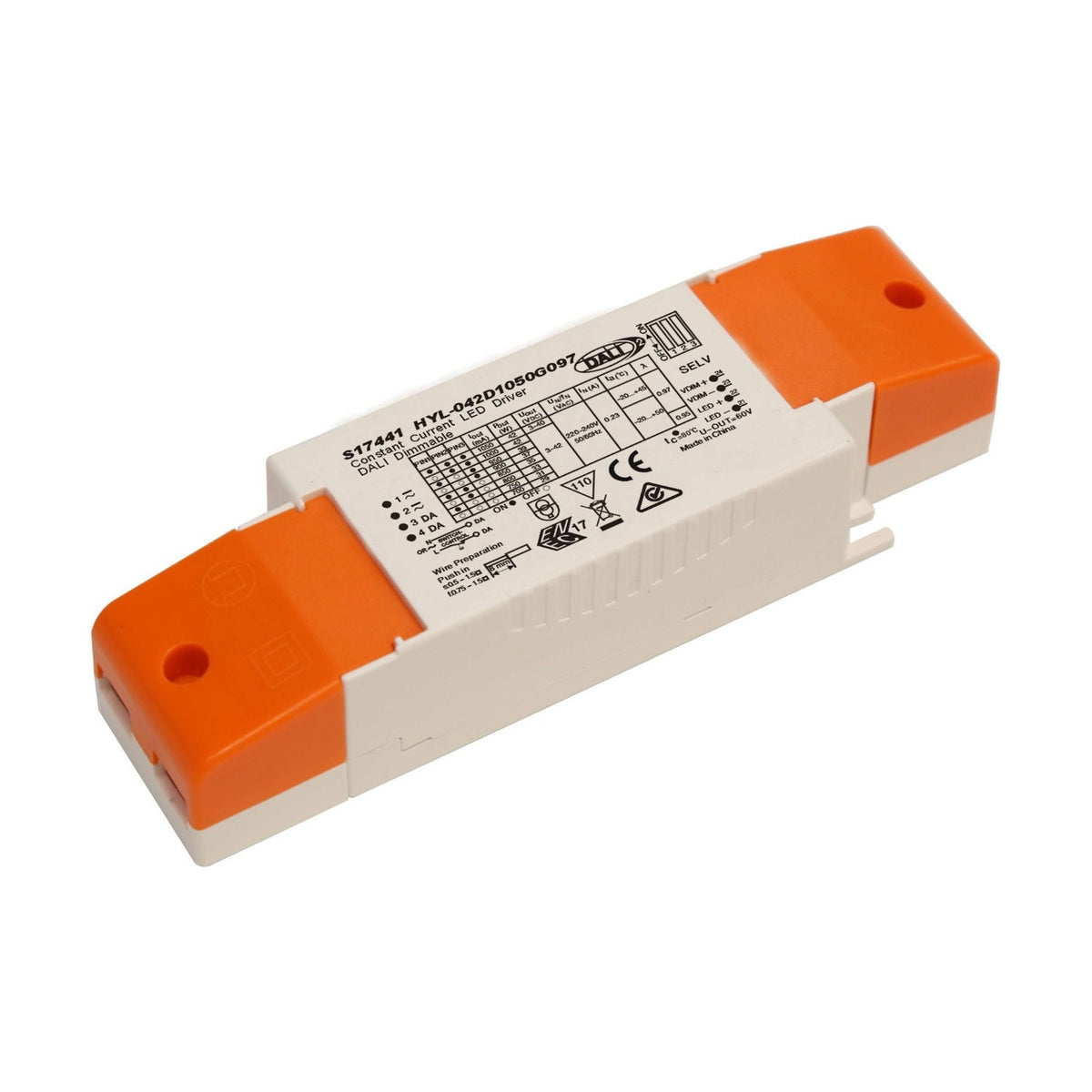

This is a 42W constant current LED driver with DALI dimming built in. A driver is the power supply an LED fitting needs between it and the mains: it converts the incoming supply to a low voltage, regulated output that the LED module can accept, and it is the part that does the dimming. Constant current means the output holds a set current steady and lets the voltage move to suit the module, which is what most LED panels, downlights and linear boards are built around. It carries an IP20 rating and is sold as a single unit.

It suits an installation that is already running, or about to run, a DALI control system: a digital lighting bus rather than a wall dimmer, with each driver given its own address so a controller or a scene plate can set levels individually or in groups. That makes it a sensible fit for offices, meeting rooms, retail floors, corridors and larger domestic projects where the lighting is grouped and scheduled rather than switched one circuit at a time. The IP20 rating means dry indoor positions only, such as a ceiling void, a trunking run or inside a fitting's own housing, with no protection against water.

The 42W figure is the driver's rated output, so add up the wattage of the modules you intend to run and keep the total at or below it, leaving a little headroom rather than sitting on the limit. Dimming runs over the DALI pair, so no separate dimmer module is needed, but a DALI controller or interface is required; it will not respond to a standard leading edge or trailing edge wall dimmer. The output current setting and the wiring detail are printed on the unit's own label, so check them against your LED module before connecting. Installation is work for a qualified electrician. It is sold singly, minimum order one.

Specification
Type Constant current LED driver
Wattage 42W
IP rating IP20
Dimmable Yes, over a DALI control line
Sold as 1 driver
Minimum order 1, sold in multiples of 1
Frequently Asked

What is DALI dimming, and do I need a controller for it?

DALI is a digital control protocol. A two wire control pair runs back to a DALI controller, interface or scene plate, which addresses the driver on its own or as part of a group.

Can I dim it from an ordinary wall dimmer?

No. The dimming is digital and happens over the DALI line, so a leading edge or trailing edge mains dimmer will not control it and should not be wired to it.

How much load will it take?

It is rated at 42W. Add up the wattage of every LED module you plan to put on the output and keep the total at or below that figure, with a little headroom.

Where can it be installed?

The IP20 rating gives no protection against water, so it belongs in dry indoor positions: a ceiling void, a trunking run, a luminaire housing or an accessible service space.

What output current does it deliver?

The manufacturer does not state an output current figure here. The unit's own label carries the output detail, so match that to the forward current your LED module requires.

How many drivers do I receive?

One. This listing is a single driver with a minimum order of one, so there is no multipack quantity to allow for when you are ordering.
