Mercury Cat6 U/UTP Outdoor Network Cable, Black (100m)

£5299
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Mercury Cat6 U/UTP Outdoor Network Cable, supplied in a 100m reel, is built for robust performance in outdoor installations where reliable high-speed data transfer is essential. Constructed with oxygen-free solid copper conductors, this cable is designed to meet Gigabit Ethernet standards, delivering stable performance with a bandwidth capacity up to 250MHz. Its LDPE sheath ensures excellent UV and weather resistance, protecting the cable from environmental damage and extending its lifespan in exposed conditions. The UTP design makes the cable lightweight and simple to handle during installation, while still providing consistent signal quality. Supplied in an easy-pull dispensing box and metre-marked at 1m intervals, it offers hassle-free setup and precise cable management. Fully compliant with TIA/EIA-568 Cat6 standards, this cable is ideal for CCTV, IP cameras, outdoor access points, and other high-demand networking applications where reliability is key.

Key Features:

  • Cat6 cable supporting Gigabit Ethernet up to 250MHz
  • Solid oxygen-free copper conductors for stable performance
  • Outdoor-ready LDPE sheath with UV resistance
  • Easy-pull dispensing box with 100m reel and metre markings
  • Lightweight UTP construction for easier handling
Specification
Conductor Solid OFC
Strands 8 x 0.53mmØ ±2%
Cable : diameter 6.0±0.05mm
Insulation HDPE 0.93±0.05mm
Sheath LDPE 0.55±0.05mm thickness
DC resistance @ 20°C <9.38 ohms/100m
Impedance (100 to 250MHz) 100±15 ohms
Return loss >20.1dB @ 100MHz
Attenuation >19.8dB @ 100MHz
NEXT >44.3dB @ 100MHz
Phase delay >537.60ns @ 100MHz
PSNEXT >42.3dB @ 100MHz
ELFEXT >27.8dB @ 100MHz
PSELFEXT >24.8dB @ 100MHz
Cable colour Black
Cable : length 100±0.5m
Weight 4.3kg

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

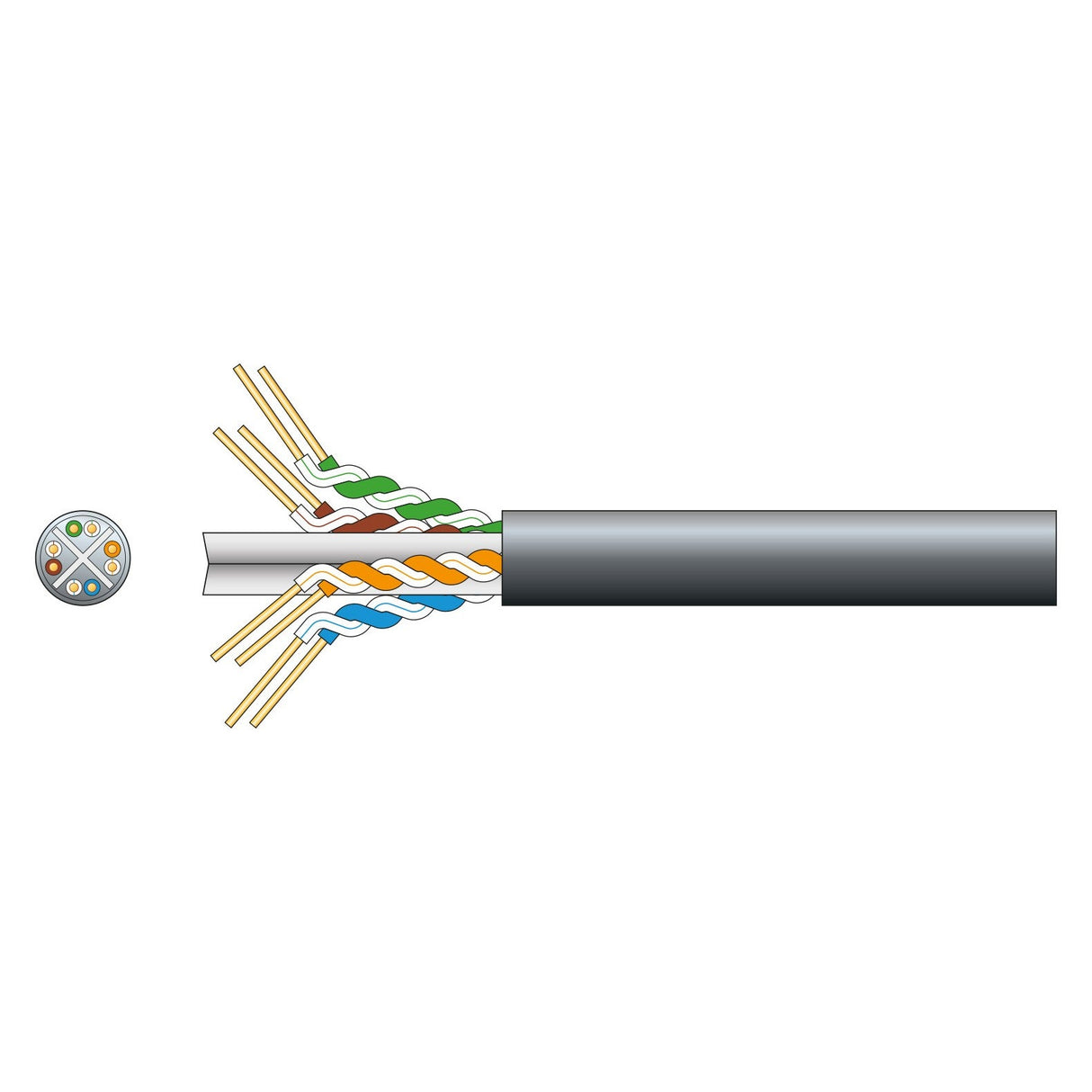

    This illustration showcases a cross-sectioned Mercury Cat6 U/UTP Outdoor Network Cable, Black (100m), resembling a standard Cat6 data cable. Inside its black outer sheath are multiple twisted pairs of oxygen-free copper wires in orange, green, blue, and brown hues, separated by a clear plastic divider to optimize Gigabit Ethernet performance.
