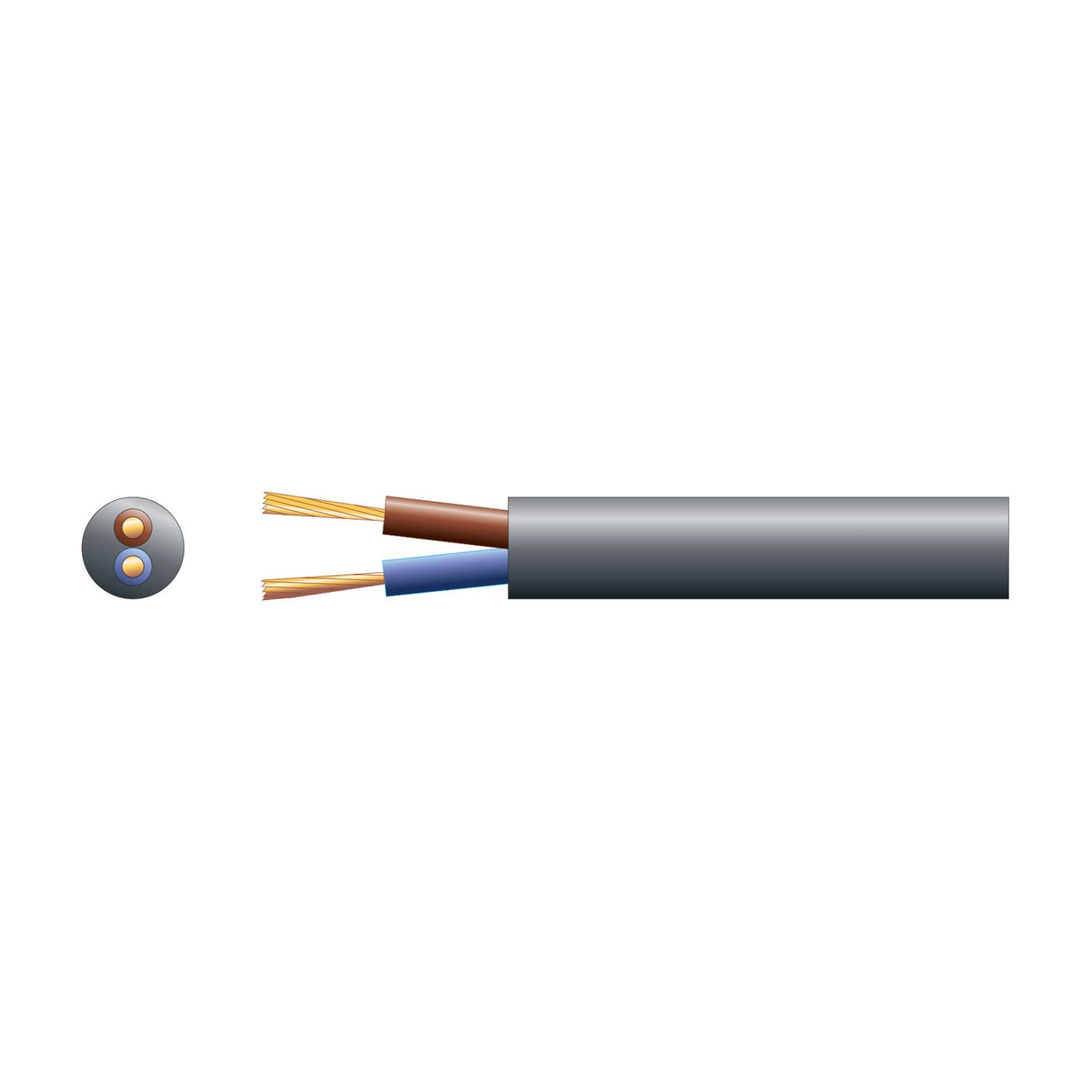

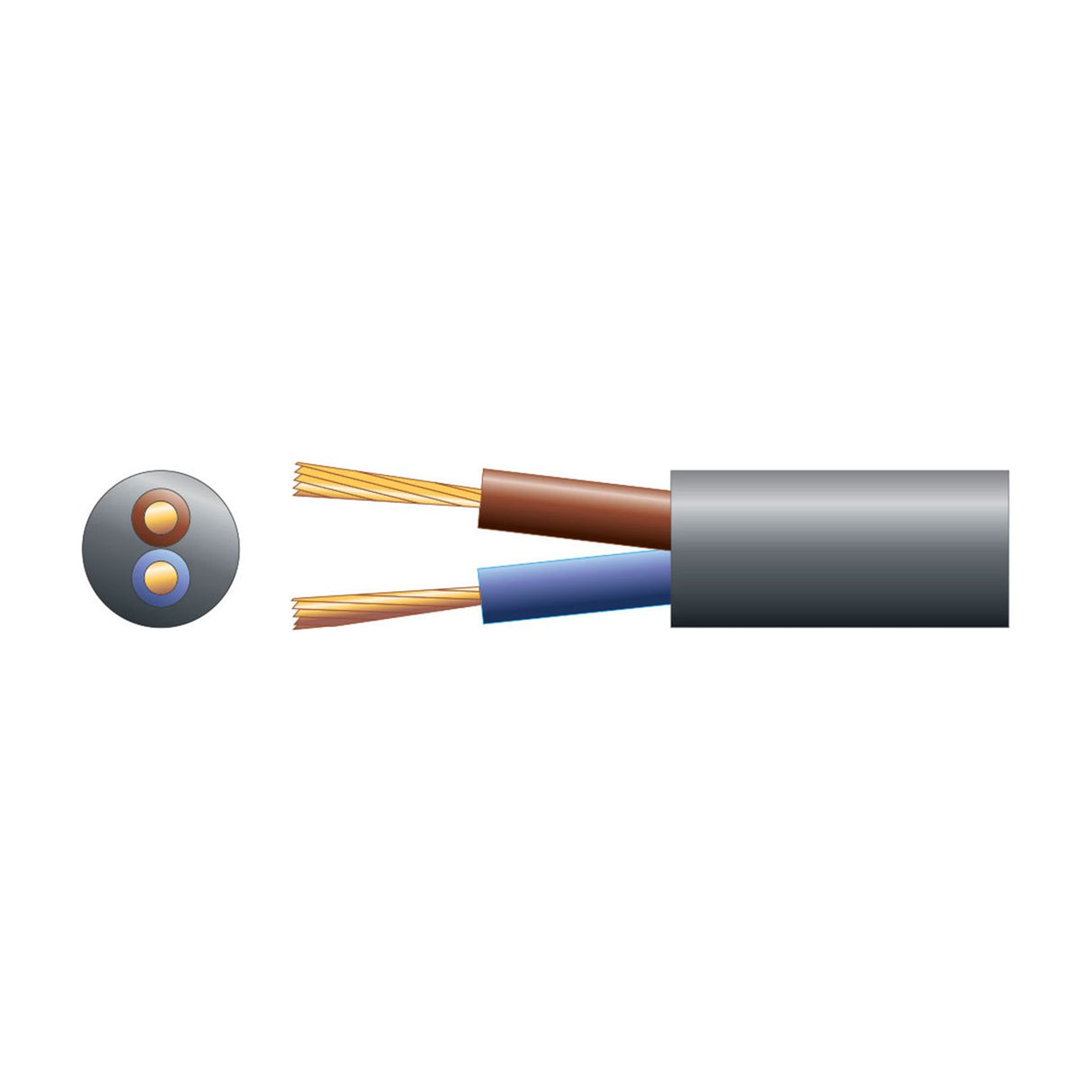

Mercury 2 Core Round Mains PVC Cable 1.0mm² Black - 100m Reel

The Mercury 2 core round mains cable is a flexible PVC-insulated cable with a 1.0mm² cross-sectional area, rated for up to 10A continuous current. Each core contains 32 strands of 0.2mm copper wire, providing flexibility for installation through conduit, trunking or direct fixing along surfaces. The black PVC outer sheath measures 6.4mm in diameter and provides mechanical protection against abrasion and moisture ingress during typical indoor installation.

Designed for light electrical and appliance wiring in residential, commercial and light industrial settings, the cable suits fixed installations where two-core wiring is needed without an earth conductor — typically for double-insulated appliances, LED driver connections, low-power lighting circuits and control wiring. The 10A rating handles loads up to 2,300W on 230V mains supply. The cable is supplied on a 100m reel, with two reels per pack.

Both BS6500 and VDE standards approval means the cable meets UK and European safety requirements for insulation resistance, voltage withstand and conductor resistance. The flexible construction allows the cable to be bent around corners and through tight spaces without kinking, while the PVC sheath resists common household chemicals, oils and solvents. The black finish keeps the cable visually discreet when surface-mounted or visible in utility areas.

What applications is this cable suitable for?

The Mercury 2 core cable is designed for light electrical and appliance wiring where an earth conductor is not required. Typical uses include double-insulated appliances, LED driver connections, low-power lighting circuits and control wiring in residential and commercial installations. The 10A rating suits loads up to 2,300W on 230V supply.

Does this cable include an earth conductor?

No. This is a 2 core cable containing only live and neutral conductors. It is intended for use with double-insulated (Class II) equipment that does not require earthing. For installations requiring an earth conductor, a 3 core cable or twin-and-earth cable is needed.

What standards does the cable comply with?

The Mercury 2 core cable is approved to both BS6500 (British Standard) and VDE (German engineering standards), meaning it meets UK and European requirements for insulation resistance, voltage withstand and conductor resistance.

Can this cable be used outdoors?

The PVC sheath provides moisture resistance but the cable is primarily designed for indoor installation. For outdoor use the cable should be installed within weatherproof conduit or trunking to protect it from UV degradation and direct water ingress.
