Mercury 100U Foamed PE Coaxial Cable With CCA Braid, White (100m)

£4499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

75 Ohms 100U coaxial cable constructed of solid oxygen free copper conductor, foam filled polyethylene dielectric, copper foil screen, copper clad aluminium braid and PVC sheath. The overall screen and braid significantly reduce noise penetration to the conductor making it suitable for digital, satellite and cable TV signal transmission.

  • Solid OFC conductor
  • Foam filled PE dielectric
  • Copper foil screen
  • CCA braid
  • Supplied in 100m or 250m reel with metric cut markers
Conductor diameter 1mmØ
CSA 0.79mm²
Dielectric 4.6mmØ foam PE
Screen Copper foil
Braid 64 x 0.12mmØ
Cable : diameter 6.6mmØ
Impedance 75 Ohms
Capacitance 54pF/m
Velocity factor 83%
Return loss 5-400MHz 28dB min./100m
Return loss 450-1000MHz 24dB min./100m
Return loss 1000-2150MHz 18dB min./100m
Attenuation @ 5MHz 1.8dB max./100m
Attenuation @ 50MHz 4.7dB max./100m
Attenuation @ 100MHz 6.6dB max./100m
Attenuation @ 200MHz 9.7dB max./100m
Attenuation @ 400MHz 14.6dB max./100m
Attenuation @ 860MHz 19.6dB max./100m
Attenuation @ 1000MHz 21.6dB max./100m
Attenuation @ 1750MHz 29.1dB max./100m
Attenuation @ 2150MHz 32.7dB max./100m
Conductor material Solid OFC
Braid material CCA
Colour White
Length 100m
Weight 4kg
Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

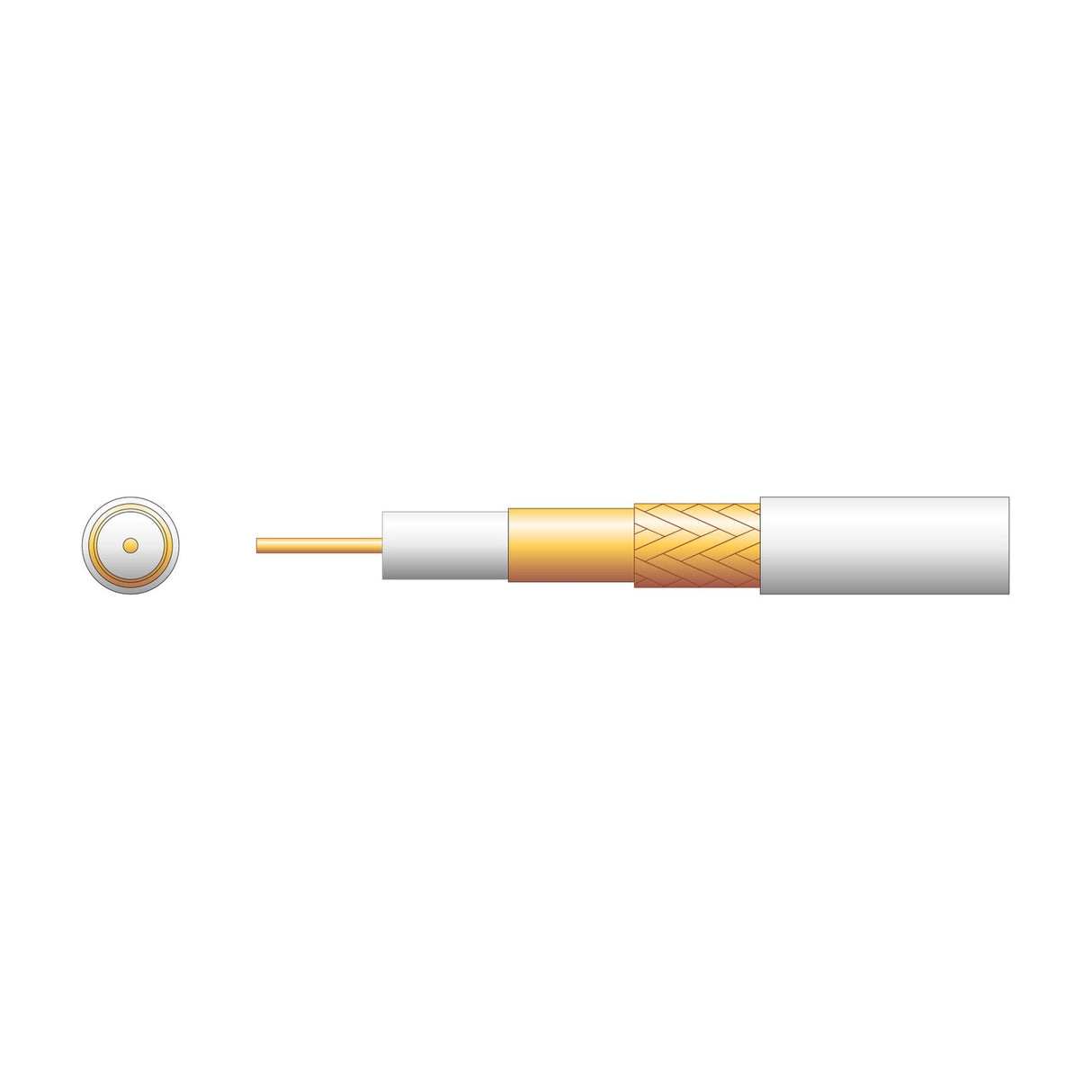

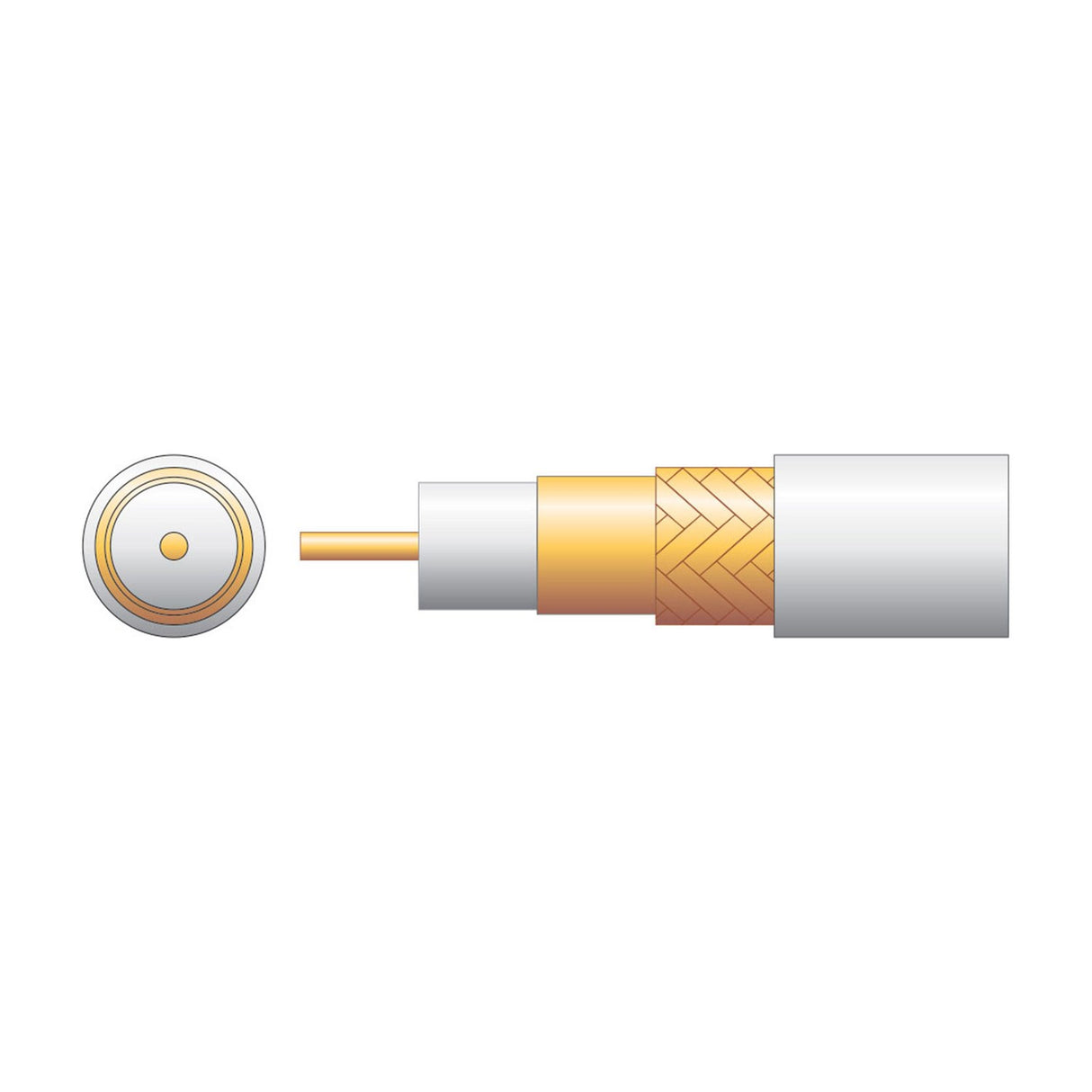

    Illustration of the Mercury 100U Foamed PE Coaxial Cable, featuring a cross-section optimized for 75 Ohms, perfect for digital TV signal transmission. The diagram displays layers from inside out: central copper conductor, insulating dielectric layer, CCA braided metal shielding, and outer white plastic sheath. A circular cross-section is shown next to the exploded view.
