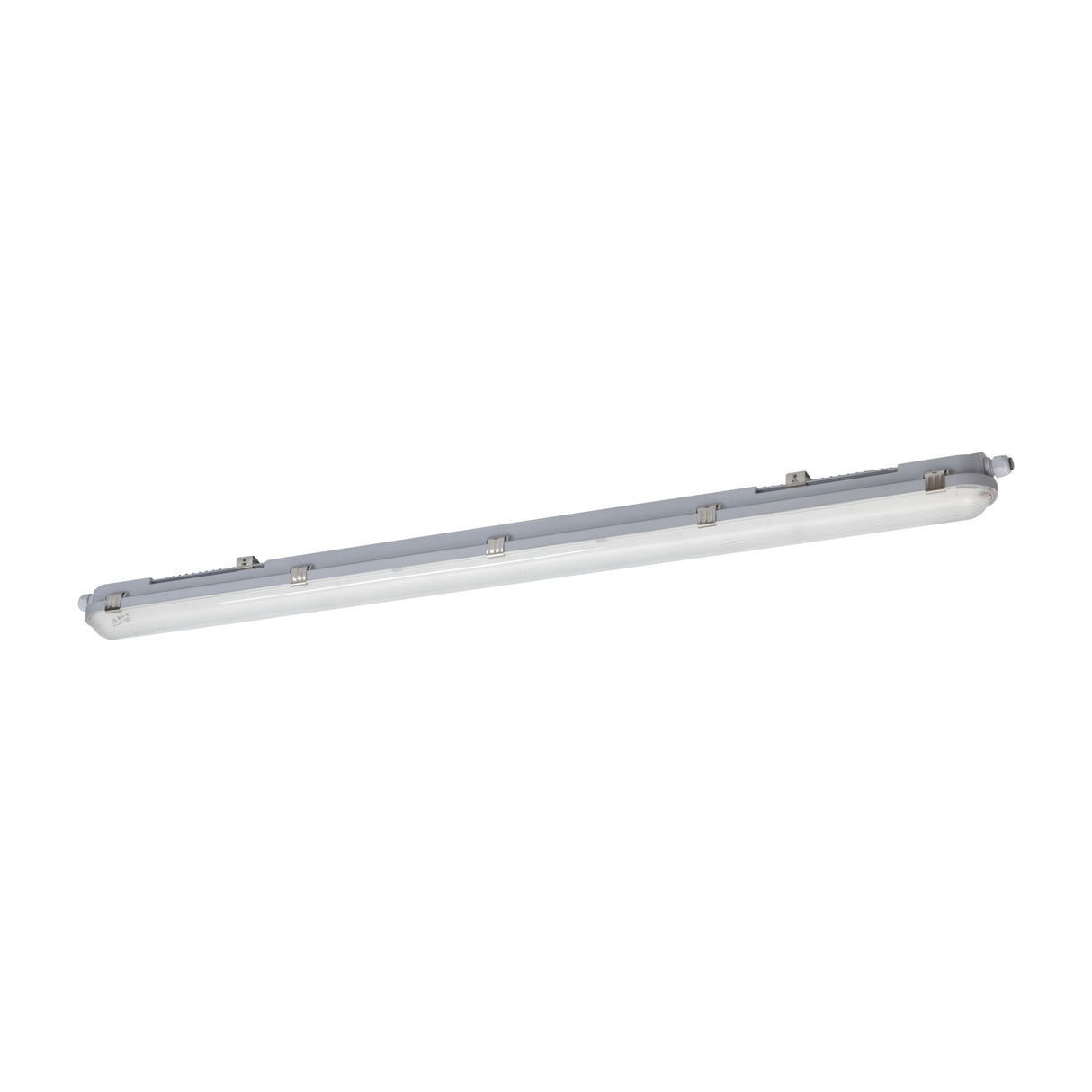

MAH PRO EM 52W Selectable Emergency Batten IP66 - Grey

The MAH PRO EM is an emergency LED light fitting built on a linear batten body, offered with selectable power across 52W, 44.5W, 37W and 29.5W to suit the run and the site. Output tracks the chosen setting, ranging from 8400 lm at full power down to 5000 lm at the lowest, all at a neutral 4000K with Ra 80 colour rendering. The 110 degree beam spreads light evenly along its 1500 mm length, and as an emergency luminaire it doubles as everyday illumination while holding charge for the moment the supply fails. Specifiers in North America will recognise this format as an emergency batten of the wraparound type used through plant rooms and service corridors.

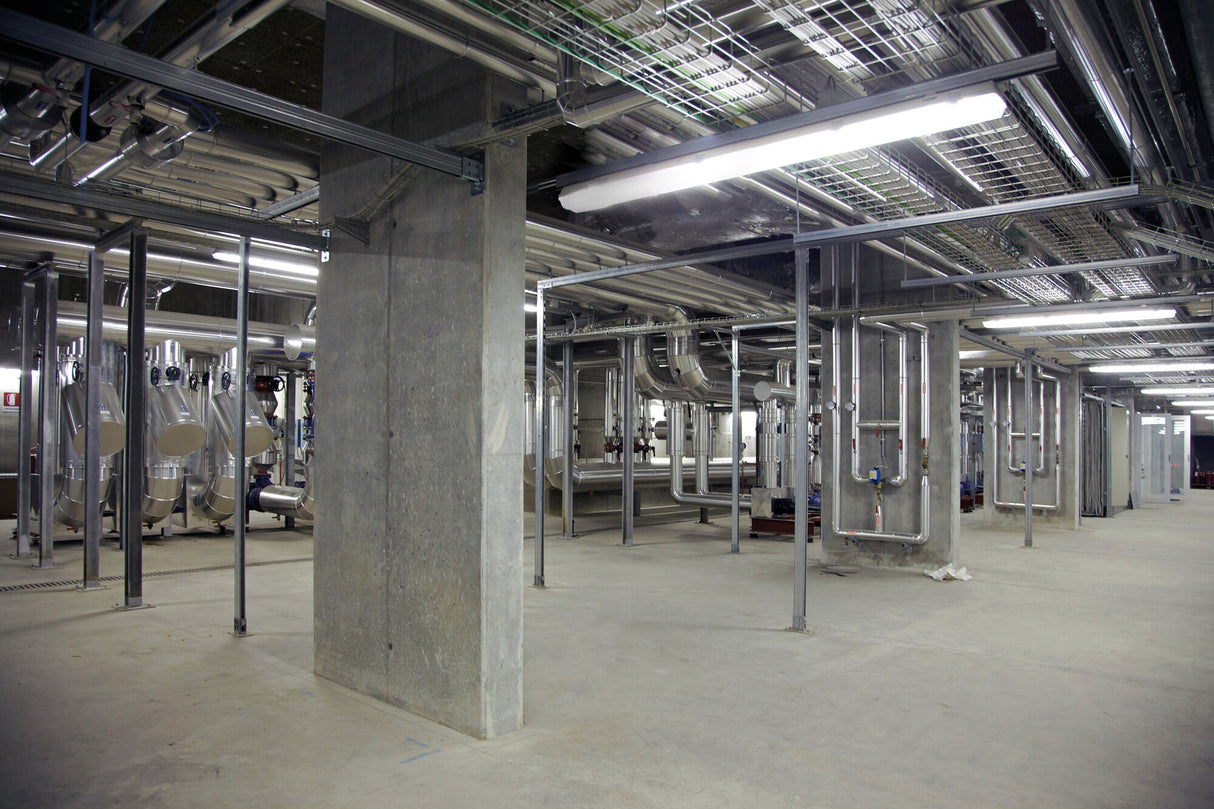

Running on 220-240V AC mains, the fitting is aimed at car parks, loading bays, warehouses, plant rooms and external walkways where a robust, weatherproof emergency light is required. Its coverage suits long linear runs rather than a single room, marking an escape route clearly along its length and throwing usable light from the 110 degree beam across the width of a corridor or bay. Mounted at typical ceiling or high-wall heights, the selectable wattage lets the same fitting be tuned up for tall industrial spaces or eased back where less output is needed. Because it is an emergency unit, the figures describe escape-route marking rather than a desk-task level.

The body is moulded polycarbonate in a grey finish, rated IP66 for full weatherproofing in exposed outdoor and wet locations and IK08 for impact resistance. It carries an integral emergency battery and gear, weighs 1.95 kg and measures 1500 × 75 × 75 mm, fixing by ceiling or wall mounting. The fitting is not dimmable and is rated for 50,000 hours of service. Kanlux supplies the wider MAH PRO EM range in matching lengths and wattages for consistent specification across a site.

Is this a maintained or non-maintained emergency fitting?

The MAH PRO EM works as a maintained luminaire, providing normal everyday illumination from the mains and switching to its internal battery when the supply is lost. This makes it suitable for areas that need constant light as well as guaranteed emergency cover. Always confirm the wiring mode against your site's emergency lighting design.

How long does it run in emergency mode?

On loss of mains the integral battery sustains emergency output to mark the escape route, in line with standard emergency luminaire duration requirements. The exact runtime should be verified during commissioning and periodic testing. Regular function and duration tests keep the fitting compliant.

Can it be used outdoors and in wet locations?

Yes. With an IP66 rating it is fully weatherproof and suitable for exposed outdoor positions, wet areas and washdown environments such as loading bays and external walkways. The IK08 rating also gives it solid impact resistance for industrial sites.

What does the selectable power setting do?

The fitting can be set to 52W, 44.5W, 37W or 29.5W, giving outputs from 8400 lm down to 5000 lm at 4000K. This lets one product be tuned to the ceiling height and brightness needed in different parts of a site. The setting is chosen at installation rather than adjusted day to day, as the fitting is not dimmable.
