LYYT 12V DC 5A Indoor Power Supply LED Driver - 1.2m Hard-Wired Lead

£1399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

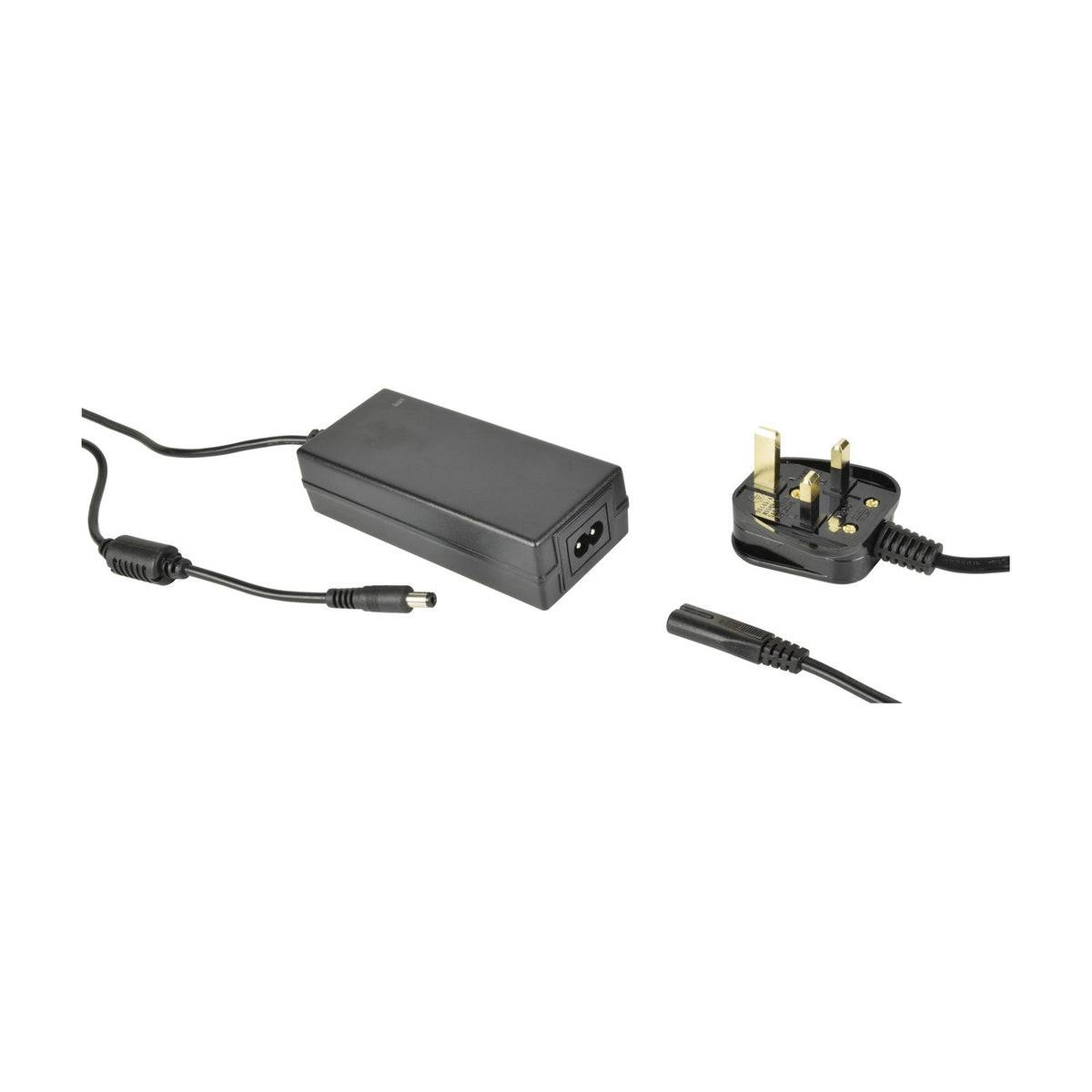

The LYYT 12V DC indoor power supply delivers up to 5A continuous output through a 1.2m hard-wired lead terminated with a 5.5 x 2.1mm centre-positive DC plug. The unit accepts 100-240Vac mains input via a detachable UK figure-8 lead, making it suitable for powering 12V LED tape runs, CCTV cameras, access control panels and similar fixed installations requiring regulated DC power.

Designed for permanent indoor installation, the sealed enclosure measures 118 x 50 x 32mm and carries an IP20 rating, meaning it provides basic protection against solid objects larger than 12.5mm but is not moisture-resistant. The 1.2m output lead allows the PSU to be positioned away from the powered device where space or heat dissipation requires it, while the detachable mains lead simplifies cable routing during installation.

The 5A maximum output supports LED tape runs up to 60W total power draw, or multiple lower-power devices wired in parallel to the same DC plug. The centre-positive polarity is standard for most 12V DC equipment, but reverse-polarity equipment will require an adapter or different PSU. At 214g the unit can be cable-tied or velcro-mounted behind furniture, inside AV racks or under worktops without needing mechanical fixing for the PSU itself.

Specification
DC output 5.5 x 2.1mm DC plug
Lead length 1.2m
Voltage 12Vdc
IP rating IP20
Input 100-240Vac, 47/63Hz
Polarity Centre positive
Current max. 5A
Dimensions 118 x 50 x 32mm
Weight 214g
Frequently Asked

What length of LED tape can this power?

At 5A maximum output, the PSU supports up to 60W of 12V LED tape (5A x 12V = 60W). Most 12V LED tape draws between 4.8W and 14.4W per metre depending on LED density, so this PSU can power approximately 4-12 metres of tape on a single run. Always check the specific tape wattage per metre before connecting.

Can it be used outdoors?

No. The IP20 rating means the unit has no moisture protection and must be installed indoors in a dry location. For outdoor 12V DC applications, use an IP65 or IP67 rated power supply.

Is the polarity compatible with all 12V devices?

The PSU outputs centre-positive polarity, which is the standard for most 12V DC equipment including LED tape, CCTV cameras and access control panels. Some audio or vintage equipment uses centre-negative polarity and will require a different PSU or a polarity adapter.

Can the mains lead be replaced?

Yes. The PSU uses a detachable figure-8 (IEC C7) mains lead, which can be unplugged and replaced with a longer lead if needed during installation.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Refunds are made in line with our returns policy, which has the full details.

To arrange a return, call us on 020 8149 5199 or use our contact page.
