Description

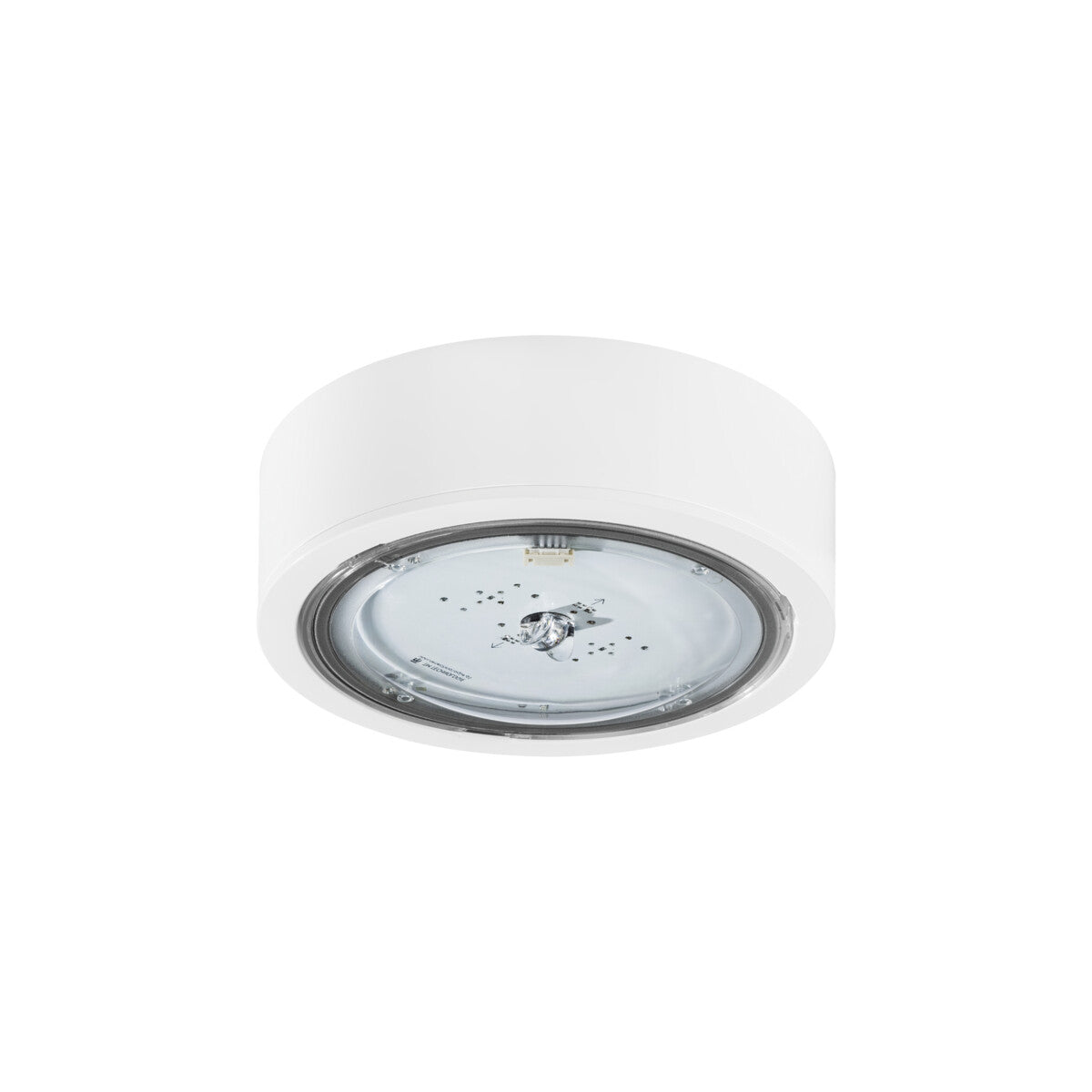

The Itech is a surface-mounted emergency light that draws 2W from a 220-240V AC supply and puts out 269 lumens at a crisp 5000K. Its round housing measures Ø170 by 66.5mm, sitting proud of the surface rather than recessing into it. The output is tuned for marking rather than general illumination, so on mains failure it lights an escape route clearly without flooding the area. As an emergency LED light, it carries the safety duties that fire codes refer to as exit and egress lighting in US terms.
The fitting works across a wide spread of locations thanks to its weatherproof build, covering corridors, stairwells, plant rooms and car parks where a power cut must not leave people in the dark. Its F1 emergency function keeps a clear, cool beam over the immediate escape path, so coverage is best judged by route length and sightlines rather than a room-area figure. The Ø170 body suits both wall and ceiling positions, letting it be sited at the height that best marks a doorway, change of level or final exit point.
Built from white plastic, the Itech is rated IP65, which makes it weatherproof and fit for exposed outdoor and wet locations as well as damp utility spaces. It mounts to the surface on a wall or ceiling and runs at 5000K for a daylight-toned beam. The white finish keeps it discreet against pale ceilings. This range also includes further wattage and function options for matching emergency cover across a site.
Specification
| Power |
2W |
| Voltage |
220-240 AC |
| Luminous flux |
269 lm |
| Colour temperature |
5000K |
| IP rating |
IP65 |
| Mounting |
Wall Mounted, Ceiling Mounted |
| Dimensions |
Ø170 × 66.5 mm |
| Material |
Plastic |
| Finish |
White |
Downloads
Frequently Asked
Is this a maintained or non-maintained emergency light?
The Itech operates as a non-maintained emergency light, meaning it illuminates only when the mains supply fails. Its F1 function brings the LED on automatically to mark the escape route during a power cut. For everyday lighting you would pair it with separate general fittings.
How long does it stay lit on battery?
Emergency fittings of this class are designed to provide light for the duration required by the building's fire strategy, typically up to three hours on the internal battery. This covers the time needed for occupants to leave and for responders to act. Confirm the rated duration against the spec sheet for your scheme.
Can it be used outdoors or in wet areas?
Yes. The Itech is rated IP65, so it is weatherproof and suitable for exposed outdoor positions and wet locations such as plant rooms and car parks. The sealed white housing keeps moisture and dust out of the LED and battery.
Does it need regular testing?
Emergency lighting must be tested periodically to confirm the battery sustains the rated output on mains failure. This usually means a short monthly function check and an annual full-duration test, logged for compliance. Check the unit for a test facility or wire it into your site's test arrangement.
