Description

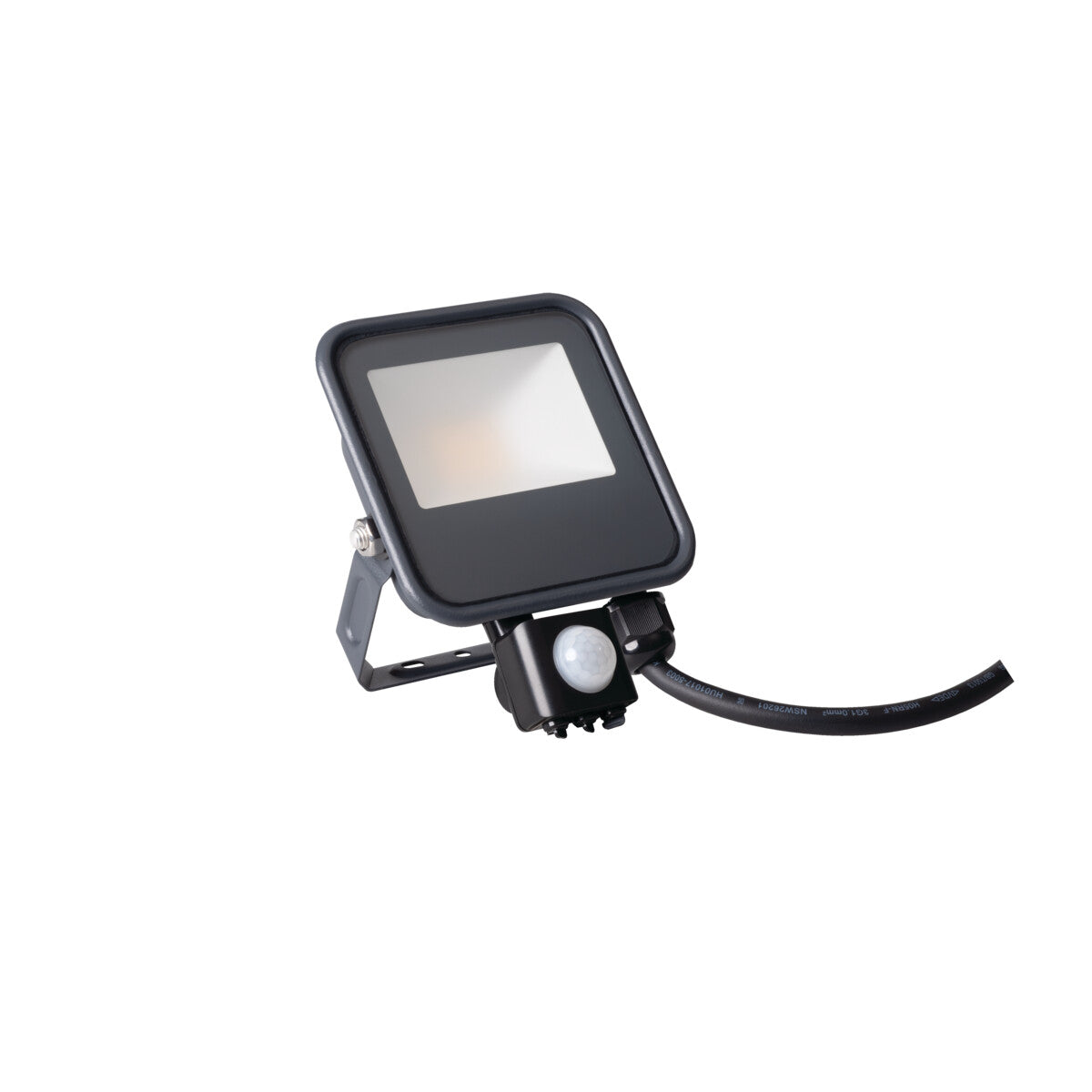

The IQ-LED is a compact 10W LED floodlight with a built-in PIR motion sensor, drawing 1200 lumens at a neutral 4000K white from a 220-240V AC supply. The 100 degree beam angle spreads a wide wash of light rather than a narrow spot, so the area in front of the fitting is covered evenly the moment movement is detected. American buyers shopping for an outdoor security flood light will recognise this as the same format, sized for a doorway or a single bay rather than a yard-wide wash.
This wattage suits entrances, porches, side passages, garages and garden walls where a controlled burst of light on approach matters more than sky-high output. The 1200 lumen flux from a 10W fitting points to short-throw duty: it covers the area immediately ahead of the sensor, lighting a path, a step or a doorway as someone arrives, then switches off again once movement stops. As a guide to old halogen kit, 1200 lumens stands in for roughly a 60W halogen flood, so it is an efficient swap for a small worklight or security lamp. Mounted at typical eaves or door height with the head angled down, it gives reliable coverage of the immediate approach without flooding a neighbour's plot.
Built from metal in a black finish, the fitting carries an IP65 rating, so it is sealed against dust and direct water jets and is fit for fully exposed outdoor and wet locations. It runs straight off mains voltage with no separate transformer needed, and mounts to a wall or ceiling with the bracket included. The fitting is not dimmable, which suits its sensor-led on-off role, and the LED array is rated for 50,000 hours of service. The IQ-LED range also includes higher-wattage and non-sensor floodlights for larger spaces.
Specification
| Power |
10W |
| Voltage |
220-240 AC |
| Luminous flux |
1200 lm |
| Efficiency |
120 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
100° |
| IP rating |
IP65 |
| Dimmable |
No |
| Mounting |
Wall Mounted, Ceiling Mounted |
| Lifespan |
50,000 hours |
| Weight |
356 g |
| Material |
Metal |
| Finish |
Black |
Downloads
Frequently Asked
How bright is it and what does it replace?
It delivers 1200 lumens from 10W of LED, which is roughly equivalent to an old 60W halogen floodlight. That makes it a low-running-cost replacement for a small halogen security lamp, at an efficiency of 120 lm/W.
Can it be used outdoors and in the rain?
Yes. The IP65 rating means it is sealed against dust and direct water jets, so it is suitable for fully exposed outdoor and wet locations such as walls, porches and garages. The metal body and black finish are made to weather year-round.
How does the PIR sensor work?
The integrated PIR detects movement within its field and switches the floodlight on, then turns it off again after movement stops. This makes it well suited to security and approach lighting around doorways, paths and side passages, where light is only needed when someone is present.
How do I keep it clean?
Wipe the lens and sensor window with a soft, damp cloth once the fitting is switched off and cool, avoiding abrasive cleaners on the metal housing. Keeping the PIR window clear of grime, cobwebs and leaves helps maintain reliable motion detection.
