Description

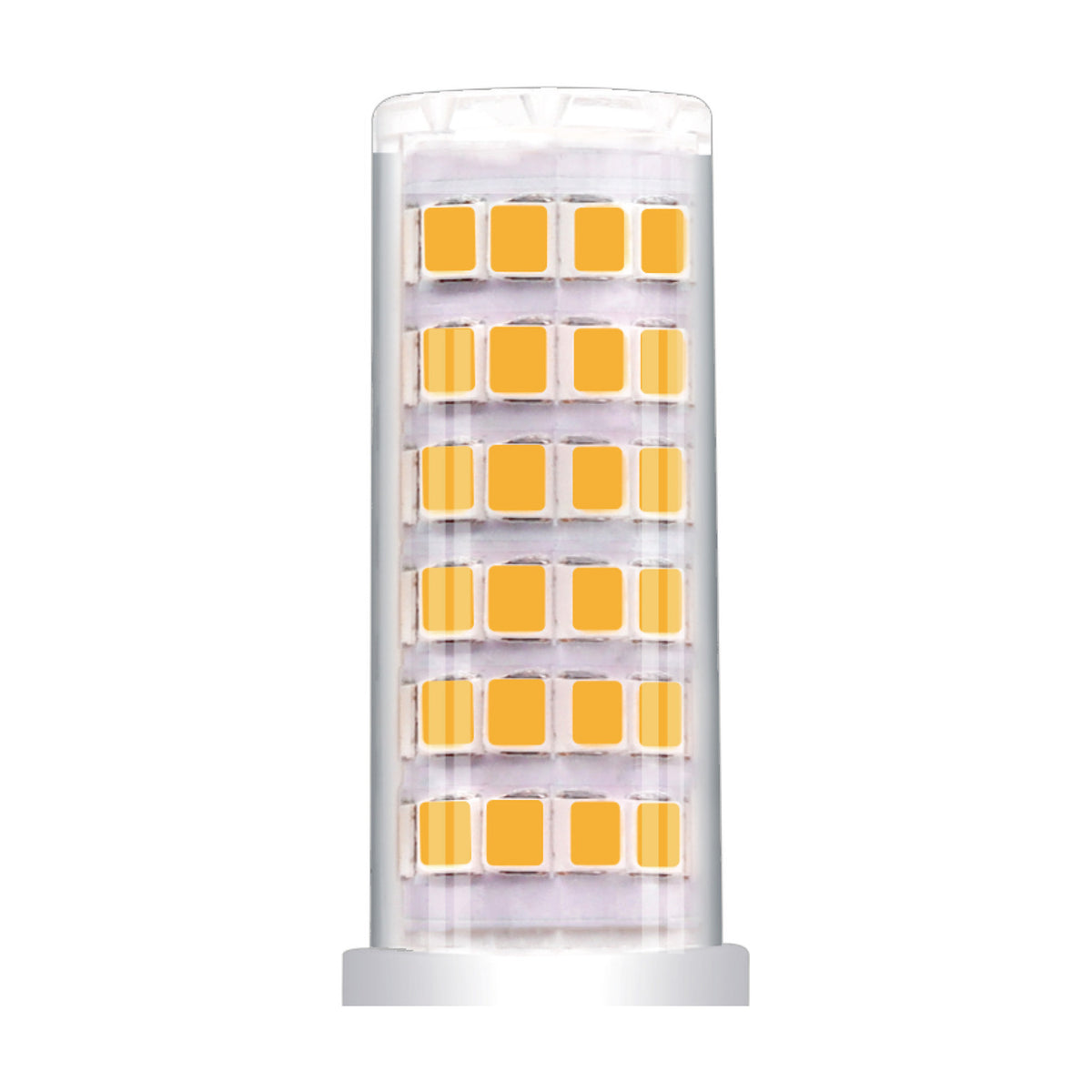

A capsule lamp on the two pin G4 base, with a clear body and warm white light at 3000K. It draws 5W and gives around 500 lumens, spreading light widely rather than throwing it forward, which suits the small glass shades and open fittings these capsules usually live in. It runs on a low voltage supply, so it belongs in fittings with a transformer or driver behind them. Switching is simply on or off, as this is not a dimming lamp.
We sell most of these as replacements for the halogen capsules in glass pendants, small wall lights and multi-arm fittings, where the old lamp ran hot and gave up quickly. It is also a sensible choice for desk and picture lamps, display cabinets, and anywhere the lamp sits close to a shade or a lens. Because the body is clear it looks right where the capsule can be seen through glass, and in an enclosed or frosted fitting the same output simply reads softer.

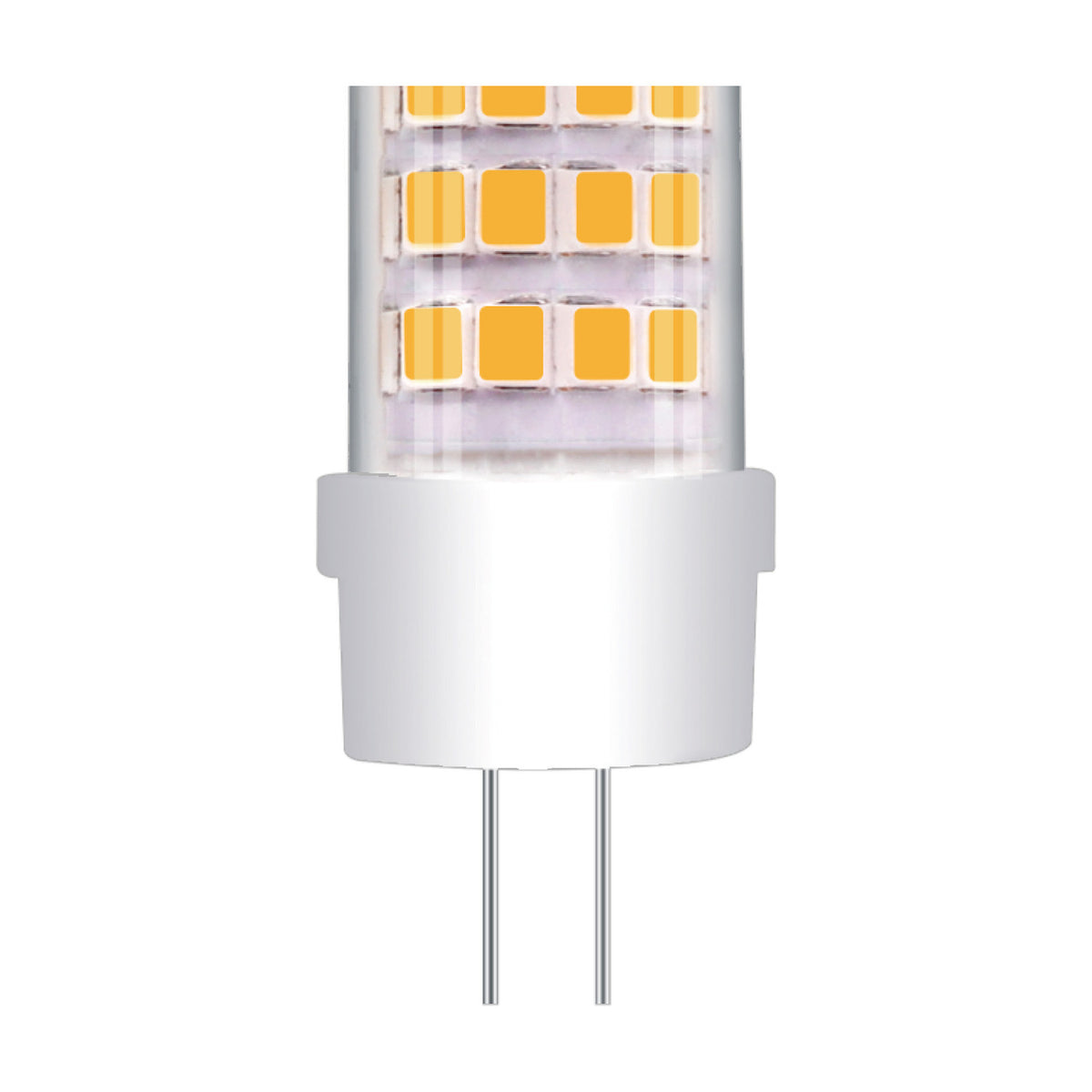

The body is clear with a white base section, and the whole lamp is small enough to disappear into most holders. Handle it by the base rather than the body, and when the fitting is switched off and cool, a dry cloth is all it needs; nothing damp, no solvents. It carries a two year warranty. We stock the same size in cool white for kitchens and work areas, and a lower output capsule on the same base for fittings that hold several lamps at once, which makes it easy to match a whole chandelier or step the brightness down across it.
Specification
| Colour |
Clear |
| Second Colour |
White |
| Weight |
0.10KG |
| Diameter |
18.7mm |
| Height |
57mm |
| Materials Used |
Ceramic, PCB |
| Energy Class |
A+ |
| Energy Class of Lamp |
A+ |
| Max Energy Class |
A+ |
| Min Energy Class |
A+ |
| Lamp Cap |
G4 |
| Maximum Wattage |
5W |
| Colour Temperature |
3000K Warm White (±5%) |
| Average Life of Lamp |
20000hrs |
| Number of Switching Cycles |
100000 |
| Average Life of LED |
20000hrs |
| LED Power |
5W (±5%) |
| LED Current |
345mA (±5%) |
| Type of LED |
SMD |
| Beam Angle |
240° |
| System Flux |
500lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Ambient |
| Total Power Consumption |
5W (±5%) |
| Input Voltage |
AC/DC 12V |
| Input Current |
AC/DC 12V |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
20000hrs |
| Warranty |
2yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Plug-in Item |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What voltage does this lamp need?
It is a 12V lamp drawing 345mA, so it must be used in a fitting fed by a suitable transformer or LED driver rather than run directly from mains.
How big is it?
The capsule measures 18.7mm across and 57mm tall including the pins, so it fits the great majority of G4 holders.
Can I dim it?
No. This one is non-dimmable, and putting it on a dimmer circuit may cause flicker or shorten its life. Choose a dimmable lamp if the circuit is dimmed.
How warm is the light?
It is rated 3000K warm white, a soft yellow-white that sits comfortably alongside older halogen capsules in the same fitting.
Is it bright enough to replace a halogen capsule?
Yes. At 500 lumens it comfortably covers the sort of halogen capsule it replaces, and with a 240 degree spread it fills a glass shade evenly.
How should I clean it?
Switch the fitting off, let everything cool, then dust the capsule with a dry cloth. Hold it at the base so you do not mark the clear body.
