Description

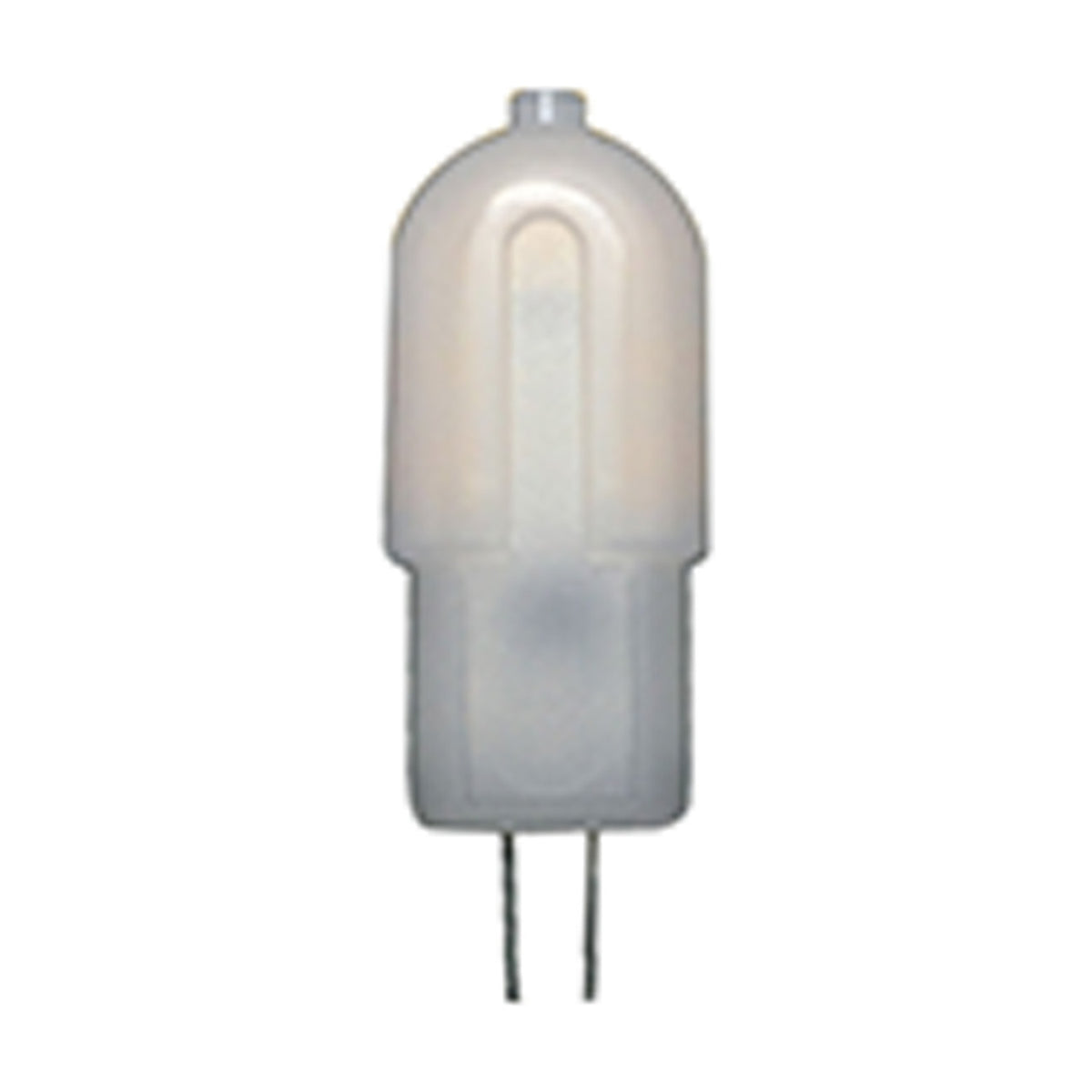

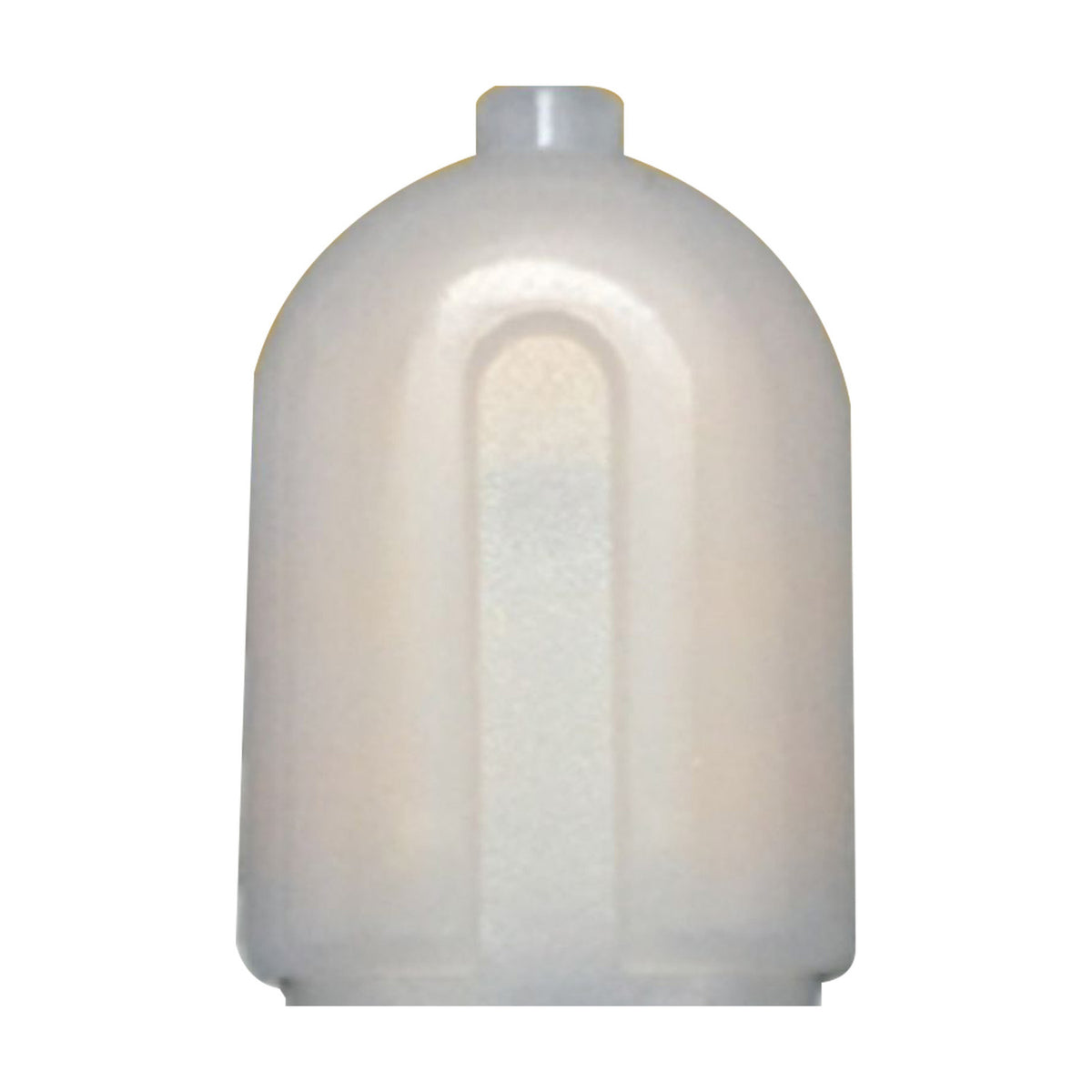

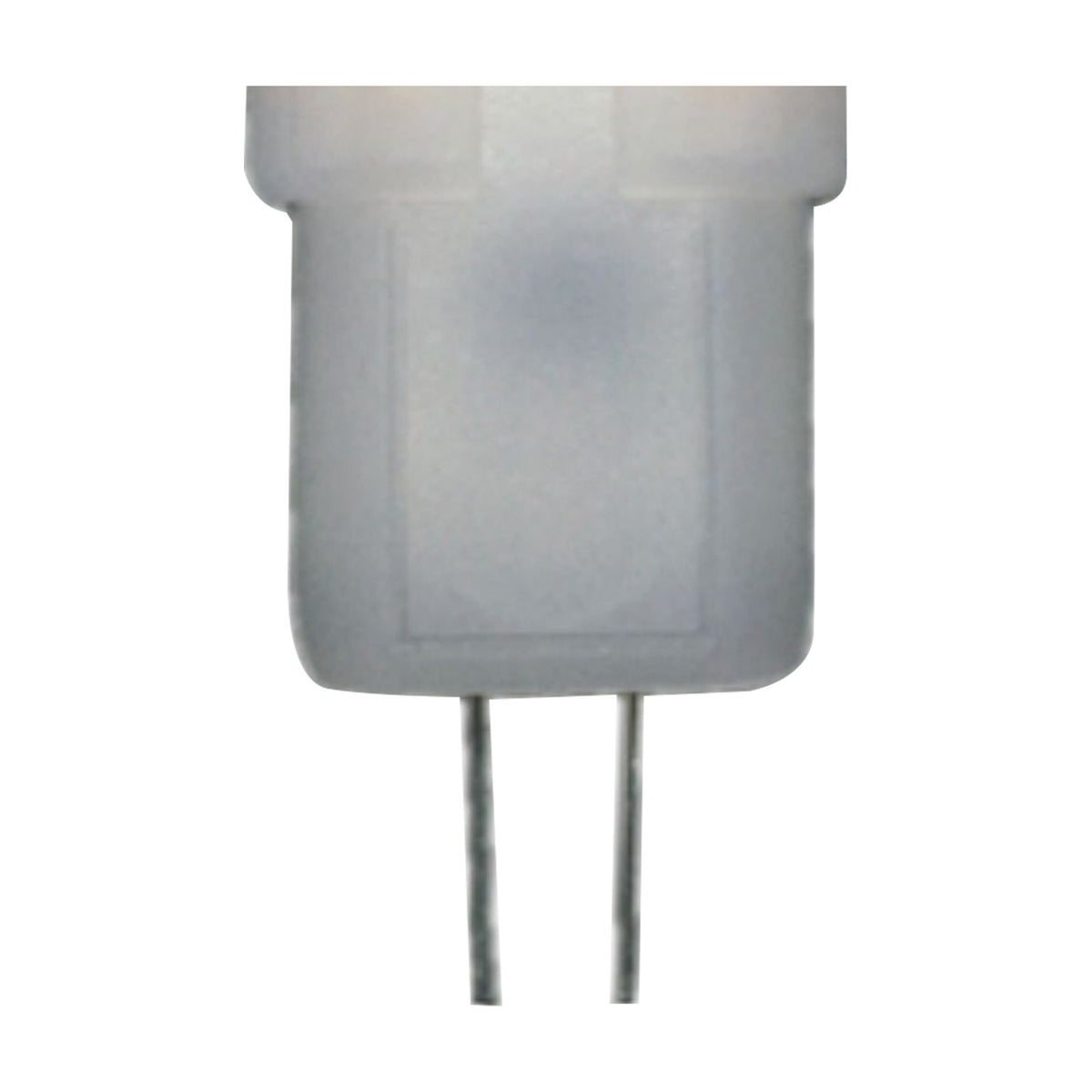

A compact LED capsule on a G4 pin base, made for the small pockets where halogen capsules once went. It draws 2W and gives around 190 lumens of warm white at 3000K, a soft, slightly golden light rather than a clinical one. The casing is white, and the output spreads broadly from the head instead of throwing a narrow beam. This one does not dim, so it belongs on a plain switched circuit.
Capsules this size turn up in more places than most lamps: multi-arm glass chandeliers, small pendants, mirror lights, display cabinets, shelf lights and the shallow recesses of furniture lighting. The wide spread suits fittings with clear glass or crystal, where a tight beam would read as a hot spot on the shade. Keep it to dry rooms indoors, so living rooms, bedrooms, dining rooms and hallways rather than anywhere open to weather or splashing. Working through a chandelier with a lot of holders, this is the lamp we would order as a full set, so the colour stays even across the whole fitting.
The white casing stays discreet behind clear glass and vanishes into most holders once the light is on. Cleaning asks very little: power off, lamp cool, a dry cloth over the body, nothing damp and no sprays. It carries a two year warranty. Within the same range we also stock this capsule in a pure white for a cooler, crisper light, and a brighter warm white capsule on the same socket, so you can hold the tone through a room and step the output up where more light is wanted. The LED is fixed inside the body, so the lamp is simply replaced when it eventually fails.
Specification
| Colour |
White |
| Weight |
0.10KG |
| Diameter |
13mm |
| Height |
36mm |
| Materials Used |
Aluminium & Polycarbonate |
| Energy Class |
A+ |
| Energy Class of Lamp |
A+ |
| Max Energy Class |
A+ |
| Min Energy Class |
A+ |
| Lamp Cap |
G4 |
| Maximum Wattage |
2W |
| Colour Temperature |
3000K Warm White (±5%) |
| Average Life of Lamp |
20000hrs |
| Number of Switching Cycles |
100000 |
| Shape of Lamp |
Capsule |
| Average Life of LED |
20000hrs |
| LED Power |
2W (±5%) |
| Beam Angle |
240° |
| System Flux |
190lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Ambient |
| Total Power Consumption |
2W (±5%) |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
20000hrs |
| Warranty |
2yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Installation |
Plug-in Item |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size is the capsule?
It measures 13mm in diameter and 36mm in height, so it fits the compact holders and enclosed pockets typical of G4 fittings.
Can it be used with a dimmer?
No. This capsule is non-dimmable and should be run from a plain on/off switch.
How much light does it give, and how does it spread?
Around 190 lumens at 3000K warm white, across a wide 240 degree spread, so it lights the inside of a shade or a glass fitting fairly evenly rather than throwing a spot.
How long is it rated to last?
The average rated life is 20,000 hours, and the lamp carries a two year warranty.
Will it match my existing warm white lamps?
At 3000K it sits in the warm white band, so it pairs well with other 3000K lamps. Mixing it with a 4000K or 5000K lamp in the same fitting will show as a visible difference in tone.
How should I clean it?
Switch off at the wall, let the capsule cool, then wipe the body with a dry cloth. Avoid water, solvents and any spray cleaner.
